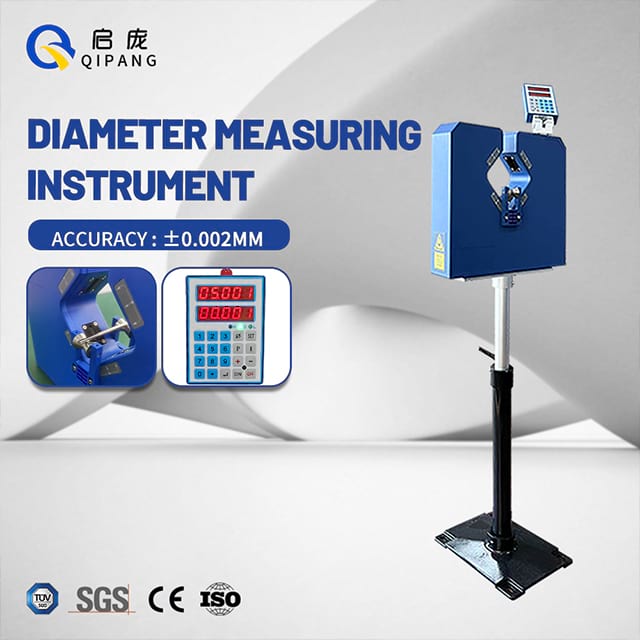

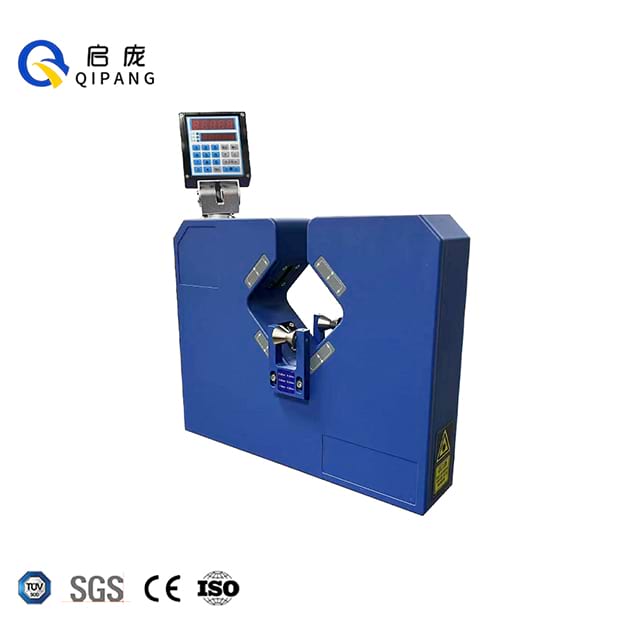

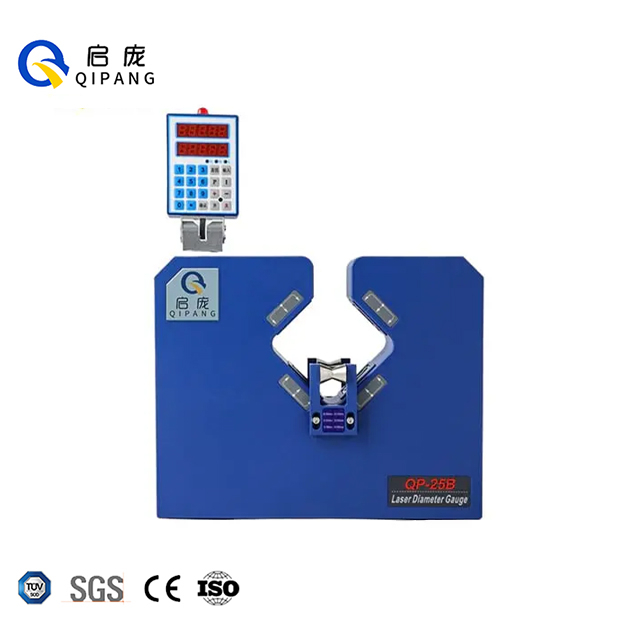

The QP-25B Laser Diameter Measuring Instrument is a high-end high precision double axis laser diameter gauge independently developed by Shanghai Qipang Industrial Co., Ltd., a professional manufacturer of industrial non-contact measuring equipment. Certified by TUV, SGS, CE and ISO, this instrument is specially designed for B-end industrial production scenarios requiring ultra-precise diameter detection of small workpieces. Adopting advanced two-dimensional measurement mode, its orthogonal dual laser beams completely eliminate measurement errors caused by workpiece vibration, and the measuring accuracy reaches ±2μm±0.008%Dz mm, which is far higher than the industry average level. Equipped with a backlit ultra-clear display, it can work stably in low-light industrial sites, and the vibration-resistant laser measuring device is not affected by the running speed of the production line, realizing real-time online detection. With IP65 protection grade and NEMA4 standard, it has excellent corrosion and dust resistance, and is the core measuring equipment for precision manufacturing enterprises to control product quality.

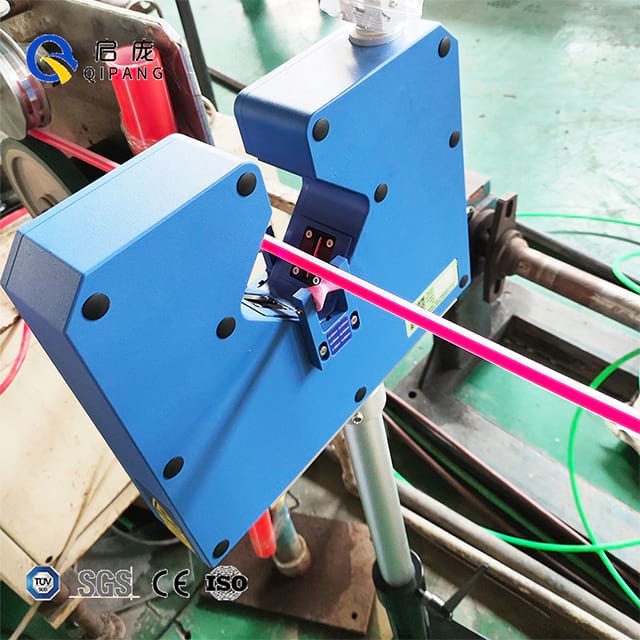

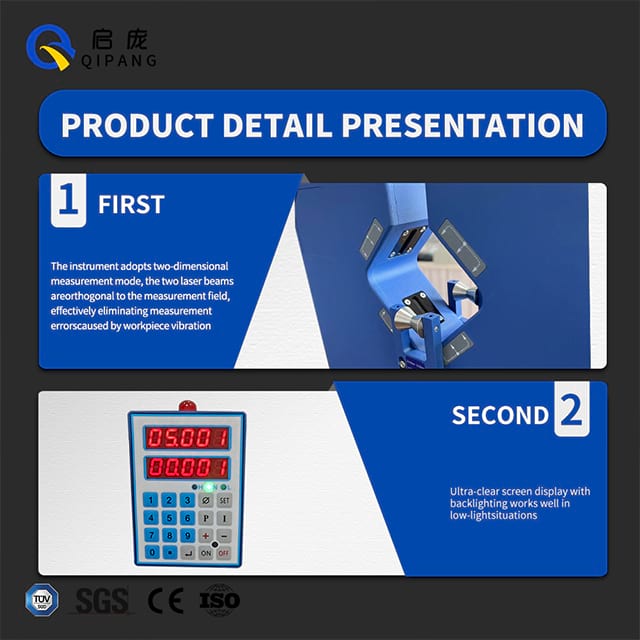

The QP-25B Laser Diameter Measuring Instrument is equipped with double measurement axes and advanced DSP processing technology, with a high scanning speed of 1000 times per second and a resolution of 0.001mm, realizing real-time and accurate capture of diameter data. The two laser beams are orthogonal to the measurement field, which fundamentally solves the measurement deviation caused by the vibration and offset of workpieces in the production process, and ensures the consistency of measurement results under high-speed production line operation. The fully automatic closed-loop control technology can realize the linkage with the production line and feed back the measurement data in real time to realize the automatic adjustment of the production process.
Adopting aluminum die-casting shell with plastic spraying surface and high-quality stainless steel fasteners, the instrument has strong corrosion resistance and structural stability, and can adapt to the harsh working environment of industrial workshops for a long time. The two-row 5-digit pipe display with backlight function ensures clear reading in low-light conditions, and the multi-angle adjustable operation panel is convenient for on-site operators to operate and observe. With a power consumption of only ≤15W, it realizes energy saving and environmental protection on the premise of ensuring high performance, reducing the operating cost of enterprises.
Configured with RS485 communication interface supporting Modbus RTU protocol, the QP-25B Laser Diameter Measuring Instrument can realize seamless data transmission with PLC, extruder and other production equipment, and realize the intelligent integration of the whole production line. It is equipped with a 5M communication cable as standard, and optional remote controller and mounting bracket can be customized according to the actual layout of the enterprise's production site, which greatly improves the flexibility of on-site installation and use.
Parameter | Specification |
Measuring axis number | Double Axis |
Measuring range | 0.1mm-25mm、1/256"-63/64" |
Measuring accuracy | ±2μm±0.008%Dz mm (Dz=actual diameter) |
Scanning speed | 1000 times scanning cycle/second |
Resolution | 0.001mm |
Power supply voltage | AC220V±10% 50HZ / 100~240VAC, 1.0A |
Ambient temperature | -10～45℃ |
Relative humidity | ≤85% (no condensation water) |
Display means | Two-row 5-digit pipe display |
Communication interface | RS485 (support Modbus RTU) |
Protection grade | IP65, NEMA4 |
Power consumption | ≤15W |

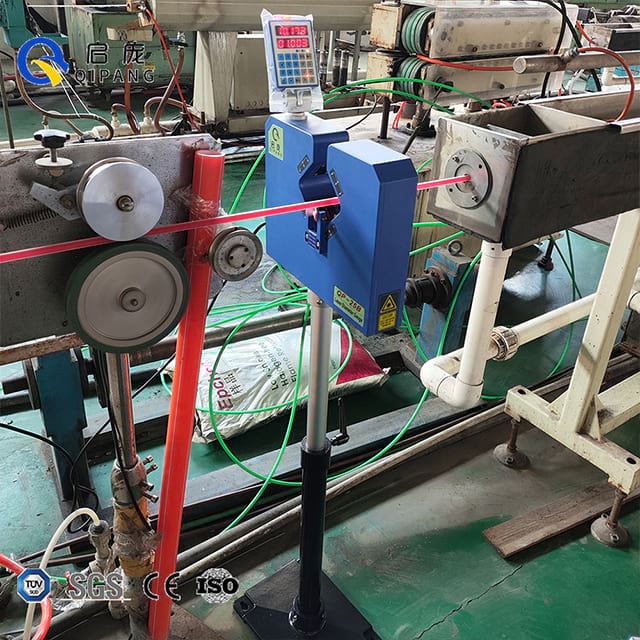

As a professional industrial laser diameter gauge for wire production, it is widely used in the online detection of ultra-fine wire, enameled wire, optical fiber and other products, realizing real-time monitoring of the outer diameter of wires in the extrusion process, and effectively avoiding unqualified products caused by diameter deviation.
It is suitable for the diameter measurement of precision electronic components such as electronic pin, small shaft pin and micro connector, and provides accurate size data support for the miniaturization and precision production of electronic products.
In the production of plastic and metal micro-tubes (such as medical catheters, precision fluid tubes), it can realize high-precision detection of the outer diameter of micro-tubes, ensuring the consistency of tube size and meeting the high standard requirements of medical and aerospace fields.
For the processing of small hardware parts such as precision screws, rivets and small bearings, it can realize rapid and accurate diameter detection, improve the inspection efficiency of parts, and reduce the labor cost of manual inspection.
Professional R & D and Production Strength: Qipang has been focusing on the R & D and manufacturing of industrial measuring equipment for many years, and has rich technical experience in the field of laser diameter measurement, with independent core technology and product customization capability.
Strict Quality Certification: All products have passed TUV, SGS, CE and ISO international certifications, and the product quality meets the global industrial production standards, which can be used in different countries and regions.
Perfect After-Sales Service: Provide supporting operation manuals, product videos and professional technical support, and the optional accessories such as remote controller and mounting bracket can meet the personalized needs of enterprises.
Intelligent Production Linkage: The products are deeply optimized for industrial production lines, which can realize seamless linkage with extruders, wire winding machines and other equipment, and help enterprises build an intelligent production system and improve production efficiency and product quality.
Product Video
Product Operate Guide
QP-25B Laser Diameter Measuring Instrument Manual.pdf
QP-10B QP-25B Laser diameter gauge Technical parameters.pdf
±2μm ±0.008%Dz mm (Dz is the actual diameter of the measured object).
Power supply voltage 100~240VAC, 1.0A.
RS485 (supports Modbus RTU).
