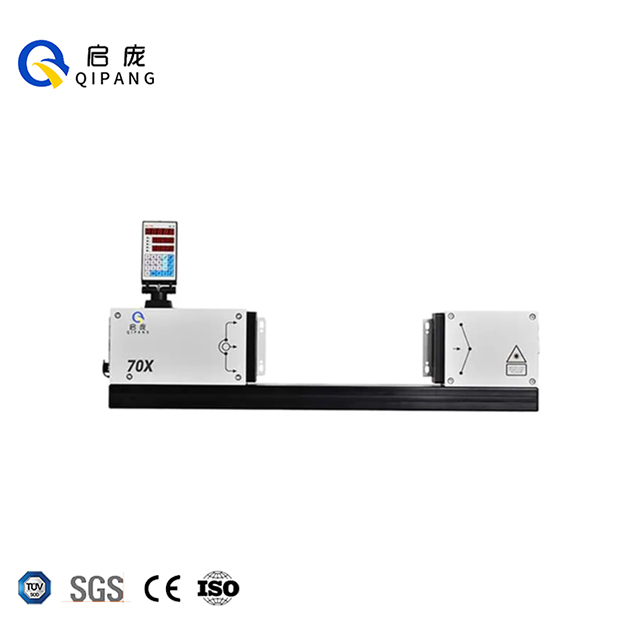

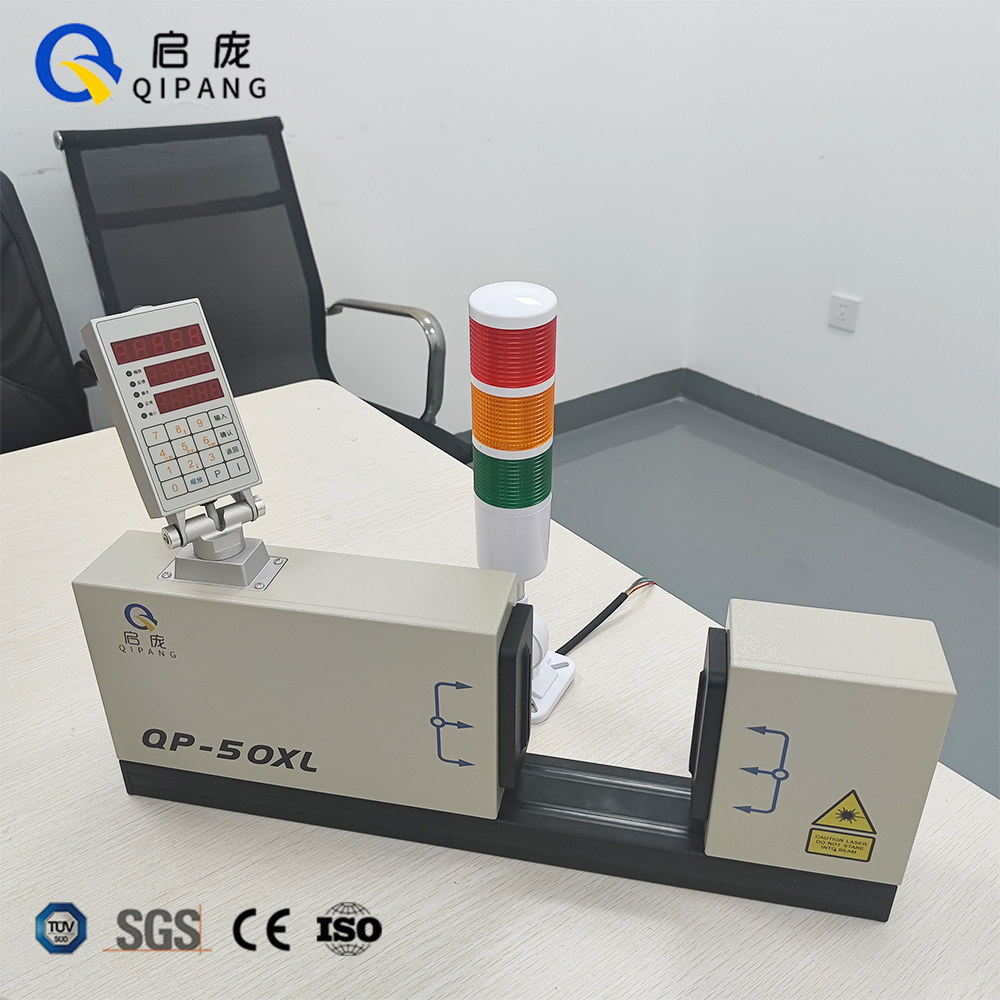

70X Non-contact laser diameter gauge

This single-axis diameter gauge ranges from 1mm to70mm, as non-contact laser diameter measuring instrument, it fits inline production monitoring and lab incoming inspection for wire, plastic pipe, rubber hose and metal bar; as standard laser scanning diameter gauge, it realizes real-time laser diameter measurement for micro wire up to medium-size 50~70mm products.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Overview

70X Non-Contact Diameter Gauge is self-developed non-contact diameter gauge, 1~70mm range covers conventional goods below50mm and medium-size products 50~70mm, filling the gap between 50X and 100X Laser Diameter Measurement. Built-in Diameter Controller For Wire Cable, this laser diameter measuring device connects extruder, wire-drawing machine and 3D extruder to adjust output dimension automatically based on real-time laser diameter measurement data.

Accuracy ±10μm±0.008%×Z, resolution 0.001mm, 1400Hz continuous non-contact scanning; full international certifications with reinforced bracket for flexible installation before/after cooling tank or offline QC lab batch testing.

Key Features

1. Closed-loop Control by Wire OD Controller(Core Advantage)

This laser diameter gauge uses standard RS485 Modbus RTU to link mainstream extruder PLC, auto speed correction once dimension out of tolerance; Modbus TCP/Profinet optional for intelligent production line.

2. Universal 1~70mm Full Range

Single-axis diameter gauge covers full 1~50mm specification of small-range models plus exclusive 50~70mm medium-size pipe & bar, one laser diameter meter meets mixed-spec production of medium & small factories.

3. Non-contact Anti-damage Measurement

As non-contact laser diameter measuring instrument, zero physical touch prevents scratch and deformation on thin wire, thin plastic tube and polished metal shaft to reduce reject rate.

4. Wide Working Condition & Low Power

Stable running -10℃~40℃, power ≤12W for long-term inline production and continuous static laser diameter measurement in laboratory.

5. Wide Environment Adaptability

Continuous stable running -10℃~40℃, power ≤12W, low operation cost for factories with both small daily extrusion and large heavy pipe production.

Technical Parameters Non-Contact Diameter Gauge

Measuring axis number	Single Axis
Measuring range	1~70mm, 1/25"-2 3/4"
Measuring accuracy	±10μm±0.008%xZ (Xz: nominal diameter)
Scanning speed of diameter gauge	1400 times/second
Resolution	0.001mm
Power supply voltage	AC220V±10% 50HZ
Ambient temperature	-10～40℃
Communication interface	RS485(Modbus RTU)、(Optional network port: Modbus TCP/Profinet)
Power consumption	≤12W

Product Operate Guide

3X 70X 120X Laser Diameter Gauge Technical parameters.pdf

High speed Laser Diameter Gauge Manual.pdf

Product Video

Industrial Applications

1.Wire Cable Industry

Below50：Control cable, building wire, silicone rubber fine cable, fiber sheath(Copper/Aluminum wire,LDPE,PVC,silicone rubber);

50~70：Medium high voltage cable sheath, mining auxiliary cable(XLPE, composite rubber);

Usage: Inline closed-loop control via Diameter Controller For Wire Cable; mixed batch lab inspection.

2.Plastic Pipe Extrusion

Below50：PPR water pipe, small glass protective tube(PVC,Glass Tube,general plastic);

50~70：Municipal branch HDPE pipe, industrial anticorrosion pipe(modified HDPE,CPVC);

Usage: Non-contact laser diameter gauge online dimension correction; periodic finished QC.

3.Metal Bar & Shaft Processing

Below50：Precision small shaft, spherical metal wire, galvanized iron wire(Stainless steel,galvanized wire,bearing steel);

50~70：Medium machinery spindle, seamless stainless tube, aluminum extrusion billet(medium carbon steel,forged aluminum);

Usage: Online die wear compensation behind drawing mill; semi-finished lab dimension test.

4.Rubber Hose Production

Below50：Small air hose, braided rope wrapped tube(General rubber,braided rope);

50~70：Multi-layer hydraulic hose for construction & mine(composite nitrile rubber);

Usage: Laser scanning diameter gauge full-process inline monitoring; random finished inspection.

5.3D Filament & Special Plastic Extrusion

Below50：3D printer filament,FEP tiny insulation tube(FEP,LDPE,modified plastic);

50~70：Medium-size solid plastic rod, equipment lining sleeve(high temp engineering plastic);

Usage: Closed-loop extrusion dimension control; raw material incoming static laser diameter measurement.

Why Choose QIPANG

R&D for Mixed Small&Large Spec Production

Designed for factories with mixed 1~50 conventional and 50~70 oversized production, compatible 40/50X full small-size application plus exclusive large-size inspection function.

Cost-saving for Mixed Production Line

Same stability as imported large-range gauge with better cost; automatic extruder control reduces waste both for low-cost small raw material and expensive large thick blank, shorten investment payback cycle.

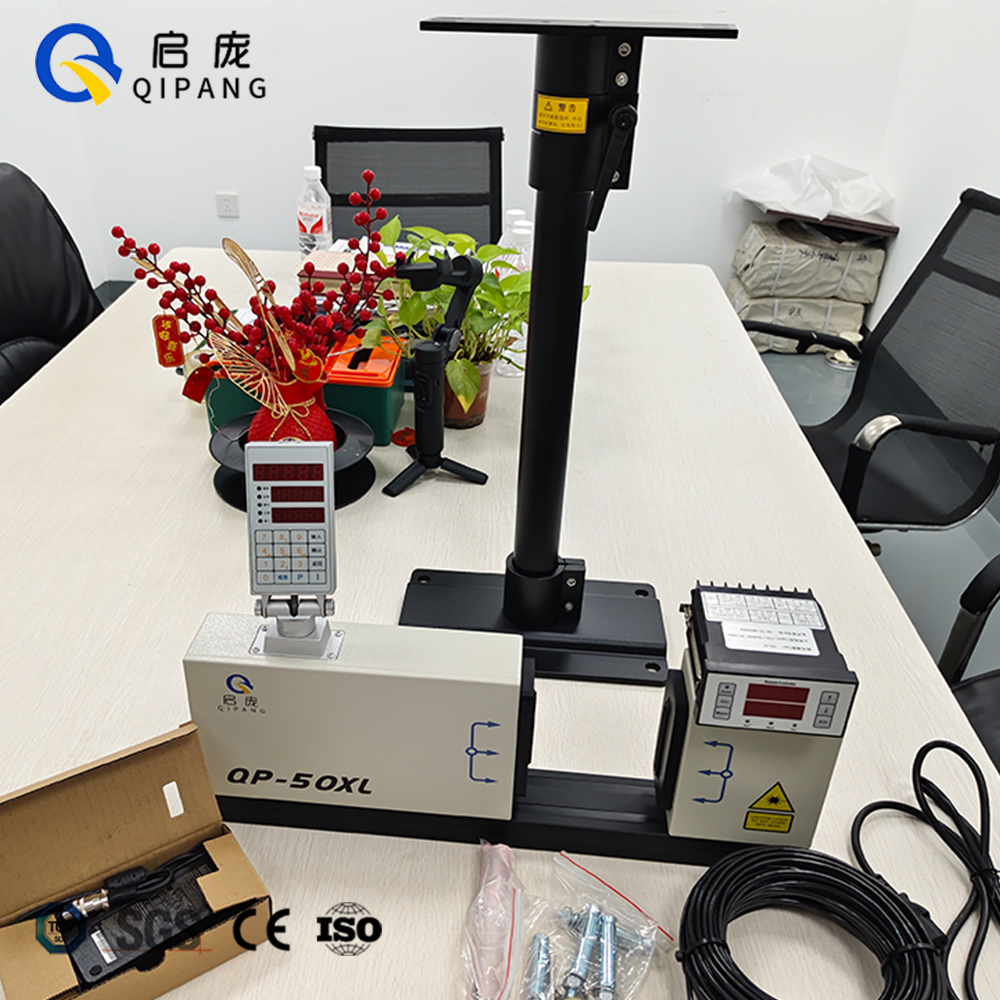

Reinforced Universal Fixed Bracket

Thickened rack fits ordinary small extrusion line and high-vibration large rolling/extrusion workshop, quick installation without production shutdown.

Global After-sales Service

24/7 online technical support, on-site installation & regular maintenance, rapid troubleshooting to reduce production downtime loss.

Full-gradient Product Matching

Match with small/medium range gauges to complete full-size measuring series, together with cable counter and spark tester for one-stop QC solution.

FAQ

Feature of 70X Non-contact Laser Diameter Measuring Instrument?
Range1~70mm, compatible all 1~50mm products of 40/50X, extra for 50~70mm oversized workpiece, single-axis only outer diameter, accuracy ±10μm±0.008%×Z.
Connect all types of extruder?
Standard RS485 links small civil and large industrial extruder PLC for automatic speed control; Modbus TCP/Profinet optional for intelligent line.
Two installation modes?
Fixed on production line for inline monitoring; lab placement for mixed small&large batch inspection.
