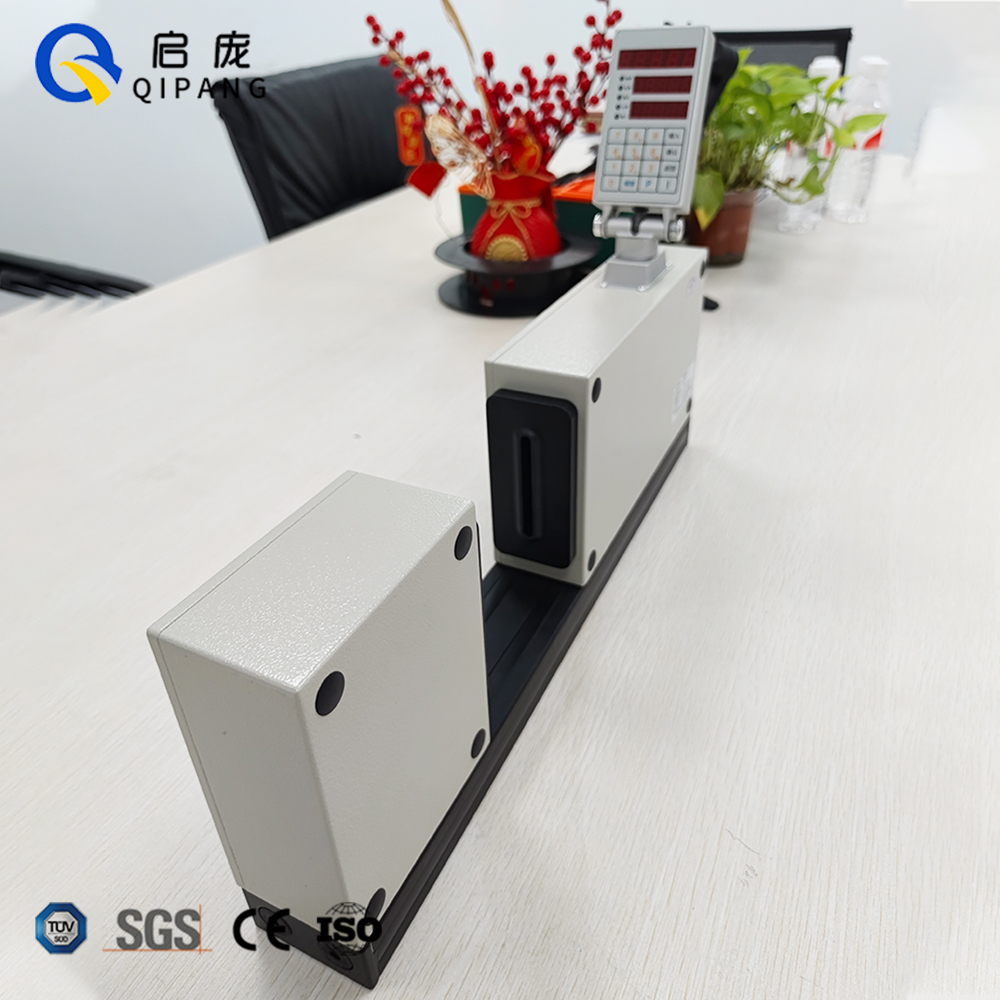

40/50X Single Axis Diameter measuring instrument

Overview

As cost-effective industrial online diameter measuring instrument, the 40X/50X laser diameter gauge is customized for medium-large cylindrical blanks. 40X accuracy: ±1μm±0.008%×Z; 50X accuracy: ±2μm±0.008%×Z, unified fixed resolution at 0.001mm(0.000039") and 1400Hz high-speed non-destructive scanning. Approved by CE, SGS, ISO, TUV certifications. Equipped with standard mounting bracket, it can be fitted onto existing equipment without massive production line renovation. Via RS485 communication linking extruder PLC, it realizes automatic closed-loop adjustment, effectively replacing traditional manual caliper sampling and supporting both inline production monitoring and offline laboratory testing.

Key Features

Closed-loop Extruder Linkage Control(Core Advantage)

As professional medium-sized pipe online diameter tester, it comes with standard RS485 Modbus RTU to connect PLC of extruders and haul-off machines. Once measured dimension exceeds preset tolerance, the unit outputs signals to automatically adjust production speed for stable finished size and fewer rejects; Modbus TCP / Profinet are optional for intelligent automated lines.

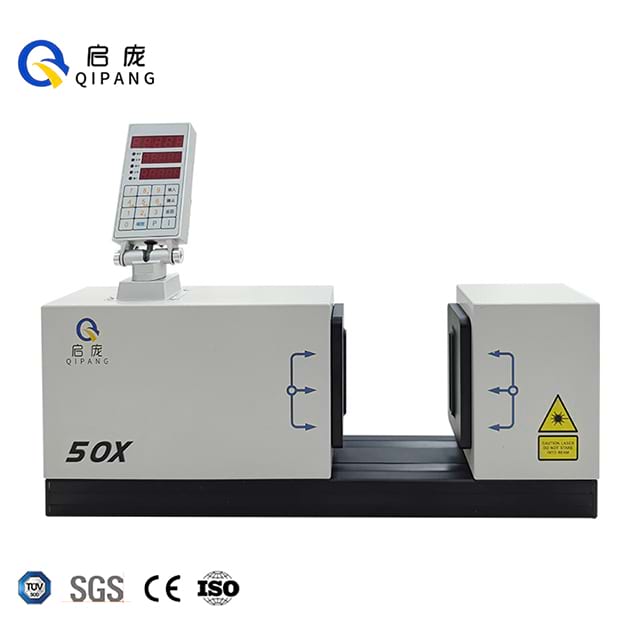

Two Optional Measuring Ranges for Medium Workpieces

40X:1mm(0.039")~40mm(1.575")；50X:1mm(0.039")~50mm(1.969"). Two specs cover mainstream OD of medium cables, industrial pipes and solid metal rods, forming a complete product lineup together with small-range gauges.

Graded Micron-level Stable Precision

The industrial non-contact laser micrometer features tiered precision: ±1μm±0.008%×Z for 40X and ±2μm±0.008%×Z for 50X with fixed 0.001mm(0.000039") resolution. Imported core optical parts guarantee steady readings without data drift under dusty and fluctuating-temperature workshop environment during long-time nonstop operation.

Non-contact Testing to Protect Workpiece Surface

Working on laser non-contact principle, the cable & solid rod outer diameter detector never touches measured goods, avoiding scratch, indentation and deformation on thick rubber tubes, hard plastic pipes and polished metal bars, lowering reject loss caused by contact measurement.

Wide Temp Adaptability & Low Power Consumption

The extrusion closed-loop outer diameter controller runs reliably from -10℃ to 40℃ continuously, with total power ≤12W to cut long-term operational cost for round-the-clock production and long-hour lab testing.

Industrial Applications

1. Large Power & Engineering Cable Industry

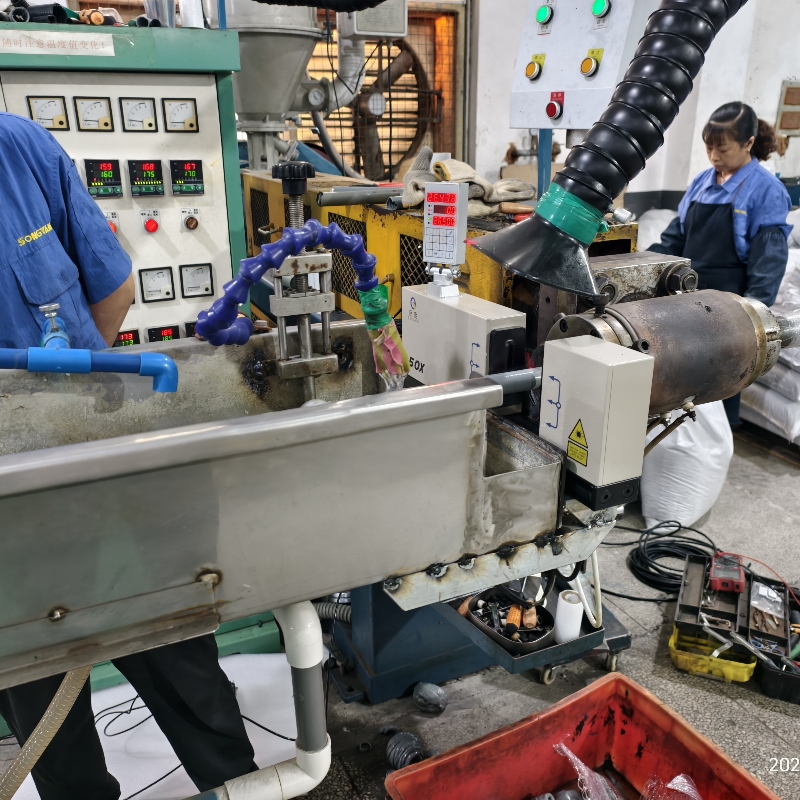

Application: The medium-sized pipe online diameter tester is fixed after extruders to realize full-process closed-loop control together with haul-off machines; standalone placement for lab batch incoming & finished cable inspection.

Applicable Materials: Copper core cable, aluminum core cable, XLPE/PVC insulated wire, EPDM sheathed cable

2. Industrial Plastic & Rubber Pipe Industry

Application: The extrusion closed-loop outer diameter controller links extruders for real-time inline dimension correction and periodic finished pipe sampling in labs.

Applicable Materials: PE, PVC, PP, EPDM rubber, PU rigid & flexible tubing

3. Solid Aluminum, Copper & Alloy Bar Industry

Application: The industrial non-contact laser micrometer is mounted on extrusion & rolling lines to offset dimension error caused by die wear, with lab batch inspection for finished bars.

Applicable Materials: Aluminum alloy, brass, carbon steel, 304/316 stainless steel solid bar

4. Construction Shaft & Seamless Tube Industry

Application: Online automatic parameter adjustment matched with extruders and offline semi-finished regular QC in laboratory.

Applicable Materials: Carbon steel, alloy steel, modified engineering plastic solid rod

5. New Energy Insulation Profile Industry

Application: Full extrusion line continuous monitoring plus finished dimensional sampling verification.

Applicable Materials: Modified plastic, composite insulation, aluminum-clad solid bar

6. Large-size Fiberglass & Composite Rod Industry

Application: Online monitoring for extrusion & drawing production and finished dimensional sorting.

Applicable Materials: Glass fiber reinforced plastic, carbon fiber composite bar

Why Choose QIPANG

Custom R&D for Extrusion Production Needs

QIPANG focuses on R&D of laser measuring instruments for years. The 40X/50X Single Axis Laser Diameter Gauge is developed targeting practical pain points of medium-size extrusion industry, optimized for fixed inline installation and independent laboratory testing.

High Cost Performance & Quick ROI

Matching precision of imported counterparts with competitive pricing, the cable & solid rod outer diameter detector reduces defective rate and manual inspection workload via automatic closed-loop control for shorter investment payback cycle.

Stable Bracket Design for Easy Retrofit

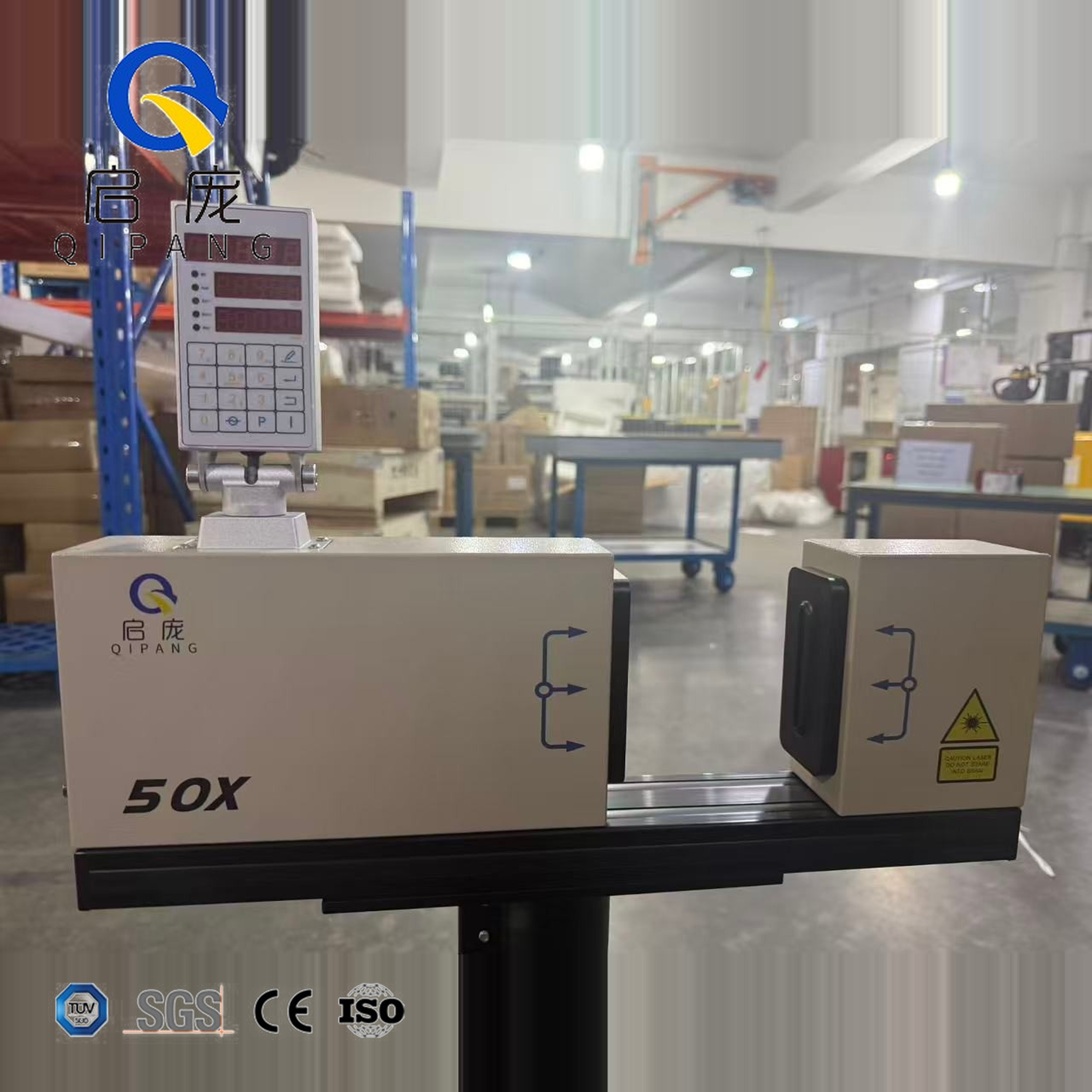

Equipped with standard fixing support, it can be quickly locked on existing racks without line shutdown or large reconstruction to upgrade QC of old production lines efficiently.

Global After-sales & One-stop Supporting Service

24/7 worldwide technical consultation, on-site commissioning and regular maintenance to minimize unexpected downtime. We also supply diameter gauges, length counters, spark testers and take-up machines to provide complete production line QC solution.

FAQ

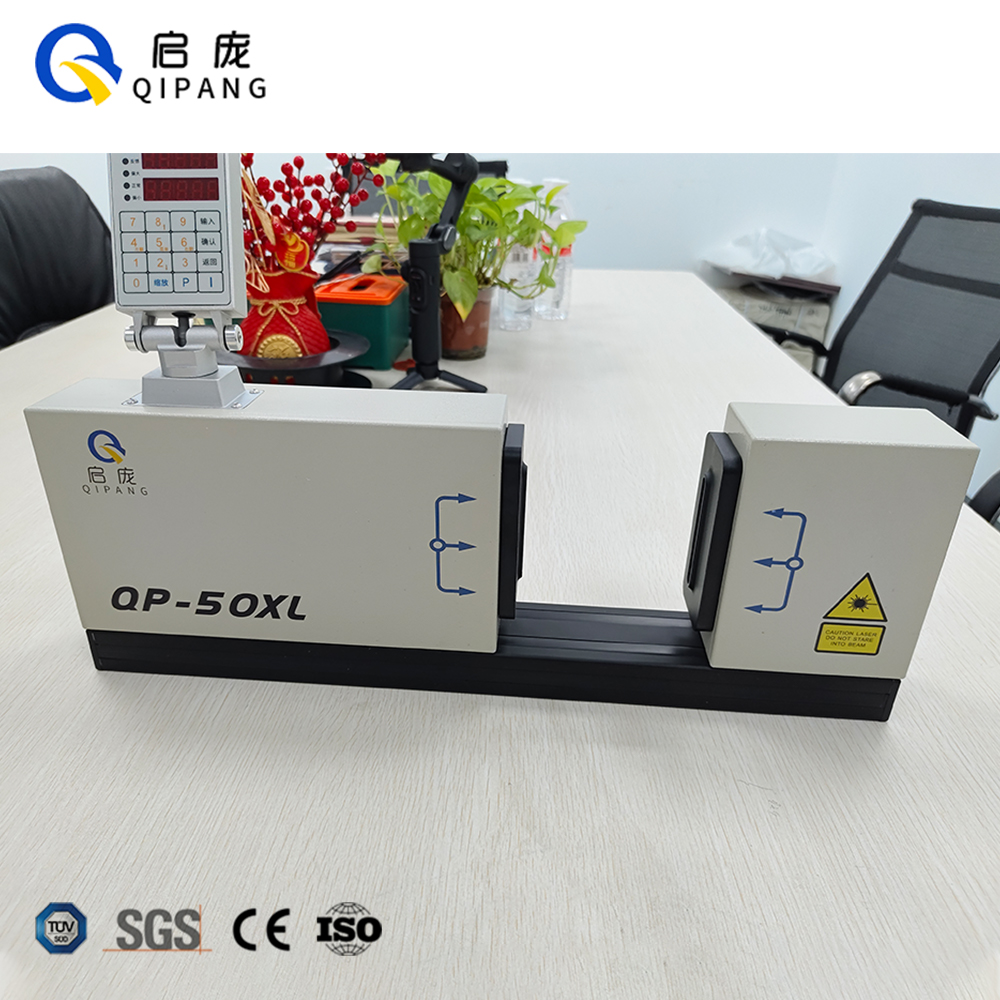

Q1: What’s the main difference between 40X and 50X?

A1: The max measurable OD of 40X is 40mm(1.575") with accuracy ±1μm±0.008%×Z; 50X reaches 50mm(1.969") at ±2μm±0.008%×Z, both single-axis for outer diameter only.

Q2: Can this device connect with haul-off machines and wire drawing machines besides extruders?

A2: Yes, its communication protocol is compatible with control systems of haul-off and wire drawing equipment to achieve full-line linkage adjustment.

Q3: Can users switch between inline fixed mode and offline lab mode freely?

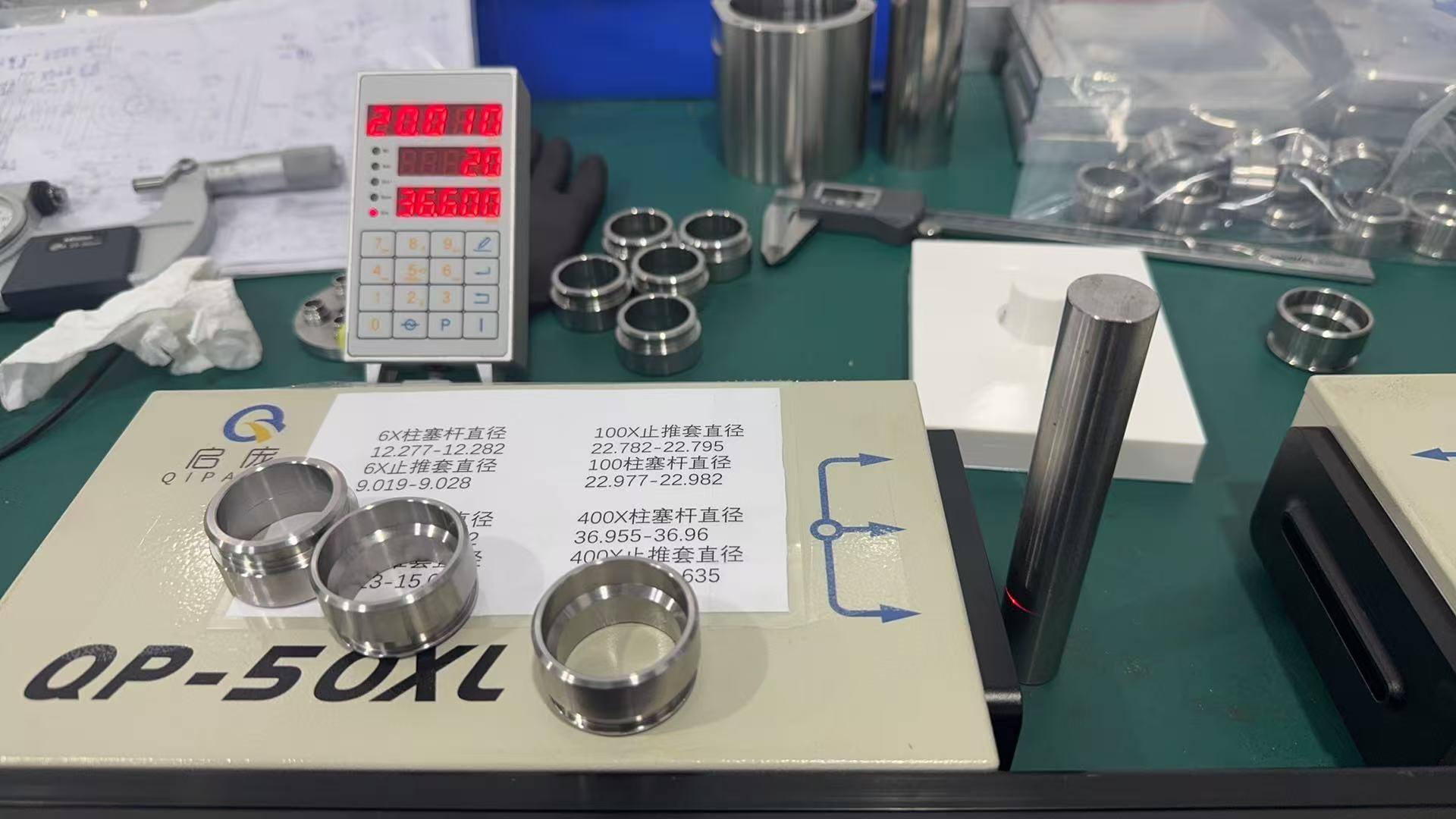

A3: Yes, remove the bracket for desktop lab use or install it for fixed production-line mounting.

Q4: Can optional Modbus TCP/Profinet upload data to factory MES?

A4: Available optional ports support real-time data transmission to upper computer and MES for quality record and traceability.

Q5: Will readings drift under high-temperature fluctuating production workshops?

A5: Premium imported optical parts and industrial sealing guarantee stable measurement within -10℃~40℃ without obvious data drift under normal dusty factory conditions.
