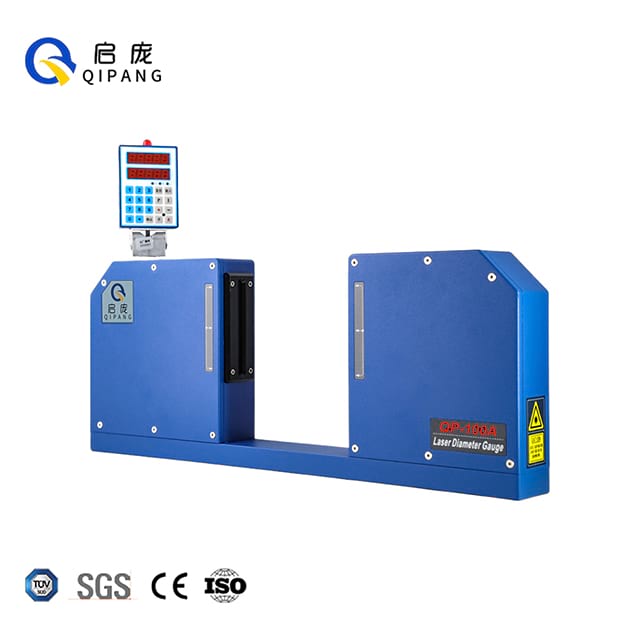

QP-100A Large Sinlge-Axis Diameter Gauge

QP-100A OD Controller

The measuring instrument is equipped with high-precision laser scanning system andembedded digital processing circuit. The diameter signal produced by the scanning systemis firstly converted into digital signal to obtain practical diameter value and related datathrough series of calculations and processing. The output interface of diameter measuringinstrument contains 1 485 communication interface and 2 synchronic serial ports. The dataof diameter measuring instrument could be transmitted to PC or remote controller through485 communication interface. It can be connected with operation panel and remotecontrollers and displays of various dimensions through synchronic serial port to realizeremote control and display.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Shanghai Qipang Industrial Co., Ltd. major in Laser Measurement Device, wire meter counter , cable Spark testing machine, Cable preheating machine, Wire take up rewinding machine.

Technical Parameters Diameter Gauge

Measuring axis number	Single Axis
Measuring range	1mm-100mm、1/25.4"-3 15/16"
Measuring accuracy	±20μm±0.008%Dz mm(“Dz” is the actual diameter of the measured object)
Scanning speed of diameter gauge	1000times scanningcycle/second
Resolution	0.001mm
Power supply voltage	100-240VAC/10A.50/60Hz
AmbieProductnt temperature	-10～45℃
Relative humidity	≤85%(no condensationwater)
Display means	two-row5-digit pipe display
Working frequency	50/60Hz
Communication interface	RS485 (support Modbus RTU)
Power consumption	≤15W(withadapter+40W)
