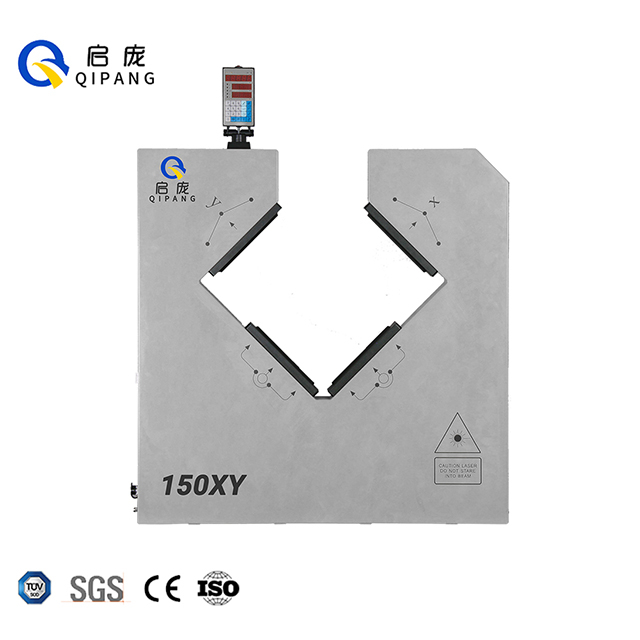

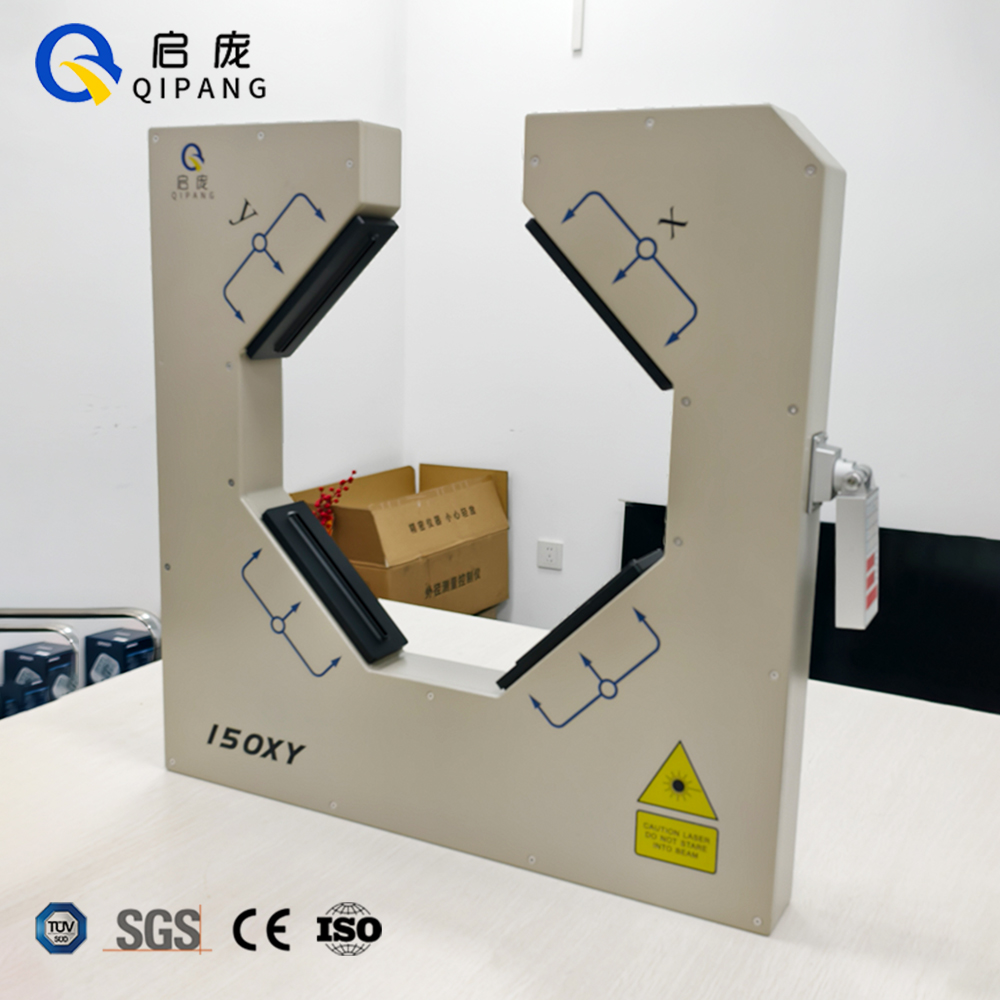

150XY Diameter Gauge

When communication, the communication interface must have a unique address for identification.
Parameter range: 0-127. The factory default value is 001
Setting method: If you want to view or change the communication address, pls refer to below procedures.
1. Press the Menu button (button 5) for about 1 second to enter into the menu
2. Use the button 4 or 6 to turn the menu to ADSET parameters
3. Press the Edit button and then input the password 12312. After inputting the password, press the
Confirm button to enter into the secondary menu.
4. Use the number 4 or 6 to turn the page to ADD parameter. Press the Edit button and input the
required address parameters. Then press the confirm button.
5. If you need to change other parameters, press the button 4 or 6 to turn the page to relevant
parameters, and then modify it accordingly. If parameter modification is completed, press the Return button
twice to exit the secondary menu.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Product Description

Shanghai Qipang Industrial Co., Ltd. major in Laser Diameter Measuring Device, Multi Diameter Wire Length Measuring Tool, Wire Cable High Frequency Test Machine, Power frequency preheater, Take-up winding machines

Technical Parameters Laser Dimeter Measurement

Measuring axis number Double Axis
Measuring range 1~120mm, 1/25"-2 3/4"
Measuring accuracy ±10μm±0.008%×XZ (Xz:nominal diameter)
Scanning speed of diameter gauge 1400 times/second
Resolution 0.001mm
Power supply voltage AC220V±10% 50HZ
Ambient temperature -5～40℃
Communication interface RS485(Modbus RTU)、(Optional network port: Modbus TCP/Profinet)
Optional accessories Bracket, serial line, remote controller, remote display
Power consumption ≤12W


Product Video


Product Operate Guide

3XY 70XY 120XY 170XY Laser Diameter Gauge Technical parameters.pdf

High speed Laser Diameter Gau
