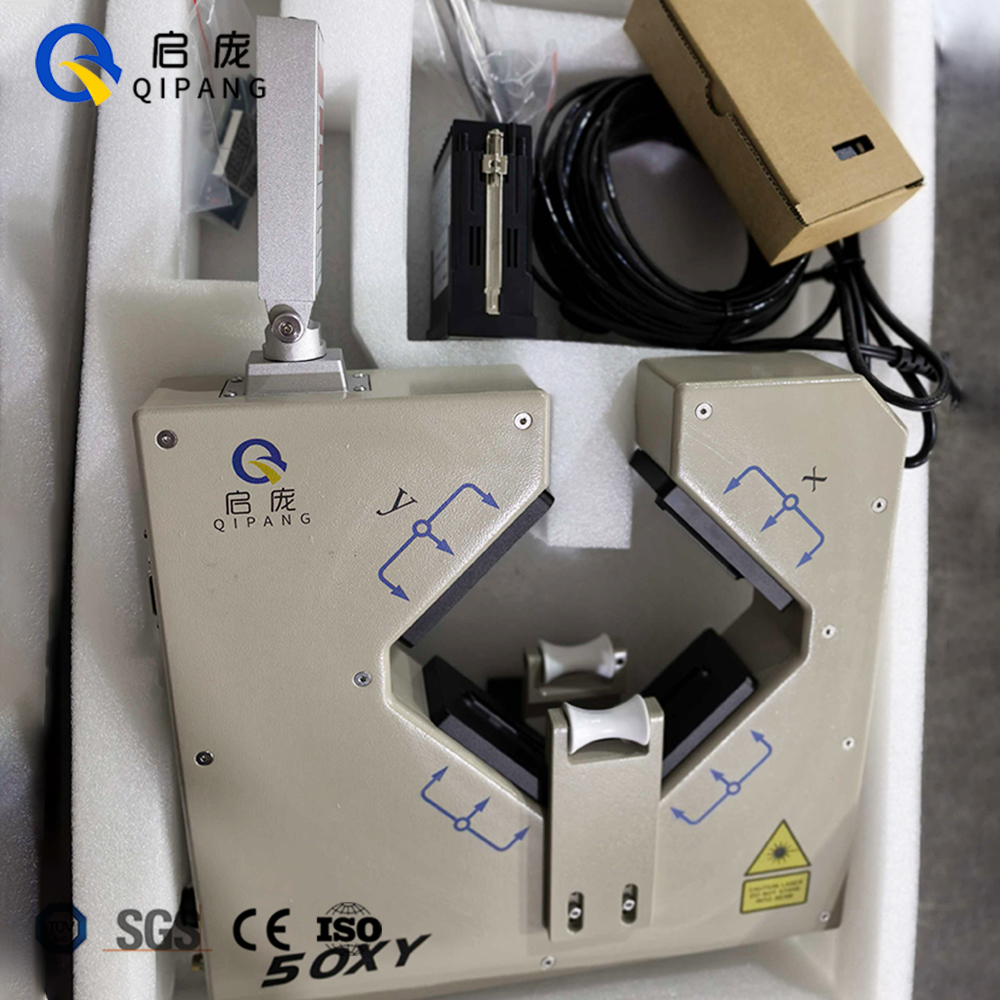

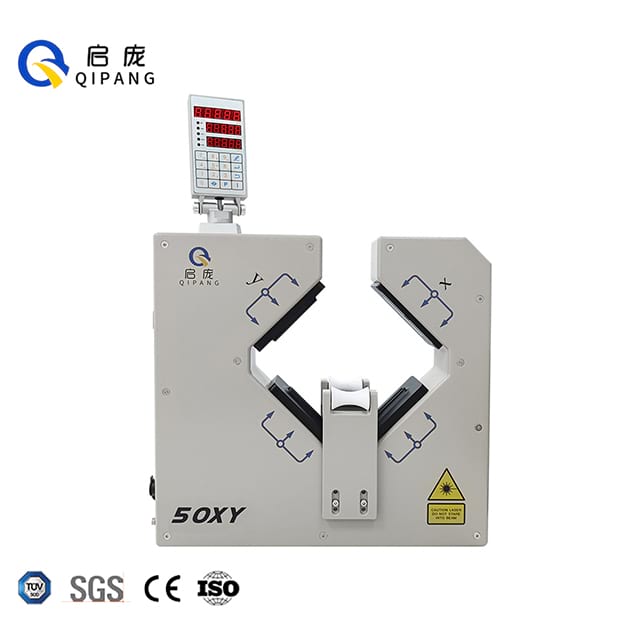

The 50XY High-Speed Dual Axis Laser Diameter Gauge is a dedicated dual-axis non-contact laser measuring device for large-caliber workpieces. This medium & large pipe/rod dual-axis laser micrometer adopts a 90° vertically orthogonal dual laser optical path to simultaneously collect X and Y bidirectional outer diameter values. The built-in operation program automatically calculates workpiece ovality, solving the defect of single-axis equipment that only measures unidirectional diameter and cannot identify section eccentricity of large pipes and bars.
It delivers measuring accuracy of ±1.5μm±0.008%×Z and fixed resolution of 0.001mm(0.000039"), supporting 1400Hz high-speed lossless dynamic sampling. It holds complete international certifications including CE, SGS, ISO and TUV, and adapts to heavy-duty extrusion workshops with high temperature and heavy dust from -10℃ to 40℃.
Technical Parameters Laser Dimeter Measurement
| Measuring axis number | Double Axis |
| Measuring range | 1~50mm, 1/25"-2 3/4" |
| Measuring accuracy | ±1.5μm±0.008%×XZ (Xz:nominal diameter) |
| Scanning speed of diameter gauge | 1400 times/second |
| Resolution | 0.001mm |
| Power supply voltage | AC220V±10% 50HZ |
| Ambient temperature | -10～40℃ |
| Communication interface | RS485(Modbus RTU)、(Optional network port: Modbus TCP/Profinet) |
| Optional accessories | Bracket, serial line, remote controller, remote display |
| Power consumption | ≤12W |
Product Video
Product Operate Guide
50XY Laser Diameter Gauge Technical parameters.pdf
High speed Laser Diameter Gauge Manual.pdf
Key Features
1. Exclusive measuring range of 1~50mm for medium and large-sized heavy workpieces (Core differentiated advantage)
Different from 3XY (0.05–3mm ultra-micro workpieces) and 15XY (0.05–17mm medium and small general parts), this large-size dual-axis OD & ovality detector has a lower measuring limit of 1mm and upper limit of 50mm. It accurately covers large cross-section products including high-voltage power cables, thick-walled water supply and drainage pipes, solid aluminum alloy round bars and large extruded profiles, filling the gap of large-size detection in the full series of diameter measuring equipment. This medium & large pipe/rod dual-axis laser micrometer is perfectly suitable for cable factories, heavy pipe extrusion workshops and metal bar rolling production lines, and the large cable online ovality monitoring equipment function ensures full online roundness inspection for power cable extrusion lines.
2. Graded micron-level stable accuracy for wide-temperature heavy workshop conditions
This wide-range extrusion closed-loop controller equips an optical module optimized for optical detection of large workpieces, with stable measuring accuracy of ±1.5μm±0.008%×Z and fixed resolution of 0.001mm(0.000039"). The whole machine adopts industrial-grade sealed protection structure, which can run 24 hours uninterruptedly in heavy extrusion workshops with temperature fluctuations and heavy dust from -10℃ to 40℃, without obvious drift of outer diameter and ovality detection data. Whether you use this large-size dual-axis OD & ovality detector for thick pipe production or the large cable online ovality monitoring equipment for high-voltage cable manufacturing, stable measurement data can be guaranteed all day long.
3. 90° orthogonal dual optical paths for simultaneous OD & ovality detection, non-contact protection for large raw materials
Two vertically arranged laser transmitters collect outer diameter in two perpendicular directions at the same time and calculate ovality in real time, accurately capturing section eccentricity deformation of large profiles caused by die wear and uneven traction force, avoiding hidden defective products missed by single-point single-axis measurement.
The whole testing process of the medium & large pipe/rod dual-axis laser micrometer adopts laser non-contact scanning, so thick rubber pipes, polished metal round bars and hard engineering plastic pipes will not have indentations or scratches, greatly reducing the scrap cost of large raw materials. As a core part of the wide-range extrusion closed-loop controller, the non-contact detection design lowers production loss for heavy industry manufacturers.
4. Multi-protocol industrial communication & complete optional accessories for free desktop/inline switching
Standard RS485 Modbus RTU basic communication is provided, with optional Modbus TCP and Profinet industrial Ethernet ports to connect factory PLC and MES systems, fully storing full-process dimension data for quality traceability. Original factory complete installation accessories are matched, which can be quickly installed on old large-caliber extrusion lines without large-scale disassembly and reconstruction.
Total power consumption ≤12W, maintaining low-energy operation during long-time mass production and laboratory batch sampling inspection. Factories deploying this large-size dual-axis OD & ovality detector or large cable online ovality monitoring equipment will enjoy convenient equipment transformation and low daily operation cost brought by the wide-range extrusion closed-loop controller.
Industrial Applications
1. High-Voltage Power & Engineering Large Cable Industry

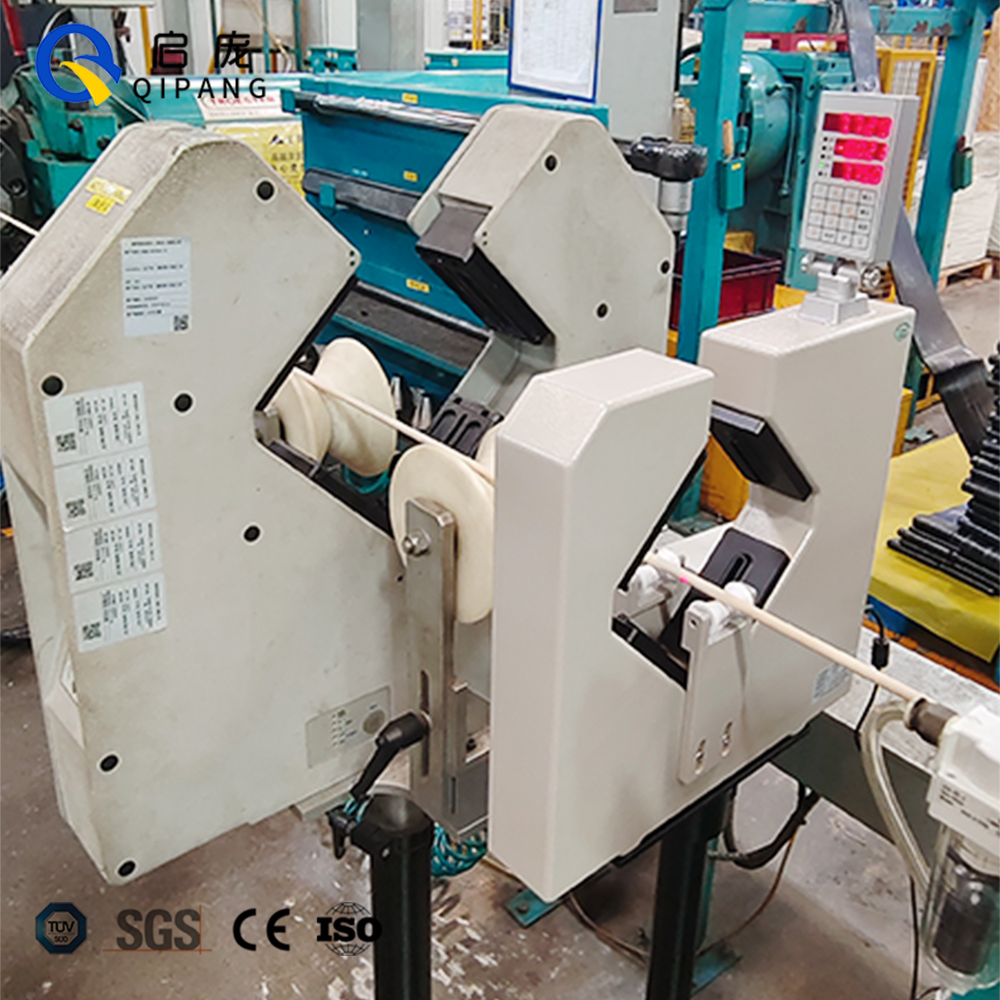

Application: The large-size dual-axis OD & ovality detector is fixedly installed at the rear of cable extruders to monitor outer diameter and ovality online throughout production; desktop mode of this large cable online ovality monitoring equipment is adopted for batch sampling inspection of finished large cables. The wide-range extrusion closed-loop controller realizes automatic speed adjustment according to cable OD and ovality.
Applicable Materials: Aluminum core high-voltage cables, copper core engineering cables, XLPE thick insulation cables, EPDM heavy-duty sheathed cables
2. Industrial Thick-Walled Plastic Water Supply, Drainage & Hydraulic Pipe Industry
Application: The medium & large pipe/rod dual-axis laser micrometer links the main extruder for closed-loop size regulation, and the laboratory regularly samples and inspects the roundness of large-diameter PE and PVC thick-walled pipes.
Applicable Materials: HDPE water supply pipes, PVC industrial pipelines, PP chemical pipes, large-size EPDM rubber hoses, PU hydraulic thick-walled pipes
3. Aluminum / Copper / Alloy Steel Solid Round Bar Extrusion Industry
Application: The wide-range extrusion closed-loop controller is matched with extrusion and rolling lines to compensate bar eccentricity defects caused by die wear in real time, and conduct fixed-point inspection of finished large-diameter metal round bars before warehousing with the help of the large-size dual-axis OD & ovality detector.
Applicable Materials: Solid aluminum alloy bars, brass round bars, carbon steel bars, 304/316 stainless steel large-diameter profiles
4. Large Composite Glass Fiber & Carbon Rod Extrusion Industry
Application: This medium & large pipe/rod dual-axis laser micrometer carries out online monitoring of outer diameter and ovality of large-size glass fiber and carbon fiber composite rods, and sorting defective finished profiles.
Applicable Materials: Glass fiber reinforced solid rods, carbon fiber composite round materials, modified engineering plastic large extruded blanks
5. Construction Machinery Large Plastic Shaft Blank Industry
Application: The wide-range extrusion closed-loop controller realizes real-time closed-loop size adjustment on extrusion lines, and the desktop large-size dual-axis OD & ovality detector completes fixed-point inspection of roundness tolerance of semi-finished shaft blanks in the laboratory.
Applicable Materials: Modified nylon solid shafts, alloy plastic large blanks, hard industrial plastic round rods
FAQ
Q1: How to select among 50XY, 3XY and 15XY models?
A1: 3XY covers 0.05–3mm for ultra-fine filaments and micro capillaries; 15XY covers 0.05–17mm for medium and small general wires and standard 1.75mm 3D printing filaments; 50XY ranges from 1–50mm, specially built as a large-size dual-axis OD & ovality detector, medium & large pipe/rod dual-axis laser micrometer and large cable online ovality monitoring equipment, this professional wide-range extrusion closed-loop controller is the priority choice for mass production workshops of large-size workpieces.
Q2: After selecting Profinet port, can outer diameter and ovality data be uploaded to the factory MES system synchronously?
A2: Optional Modbus TCP/Profinet industrial Ethernet supports real-time upload of bidirectional outer diameter and ovality test data to upper computers and MES systems. Full-process quality data of the wide-range extrusion closed-loop controller, large-size dual-axis OD & ovality detector and large cable online ovality monitoring equipment is automatically archived to meet quality traceability specifications of large cable and pipe factories.
Q3: Can the desktop unit be modified for online line use by purchasing brackets separately later?
A3: Yes. The medium & large pipe/rod dual-axis laser micrometer can be quickly refitted with original heavy-duty fixing brackets, freely switching between offline laboratory sampling inspection and 24-hour online monitoring of large extrusion lines as a complete wide-range extrusion closed-loop controller.
Q4: Will measurement data drift after long-term continuous operation in high-temperature, heavy-dust heavy pipe workshops?
A4: The large-size dual-axis OD & ovality detector is equipped with imported optical modules and industrial sealing protection, operating stably from -10℃ to 40℃. There is no obvious drift in outer diameter and ovality measurement under conventional dust and temperature difference environments, which guarantees stable operation of the large cable online ovality monitoring equipment and the whole wide-range extrusion closed-loop controller.
