Views: 0 Author: Site Editor Publish Time: 2026-10-05 Origin: Site
Are you struggling with specialized extrusion processes that require extreme precision at ultra-low speeds? In today's highly competitive manufacturing landscape, handling materials like solid bars, flat boards, and specialized cables directly from a slow extruder presents unique challenges. When your extruder outputs three lines simultaneously at an extremely slow pace of just 0.01mm per minute, standard setups invariably fail. You simply cannot scale by adding more of the same incompatible equipment. Upgrading to the QP800 Cable Coiling Machine—a specialized multi-wire spooling machine perfectly adapted for this precise, ultra-slow synchronization—solves this pressing issue directly on the factory floor, ensuring seamless production scaling.
Let us look at the actual mechanical parameters. How does the QP800 work in a real production environment demanding high accuracy with short, specialized materials? We will break down its core components, dive deep into how its servo-driven system handles simultaneous ultra-slow coiling without stalling, and outline the unique lightweight hollow baffle design that makes manual offloading significantly easier for short-length batches of dozens of meters.
For facility managers handling rigid bars, flat boards, or short specialized cables, evaluating capital equipment requires a clear understanding of ultra-low speed mechanical capabilities. The QP800 3-Wire Simultaneous Coiling Machine is an advanced, industrial-grade automation system designed specifically to process, align, and wind three separate extruded profiles concurrently. Rather than racing through continuous kilometers of standard wire, this robust equipment utilizes a parallel processing architecture that flawlessly syncs with modern extruders running at a creeping 0.01mm per minute. This structural shift effortlessly handles three lines at once, ensuring your slow-extrusion bars or boards are spooled perfectly and securely over their short runs of just a few dozen meters.
The primary mechanical difference between a traditional single-spool setup and the QP800 lies in its multi-spool architecture geared for extreme precision and torque retention at low speeds. A standard wire spooling machine operates linearly and relies on high velocity. It manages one payoff and one take-up spool. However, when dealing with specialized bars or boards extruded at 0.01mm per minute, a standard linear approach inherently caps out, loses tension control, and cannot maintain the required ultra-low speed stability.
By comparison, the QP800 redesigns this workflow for slow-speed accuracy. It integrates three independent take-up shafts driven by highly geared, synchronized servo motors capable of micro-movements. This dynamic parameter allows the machine to handle three distinct bars or boards from an upstream extrusion process at the exact same time. The total run might only be a few dozen meters, but the simultaneous handling effectively bypasses the traditional bottlenecks and equipment redundancies associated with managing multiple slow extrusions individually.
Picture the factory floor. Instead of three separate awkward setups for your extruded bars and boards creating a massive operational footprint, the QP800 consolidates the operation into one highly synchronized, compact chassis. As the three rigid lines or cables enter the machine from the slow extruder, they pass through a unified guiding system equipped with wear-resistant rollers tailored specifically for short, dozens-of-meters-long products.
The machine pulls the materials using a centralized drive mechanism that operates smoothly even at 0.01mm per minute. This synchronization is absolutely critical. If one spool were to wind even slightly faster than the others, it would deform, scratch, or snap the slow-moving bars or boards. By locking the rotational speed and micro-traverse movement together via an advanced logic controller, the QP800 guarantees that each of the three spools receives a perfectly uniform coil. Once the short run is complete, the unique lightweight hollow baffles make it incredibly easy for operators to manually remove each section piece by piece, maximizing ergonomics and safety.
Understanding the current state of specialized material processing requires looking at how the industry handles diverse, rigid outputs like bars and boards. Recent industry data highlights a massive shift toward high-precision, low-speed manufacturing. With the rising demand for specialized rigid profiles, extruders often need to run extremely slowly to cure or form the material properly. However, manufacturers face a harsh reality: labor shortages make monitoring ultra-slow lines expensive. Smart factories are shifting toward high-density parallel processing even for short-length runs to bridge the gap between custom output demands and operational cost constraints.
Historically, winding rigid profiles, bars, or short runs relied heavily on disjointed manual labor. Operators struggled to match the painfully slow 0.01mm/min output of the extruder. Naturally, this process was exhausting and highly susceptible to human error. Inconsistent manual tension often led to overlapping or permanent structural damage to the extruded boards. Modern automated systems like the QP800 solved the synchronization issue by introducing micro-geared traverse units and precision motors to exactly match the extruder's micro-speed without human intervention.
As custom production quotas grew, managing three separate slow-extrusion lines manually became entirely cost-prohibitive. This intense economic pressure drove the engineering shift toward multi-wire systems capable of handling multiple lines simultaneously, even for short runs. By consolidating multiple lines into a single, highly efficient wire and cable rewinding machine modified for rigid profiles, facilities could finally meet strict quality control standards. The QP800 represents the current pinnacle of this evolutionary trend. It offers an optimal balance of exact ultra-low speed precision and incorporates user-friendly lightweight hollow baffles for quick manual unloading of short lengths.
When evaluating significant capital upgrades for specialized bar and board extrusion, buyers must look past standard top-speed metrics. Examining the specific technical parameters that guarantee stability at 0.01mm per minute is paramount. The QP800 integrates several advanced mechanical and digital control systems to achieve this, handling specialized profiles over short runs of a few dozen meters with absolute, unwavering stability.

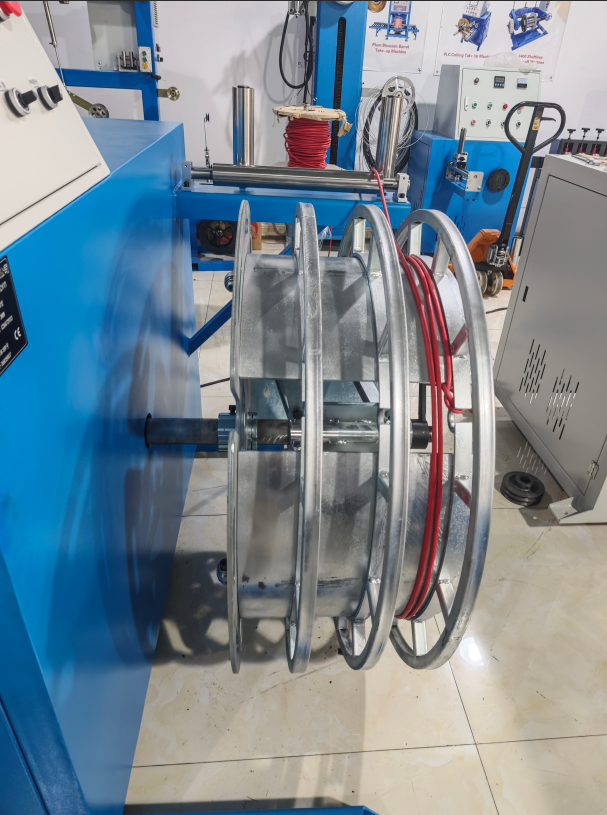

A winding machine handling specialized rigid bars or boards needs a flawless traverse unit to prevent overlap and material damage. The QP800 utilizes a synchronized 3-wire traverse system driven by high-precision linear actuators. This mechanism seamlessly moves the guiding arm back and forth, matching the ultra-slow 0.01mm/min extrusion rate with an accuracy of 0.01mm. Because the traverse speed is electronically geared to the micro-rotational speed of the spools, the machine completely prevents the rigid materials from crossing over each other. It ensures the short-length batches are coiled perfectly flat, ready for the operator to quickly remove the lightweight baffles upon completion.
Tension control is not just a buzzword; it is a critical machine parameter when dealing with bars, boards, or slow-extruded materials. The QP800 employs a sophisticated closed-loop tension control system utilizing highly sensitive, industrial-grade load cells. These sensors constantly monitor the physical tension of all three lines in real-time, which is vital when the extrusion is barely moving.
If the system detects a sudden spike in tension on the slow-moving bars, the Programmable Logic Controller (PLC) instantly micro-adjusts the motor torque and speed. Furthermore, because these specific runs are very short (usually just a few dozen meters), the machine features highly accurate electronic meter counting with minimal error margins. Once the exact short length is reached, the equipment automatically stops, and the operator can easily take off the hollow, lightweight baffles one by one to retrieve the finished material without any heavy lifting.
Despite its mechanical complexity and ability to handle complex slow-speed synchronizations, the QP800 is engineered for simplified, intuitive operation. It features a centralized, high-resolution touch screen interface. From this single digital terminal, an operator can input the exact dimensions of the bars or boards, set the desired low tension parameters, and define the short total length for all three lines. The controller stores these parameters as saved recipes for future use. This advanced cable coiling machine control system significantly reduces the learning curve and makes changeovers between different short-run profiles seamless and fast.
To combat the inefficiency of running multiple ultra-slow extrusion lines independently, forward-thinking facilities are rapidly adopting synchronized simultaneous systems. Maximizing control per square meter through simultaneous multi-wire systems—even for short runs of rigid bars and flat boards—is the most sustainable path forward. The robust technical specifications of the QP800 directly translate into these measurable business and operational benefits.
Labor consistently ranks as one of the highest variable manufacturing costs, especially when operators are required to monitor slow-moving extrusions of just dozens of meters. In a traditional setup, running three separate machines for bars or boards requires multiple operators to constantly monitor the slow 0.01mm/min lines. The QP800 brilliantly consolidates this workload. A single operator can efficiently manage the simultaneous coiling of three spools from the main touch screen, and easily remove the lightweight hollow baffles to take down the final short coils one by one, sharply reducing the required manpower.
Industrial real estate is expensive. Optimizing your factory layout for slow-extruded boards or bars is a constant logistical challenge. Three independent spooling setups require three distinct, large physical footprints. By cleverly combining three winding lines into one robust chassis, the QP800 reduces the required floor space by up to sixty percent. This compact footprint allows manufacturers to process three simultaneous profiles directly from the extruder without needing to invest in costly facility expansions.
For short runs of just a few dozen meters, changeover time is a critical performance indicator. The QP800 is specifically engineered to minimize the time spent unloading the finished bars or boards. Because all three lines reach their short target length simultaneously based on the precise meter counter, the operator performs a single, consolidated changeover process. You simply remove one lightweight hollow baffle, securely take the product down, and then remove the next baffle. This ergonomic, hollow design makes the manual unloading process exceptionally fast and light, maximizing your operational uptime.
To justify the capital expenditure of an upgrade for bar and board production, procurement managers require objective, data-driven comparisons. Upgrading to the QP800 represents a fundamental shift in how slow, short-length extrusions are managed. Let us look at the actual numbers and operational parameters.
The most immediate distinction is the QP800's ability to handle ultra-low speeds steadily without torque loss. Traditional single-spool machines struggle at 0.01mm per minute, often stalling, jerking, or breaking the material. The QP800 circumvents this bottleneck through precise low-speed servo gearing and parallel processing.
Even though the extrusion is extremely slow, the machine reliably delivers three finished batches in the exact same timeframe it would take a traditional machine to finish one. Because the runs are short (dozens of meters), the focus is on simultaneous processing rather than high velocity. Consider the following performance metrics.
| Machine Metric / Feature | Standard Single-Wire Machine | QP800 3-Wire Coiling Machine |
|---|---|---|
| Simultaneous Output | 1 Line Processing | 3 Simultaneous Lines Processing |
| Speed Stability Capability | Unstable at ultra-low speeds (stalls frequently) | Perfectly stable at 0.01mm/minute via servo control |

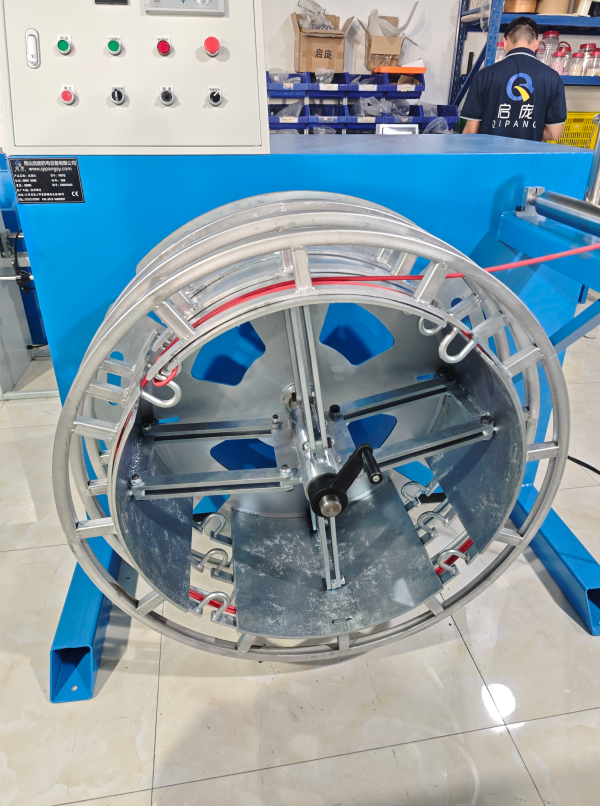

| Offloading / Unloading Process | Requires handling heavy standard spools | Utilizes lightweight hollow baffles for easy manual removal |
| Batch Length Optimization Focus | Designed for long kilometers of flexible wire | Optimized for short dozens-of-meters runs of rigid material |
| Energy Consumption and Efficiency | High due to running 3 independent machine motors | Highly optimized via shared micro-drive synchronization mechanics |
Beyond mechanical synchronization, the final structural quality of the finished bars or boards is paramount. When running three separate machines at micro-speeds, manufacturers often struggle with varying levels of tension. This can deform the extruded profiles, alter their physical dimensions, and lead to frustrating inconsistencies across different batches.
The QP800 eliminates this variable entirely. Because all three rigid lines are processed through the exact same unified, closed-loop tension system at a synchronized 0.01mm per minute, the quality, shape, and visual appearance of the bars and boards are identical across all three spools. This unified approach ensures strict adherence to quality assurance standards for your specialized dozens-of-meters-long products.
Not all extruded materials behave the same way during the winding process. The physical properties of solid bars, flat boards, or specialized cables dictate exactly how they must be handled. The advanced engineering and customizable parameters of the QP800 make it highly adaptable for ultra-slow extrusion environments across several distinct manufacturing sectors.
For solid extruded bars, building boards, and thick power profiles, synchronization is the primary challenge. These rigid materials can be heavy and possess a strong physical memory. They naturally resist being bent or coiled. The heavy-duty but highly precise traverse system of the QP800 excels in this harsh environment. It ensures that these stiff profiles are guided firmly into place at 0.01mm/min without warping or cracking, making it the perfect solution for custom short-run architectural or industrial profiles.
Even specialized fiber setups, sensitive communication lines, or optical-grade rods require extreme care during the take-up phase. They break or lose transmission quality if bent abruptly. Investing in an automatic cable rewinding machine for optical cable that features precision low-speed control is absolutely essential. The sophisticated load cell sensors of the QP800 continuously monitor the pulling force, ensuring the delicate material remains pristine and untensioned even when the extruder creeps along at its incredibly slow pace.
The automotive and industrial sectors often rely on customized flat boards or specialized insulation wiring extruded in exact, short batches. When running these specialized materials, a high-quality coiling machine must accommodate them without causing surface abrasions or dimension changes. The programmable tension parameters and smooth, specialized guiding rollers of the QP800 make it highly adaptable to short, dozens-of-meters-long runs of various industrial insulations and custom board profiles.
Purchasing industrial machinery like the QP800 is a strategic, long-term operational decision. Buyers should carefully evaluate how well the equipment's specifications align with slow-speed bar and board extrusion requirements. Do not just look at the price tag; rigorously evaluate the ultra-low speed integration capabilities.
Before upgrading to a 3-wire simultaneous system, carefully evaluate your current and future extrusion speeds. If your extruder runs extremely slowly at just 0.01mm per minute, your take-up machinery must handle that seamlessly without stalling or overheating. Upgrading to the QP800 provides the micro-gearing and precision servo control necessary to perfectly match this slow pace, allowing you to simultaneously process three distinct bars or boards without any tension loss.
A wire spooling machine must integrate seamlessly with your upstream extrusion equipment. Consider how the QP800 will electronically and mechanically interface with your slow-extrusion process. Ensure that the equipment utilizes compatible tension arms and load cells suited for rigid bars or short runs. These components are vital to absorb any tiny speed variations or hiccups during the ultra-slow continuous extrusion process.
Industrial manufacturing environments are highly demanding. Whether processing kilometers of flexible wire or dozens of meters of rigid boards, all machines require servicing and part replacements. When selecting a machinery provider, prioritize manufacturers that offer comprehensive technical after-sales support. Reliable support minimizes the risk of extended downtime and ensures your lightweight baffles, touch screen interfaces, and ultra-low speed motors are always functioning in peak condition.
To achieve the maximum return on investment for the QP800, implementing a structured preventive maintenance program is mandatory. Proper, proactive care ensures the machine maintains its pinpoint precision at 0.01mm/min over years of continuous operation. Do not wait for a catastrophic breakdown to perform routine maintenance.
Operators must inspect the coiling machine daily. For short-run board and bar operations, check that the lightweight hollow baffles are structurally sound, clean, and undamaged, as they are removed and reattached frequently during the manual unloading process. The highly sensitive load cells and sensors associated with the tension control must be kept completely clean of industrial dust and debris to ensure flawlessly accurate readings at ultra-low speeds.
The micro-geared servo motors, linear actuators, and synchronized moving parts of the QP800 require strict adherence to a professional lubrication schedule. Bearings must be properly greased to handle the continuous, ultra-slow torque required for 0.01mm/min extrusion without overheating. Furthermore, the locking systems used for the hollow baffle attachments should be routinely checked to ensure manual unloading remains safe and effortless piece by piece.
Upgrading to the QP800 3-Wire Simultaneous Coiling Machine is a highly strategic, profit-driven move for processing specialized bars and flat boards. By transitioning to a robust system capable of flawless 0.01mm/min synchronization, you can simultaneously handle three extruded lines without stalling or quality degradation. The short runs of dozens of meters are perfectly managed by advanced PLC controls, and the innovative lightweight hollow baffles make manual removal exceptionally quick and ergonomic. Evaluate your ultra-slow extrusion needs today. If you are ready to stabilize your output without expanding your factory footprint, visit Qipangtester to find the exact brand parameters and product specifications that fit your production line. Contact the technical sales team today for a custom quote or request a video demonstration to see the QP800 in action.
The QP800 automates the precise process of simultaneously winding up to three extruded profiles, bare cables, solid bars, or flat boards onto specialized spools. For custom manufacturing, it ensures materials are collected neatly and tightly at extremely low speeds, preventing structural damage and preparing the short-run products for safe handling.
While a standard machine is mechanically designed for single continuous lines at high speeds, the QP800 utilizes advanced, synchronized servo mechanics. It is explicitly configured to simultaneously pull and wind three distinct bars or boards directly from a slow extruder running at just 0.01mm per minute, using unique lightweight hollow baffles for easy, ergonomic manual removal.
Yes, the QP800 machine is highly adaptable. Operators can easily input different dimension parameters and tension requirements via the high-resolution touch-screen interface to accommodate a wide range of materials. Whether processing standard wire gauges, solid industrial bars, or flat architectural boards, it ensures proper, precise handling regardless of the short batch length.
Absolutely. While it excels at handling ultra-slow rigid bars, its precise, closed-loop tensioning makes it equally suitable for optical cables. The automated load-cell tensioning system continuously monitors the pulling force in real-time, ensuring zero stress or micro-bending is placed on delicate glass fibers or rigid profiles alike.
The QP800 uses individual tension sensors and highly sensitive load cells for each of the three winding paths. Even at an ultra-slow extrusion rate of 0.01mm per minute, these sensors continuously feed data back to the central PLC controller. If one line experiences a fluctuation, the system instantly micro-adjusts that specific motor's speed and torque, ensuring all three bars or boards remain perfectly synchronized without warping.
While industrial-grade systems can technically handle higher speeds, the true engineering marvel of the QP800 lies in its extreme low-speed stability. It is geared to operate flawlessly without stalling with slow extruders running at just 0.01mm per minute. Because these production runs are often short (a few dozen meters), the system utilizes lightweight hollow baffles that the operator simply takes off manually, making the entire extremely slow batch process incredibly efficient and labor-saving.
