High-speed extrusion lines frequently hit a painful wall in modern manufacturing. Upstream machinery runs flawlessly, but outdated winding units simply cannot keep pace. These legacy mechanical, pneumatic, and friction-clutch systems act as severe bottlenecks on the factory floor. They struggle under heavy spool loads and fail to maintain consistent tension. Plant managers are often forced to artificially slow down production. This strategy prevents cable deformation, but it heavily slashes overall yield and profitability.
The industry is rapidly shifting toward a clearly superior solution. Servo-driven gantry architectures resolve these stubborn physical limitations. They handle massive spools effortlessly while delivering unmatched operational precision. We designed this guide to provide manufacturing engineers with a pragmatic, evidence-based framework. You will learn how evaluating an equipment upgrade justifies the capital expenditure. Measurable efficiency gains make this investment highly worthwhile. We will cover core operational benefits, financial return metrics, and practical facility readiness steps. Discover how modern winding systems eliminate scrap and boost throughput reliably.
Precision Yields Material Savings: Closed-loop servo control minimizes tension variations, drastically reducing cable deformation and scrap rates.
Throughput Reliability: Gantry structures paired with multi-axis servo synchronization allow for heavier spool handling at higher line speeds without sacrificing stability.
Lifecycle Cost Advantage: While upfront costs are higher, the reduction in mechanical wear parts and energy consumption drives a verifiable, long-term ROI.
Integration Synergy: Modern servo gantry units seamlessly sync with existing automation, including upstream Cable Take Up And Pay Off Machine equipment.
Many facilities still rely on aging winding technologies. These older machines fundamentally restrict how fast and efficiently a plant can operate. Traditional friction clutches or standard torque-motor systems suffer from a core mechanical flaw. They cannot dynamically adapt as the spool diameter changes. A spool requires significantly different torque when empty compared to when it is nearly full. Legacy systems apply tension blindly. This leads to immediate product quality issues. Cables stretch under excessive force near the core. Conversely, loose winding occurs near the outer layers. These tension inconsistencies damage delicate fiber optics and alter the electrical resistance of copper wires.
Physical capacity presents another massive hurdle. Cantilever or pintle-style take-ups support the spool from a single side. This design creates immense shear stress on the machine bearings as the spool fills. Once you introduce high-capacity reels into a cantilever system, the entire unit loses stability. Vibrations echo through the machine frame. To prevent catastrophic failure or spool ejection, operators must throttle the line speed. Running machinery below optimal speeds directly damages your bottom line.
Changeover downtime heavily impacts overall equipment effectiveness. Non-automated winding systems demand intense manual labor. Operators must manually adjust pitch settings for different cable diameters. They spend valuable minutes locking and unlocking pintle arms. Spool loading and unloading require manual hoist coordination. Every minute spent wrestling a heavy reel into position is a minute of lost production. These manual interventions introduce human error and slow down shift transitions.
Upgrading to modern winding technology transforms your production floor. The transition removes physical bottlenecks and introduces intelligent, software-driven precision. We can break down these efficiency gains into three critical engineering advancements.
The foundation of this technology lies in real-time communication. The system utilizes continuous feedback loops between the line speed encoder and the take-up servo motor. A dancer arm or tension accumulator measures the exact wire speed coming down the line. It instantly transmits this data to the central programmable logic controller (PLC).
The outcome is remarkable tension stability. The servo drive automatically and continuously adjusts the rotational RPM as the spool diameter grows. It calculates the exact angular velocity required to match the linear line speed. This maintains perfectly linear tension from the empty barrel to the final outer layer. You eliminate sudden jerks, wire stretching, and product deformation. Closed-loop control ensures your cable meets strict quality tolerances every single time.
Older machines rely on physical gearboxes and belts to move the wire guide back and forth. A modern setup features completely independent servo-driven traverse axes. A dedicated servo motor controls the left-to-right movement of the wire guide. It operates independently of the main spooling motor but remains digitally synchronized.
This digital synchronization results in flawless, layer-by-layer cable alignment. You can program the exact pitch down to the millimeter. The independent servo eliminates the mechanical lag found in traditional traverse drives. It instantly reverses direction at the spool flanges without hesitation. This precision maximizes spool density. You can pack more cable onto a single reel without overlapping or tangling, which drastically reduces shipping and storage costs.
The physical frame represents a massive leap forward. An overhead gantry frame design structurally spans across the entire spool. Unlike floor-mounted arms holding the spool from one side, the gantry grasps the reel from above and both sides simultaneously. It creates a rigid, boxed enclosure around the rotating mass.
This architecture distributes weight evenly across the entire machine footprint. It completely prevents vibration at high speeds. You can safely handle massive drum capacities and extremely heavy payloads. Lines can operate at maximum extrusion speeds safely. Operators no longer need to worry about structural fatigue or floor shaking. The gantry design provides the rigid foundation necessary for high-speed, heavy-duty production.
Engineering upgrades require solid financial justification. Plant managers must look beyond the initial purchase price. You must evaluate the long-term financial advantages regarding energy, maintenance, and material recovery. The financial return becomes obvious when you analyze daily operating metrics.
Energy efficiency plays a massive role in return on investment. Compare this modern approach to hydraulic systems or slip-clutch motors. Legacy hydraulic pumps draw continuous power. They run constantly to maintain fluid pressure, even when the line slows down. Servo motors operate entirely differently. They only consume power proportional to the immediate load. If the tension requirement is low, the energy draw drops instantly. Over a multi-shift operation, this drastic reduction in kilowatt-hours translates directly to lower utility bills.
Maintenance reductions further accelerate your payback period. The new architecture completely eliminates wear-heavy components. You strip away broken drive belts, worn friction pads, and leaking hydraulic seals. Mechanical breakdowns vanish. We must state transparently that servo drives do require specialized electrical troubleshooting. If a drive faults, you need a technician who understands PLC diagnostics. However, overall unexpected downtime decreases substantially. Routine mechanical replacements become a thing of the past.
Scrap reduction offers the fastest path to positive cash flow. We recommend building a financial framework based on material rejection rates. Measure the cost of a 2% scrap reduction in high-value lines. If you run copper wire or sensitive fiber optics, deformed cables cost thousands of dollars per shift. Eliminating tension-related stretching saves that material. You can calculate your current annual scrap value and apply a conservative 90% reduction metric to see how quickly the equipment pays for itself.
| Evaluation Metric | Legacy Mechanical Winding | Modern Gantry Architecture |
|---|---|---|
| Energy Consumption | Continuous high power draw regardless of load. | Proportional power draw based on real-time torque needs. |
| Routine Maintenance | High frequency (replacing belts, pads, seals). | Low frequency (primarily software backups and lubrication). |
| Scrap Rate | High (tension spikes cause stretching and overlapping). | Near zero (closed-loop feedback ensures constant tension). |
| Vibration at High Speed | Severe (cantilever arms lose stability). | Minimal (overhead structure distributes weight evenly). |
Purchasing advanced machinery is only the first step. You must prepare your facility for a successful installation. Ignoring these structural and technical requirements will delay your launch and inflate integration costs.
Structural and spatial requirements often surprise buyers. We strongly warn teams about the physical footprint. Gantry systems require specific ceiling clearances. The overhead lifting mechanisms reach much higher than floor-mounted arms. Furthermore, the immense weight of the gantry and the fully loaded spools requires reinforced flooring. You will likely need to drill deep anchors for rail installation. Assess your concrete slab thickness early in the planning phase to avoid expensive foundation rework.
Control system compatibility stands as the primary technical risk. You face a high risk of PLC architecture mismatches if you buy equipment blindly. The new machinery must talk flawlessly to your current line. Emphasize the need to verify integration protocols with your engineering team. Confirm whether your plant uses PROFINET, EtherNet/IP, or Modbus. For example, if you are connecting to an existing Cable Take Up And Pay Off Machine, the new PLC must seamlessly read its master encoder signal. A communication failure here prevents speed synchronization.
Finally, acknowledge the operator skill gap. Shifting from mechanical dials and manual levers to digital HMI touchscreens changes the daily workflow. Operators can no longer "feel" the machine. They must learn to interpret digital readouts and navigate software menus. This transition requires targeted operator and maintenance training. Partner with vendors who offer comprehensive on-site commissioning and classroom training to bridge this gap quickly.
Selecting a vendor requires strict engineering scrutiny. You are not just buying steel; you are integrating a complex robotic system into your primary revenue stream. Use these criteria to evaluate potential manufacturing partners.
Payload and Speed Alignment: Never buy a machine that just meets your current needs. Ensure the machine's rated torque and structural limits exceed your current peak production requirements by at least 20%. This buffer prevents motor overheating and allows for future line speed scaling. If you need a robust solution, evaluating a dedicated Servo Gantry Take up machine provides the heavy-duty specifications required for thick cables.
Component Standardization: Look under the hood. Evaluate whether the manufacturer uses proprietary drives or globally supported servo brands. You want names like Siemens, Allen-Bradley, or Yaskawa inside the cabinet. Proprietary electronics trap you into expensive service contracts and risk long-term parts unavailability.
Safety and Compliance: Moving heavy spools overhead presents massive safety risks. Verify the inclusion of modern safety interlocks and laser scanners. The machinery must comply with physical guarding standards such as ISO 13849-1. Reject any quote that treats safety light curtains or emergency braking routines as optional add-ons.
Software Accessibility: Ensure your internal maintenance team has open access to the PLC logic. Some vendors lock down their code, preventing you from making minor line adjustments. Demand open-source or easily accessible program blocks.

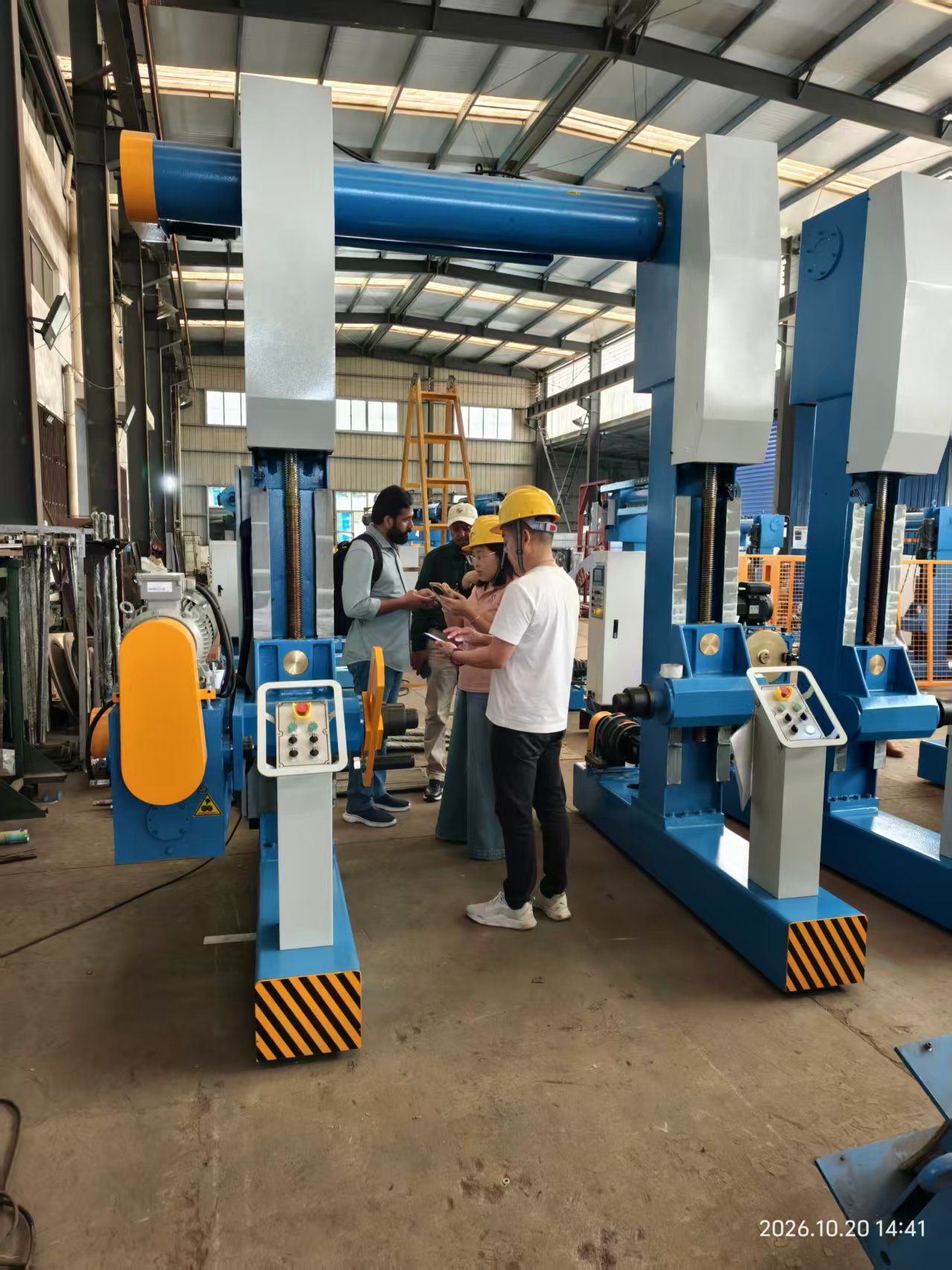

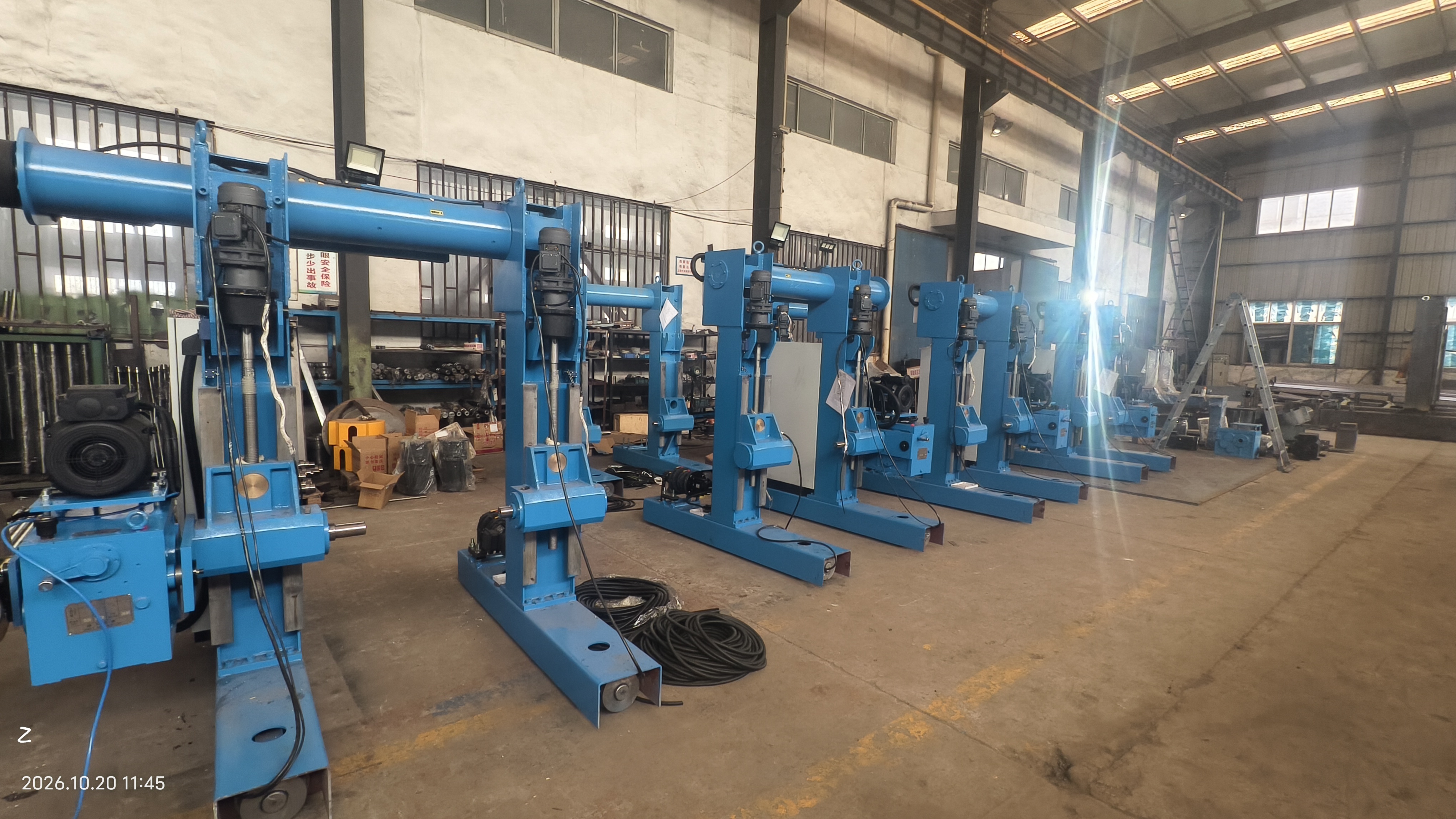

Thanks to its reliable heavy‑duty performance for cable manufacturing, our servo gantry take‑up machines have attracted factory clients from Saudi Arabia and Mexico for on‑site factory inspections. These overseas manufacturers paid visits to evaluate machine structure, real‑world running performance and technical support solutions for their local high‑speed extrusion projects.
A servo-driven gantry system is not a blanket solution for every facility. Small-scale operations handling lightweight wire might not justify the structural footprint. However, it represents a strictly necessary upgrade for high-value, high-speed, or heavy-duty wire and cable operations. The physics of large spools demand overhead support. The economics of expensive materials demand closed-loop tension control.
We advise buyers to immediately conduct a plant-level line-speed audit. Identify exactly where and why operators slow down the line. Next, calculate your current annual cost of scrap and winding-related downtime. Establish this financial baseline before you start vendor discussions. Armed with accurate production data, you can confidently specify machinery that permanently removes your manufacturing bottlenecks.
A: The core difference lies in load distribution. Cantilevers support the spool from only one side using an extending arm. This severely limits both weight capacity and rotational speed due to vibration. Gantry systems span completely over the spool, securing it from both sides. This overhead architecture offers superior structural stability for heavy reels and permits much higher line RPMs safely.
A: Yes, integration is entirely possible. The critical requirement is that the existing older line has a compatible master encoder signal. The new take-up's PLC must be able to read this signal clearly. Once communication is established, the new servo system can perfectly synchronize its winding speeds with the legacy equipment.
A: Mechanical wear is exceptionally minimal compared to legacy friction systems. Routine maintenance primarily involves the periodic lubrication of linear guides and ballscrews. Maintenance teams should also perform visual inspections of the overhead lifting mechanisms and safety interlocks. On the electrical side, you simply need to maintain regular software and firmware backups for the servo drives.
