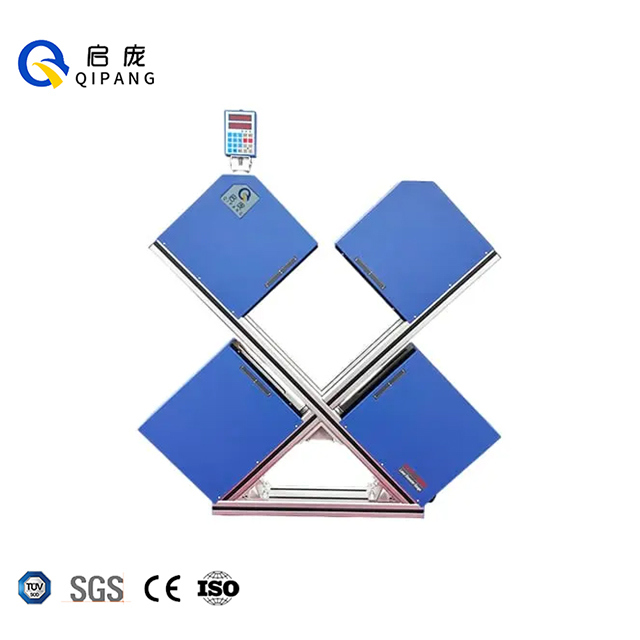

QP-120B Laser Diameter Measuring Instrument

Feedback control
Laser measuring head and remote controller can constitute feedback control system, which can adjust the speed of tractor and extruder according to the deviation of diameter and dynamically adjust wire diameter. Now, the explanation is given by taking the control of production line of electric wire and cable for example, follow this one to finish other applications

Quantity:
Availability:





Inquire Add to Basket

Product Description

Shanghai Qipang Industrial Co., Ltd. major in Non-contact Laser Diameter Measuring Instrument, Wire Length Meter , cable spark detection testing machine, Power frequency copper wire preheater, automatic cable coiling machine.

Technical Parameters

Measuring axis number	Double Axis
Measuring range	1mm-120mm、1/256"-63/64"
Measuring accuracy	±20μm±0.008%Dz mm(“Dz” is the actual diameter of the measured object)
Scanning speed of diameter gauge	1000times scanningcycle/second
Resolution	0.001mm
Power supply voltage	AC220V±10% 50HZ
Ambient temperature	-10～45℃
Relative humidity	≤85%(no condensationwater)
Display means	two-row5-digit pipe display
Working frequency	50/60Hz
Communication interface	RS485 (support Modbus RTU)
Power consumption	≤15W

Product Video

Product Operate Guide

QP-120B-laser diameter gauge Manual.pdf

QP-70B QP-120B Laser diameter gauge Technical parameters.pdf
