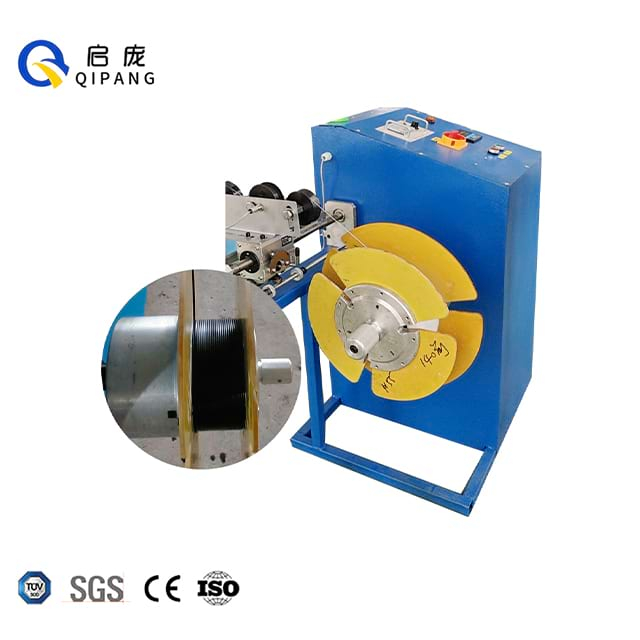

QP400 Cable Coiling Machine

Parameter
. Model : QP400
· Applicable Diameter: 00.1-30mm round wire, flat wire, tube· Applicable Reel Size : inner diameter 120,mmouter diameter 400mm

Advantages
Frequency conversion speed control
Top Cone Clamping, easy to up and downthe disk, bobbin below the tray, not afraid of falling down"L" foot of the base plate can be fixed, more stable.The speed can be matched with the assembly line,evenspeed winding.
Can be customized according to different needs

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Parameters of the QP500 Cable Coiling Machine

Parameter	Specification
Model	QP400
Applicable Wire Diameter	φ0.1-30mm (round wire, flat wire, tube, etc.)
Standard Coil Inner Diameter	120mm (customizable)
Standard Coil Outer Diameter	400mm (customizable)
Optional	Meter Counter/Magnetic Particle Torque Motor Controller
Take-up Speed Range	280RPM (customizable)
Wiring Mode	Rolling ring drive
Maximum Load Bearing	30kg
Motor Power	0.75KW
Power Supply	Single-phase power 220v 50hz
Package Size	1.010.751m
Net Weight	112kg

Optional

Meter Count 1	Set the number of meters,and the machine will automatically alarm and stop when the number of meters is reached--include
Magnetic Particle 2	Equipped with assembly line to keep line speed synchronized and prevent strain
Torque Motor Controller 3	Automatically adjust the winding speed according to the torque

Product Operate Guide

QP400 Cable Coiling Machine.pdf
