| Quantity: | |
|---|---|

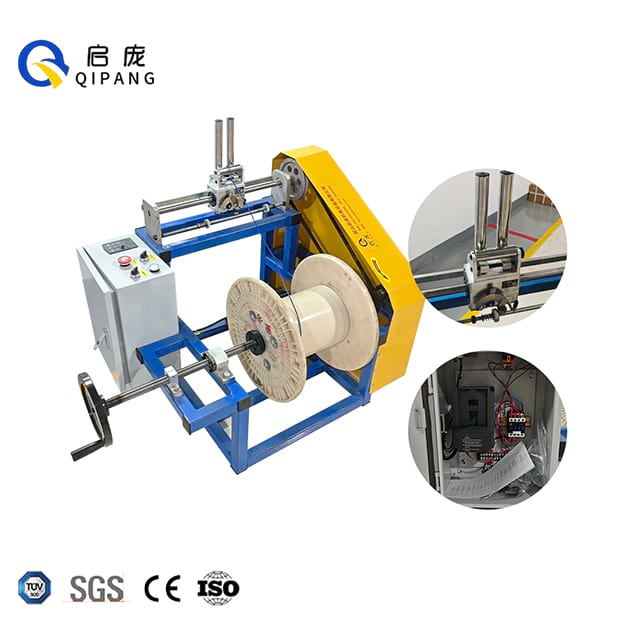

Model: | QP500 Cable Take Up Machine |
Applicable Diameter: | φ0.1-30mm round wire,flat wire,tube |
Applicable Reel Size: | Outer diameterless than 500mm,inner hole morethan 30-60mm,width less than 350mm |
Take-up Speed: | 280 RPM(customizable speed) |
Wiring Mode: | Rolling ring drive(L=450MM) |
Bearing Capacity: | 50kg |
Motor Power: | 0.75kw+speed reducer |
Voltage: | Single-phase power 220v 50hz |
Package Size: | 1.05*0.8*1m |
weight: | 126kg |
Optional
Meter Count1: | Set the number of meters,and the machine will automatcally alarm and stop when the number of meters isr |
Magnetic Particle 2: | Equipped with assembly line to keep line speed synchronized and prevent strain |
Torque MotorController 3: | Automatically adjust the winding speed accordingto the torque |
