Qipang Barrel Take-up Machine Solves Belden’s Thin Wire Production Troubles

Client Profile

Belden Hirschmann Industrial (Suzhou) Co., Ltd. belongs to a time-honored American cable brand founded in 1902, with a 124-year manufacturing history up to 2026. Its cables are supplied to landmark projects including Shanghai Disneyland and Shanghai Pudong International Airport. All its cables come with a 10-year warranty, which means the factory sets extremely strict standards for production equipment

Original Production Pain Points

Before cooperating with us, the factory adopted two Japanese wire take-up machines for thin wire processing, which brought two prominent production defects:

1. Poor coiling effect of thin wires with messy arrangement, failing to meet end customers’ acceptance standards and leading to high defective rates.

2. Wire jamming and unsmooth wire feeding when running at high speed, resulting in unstable high-speed production.

Traditional machines integrate the coiling motor and vibration motor into one unit, where the vibration and wire take-up operations interfere with each other. Such equipment cannot eliminate uneven stacking and tangled wires of thin cables, failing to match Belden’s strict production standards for long-warranty cables.

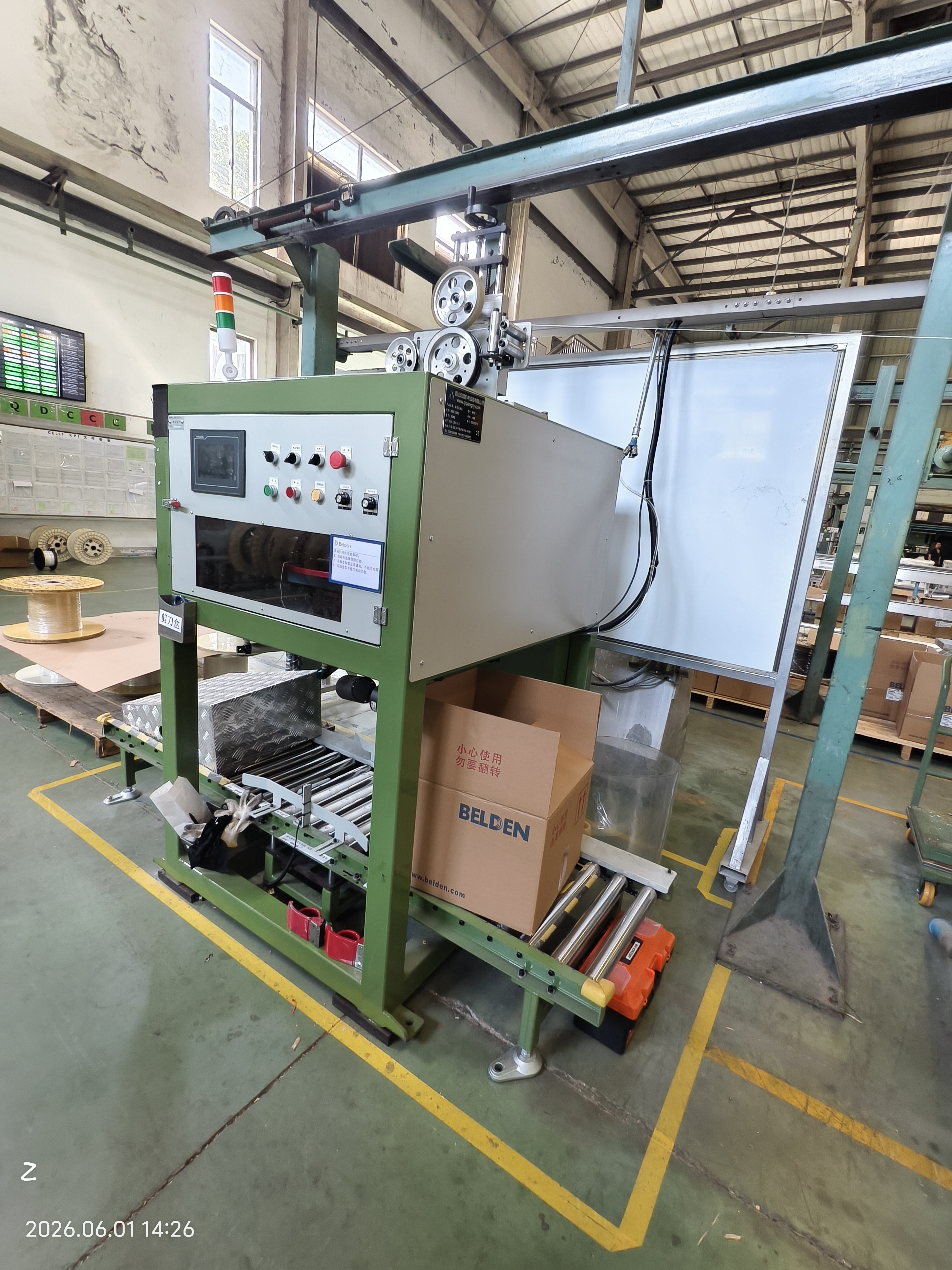

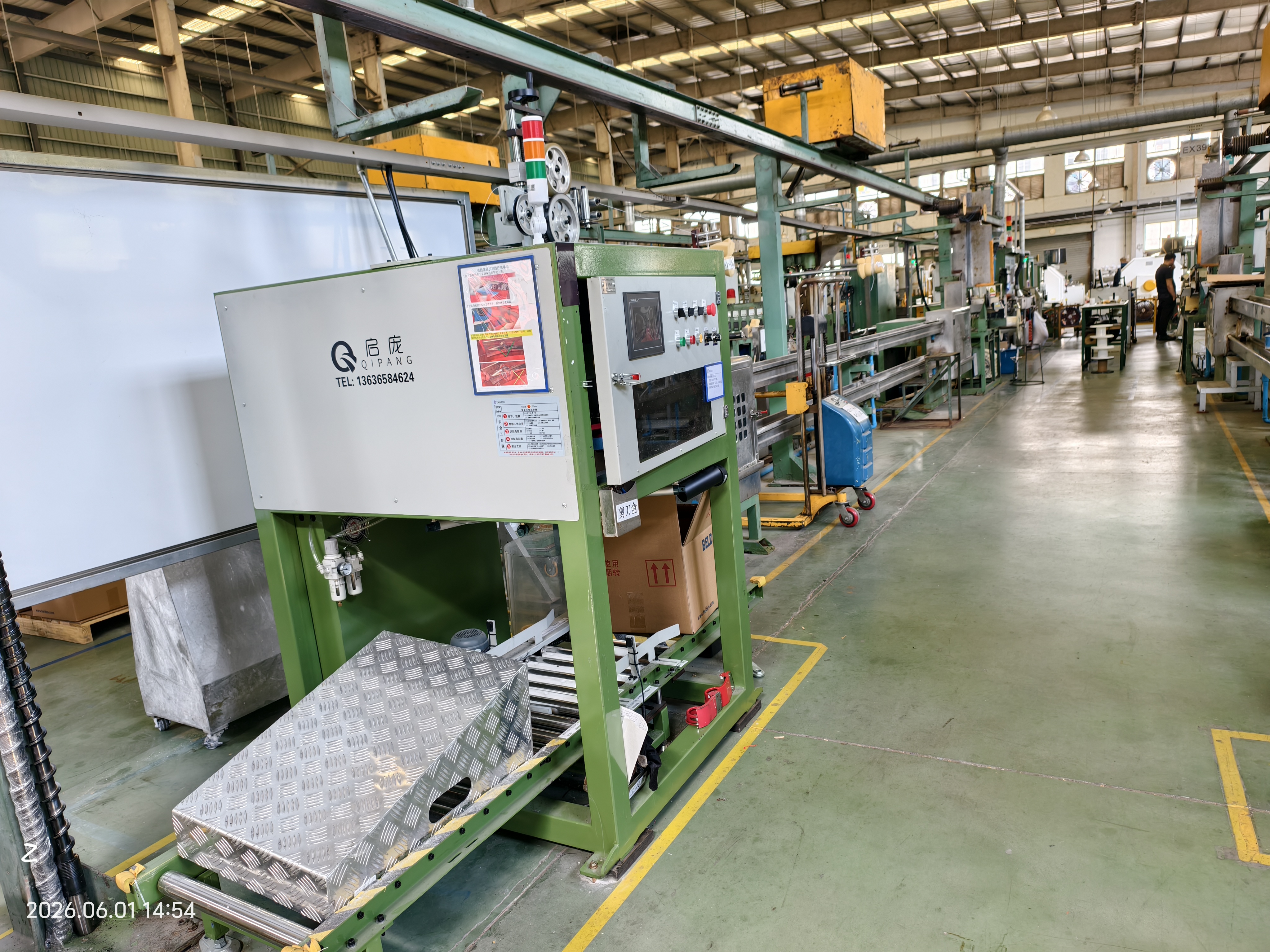

Customized Plum Blossom Barrel Take-up Machine Solution

Shanghai Qipang customized upgrades based on our self-developed plum blossom barrel take-up machine. Its core innovation lies in the separated design: the coiling motor and vibration motor work independently without mutual interference.

1. Wide compatibility with flexible wires

   Suitable for automotive wires and thin electronic wires, supporting packaging in square or round cartons. It can operate alone for shaft rewinding, or link with extrusion production lines to fit full-process manufacturing.

2. Neat wire arrangement without tangling

   The dedicated independent vibration unit coordinates with wire take-up operation synchronously. Even under high-speed operation, wires are evenly laid, fundamentally solving wire tangling, uneven stacking and feeding jamming issues of thin cables.

3. Fully automatic intelligent production

   Equipped with a user-friendly operation panel and automatic barrel change mechanism to realize non-stop continuous production. The machine can be connected to external spark testers and diameter profile gauges, which will automatically reject defective wires once insulation damage or out-of-tolerance wire diameter is detected, cutting labor inspection costs.

The separated motor structure is Qipang’s core technical advantage. This customized plum blossom barrel take-up machine fully satisfies the precision processing requirements of Belden’s 10-year warranty cables and completely eliminates the defects of its previous equipment.

Cooperation Summary

Shanghai Qipang provides customized integrated barrel take-up and coiling machines for high-end cable manufacturers worldwide, tailored to different wire gauges, output capacities and packaging demands. Our equipment balances high production speed, tidy finished wire appearance and automatic operation, fitting all high-standard industrial cable manufacturing scenarios.
