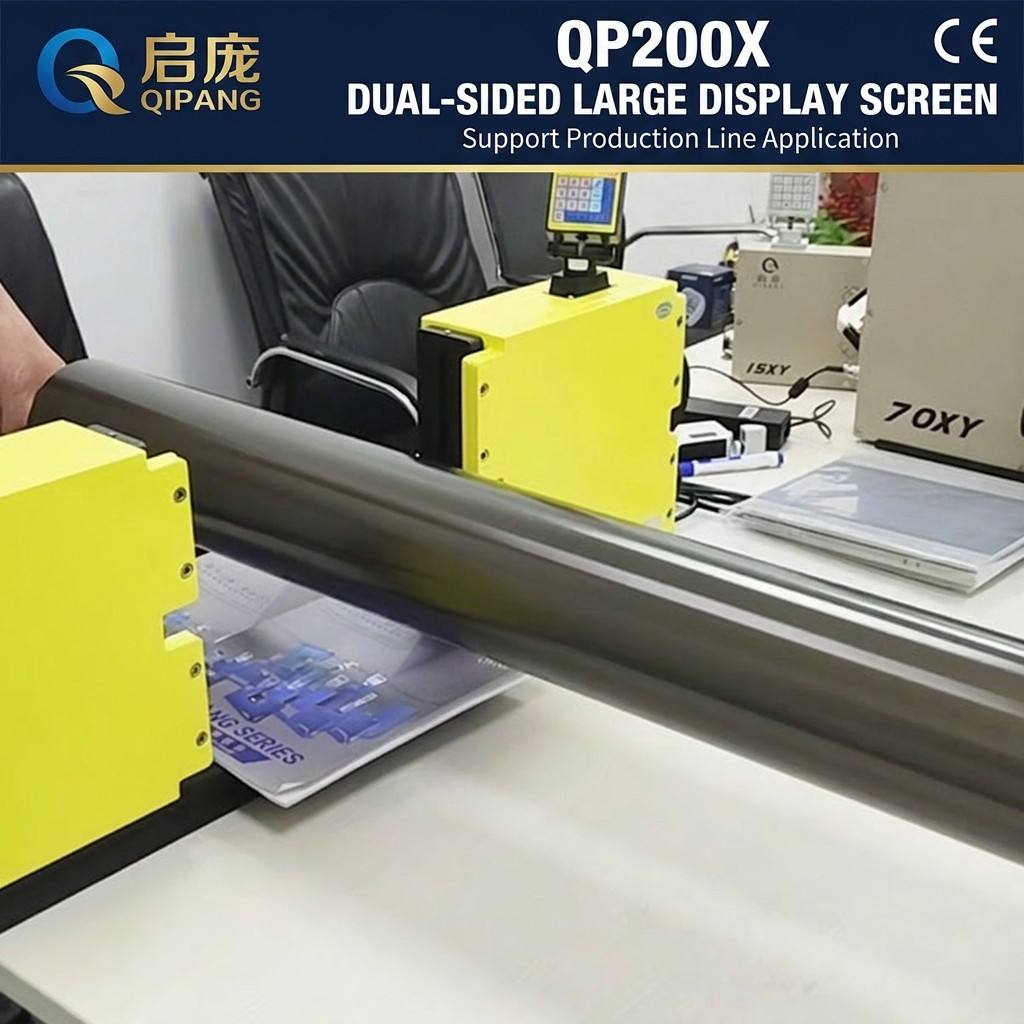

QP200X is an in-house developed single-axis laser diameter gauge from Qipang. It supports a maximum measuring range of 200mm, suitable for inline dimensional inspection on all small, medium and large wire & cable extrusion production lines, serving as core quality control equipment for cable manufacturers.
The main unit comes with a CNC operation panel, displaying real-time measured diameter, tolerance deviation and statistical data.

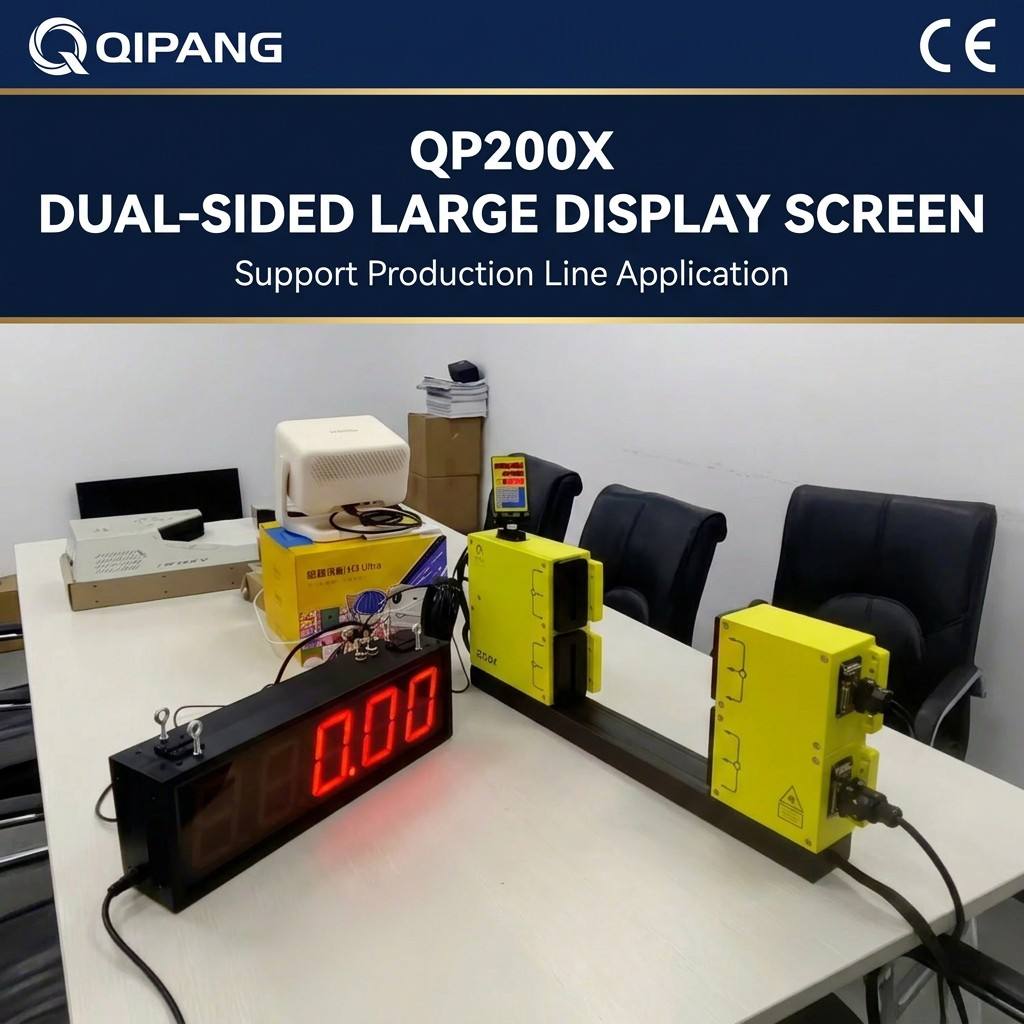

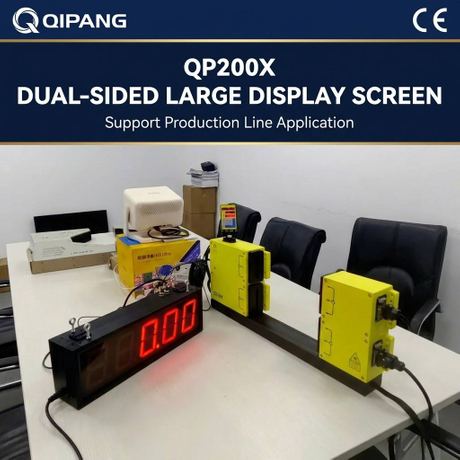

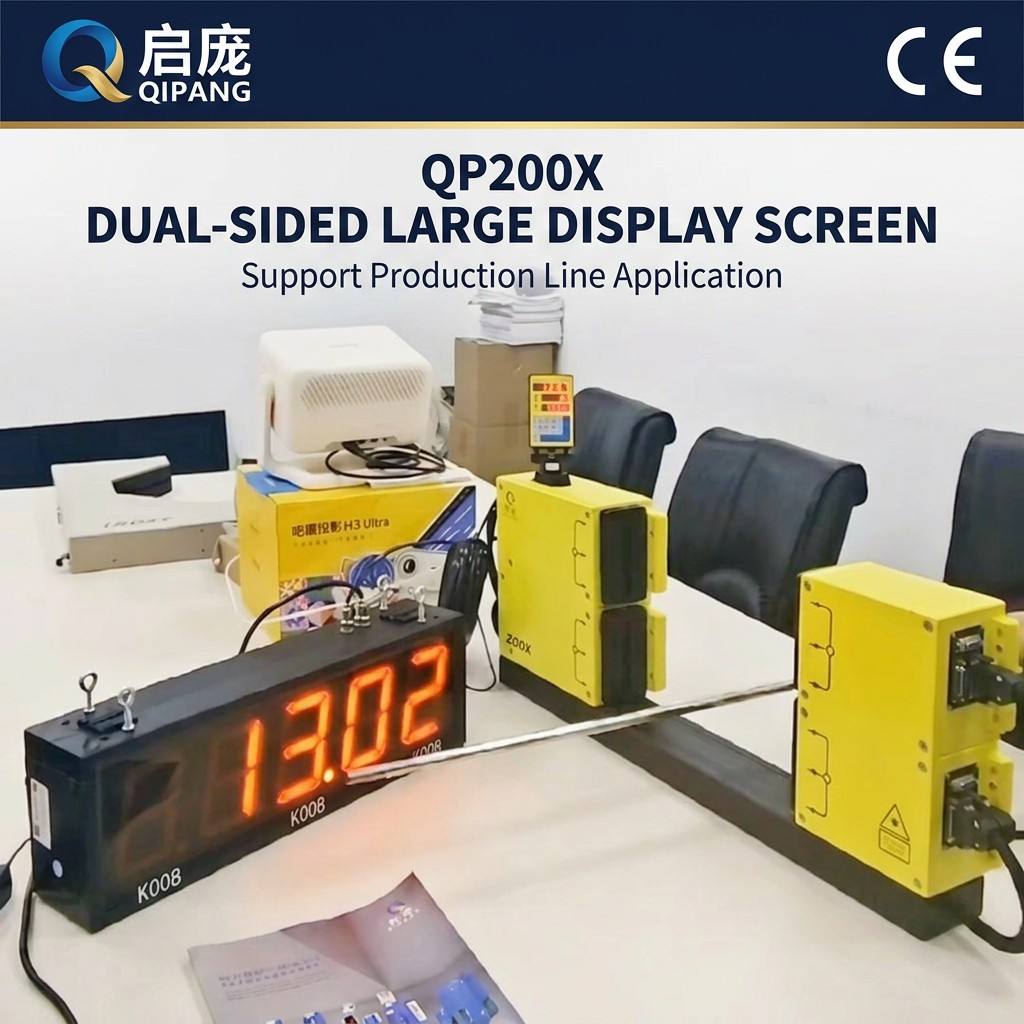

Compatible with external dual-sided large digital display screens for long-distance visual readout. Workshop inspectors can clearly view real-time wire diameter data without approaching the machine, with highlighted alerts for out-of-spec values.
Wide measuring range compatibility: Single-axis measuring structure with a 200mm max measuring range, compatible with thin electronic wires, automotive wiring harnesses, heavy-duty industrial cables and various other wire products.
Supports 24/7 non-stop inline inspection, accurately capturing tiny wire diameter fluctuations during extrusion to cut down defective out-of-spec finished products.
Signal linkage function: Connectable with extruders, take-up machines, spark testers and other auxiliary equipment. Automatic alarms trigger when wire diameter exceeds tolerance, with linked rejection of defective wires.
Flexible installation: Can be directly mounted between extrusion crossheads and take-up machines without occupying extra workshop space, ideal for retrofitting and upgrading both new and existing production lines.

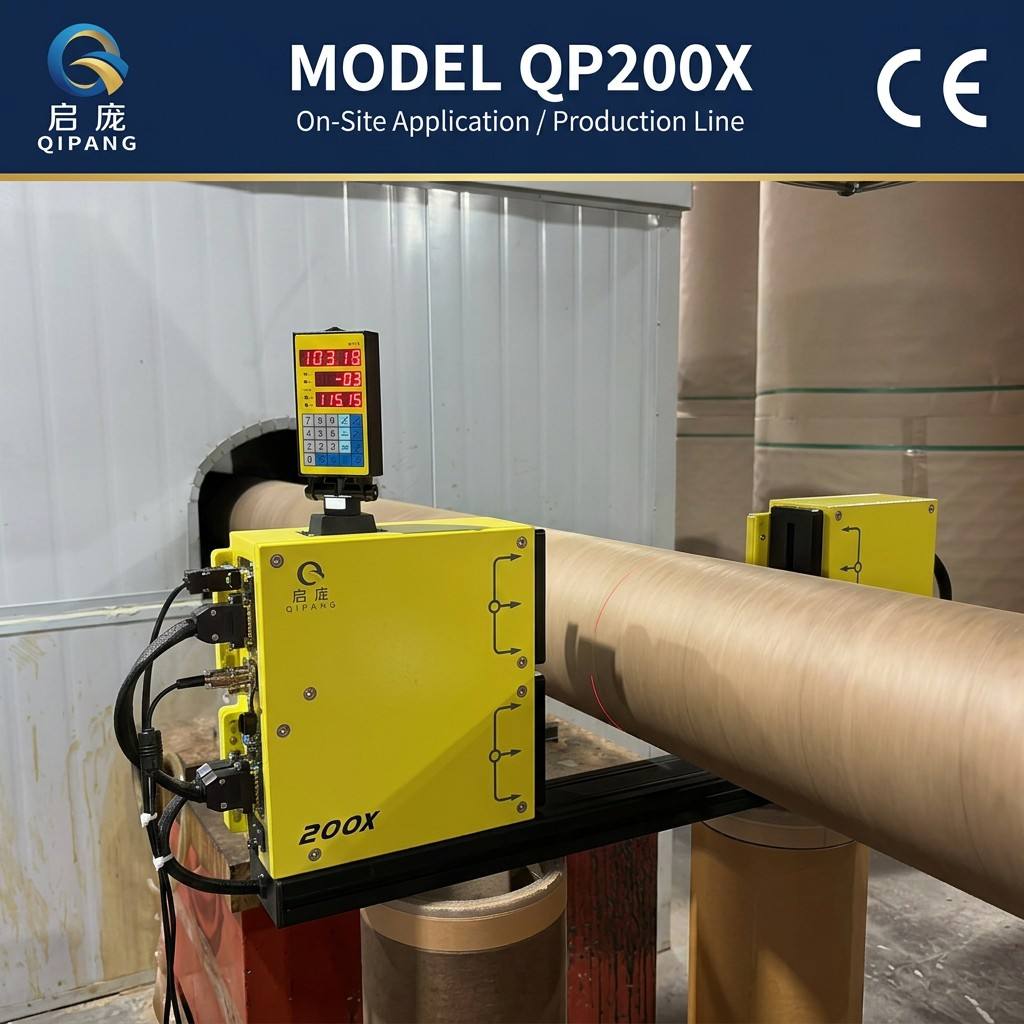

Multiple batches of QP200X diameter gauges have been delivered to cable manufacturers and run stably in mass production. Installed on extrusion lines with external large display monitors, the equipment allows operators to continuously monitor wire outer diameters intuitively, stabilizing dimensional consistency of finished cables and meeting strict quality inspection standards for long-term warranty of high-end wires and cables.
The QP200X single-axis laser diameter gauge integrates three major strengths: ultra-wide measuring range, long-distance visual display and production line linkage control. It is applicable to inline outer diameter detection for all flexible wires and industrial cable production lines, helping manufacturers lower defect rates and standardize quality control workflows.
