In high-speed wire drawing and extrusion, micrometer-level deviations directly impact material costs, product safety, and compliance. Relying on static measurements or outdated contact methods fails modern quality control standards. While many manufacturers claim high accuracy on spec sheets, real-world inline environments introduce vibration, temperature fluctuations, and particulate interference. These variables degrade measurement reliability. Inaccurate measurements do more than cause scrap. They compromise the wire's fundamental physical and electrical properties, leading to severe downstream safety hazards. Selecting the right inline measurement system requires looking past baseline specifications. You must understand how environmental and technological factors impact dynamic accuracy on the factory floor. This guide breaks down the evaluation criteria for choosing a robust measurement system capable of surviving harsh production environments while delivering precise data.
Dynamic vs. Static Accuracy: True gauge performance must be evaluated under actual line speeds and vibration conditions, not just in a controlled laboratory setting.
End-Use Compliance: Precise measurement ensures the final product meets strict AWG (American Wire Gauge) or metric standards, preventing downstream failures related to heat dissipation, load capacity, and electrical resistance.
Axis Configuration Matters: A single axis laser diameter gauge is sufficient for perfectly round, stable wire, but dual or multi-axis systems are required to detect ovality and complex flaws.
Environmental Resilience: The most significant threats to a non contact diameter gauge's accuracy are dust, coolant spray, and thermal drift; evaluating air-purge systems and optical housing is critical.
Integration and Closed-Loop Control: High accuracy is only valuable if the data can be seamlessly integrated into PLCs for real-time extrusion or drawing adjustments.
Engineers often evaluate measurement equipment based on the technical specifications provided in a brochure. These documents typically highlight maximum accuracy, resolution, and repeatability. Achieving those numbers on an active production line presents an entirely different engineering challenge. Establishing the baseline requirements for inline measurement means defining tolerances under operational stress. Maintaining a tolerance of ±0.001 mm at line speeds exceeding 1,500 meters per minute requires processing power and optical stability that basic sensors simply do not possess. You have to account for the physical realities of the extrusion process, where nothing remains perfectly static.
Manufacturer specifications are almost universally generated in static, climate-controlled clean rooms. In these environments, the target object is perfectly stationary, ambient temperature is locked at 20°C, and the air is free of particulates. The extrusion line presents the exact opposite conditions. The wire vibrates, tension fluctuates, cooling troughs generate steam, and ambient temperatures swing dramatically between morning and afternoon shifts.
When you install a highly sensitive optical device in this environment, the baseline accuracy drops immediately unless the system features robust environmental compensation. A sensor claiming 0.5-micron accuracy in a lab might struggle to hold a 5-micron tolerance on the floor if it lacks proper vibration filtering and thermal stabilization. We see this frequently when plants upgrade their line speeds without upgrading their measurement hardware. The old sensors simply cannot process the dynamic changes fast enough, leading to a cascade of false readings.
Parameter | Laboratory Conditions (Spec Sheet) | Production Floor Conditions (Reality) |
|---|---|---|
Target State | Perfectly stationary | Vibrating, fluttering, high-speed movement |
Ambient Temperature | Stable 20°C | Fluctuating 15°C to 45°C |
Air Quality | Clean, filtered air | Polymer dust, steam, drawing lubricants |
Mechanical Stress | Zero external forces | Machine vibration, tension variations |
Undetected diameter variations directly alter a wire's resistance per unit length and ampacity. In electrical applications, wire gauge dictates the safe current-carrying capacity. If an inline gauge reads artificially high due to a calibration error, the extruder might pull the wire too thin to compensate. Undersized wire creates a severe safety hazard. It increases electrical resistance, which generates excess heat. If the heat dissipation exceeds the insulation's thermal rating, the wire can melt, short-circuit, or cause a fire.
Oversized wire introduces mechanical and financial issues. A wire that is too thick loses flexibility, making it difficult to route through conduits or bend into tight terminal blocks. It adds unnecessary weight to aerospace or automotive harnesses, where every gram matters. From a manufacturing standpoint, oversized wire means you are giving away free copper or polymer. A mere 1% increase in diameter results in roughly a 2% increase in cross-sectional area. Over a 100-kilometer production run, that extra 2% consumes a massive amount of raw material, destroying profit margins.
Measurement errors manifest in two costly ways: false positives and undetected flaws. False positives occur when the gauge incorrectly identifies a diameter violation due to a water droplet or a sudden vibration spike. This triggers the automated cutting system or alarms the operator, resulting in unnecessary scrap, rework, and line downtime. Operators eventually lose faith in the system and start ignoring alarms, defeating the purpose of the equipment.
Undetected flaws are far more dangerous. If the gauge fails to register a localized neck-down—a sudden thinning of the wire—because its scan rate is too slow, that defective section gets spooled and shipped. This leads to customer rejections, warranty claims, or catastrophic failure in downstream electrical or structural applications. Accurate measurement serves as a primary risk management tool, protecting the manufacturer from severe liability.
Modern inline measurement relies entirely on optical technologies. Physical contact gauges drag on the product, causing surface marring, inducing tension changes, and wearing out rapidly at high line speeds. To achieve dynamic accuracy, you must understand the underlying physics of the optical systems used in a non contact diameter gauge. These systems measure the shadow or reflection of the wire, but they do so using vastly different mechanical and electronic approaches.
There are two dominant technologies used in the industry: rotating mirror laser scanners and solid-state optical arrays (CCD/CMOS). Each has distinct mechanical behaviors and accuracy trade-offs that dictate where they should be deployed.
Laser scanning systems use a motor spinning at high speeds to rotate a polygonal mirror. This mirror sweeps a collimated laser beam across the measurement zone. A receiver lens catches the light and focuses it onto a single photodiode. When the wire blocks the laser, the photodiode registers a drop in light. The system calculates the diameter based on the time the laser was blocked multiplied by the scanning speed. These systems are highly accurate and have a large depth of field. However, they rely on moving parts. The motor bearings spin at tens of thousands of RPM and will eventually wear out after years of continuous operation.
CCD or CMOS systems are entirely solid-state. They use an LED or laser light source to cast a shadow of the wire onto a high-density array of microscopic pixels. The microprocessor simply counts the number of dark pixels to determine the diameter. Because there are no moving parts, these systems are highly durable and can achieve exceptionally fast sampling rates. They require highly precise telecentric lenses to ensure the shadow does not change size if the wire moves closer to or further from the light source.
Feature | Laser Scanning (Rotating Mirror) | CCD/CMOS Array (Solid State) |
|---|---|---|
Measurement Principle | Time-based shadow measurement | Pixel-counting shadow measurement |
Moving Parts | Yes (Spinning motor and mirror) | No (Completely solid-state) |
Sampling Speed | High (Typically 400 - 1200 scans/sec) | Ultra-High (Up to 10,000+ scans/sec) |
Vibration Tolerance | Moderate (Requires software filtering) | Excellent (Instantaneous snapshot) |

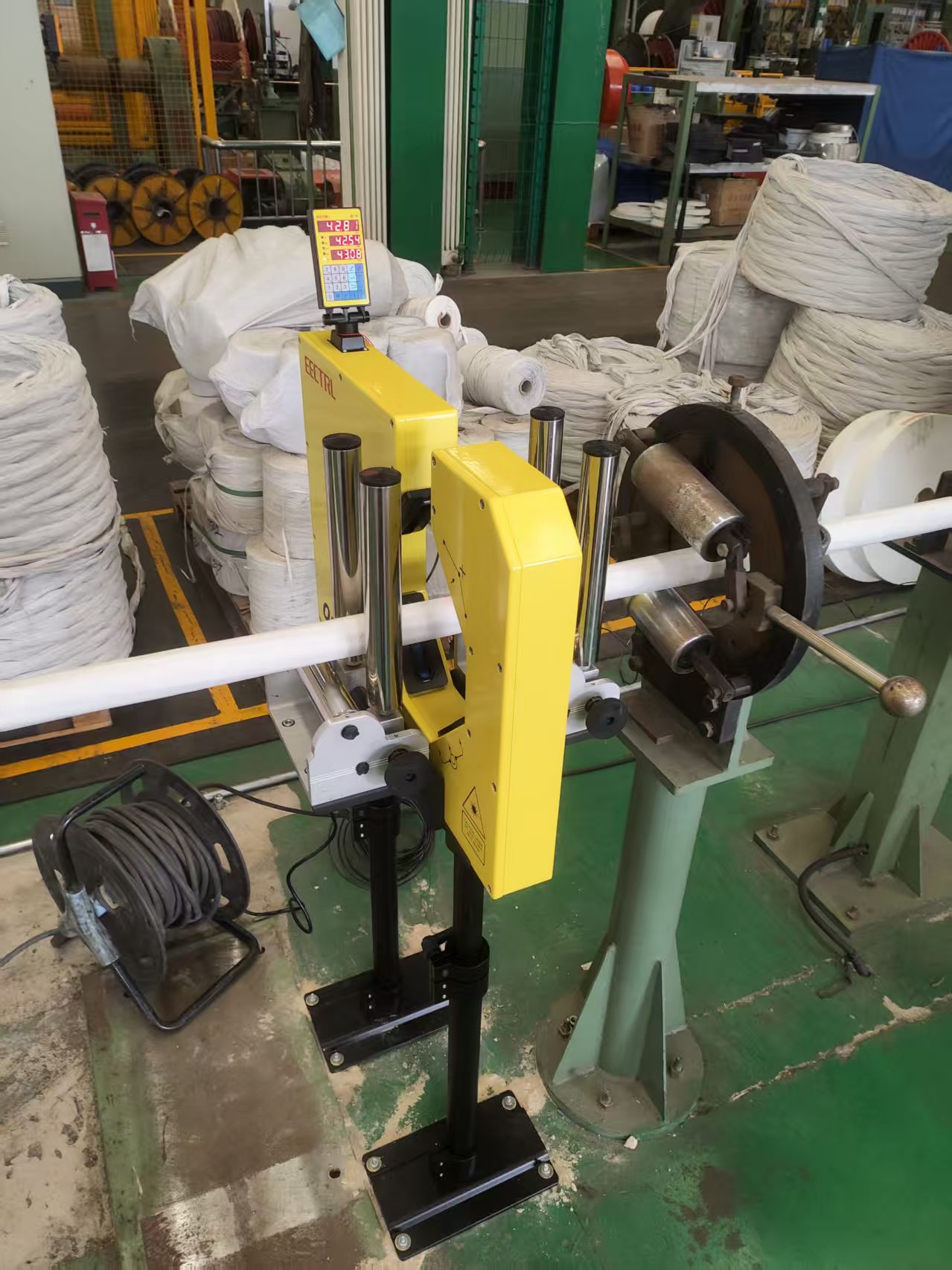

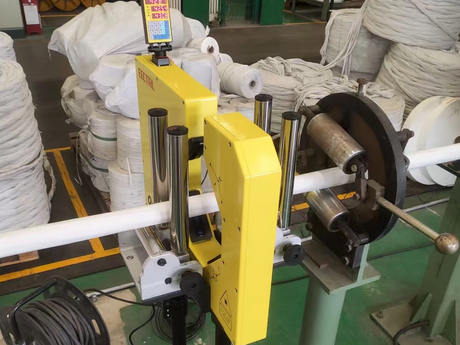

A single axis laser diameter gauge projects one beam of light across the wire. It measures the diameter across a single plane. This configuration provides an excellent return on investment for standard round wire production where the primary goal is basic tolerance checking and extrusion control.
If the drawing die is in good condition and the material flow is stable, the wire will naturally form a perfect circle. In these cases, measuring one axis is entirely sufficient to control the capstan speed and maintain the correct overall size. A single-axis system has a known limitation: it cannot detect out-of-roundness. If the wire becomes oval due to a worn die or uneven cooling, a single-axis gauge might measure the narrow side and falsely report that the wire is undersized. Alternatively, it might measure the wide side and report it is oversized. You must align the application with the hardware's physical capabilities.

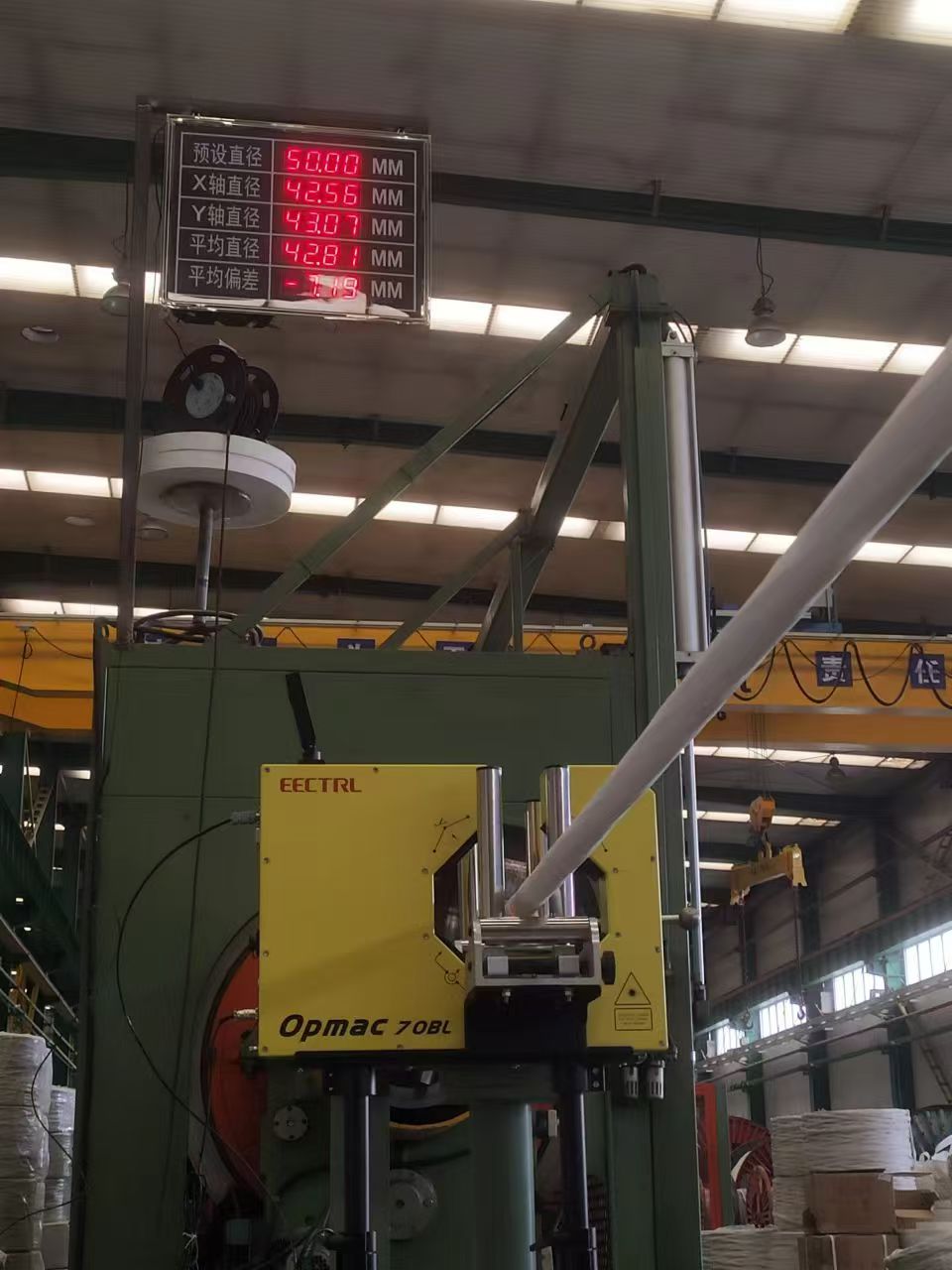

To capture a complete dimensional profile, manufacturers utilize dual-axis or three-axis gauges. A dual-axis system projects two beams at a 90-degree angle to each other. By comparing the X and Y measurements, the system calculates ovality in real-time. A three-axis system projects beams at 60-degree intervals, providing even greater coverage for detecting complex polygonal flaws that can occur in stranded cables or multi-layer extrusions.
For ultra-fine microwires used in medical devices or semiconductor bonding, standard shadow measurement reaches its physical limits due to the wavelength of light. In these scenarios, advanced diffraction-based measurement becomes necessary. These systems analyze the interference pattern created when a laser beam bends around the microscopic wire, allowing for measurement resolutions down to fractions of a micrometer.
Achieving reliable data from a Laser Diameter Gauge requires understanding how the instrument interacts with the physical realities of the production line. Accuracy fluctuates based on line speed, vibration, environmental contamination, and temperature. You must engineer solutions for these variables to maintain data integrity.
The measurement frequency, or scan rate, dictates how much of the wire is actually inspected. If a line is running at 1,000 meters per minute, the wire is moving at roughly 16.6 meters per second. If your gauge only scans 100 times per second, it takes a measurement every 166 millimeters. Any defect, lump, or neck-down shorter than 166 mm passes through the gauge completely undetected.
To prevent these blind spots and ensure statistical reliability, the scan rate must scale with the line speed. High-speed extrusion lines require gauges capable of thousands of scans per second. This high sampling rate allows the microprocessor to average multiple readings over a very short distance, filtering out random noise and providing a highly stable, accurate diameter output to the control system. Fast scanning ensures you capture transient defects before they get buried in the middle of a spool.
Wire rarely travels in a perfectly straight, motionless line. Tension variations from the payoff or take-up spools, combined with the mechanical action of the capstan, cause the wire to flutter. This vibration moves the target back and forth within the gauge's measurement zone.
If the gauge uses standard optics, moving the wire closer to the light source makes the shadow appear larger, resulting in a false oversized reading. This is known as perspective error. To mitigate this positioning error, high-quality gauges utilize telecentric lenses. A telecentric lens collimates the light, ensuring the rays are perfectly parallel. This creates a uniform depth of field. As long as the vibrating wire remains within this telecentric zone, the shadow size remains constant, and the measurement remains accurate regardless of flutter.
Optical interference destroys non-contact measurement accuracy. In a wire plant, the air is often filled with polymer dust, drawing lubricants, and steam from the cooling trough. If these particles settle on the glass windows of the gauge, they block the light, causing the system to read artificially high or fail completely.
Maintaining accuracy in harsh environments requires active physical defenses. Air-wipe systems provide the best protection. These systems use a continuous flow of clean, dry compressed air to create a positive pressure barrier across the optical windows, blowing away coolant spray and dust before it can settle. Advanced software filtering algorithms also analyze the raw optical signal to distinguish between the solid, continuous shadow of the wire and the translucent, erratic shadows caused by water droplets or steam.
Metals and optical components expand and contract with temperature changes. As the ambient temperature on the factory floor rises throughout the day, the aluminum or steel housing of the gauge expands microscopically. This expansion shifts the alignment of the lenses and the photodetectors, introducing a phenomenon known as thermal drift.
Industrial gauges incorporate built-in temperature compensation algorithms to combat thermal drift. Internal thermistors constantly monitor the temperature of the chassis and the electronics. The microprocessor uses this data to apply real-time mathematical corrections to the diameter reading, ensuring the output remains locked to the true physical dimension of the wire regardless of how hot or cold the factory gets.
A highly accurate sensor provides little value if the data it generates remains trapped inside the device. The true capability of a wire diameter gauge lies in its ability to communicate with the rest of the production line. Scalability depends on seamless integration, robust software analytics, and automated control capabilities.
Modern manufacturing requires closed-loop control. Instead of an operator manually adjusting the extruder screw speed or the capstan pull rate based on a digital readout, the gauge handles the process automatically. The gauge feeds real-time diameter data directly to the Programmable Logic Controller (PLC) via industrial communication protocols such as Profinet, Ethernet/IP, or Modbus TCP.
The PLC uses a PID (Proportional-Integral-Derivative) control loop to continuously compare the actual diameter against the target setpoint. If the wire starts trending too thick, the PLC commands the capstan to speed up slightly, stretching the polymer thinner before it cools. This automated micro-adjustment happens multiple times per second, keeping the wire locked tightly within tolerance and drastically reducing material waste. The derivative function of the PID loop anticipates the rate of change, preventing the system from overcorrecting and causing the diameter to oscillate.
Beyond real-time machine control, the gauge must provide analytical tools for quality assurance and process engineering. Evaluating the software provided with the gauge requires looking at its long-term data handling capabilities.
A robust system generates automated compliance reports, logging the minimum, maximum, and average diameter for every spool produced. It offers trend analysis to help engineers identify slow-moving variables, such as drawing die wear over a multi-day run. Advanced systems include FFT (Fast Fourier Transform) analysis. FFT breaks down diameter variations into their component frequencies. If the wire diameter fluctuates at exactly 15 Hertz, the engineer can trace that specific frequency back to a vibrating pulley or a worn bearing rotating at that exact speed. This turns the gauge into a powerful predictive maintenance tool.
Even the most advanced optical measurement system will fail to deliver accurate results if it is installed incorrectly or maintained poorly. Recognizing the implementation risks early allows engineering teams to deploy mitigation strategies that protect the integrity of the quality control process.
The most common installation error is failing to mount the gauge perfectly perpendicular to the wire path. If the gauge is tilted, the light beam cuts across the wire at an angle, creating an elliptical shadow rather than a true cross-section. This introduces cosine error, causing the gauge to report a diameter that is mathematically larger than the actual physical wire.
Mitigating cosine error requires strict mechanical discipline during installation. Follow these specific alignment steps:
Mount the primary bracket loosely to the extrusion line frame, ensuring it sits roughly level with the wire path.
Pass a perfectly straight, tensioned alignment string or a precision pin through the exact center of the measurement zone.
Use a machinist's square and a laser level to adjust the gauge's pitch and yaw until the optical window is perfectly perpendicular to the string.
Tighten the mounting bolts in a star pattern to prevent torque from pulling the instrument out of alignment.
Run a known master sample through the active gauge to verify the baseline reading matches the physical dimension.
While solid-state optical systems do not suffer from mechanical wear, they are still subject to optical degradation. Over time, micro-scratches on the glass windows, microscopic dust ingress, or slight shifts in the LED output can cause the baseline calibration to drift.
Plants must establish a rigorous verification schedule to maintain strict quality reporting standards. Relying on the factory calibration indefinitely introduces massive risk. Operators should use certified master gauges or precision pin gauges to verify the instrument's accuracy at the start of every shift or before every major product changeover. If the gauge reads outside the acceptable tolerance on the known pin gauge, it must be cleaned and re-calibrated immediately.
A highly sophisticated gauge becomes a liability if the production operators cannot understand how to use it. If the Human-Machine Interface (HMI) is cluttered with excessive engineering data, operators may ignore critical alarms or struggle to input the correct target parameters during a changeover.
The interface must be intuitive and visual. Operators need to see clear tolerance bands—green for good, yellow for warning, and red for out-of-spec. Alarm states must be unambiguous, indicating exactly what parameter failed and where the defect is located on the spool. Simplifying the operator experience ensures the equipment is used correctly and consistently across all shifts.
Take the following actions to ensure your inline measurement system delivers reliable, actionable data:
Audit your current production lines to document maximum line speeds, typical vibration levels, and environmental contaminants before selecting a gauge.
Request an on-site trial from the vendor to test the gauge under actual operating conditions, rather than relying solely on lab data.
Provide physical wire samples, including known defects, to the manufacturer for proof-of-concept testing to verify their software can accurately catch your specific flaws.
Verify that your existing PLCs and line control systems share compatible communication protocols with the new gauge for seamless closed-loop integration.
A: In a controlled inline process with proper vibration mitigation and clean optics, high-quality gauges typically maintain an accuracy of ±0.001 mm to ±0.003 mm. This accuracy degrades if the scan rate cannot keep up with line speed or if environmental contaminants obscure the optical windows. Regular maintenance ensures these baseline numbers hold true during continuous production.
A: A single-axis gauge projects one light beam to measure the diameter across one plane, making it suitable for perfectly round wire. A dual-axis gauge projects two beams at a 90-degree angle, allowing it to measure two planes simultaneously and calculate wire ovality or out-of-roundness.
A: Wire diameter dictates the cross-sectional area of the conductor. If a gauge reads artificially high and causes the line to produce undersized wire, the cross-sectional area decreases. This increases electrical resistance, reduces ampacity, and causes the wire to overheat under normal electrical loads.
A: Vibration moves the wire back and forth within the measurement zone. Without telecentric lenses, this movement changes the size of the shadow cast on the sensor, creating false diameter readings. Telecentric optics and high scan rates filter out these vibration-induced errors.
A: While solid-state gauges hold calibration well, you should verify accuracy daily or at the start of every shift using certified precision pin gauges. Full recalibration is typically only required if the daily verification fails, or during annual preventative maintenance schedules.
A: They can, if the gauge lacks physical defenses. Dust and coolant spray block light, causing false oversized readings. To maintain accuracy, gauges must be equipped with active air-wipe systems that use compressed air to keep the optical windows clean and dry during operation.
