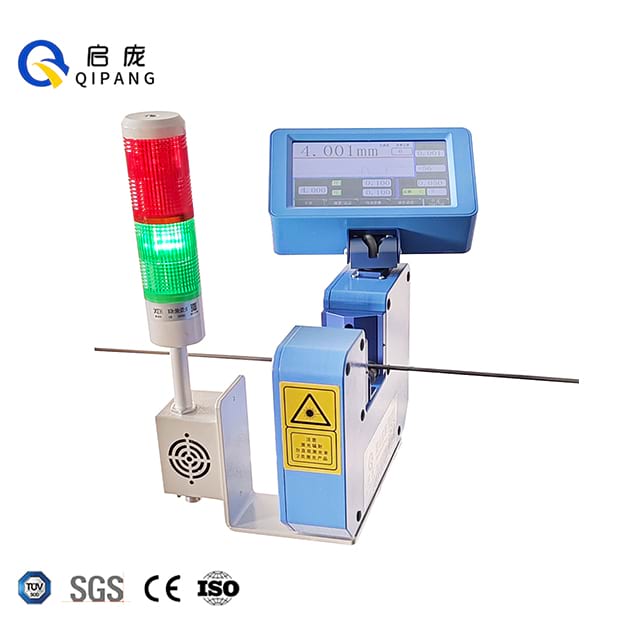

QIPANG (model: SCR-25AR) PLC Touchscreen Laser Diameter Measuring Tool is a high-performance non-contact optical measurement instrument for medium and large-spec industrial workpieces, certified by SGS, CE, ISO and TUV. Targeting the industrial laser diameter measurement for large-spec cables and pipes, this tool breaks through the limitation of narrow measuring range of traditional gauges, and realizes 0.1-25mm wide-range diameter detection with high precision. Equipped with a high-speed laser scanning system and digital processing electronics, it features an intuitive PLC touchscreen operation and a full English-translated interface, which is friendly to global B-end industrial users. The product is equipped with a complete set of standard accessories and optional customized components, which can be easily integrated into various wire cable, pipe and hose production lines. With stable scanning performance and 0.001mm high resolution, it can accurately capture the diameter change of workpieces, and is the ideal equipment for quality control of medium and large-spec industrial product production lines. As a core product of Shanghai Qipang Industrial Co., Ltd., it adheres to the design concept of "easy operation, high compatibility and stable performance", and fully meets the batch measurement needs of industrial automation production.

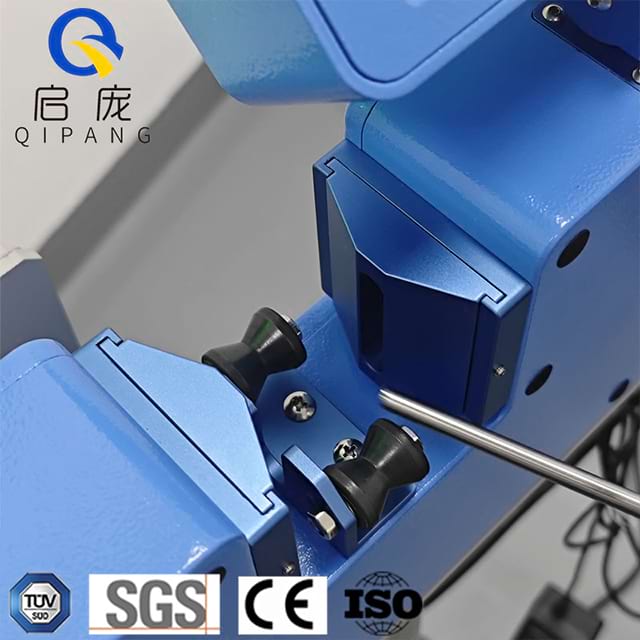

The SCR-25AR 0.1-25mm laser diameter measuring instrument adopts advanced non-contact optical measurement technology, with a wide measuring range of 0.1mm-25mm (1/256"-63/64"), which can cover the diameter detection of most industrial medium and large-spec workpieces such as power cables, plastic pipes and industrial hoses. The non-contact measurement mode avoids the surface scratch and deformation of workpieces caused by contact measurement, and is suitable for the detection of soft and hard workpieces.

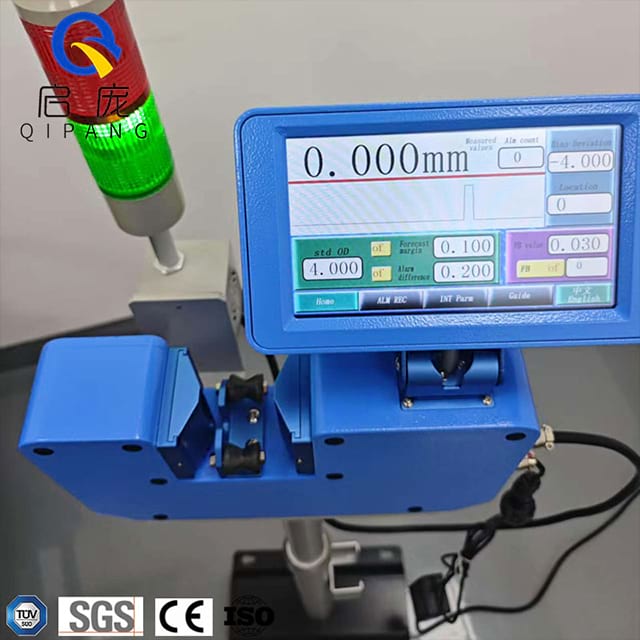

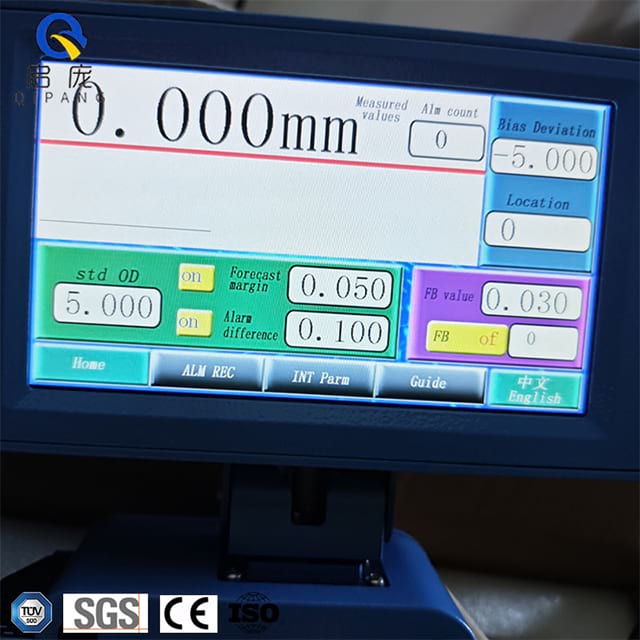

Equipped with a professional PLC touchscreen non-contact optical diameter gauge operation panel, it abandons the complex button operation of traditional equipment. The graphical touch interface is simple and easy to operate, and the measurement data such as diameter value, deviation and alarm count are displayed in real time. The full English interface design meets the operation needs of overseas B-end users, reducing the learning cost of cross-border production teams.
The product is configured with a 600-1000 times/second adjustable high-speed scanning system, which can flexibly adjust the scanning speed according to the production speed of the workpiece. For low-speed large-spec pipe production, it can improve the scanning frequency to ensure measurement accuracy; for high-speed cable production, it can maintain stable scanning to realize real-time dynamic detection, balancing measurement speed and data accuracy.

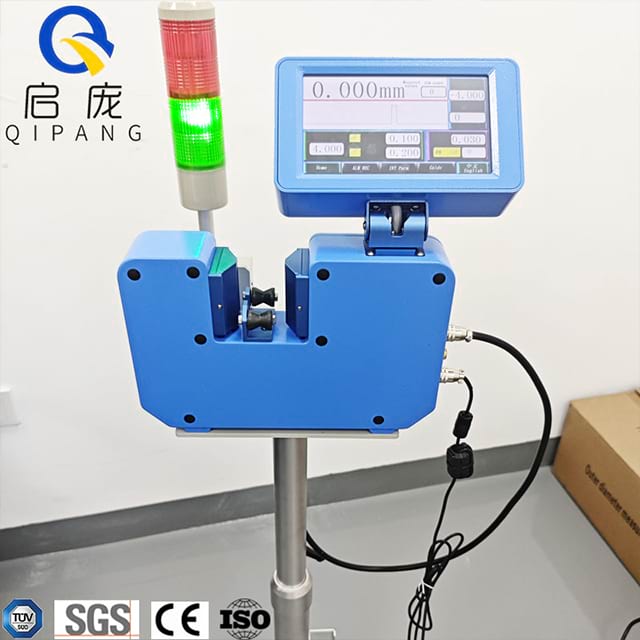

It is equipped with standard PLC touch screen and 15M communication cable, which can realize long-distance data transmission and on-site operation. At the same time, it provides optional remote controller and mounting bracket, which can be flexibly installed and fixed according to the layout of the production line. The compact structure design makes the equipment easy to integrate into the existing industrial automation production line without major modification of the original production line.
Parameter | Specification |
Measuring axis number | Single Axis |
Measuring range | 0.1mm-25mm, 1/256"-63/64" |
Measuring accuracy | ±0.002mm,±0.002mm |
Scanning speed of diameter gauge | 600-1000 times/second |
Resolution | 0.001mm |
Communication interface | RS485 (support Modbus RTU) |

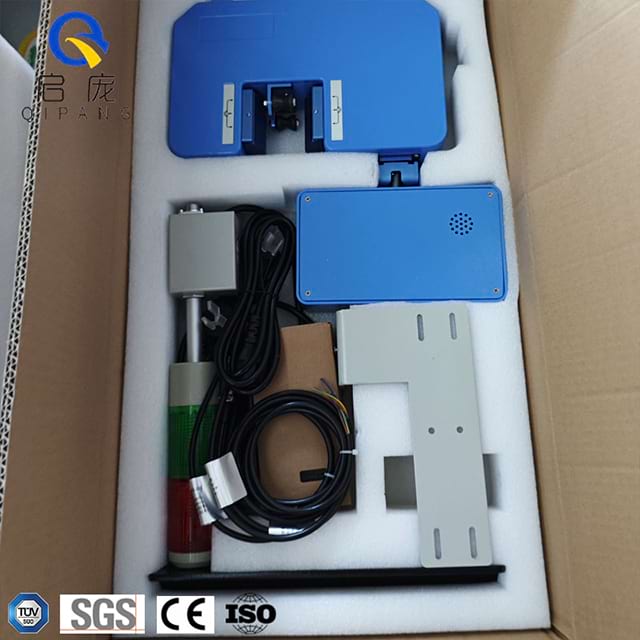

Standard accessories | PLC Touch Screen, 15M Communication Cable |
Optional accessories | Remote Controller, Mounting Bracket |
Suitable for the diameter measurement of power cables, communication cables, high-voltage cables and automotive wiring harnesses in the wire and cable industry. It can realize real-time detection of the diameter of cable cores and insulation layers in the extrusion process, ensuring the size consistency of large-spec cables.
Applied to the production and quality control of plastic pipes (water supply and drainage pipes, gas pipes), PVC pipes and steel-plastic composite pipes. The wide measuring range and non-contact measurement mode can adapt to the diameter detection of pipes with different specifications and materials, and avoid the pipe deformation caused by measurement.
It is used for the diameter measurement of industrial hoses such as hydraulic hoses, pneumatic hoses and oil pipes in the mechanical and hydraulic industry. It can accurately detect the outer diameter of hoses in the extrusion and forming process, and ensure the matching performance of hoses and connecting parts.
The PLC touchscreen operation and full English interface design realize the simplification of equipment operation, and the graphical data display is intuitive and clear. It is suitable for production teams of different countries and regions, and reduces the training cost of B-end enterprise employees.
The 0.1-25mm ultra-wide measuring range covers most medium and large-spec industrial workpiece diameter detection needs, and one device can replace multiple traditional gauges, reducing the equipment purchase and management cost of enterprises.
The product has passed SGS, CE, ISO and TUV multiple international authoritative certifications, and the core components adopt high-quality industrial-grade materials, which can operate stably for a long time in the harsh industrial production environment, with low failure rate and long service life.
Providing rich standard and optional accessories, it can be customized according to the actual layout and measurement needs of the enterprise's production line. The simple installation process and flexible fixing mode make the equipment can be put into use quickly, reducing the downtime of the production line.
As a professional manufacturer of industrial measurement and testing equipment, QIPANG can provide integrated solutions including equipment selection, system integration, on-site debugging and after-sales service for B-end users. It can be seamlessly connected with the user's existing production line and quality control system to realize the integration of measurement and production control.
