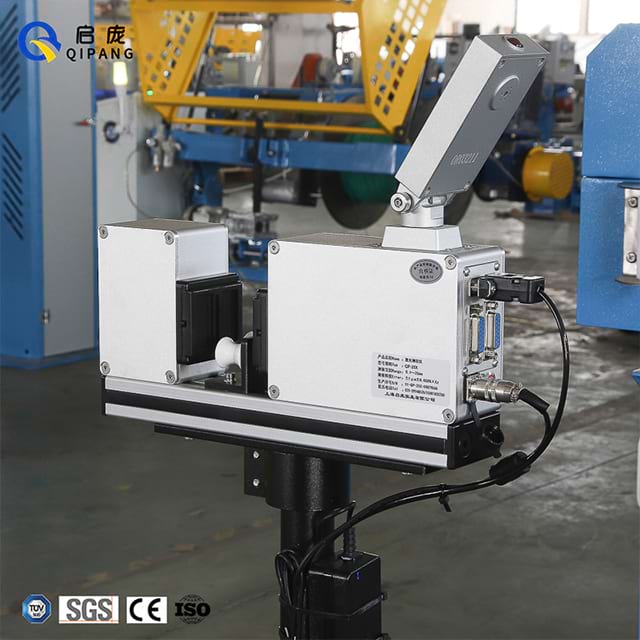

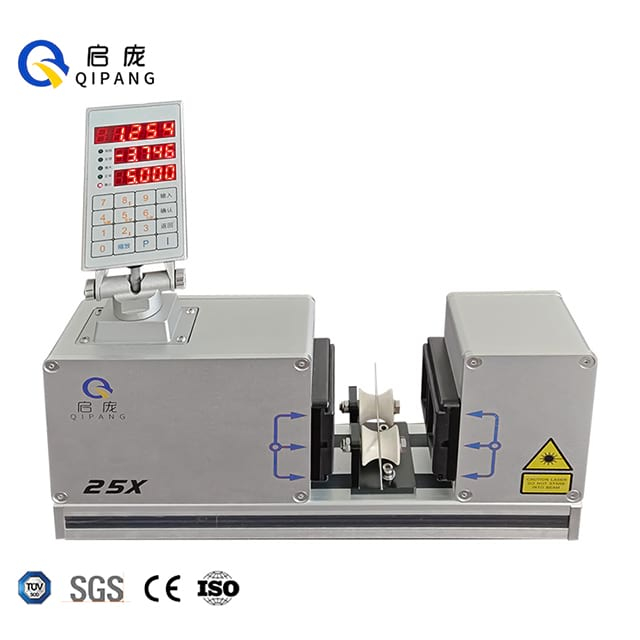

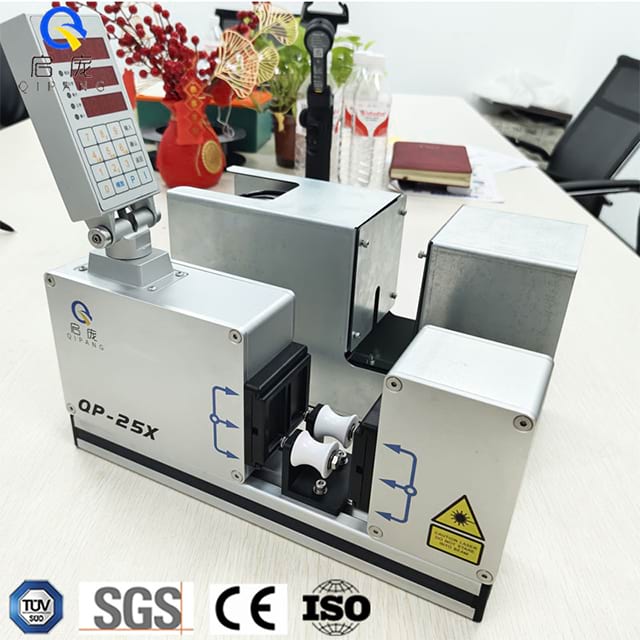

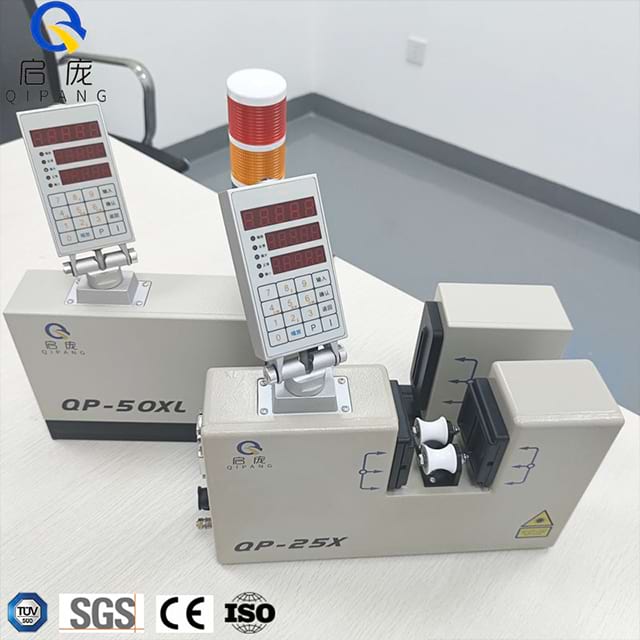

The 25X Single Axis Laser Diameter Gauge is a high-cost performance non-contact optical measuring instrument independently developed by QIPANG, focusing on the one-dimensional diameter online detection of various industrial cylindrical workpieces. Aimed at B-end manufacturing enterprises pursuing high efficiency and precision in single-direction dimension control, this gauge covers a 0.1-25mm measuring range with 0.001mm high resolution and 1400 times/second high-speed laser scanning, realizing real-time, dynamic and non-destructive measurement of workpieces in the production process. With SGS, CE, ISO and TUV international certifications, the QP-25X adopts advanced digital processing hardware and laser scanning technology, abandoning the defects of low efficiency and large error of traditional manual measurement, and can be directly connected with industrial production lines such as extruders, which is the ideal choice for wire and cable, plastic tubing, metal wire and other industries to improve quality control efficiency and reduce production costs. Its compact structure and easy operation allow quick deployment in various workshop scenarios, realizing rapid upgrade of production line quality control.
Equipped with high-speed laser scanning module and digital processing chip, the gauge realizes 1400 times/second ultra-fast scanning, which can keep pace with the high-speed extrusion and drawing production lines, and feed back the workpiece diameter data in real time, realizing the dynamic tracking of production process dimensions.
With a measurement accuracy of ±1μm±0.008%×Z (Z=nominal diameter) and a fixed resolution of 0.001mm, the gauge can accurately capture the micro-dimension changes of workpieces, ensuring the consistency of product dimensions. The core components are imported with high quality, and the performance is stable and reliable for long-term continuous operation.
Adopting non-contact optical measurement principle, the gauge does not contact the workpiece surface during the measurement process, avoiding workpiece wear and scratch caused by contact measurement, and is especially suitable for the detection of soft workpieces such as plastic wires and thin metal wires.

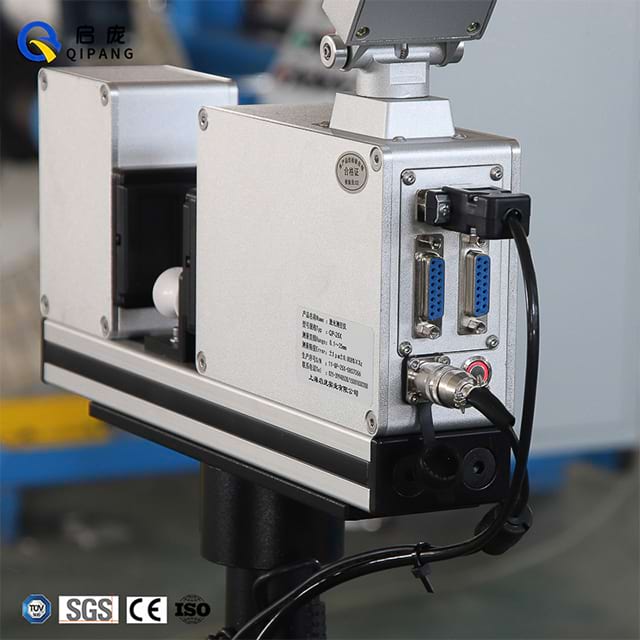

Standard RS485 (Modbus RTU) communication interface is configured, and Modbus TCP/Profinet network port is optional, which can be quickly connected with PLC, extruder and production line control system, realizing remote data transmission and parameter adjustment, and realizing the automation of quality control.
The gauge is designed with industrial-grade protection, which can work stably in the ambient temperature of -5～40℃, adapting to the harsh environment of industrial workshops such as dust and temperature change. With power consumption ≤12W, it saves energy and reduces consumption, and the daily operation cost is extremely low.
Parameter | Specification |
Measuring axis number | Single Axis |
Measuring range | 0.1mm-25mm, 1/256"-63/64" |
Measuring accuracy | ±1μm±0.008%×Z (Z: nominal diameter) |
Scanning speed | 1400 times/second |
Resolution | 0.001mm |
Power supply voltage | AC220V±10% 50HZ |
Ambient temperature | -10～40℃ |
Communication interface | RS485(Modbus RTU); Optional: Modbus TCP/Profinet |
Power consumption | ≤12W |
Certifications | SGS, CE, ISO, TUV |
Core technology | High-speed laser scanning + digital signal processing |
Operation mode | Online continuous measurement / manual single measurement |
Real-time online detection of the outer diameter of low-voltage power cables, household wires, network cables and automotive wiring harnesses in the extrusion process, real-time feedback of dimension data to the extruder, and automatic adjustment of production parameters to ensure the compliance of wire diameter.
Measurement of PVC, PE plastic soft tubes, beverage straws, plastic rods and 3D printing consumables, realizing non-destructive detection of soft plastic workpieces, and avoiding product scrapping caused by contact measurement.
Detection of copper clad aluminum wire, galvanized wire, binding wire and electronic lead wire in the drawing process, capturing the dimension changes of metal wires in real time, and ensuring the precision of wire diameter to meet the processing requirements of downstream products.
Online dimension control of plastic water supply pipes, drainage pipes and electrical casing pipes in the production process, adapting to the large-batch and high-speed production characteristics of building materials industry, and improving the overall product qualification rate.
Single-direction diameter detection of small precision shaft parts, pin shafts and metal dowels, realizing high-precision measurement of small workpieces, and meeting the quality control requirements of mechanical hardware industry.
QIPANG has been deeply engaged in the field of industrial measuring equipment for many years, with a professional R&D team and perfect production and testing equipment. The laser diameter gauge products are independently developed and optimized for the actual needs of the manufacturing industry, with strong technical pertinence.
The QP-25X single axis laser diameter gauge has the same high precision and high speed as international similar products, but the price is more reasonable. It can help enterprises quickly recover the investment cost by improving the product qualification rate and reducing the manual inspection cost.

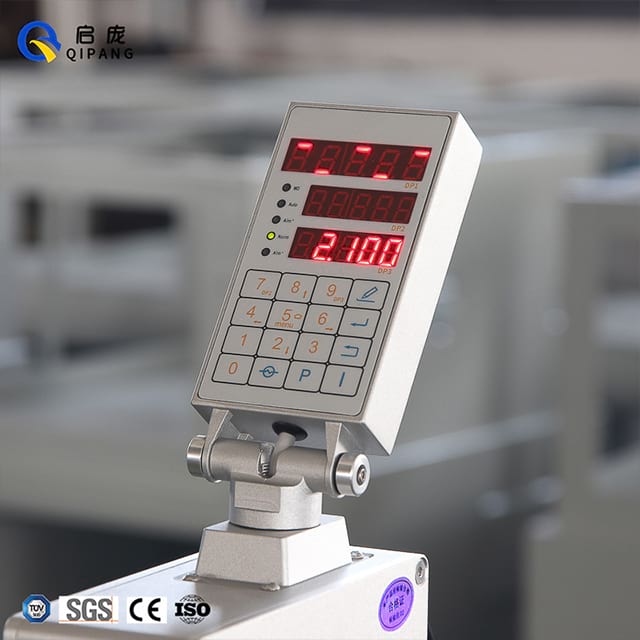

The gauge is equipped with an intuitive operating panel, with simple parameter setting and easy operation, and no professional technical personnel are needed for operation. The compact structure is convenient for installation and fixation, and can be quickly deployed on the existing production line of customers without affecting the normal production.
QIPANG has a nationwide after-sales service network, providing 7×24-hour technical consultation, on-site installation and debugging, and regular maintenance services. For product failures, the after-sales team responds quickly to ensure the minimum downtime of customers' production lines.
In addition to laser diameter gauges, QIPANG also provides a full set of supporting equipment such as wire length meters, cable spark testers and wire preheaters, which can provide integrated production line measurement and control solutions for customers, realizing one-stop procurement and reducing the communication and coordination cost of customers.
