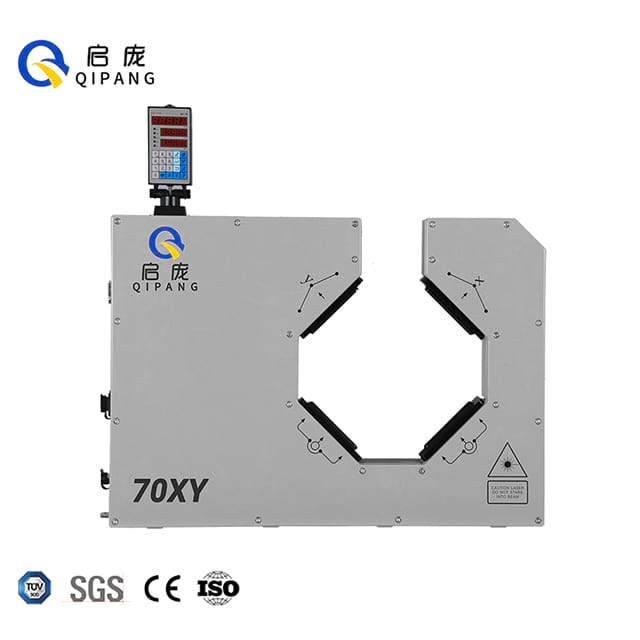

70XY Diameter Gauge

1. Main Display Screen: Display diameter value and parameter contents
2. Secondary Display Screen : display deviation, position and parameter code3. Automatic Control Indicating Light: it will be lit in PID operation control
4. Automatic Control: press this button to enter into PID operation control mode, press it again to exit5. Menu/Return button: Press this button to enter into menu, then long press it for 3 seconds to exit the menu,When modifying parameters, confirm the parameter modification.
6. Up Adjust Button
7. Down Adjust Button
8.Shift Button

Quantity:
Availability:





Inquire Add to Basket

Product Description

Shanghai Qipang Industrial Co., Ltd. major in Laser Diameter Measuring Instrument, Wire Length Meter , Pinholes Broken Skin Wire Conduct Faults, Copper Preheater, cable spooler take up machine

Technical Parameters Laser Dimeter Measurement

Measuring axis number	Double Axis
Measuring range	1~70mm, 1/25"-2 3/4"
Measuring accuracy	±10μm±0.008%×XZ (Xz:nominal diameter)
Scanning speed of diameter gauge	1400 times/second
Resolution	0.001mm
Power supply voltage	AC220V±10% 50HZ
Ambient temperature	-10～40℃
Communication interface	RS485(Modbus RTU)、(Optional network port: Modbus TCP/Profinet)
Optional accessories	Bracket, serial line, remote controller, remote display
Power consumption	≤12W

Product Video

Product Operate Guide

3XY 70XY 120XY 170XY Laser Diameter Gauge Technical parameters.pdf
