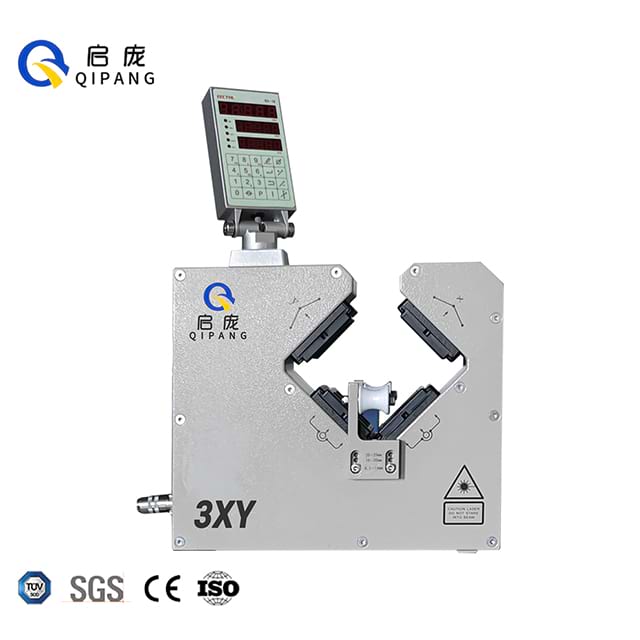

3XY Laser Dimeter Measurement

3X Single 0.0001um 0.05~3mm ±0.5μm
25X Single 0.001mm 0.1~25mm ±1um
40X Single 0.001mm 1~40mm ±1um
50X Single 0.001mm 1~50mm ±3um
70X Single 0.01mm 1~70mm ±10μm
100X Single 0.01mm 1~100mm ±10μm
15XY Dual 0.001mm 0.1~15mm ±1μm
25XY Dual 0.001mm 0.1~25mm ±1um
50XY Dual 0.001mm 1~50mm ±3um
70XY Dual 0.01mm 1~70mm ±10μm
100XY Dual 0.01mm 1~100mm ±10μm

Quantity:
Availability:





Inquire Add to Basket

Product Description

Shanghai Qipang Industrial Co., Ltd. major in laser diameter gauge wire, Intelligent Cable Length Meter Counter , Voltage Linkage Signal Control Spark Tester, High frequency copper wire calorifier, automatic cable wire winding machine.

Technical Parameters Laser Dimeter Measurement

Measuring axis number	Double Axis
Measuring range	0.05-3mm, 0.002"-1/8"
Measuring accuracy	±1μm±0.008%xZ (Xz: nominal diameter)
Scanning speed of diameter gauge	1400 times/second
Resolution	0.001mm
Power supply voltage	AC220V±10% 50HZ
Ambient temperature	-5～40℃
Communication interface	RS485(Modbus RTU)、(Optional network port: Modbus TCP/Profinet)
Optional accessories	Bracket, serial line, remote controller, remote display
Power consumption	≤12W

Product Video

Product Operate Guide

3XY 70XY 120XY 170XY Laser Diameter Gauge Technical parameters.pdf

High speed Laser Diameter Gauge Manual.pdf
