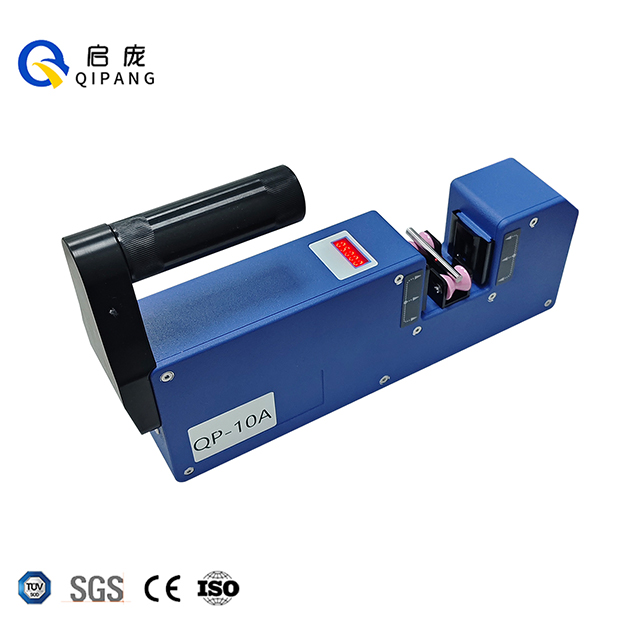

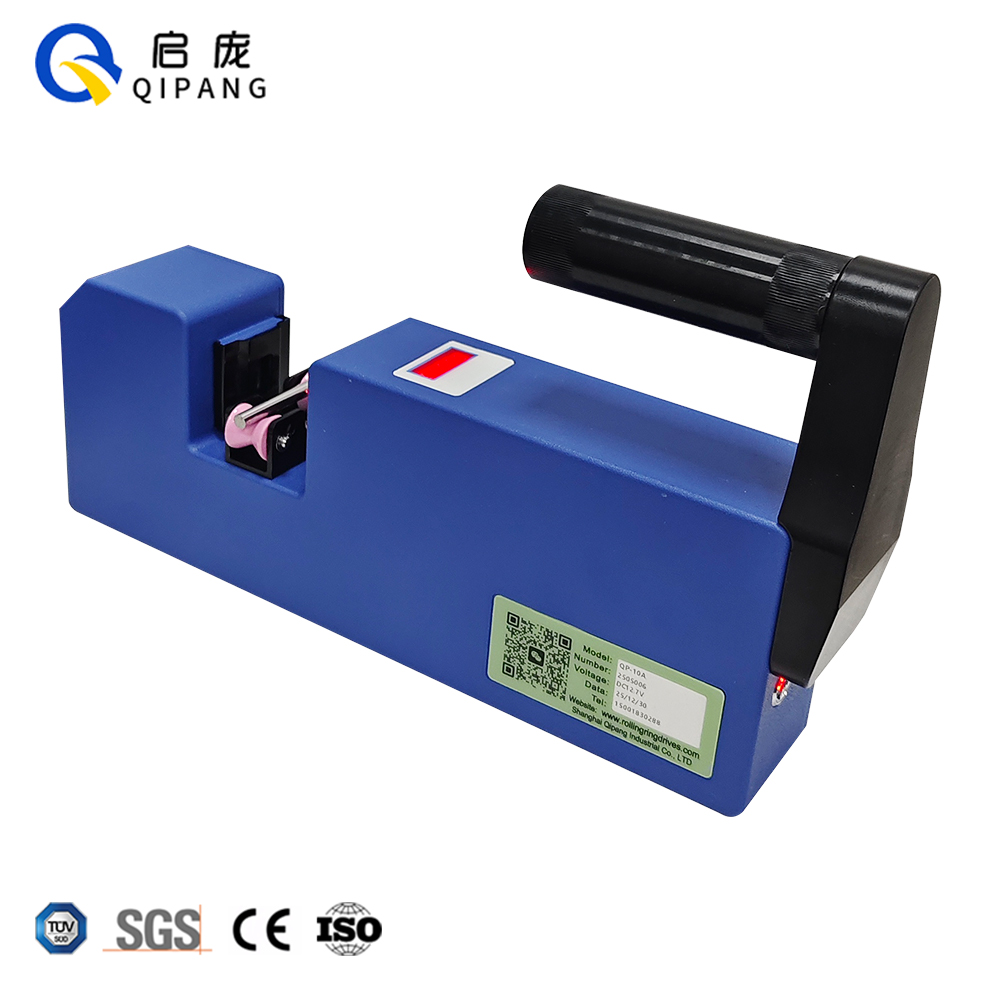

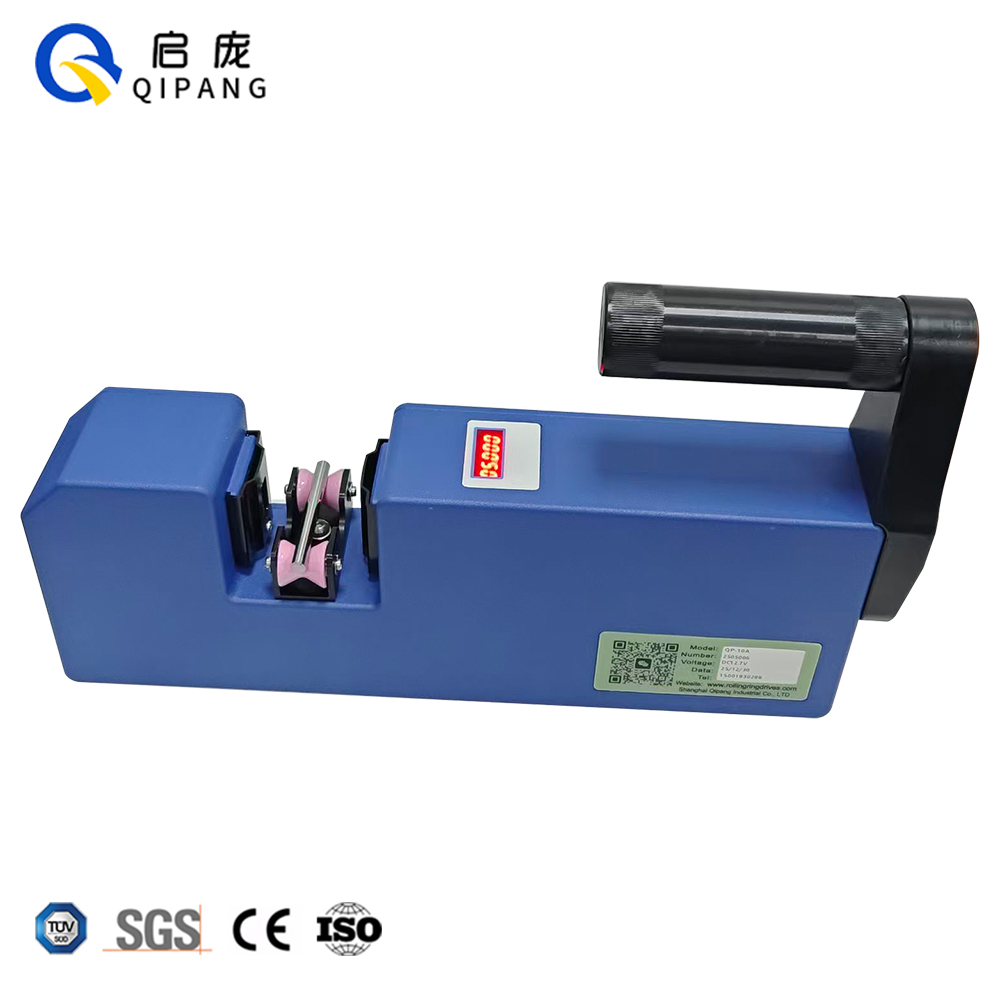

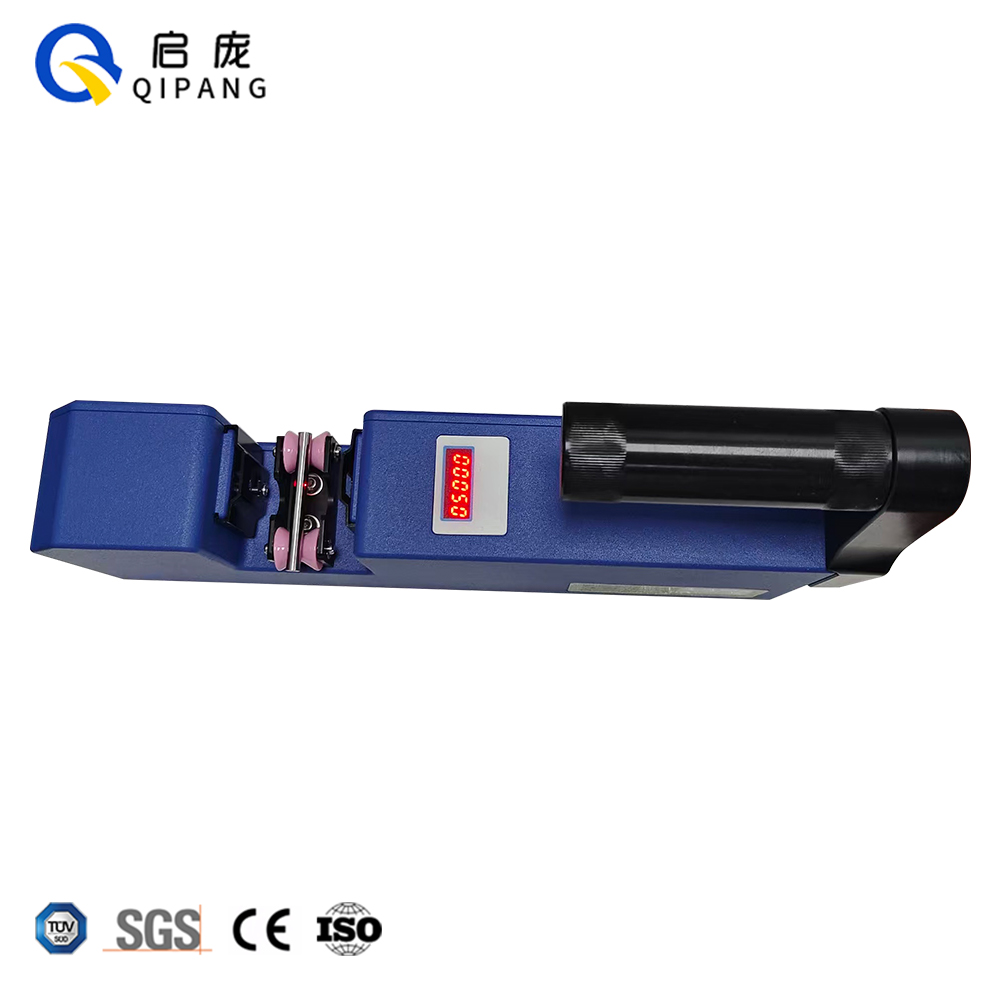

QP-10A Handheld Wire OD Measurement

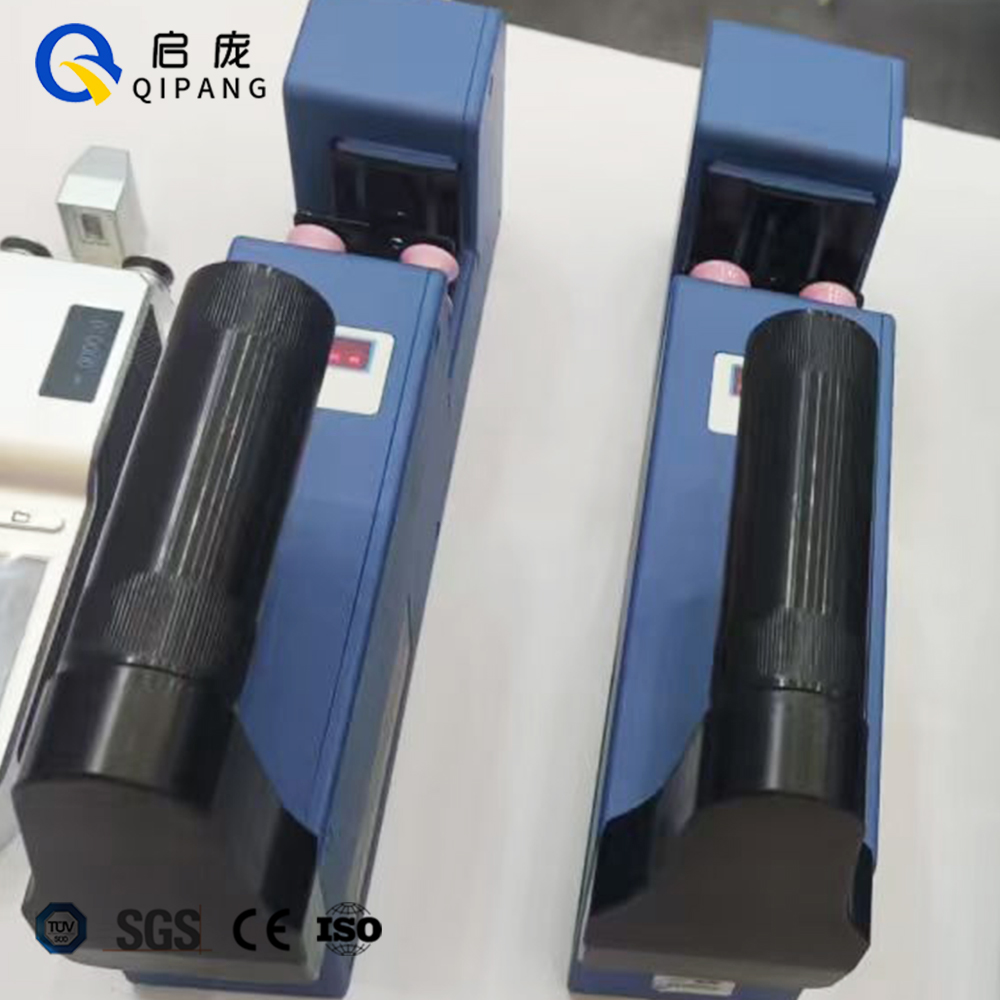

Handheld laser diameter gauge for convenient offline monitoring of wire and cable diameter, suitable for production lines/extruders.

This product can measure diameters up to 10mm, with a scanning speed of 1400 scans per second.

Power consumption ≤5W.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Shanghai Qipang Industrial Co., Ltd. major in Laser Diameter Measurement and Control Device, Wire and cable Meter Counter , Voltage Linkage Signal Control Spark Tester, Wire preheater, coil winding machine

Technical Parameters Diameter Gauge

Measuring range	0.1mm-10mm、1/256"-63/64"
Measuring accuracy	±2μm±0.008%Dz mm("Dz"is the actual diameter of the measured object)
Scanning speed of diameter gauge	1400times scanningcycle/second
Resolution	0.001mm
Power supply voltage	lithium batteries 3000mAH
Operating temperature	-10-45℃
Relative humidity	≤85%(no condensationwater)
Power consumption	≤5W(withadapter+40W)
