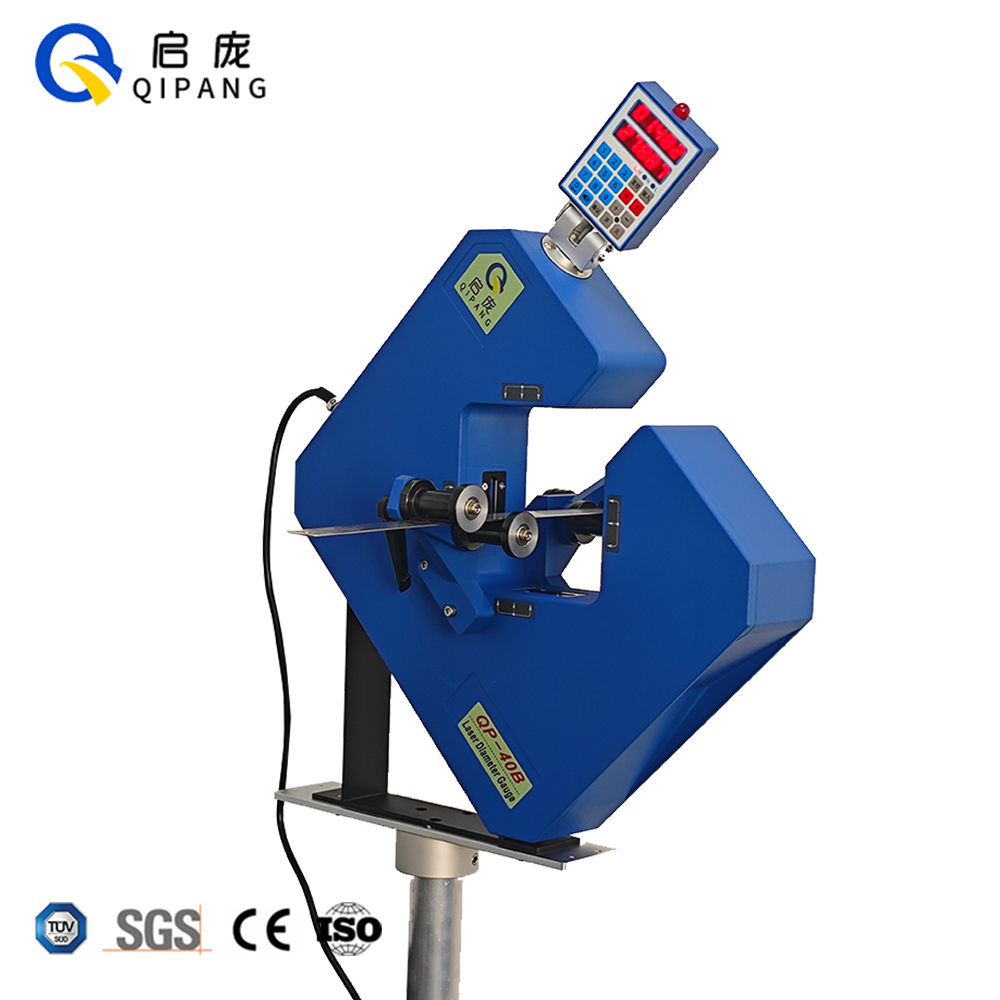

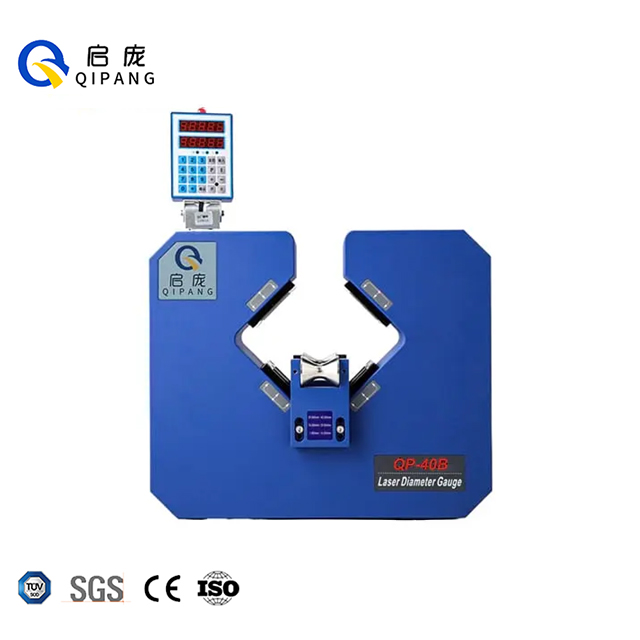

QP-40B Laser Diameter Measuring Instrument

Ambient humidity: 35-85%(no condensation)
Other environment requirements:
The air does not contain any corrosive gas, serious volatile oil, water vapor and dust.
Product protection: IP65
Data collection and analysis:
Support (require an external computer and installation of related software)
Over-tolerance alarm function:
Double relay contact output, upper Lower deviation signal output separately (external sound and light alarm DC24V and below)

Quantity:
Availability:





Inquire Add to Basket

Product Description

Shanghai Qipang Industrial Co., Ltd. major in Dual-axis diameter gauge, Roller Length Measurement Tool ,Pinholes Broken Skin Wire Conduct Faults，Working frequency copper wire calorifier，coiling rewinder machine.

Technical Parameters Laser Diameter Measuring Instrument

Measuring axis number	Double Axis
Measuring range	0.1mm-40mm、1/256"-63/64"
Measuring accuracy	±2μm±0.008%Dz mm(“Dz” is the actual diameter of the measured object)
Scanning speed of diameter gauge	1000times scanningcycle/second
Resolution	0.001mm
Power supply voltage	AC220V±10% 50HZ
Ambient temperature	-10～45℃
Relative humidity	≤85%(no condensationwater)
Display means	two-row5-digit pipe display
Working frequency	50/60Hz
Communication interface	RS485 (support Modbus RTU)
Power consumption	≤15W

Product Video

Product Operate Guide

QP-40B Laser diameter gauge Technical parameters.pdf

QP-40B-laser diameter gauge Manual.pdf
