Overview

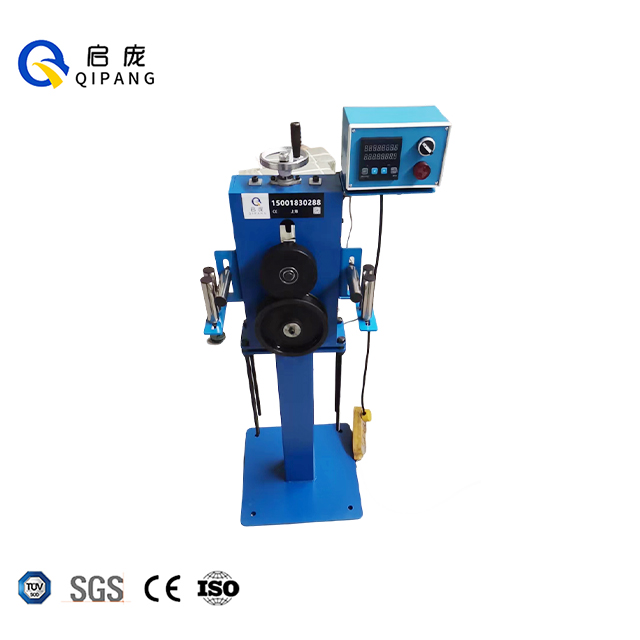

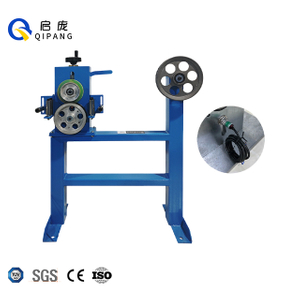

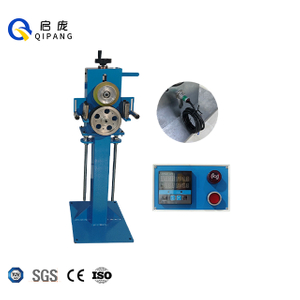

QP-30 Wire Rope Special Length Meter is a vertical spring compression measuring unit independently developed by Qipang, exclusively engineered for online length detection of 1–30mm steel wire ropes. It adopts double solid steel measuring wheel configuration. The all-steel wheels feature high hardness and outstanding wear resistance, which create firm friction contact with rugged wire rope surfaces and effectively avoid slipping during high-speed conveying.
The device supports a maximum line speed of 200m/min, delivering steady measuring accuracy of 1.5‰ for extrusion processes and 2‰ for stranding & rewinding procedures. Its center height is adjustable within 900–1100mm to match different wire rope winding machines. Inductive sensor is standard, and encoder is optional to collect pulse length signals, with a maximum cumulative measuring length up to 99999.9m. Optional RS485 communication is available to link with winding equipment for automatic stop at preset lengths.
Technical Specifications
Model | QP-30 Meter counter |
Features | Meter Counter
for Wire Rope 2 coils,1 meter |
Wire diameter | 1mm-30mm |
Applicable wire speed | 0-200M/Min |
Center height | 900-1100mm(Center height adjustable) |
Material of meter wheel | Uses steel wheels on both top and bottom |
Diameter of the meter wheel | φ159.16mm±0.01 |
Meter accuracy | Rewinding2、twisted wire2‰、extrusion1.5‰ It features low cost and quick return on investment. |
Countable length | 0-99999.9M |
Compression method | Dual-purpose |
Product Structure | Spring vertical pressing |
Counting Method | Inductive Sensor
(optional encoder) |
Output | RS485（Optional） |
Device Color | 5015 Blue （Other customizable options） |
Working voltage | 220V AC |
Equipment weight | 25KG
Meter counter main unit 26KG + bracket 25KG |
Packing size | L480*W280*H250mm Meter counter main unit
L370*W370*H680mm bracket |
