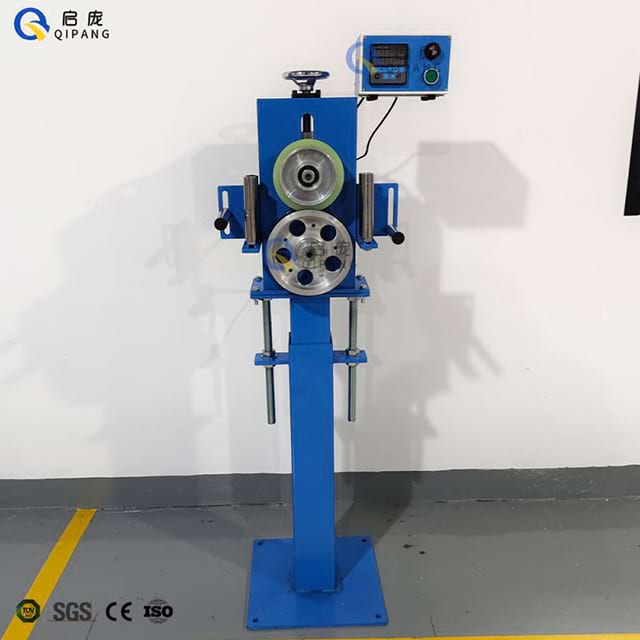

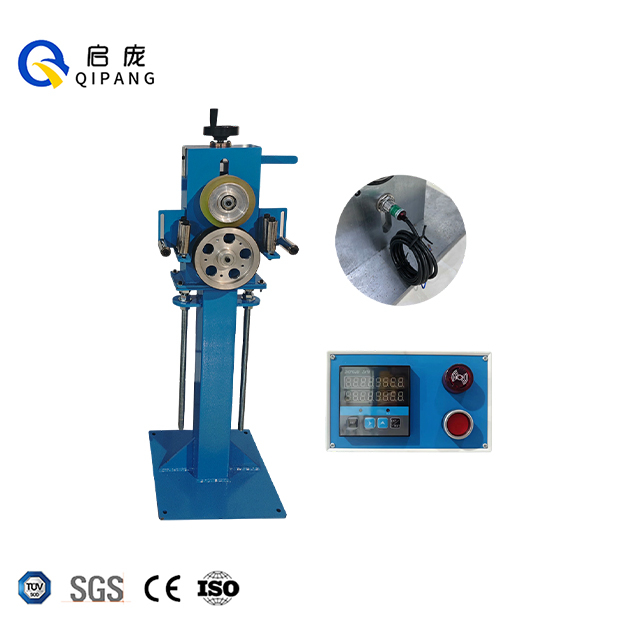

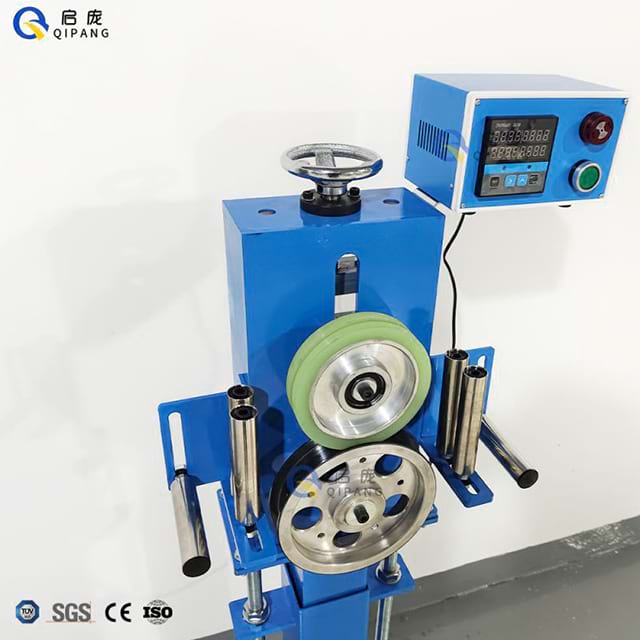

QIPANG QP-30L On-line Wire Length Measuring Counter is a professional industrial measuring device designed for real-time on-line length measurement of linear products such as wires, cables and pipes. Targeting the pain points of material waste and unqualified product length caused by inaccurate manual measurement in mass production, this counter features high precision (1.5‰ for extrusion, 2‰ for rewinding/twisted wire), 0-200M/Min high-speed adaptability and 0-99999.9M large counting range, realizing accurate length counting for high-speed moving workpieces. With a scientific spring vertical pressing structure and dual compression methods (pressure rod/handwheel), it fits different wire diameters (1mm-30mm) and material types, and the optional RS485 interface supports linkage with extruders and winding machines to achieve automated production line integration. As a cost-effective industrial solution, the QP-30L is certified by SGS and CE, with a robust structure and customizable design, which can significantly reduce production costs and improve the standardization of product length for manufacturing enterprises in wire and cable, steel wire rope and hose industries.
The QP-30L achieves industry-leading high accuracy length measuring for industrial production with differentiated precision: 1.5‰ for cable extrusion, 2‰ for wire rewinding and twisted wire processing. The 0-99999.9M large countable length meets the length measurement needs of large-batch linear product production, completely avoiding over-length or under-length issues caused by inaccurate measurement and reducing raw material waste by up to 3% for customers.
Adapted to wire diameters of 1mm-30mm and a maximum wire speed of 0-200M/Min, this on-line cable length counter is suitable for high-speed extrusion, rewinding and twisting processes of various linear products. The meter wheel is available in rubber and ceramic-coated materials, with the ceramic-coated wheel for hard workpieces such as steel wire ropes and metal rods, and the rubber wheel for soft materials such as cables and hoses, realizing material-specific measurement.

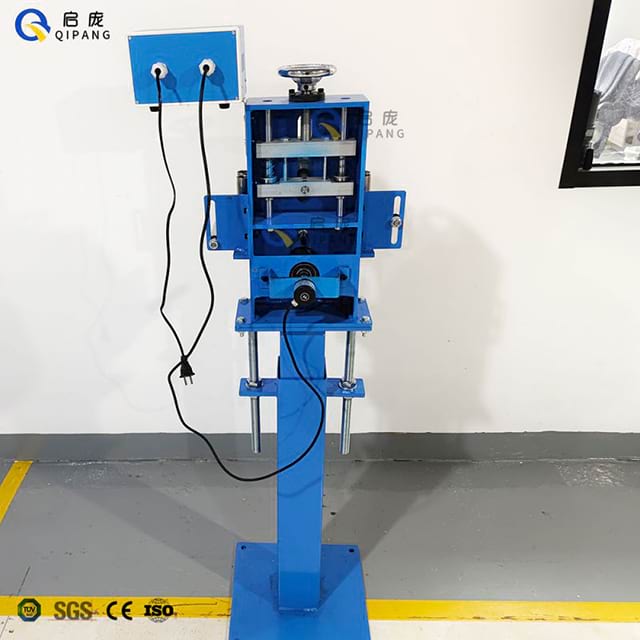

Equipped with dual compression methods (pressure rod/handwheel) and a spring vertical pressing structure, the counter ensures close contact between the meter wheel and the workpiece without slipping, improving counting accuracy. The center height is adjustable from 900 to 1100mm, fitting different production line layouts and realizing flexible on-site installation. The inductive sensor with optional encoder further enhances the stability and accuracy of counting signals.
The optional RS485 signal output supports linkage with extruders, winding machines and other production line equipment, realizing real-time data transmission and centralized management of length data. The device is available in standard 5015 blue with customizable color options, meeting the personalized visual and functional needs of industrial customers.
Model | QP-30L Meter counter | QP-30 | QP-25L | QP-80L | QP-60L |
Features | 2 coils 1 meter | Meter Counter | 4 coils,1 meter | 1 coils,1 meter | 2 coils,1 meter |
Wire diameter | 1mm-30mm | 1mm-30mm | 0.1mm-25mm | 1mm-80mm | 2mm-60mm |
Applicable wire speed | 0-200M/Min | 0-200M/Min | 0-200M/Min | 0-400M/Min | 0-150M/Min |
Center height | 900-1100mm(Center height adjustable) | 950-1050mm(Center height adjustable) | |||
Material of meter wheel | Rubber Wheel Ceramic-Coated Wheel Drive | Uses steel wheels on both top and bottom | Rubber Wheel Ceramic-Coated Wheel Drive | Aluminum alloy surface anodizing | Steel |
Diameter of the meter wheel | φ159.16mm±0.01 | φ159.16mm±0.01 | φ79.48mm±0.01 | φ318.3mm±0.01 | φ159.16mm±0.01 |
Meter accuracy | Rewinding2、twisted wire2‰、extrusion1.5‰ It features low cost and quick return on investment. | three per thousand 3‰ It features low cost and quick return on investment. | Rewinding2‰、twisted wire2‰、extrusion1.5‰ It features low cost and quick return on investment. | ||
Countable length | 0-99999.9M | ||||
Compression method | Dual-purpose: | Dual-purpose | Dual-purpose: | Hand wheel/ | Manual screw clamping |
Product Structure | Spring vertical pressing | Upper and lower double wheels | Vertical compression | ||

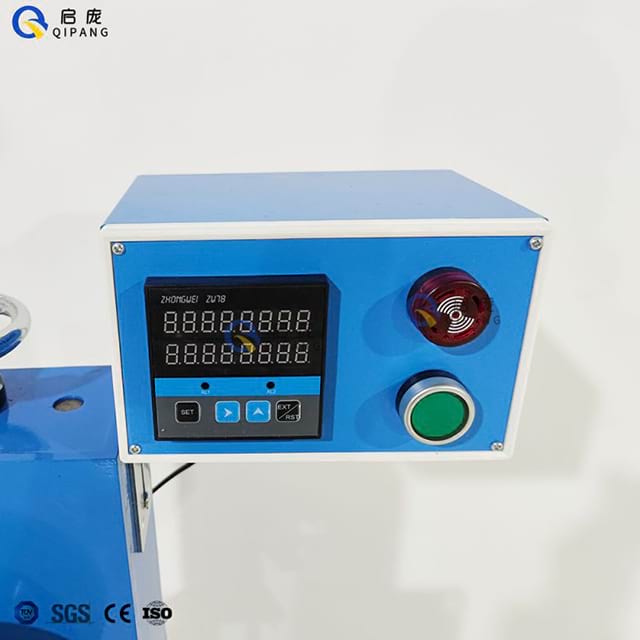

Counting Method | Inductive Sensor | Inductive Sensor | Inductive Sensor | Electronic meter counter | Inductive Sensor (optional encoder，mechanical version) |
Output | RS485（Optional） | ||||
Device Color | 5015 Blue （Other customizable options） | ||||
Working voltage | 220V AC | 220V380V 50/60HZ | 220V AC | ||
Equipment weight | 25KG | 25KG | 25KG | Meter counter main unit 82KG | 25KG |
Packing size | L480*W280*H250mmMeter counter main unit | L480*W280*H250mm Meter counter main unit | L530*W420*H480mm Meter counter main unit | L680*W480*H1300mm | L660*W550*H500mm Meter counter main unit |
As the core length meter for cable extrusion, the QP-30L realizes real-time on-line length counting in cable extrusion, rewinding and cutting processes, ensuring the consistency of finished cable length and improving the standardization of product delivery.
The ceramic-coated meter wheel of the QP-30L is wear-resistant and pressure-resistant, suitable for length measurement of steel wire ropes, metal rods and other hard linear products, adapting to the high-strength processing characteristics of the metal processing industry.
It is widely used for on-line length measurement of rubber hoses, steel pipes and stainless steel pipes, with spring vertical pressing structure ensuring no slipping between the meter wheel and pipe workpieces, and high-speed adaptability meeting the needs of pipe extrusion production lines.
In the industrial wire harness assembly industry, the QP-30L provides precise length counting for various specification wires, realizing standardized cutting and assembly of wire harnesses and improving assembly efficiency and product quality.
Cost-Effective Production Solution: The QP-30L reduces raw material waste and rework costs by eliminating length measurement errors, with a quick return on investment (ROI) for industrial customers, especially suitable for mass production enterprises. Robust & Durable Industrial Design: Adopting high-precision processing technology and spring vertical pressing structure, the counter has stable performance and long service life, and can withstand 24-hour continuous operation in harsh industrial environments. Seamless Production Line Linkage: The optional RS485 interface supports linkage with extruders, winding machines and other QIPANG production equipment, realizing a one-stop automated production solution for wire and cable manufacturing. Customizable for Needs: With optional meter wheel materials, encoder and device color, the QP-30L can be customized according to the specific production process and workpiece characteristics of industrial customers. Authoritative Certification & Reliable Quality: Certified by SGS and CE, the counter complies with international industrial standards, with strict quality control in the production process to ensure the stability and consistency of each device. Comprehensive Technical Support: QIPANG provides detailed design drawings, operation manuals and on-site debugging services for customers, with a professional technical team to solve production line matching and use problems in a timely manner.
Product Video
QP-30L On-line Wire Length Measuring Counter Drawing.pdf
QP-30L Digital wire length meter Technical parameters.pdf
Rewindina2‰、 twisted wire2‰ extrusionl.5‰.
Inductive Sensor (optional encoder).
22OV AC.
