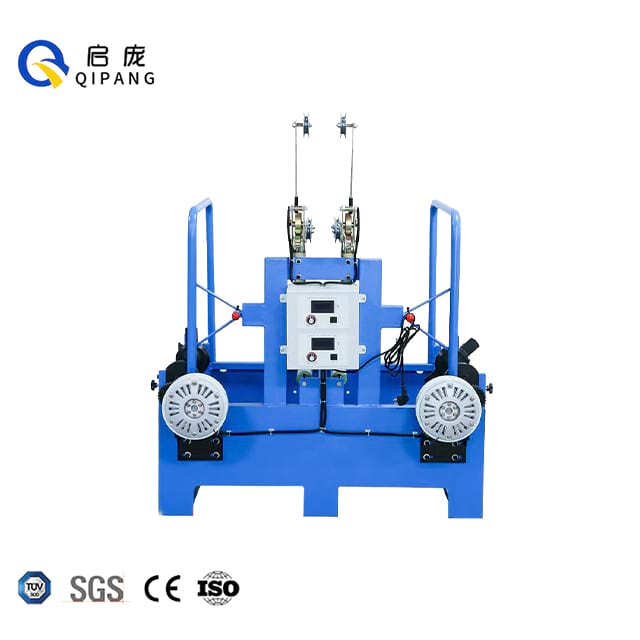

QP630 QP800 Double Head Magetic Powder

The specifications for the Japanese double-head tension pay-off stand are as follows: Reel outer diameter: φ400 - 630mm/φ630 - 800mm (customizable); Wire diameter range: 0.3 - 15mm for soft wire, 0.3 - 10mm for hard wire; Stranding type: bare copper wire, enameled wire, BVR wire, twisted pair, etc.; Tension control uses a double/triple spring tension gun with adjustable spring wire diameter control; Double head; Control method: belt brake/magnetic powder brake.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Specifications of the QP630 QP800 Pay-off Stand

Parameter	Specification Details
Product Name	Japanese double head tension pay-off stand
Spool Outer Diameter	φ400-630mm / 630-800mm (customizable)
Wire Diameter Range	Soft wire: 0.3-15mm; Hard wire: 0.3-10mm
Compatible Wire Types	Bare copper wire, enameled wire, BVR wire, twisted pair, etc.
Tension Control System	Double/triple spring tension gun, adjustable spring wire diameter control
Number of Heads	Double heads
Control Mode	gear automatic brake

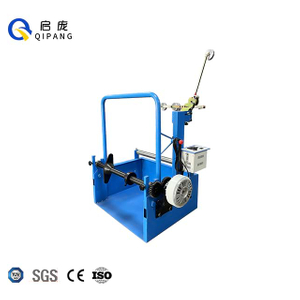

Dimensions & Weight (630 Belt)	1050×950×1200mm, 140kg
Dimensions & Weight (800 Belt)	1250×1100×1250mm, 215kg

QP630 QP800 Double Head Magetic Powder
