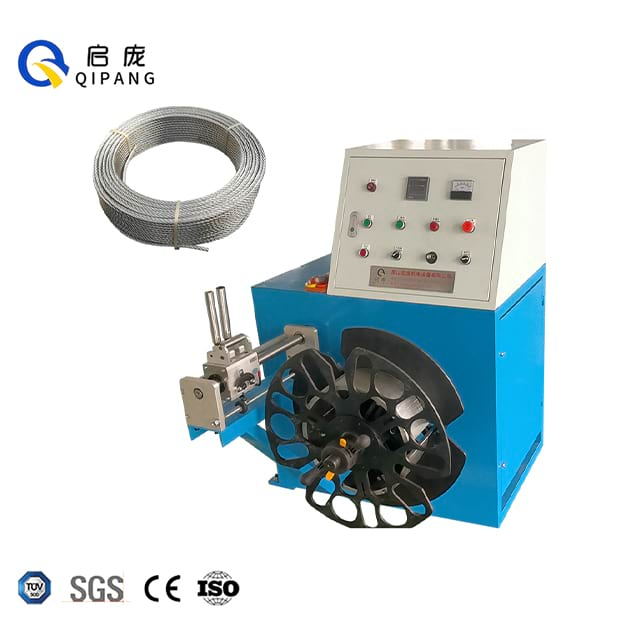

QP800 Cable Coiling Machine

1, Production has high effectiveness, the man power costis only 20%of traditional model.
2 Using automatic arranging, take-up speed is 2-3 times faster thantraditional model.
3, Using quick binding device, after circling the cablecan be easily andquickly removed from work table, lots oftime can be saved

4.There is no any manpower-factor to impact thearranging quality.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Parameters of the QP800 Cable Coiling Machine

Parameter	Specification
Model	QP800
Applicable Wire Diameter	1-30mm (round wire, flat wire, tube, etc.)
Standard Coil Inner Diameter	300mm(350mm/450mm)
Standard Coil Outer Diameter	800mm (customizable)
Coil Height Range	600MM
Take-up Speed Range	0-250RPM (customizable)
Wiring Mode	Rolling ring drive
Coil Height	150/200/250mm(customization)
Motor Power	Three-phase 380V 50Hz 4KW
Number of Slot	3slots
