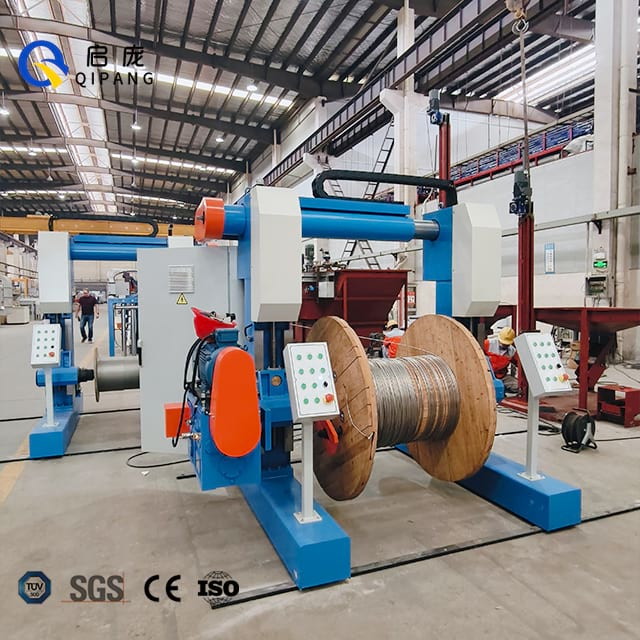

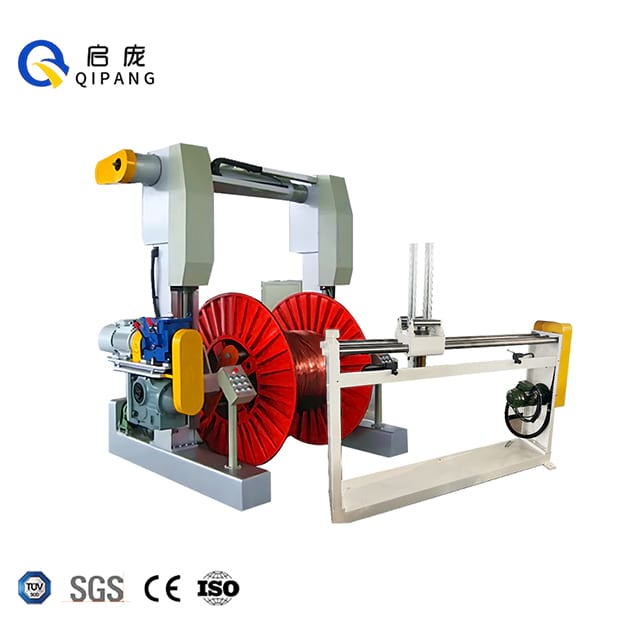

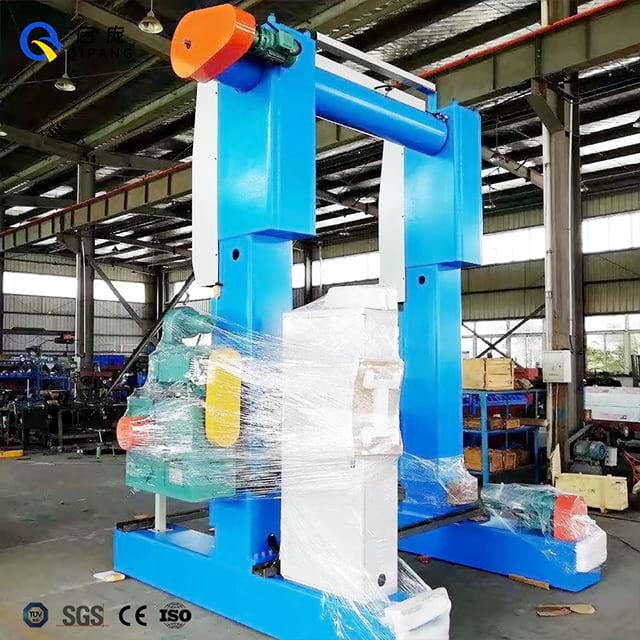

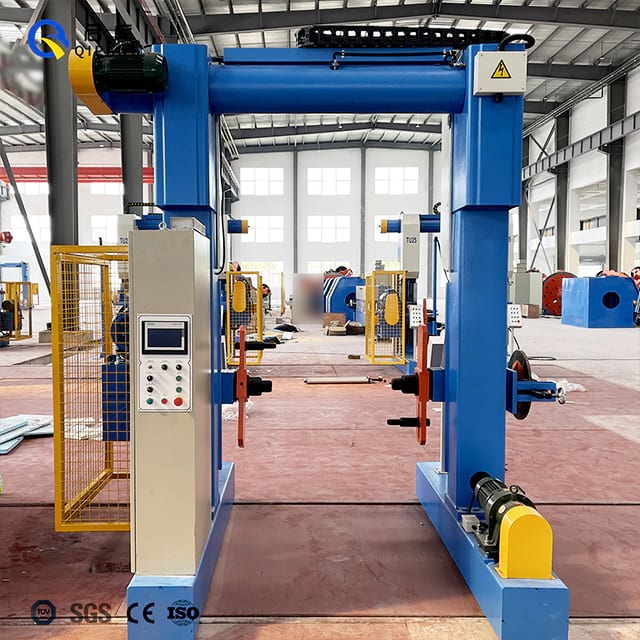

Our gantry cable take-up and pay-off machine (QP1600-3150 Series) is a heavy-duty, industrial-grade winding solution engineered for large-diameter power cable and heavy wire processing. Designed for large-scale cable manufacturing enterprises and heavy industrial wire production facilities, this shaftless gantry equipment delivers exceptional stability, load capacity, and winding precision for medium to high voltage cable production. The machine features a rigid gantry structure, consisting of two roller-equipped ground beams, dual uprights, a telescopic crossbeam, and an intelligent electrical control system, ensuring reliable performance in continuous high-volume industrial manufacturing.
 |  |
 |  |
The main structural components are fabricated from high-quality steel plates via precision bending and welding, with the telescopic sleeve made of high-strength seamless steel pipe. This design delivers exceptional overall rigidity and operational stability, with load capacity ranging from 6T to 20T across our QP series models, catering to the heaviest industrial cable reel requirements.

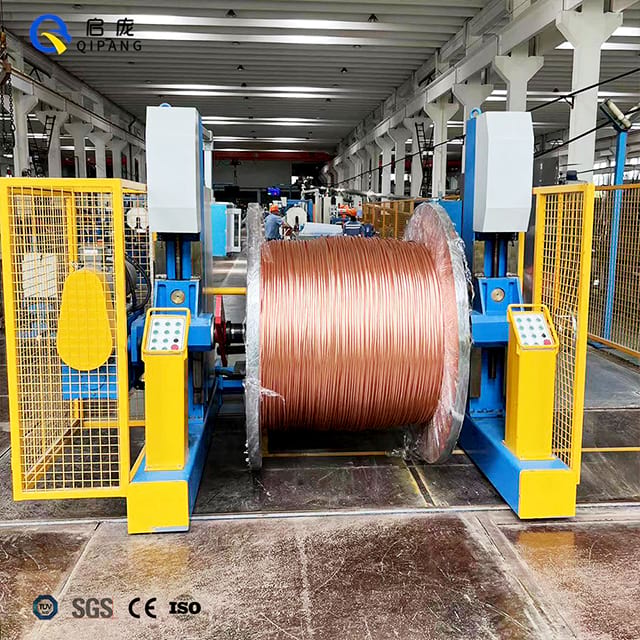

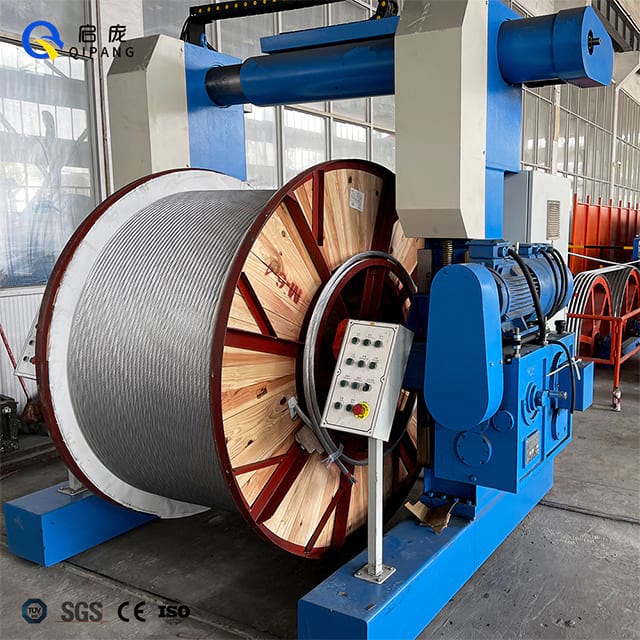

Our shaftless cable take-up machine features dual shaftless main shafts mounted on the uprights, eliminating the need for cranes during cable reel loading and unloading. Reels can be safely loaded and unloaded from both sides of the frame, reducing downtime, simplifying material handling, and improving workplace safety for your production team.
During operation, the cable is guided into the winding unit via a specialized conductor device, ensuring the cable is free from external force or twisting during the winding process. This preserves the integrity of the cable insulation layer, guarantees uniform cable laying, and supports full-width traversing across the frame, with a cable arrangement accuracy of 1-2% across all models.

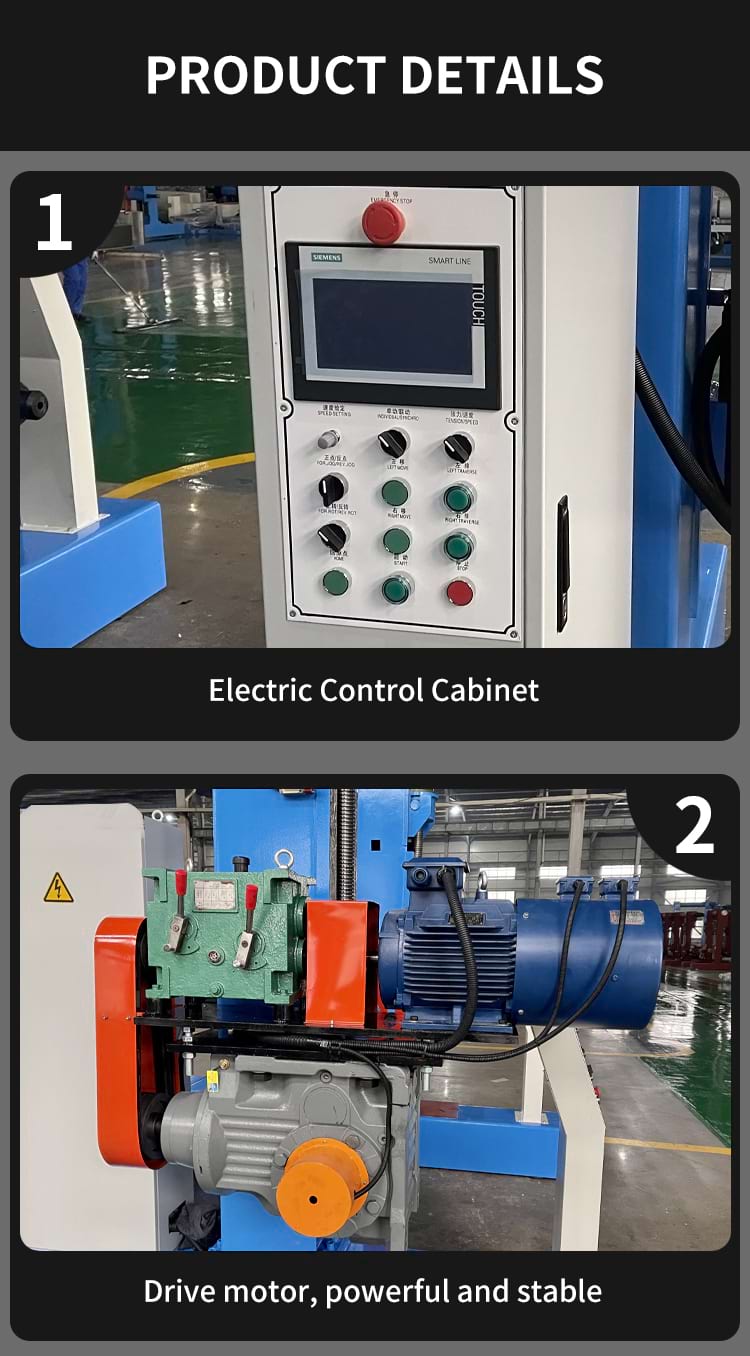

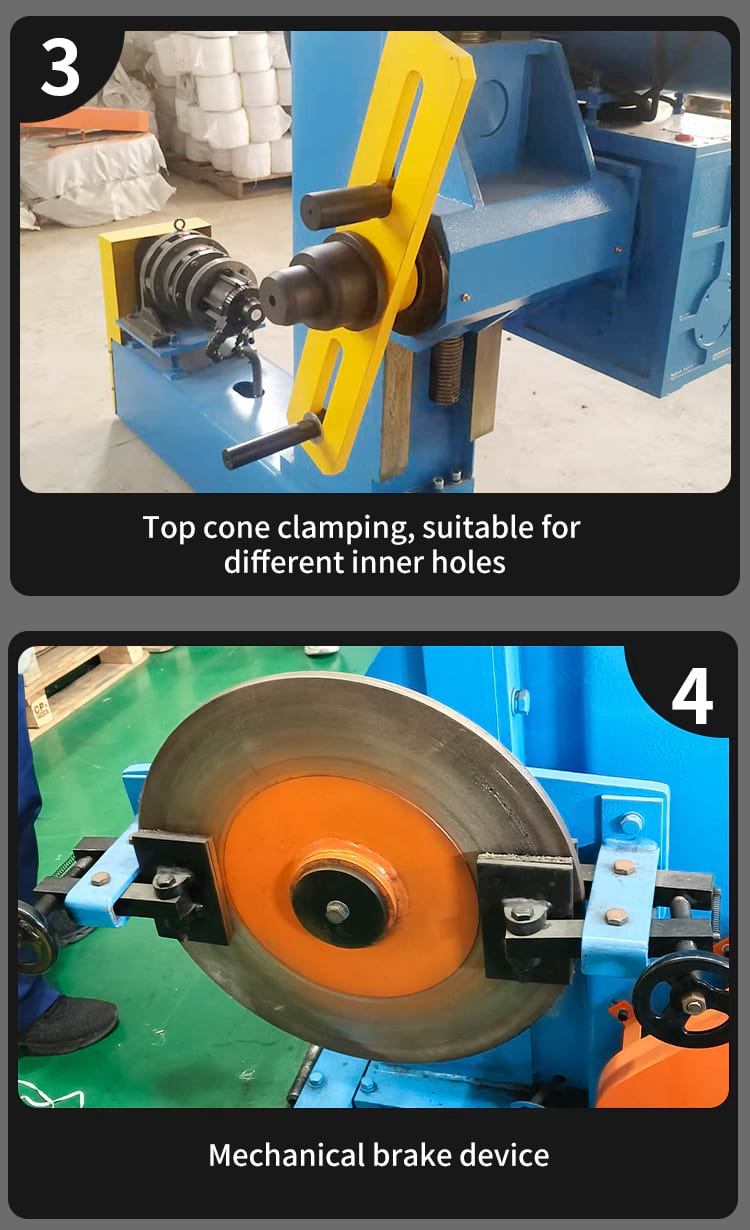

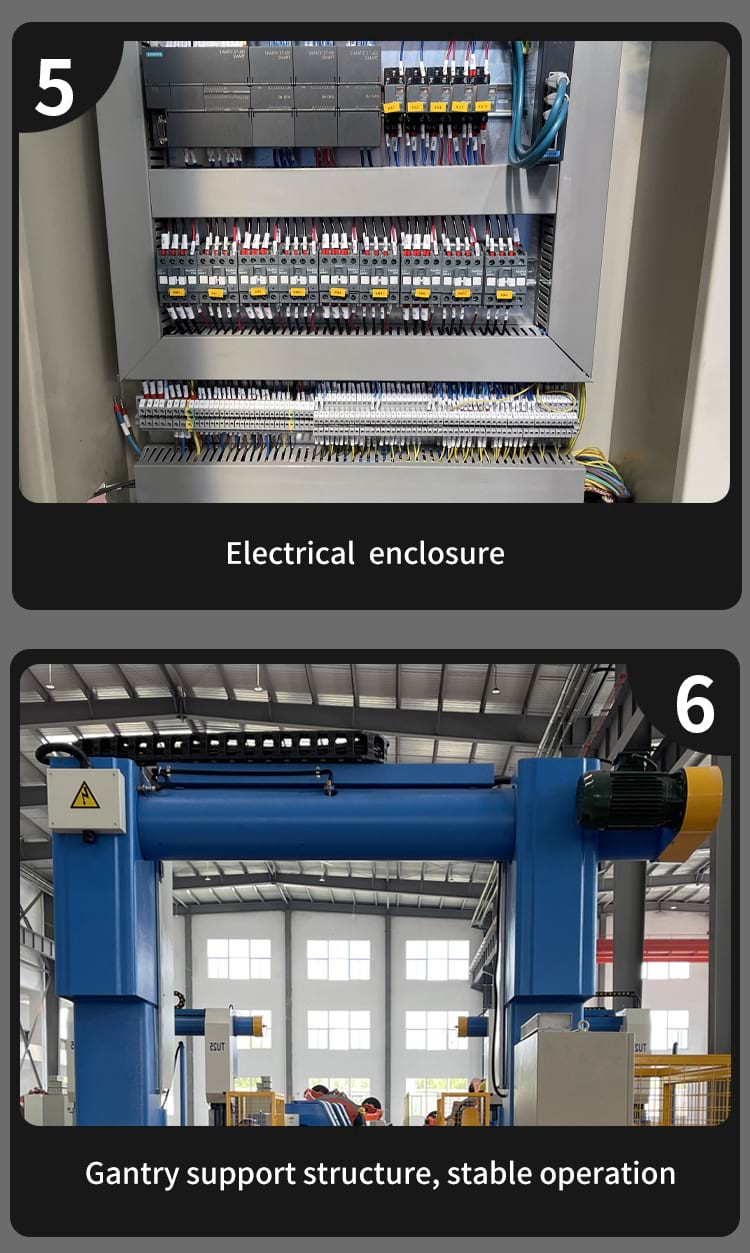

Equipped with a Siemens SMART LINE control system and intuitive touch screen interface, our heavy-duty cable pay-off machine delivers precise speed and tension control, with power supplied by high-torque JLJ series torque motors and AC variable frequency drives. The system ensures stable, consistent performance even under maximum load, with a mechanical brake device for reliable emergency stopping.
Parameter | QP1600 | QP2000 | QP2500 | QP3150 |
Applicable Reel OD | φ630-1600mm | φ800-2000mm | φ1250-2500mm | φ1600-3150mm |
Applicable Material Diameter | φ2-40mm | φ5-70mm | φ5-110mm | φ15-130mm |
Reel Width Range | 475-1180mm | 600-1500mm | 950-1900mm | 1180-2300mm |
Take-up Speed Range | 5-80m/min | 3-60m/min | 2-60m/min | 2-50m/min |
Cable Arrangement Accuracy | 1-2% | 1-2% | 1-2% | 1-2% |
Max Load Capacity (Light/Heavy) | 6/8T | 6/10T | 10/15T | 15/20T |
Machine Dimensions | 2600×1850×2260mm | 3220×2450×2800mm | 3900×2500×3450mm | 2600×1850×2260mm |
Power Supply | 380V 50Hz 3-Phase AC (customizable) | 380V 50Hz 3-Phase AC (customizable) | 380V 50Hz 3-Phase AC (customizable) | 380V 50Hz 3-Phase AC (customizable) |
Our heavy-duty gantry cable winding machine is purpose-built for industrial production scenarios across the power transmission, renewable energy, marine engineering, and telecommunications sectors. It is ideal for medium and high voltage power cable manufacturing, large-diameter wire processing, offshore cable production, armoured cable winding, and heavy industrial wire fabrication. The equipment can be seamlessly integrated with existing extrusion and cable production lines, making it the optimal choice for large-scale cable manufacturing enterprises seeking to improve production efficiency and product consistency.
Shanghai Qipang Industrial Co., Ltd. is a professional supplier of heavy-duty industrial cable processing equipment, with a proven track record of serving large-scale cable manufacturing and heavy industrial production enterprises globally. All our equipment is certified to SGS, CE, ISO, and TUV standards, with strict quality control at every stage of design and manufacturing. Our comprehensive product range includes gantry cable take-up and pay-off machines, wire spooling equipment, laser diameter gauges, and cable testing systems, all fully customizable to align with your unique industrial production requirements.
Our industrial cable take-up machine offers load capacities ranging from 6T to 20T across the QP1600 to QP3150 models, with both light and heavy-duty configurations available to match your production needs.
Yes. The QP series is engineered to handle cable diameters from φ2mm up to φ130mm, making it ideal for medium and high voltage power cables, large-diameter industrial wires, and armoured cable products.
Absolutely. Each model supports a wide range of reel outer diameters and widths, with full customization available for reel specifications to fit your existing production inventory.
Whether you operate a specialized heavy cable production facility or a large-scale industrial manufacturing plant, our QP series gantry cable take-up and pay-off machine can be tailored to meet your exact production requirements. Reach out to our technical sales team today to discuss your needs, receive a detailed custom quote, and find the most reliable heavy-duty winding solution for your industrial operations.
