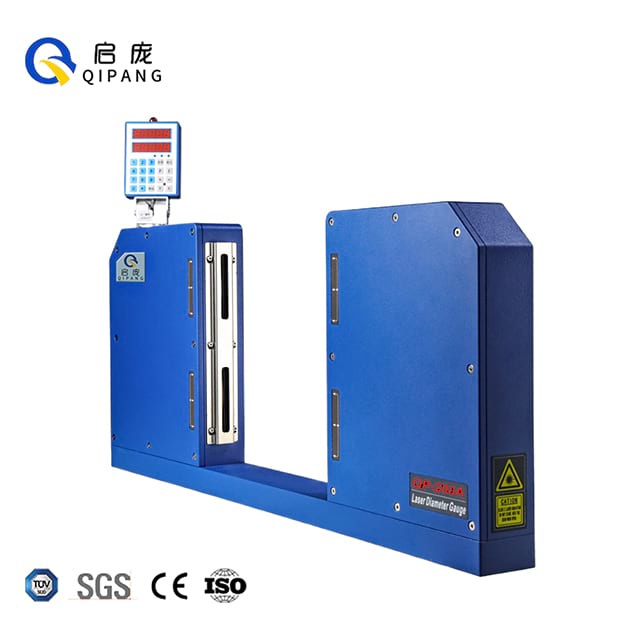

QP-200A Large Sinlge-Axis Diameter Gauge

QP-200A OD Controller

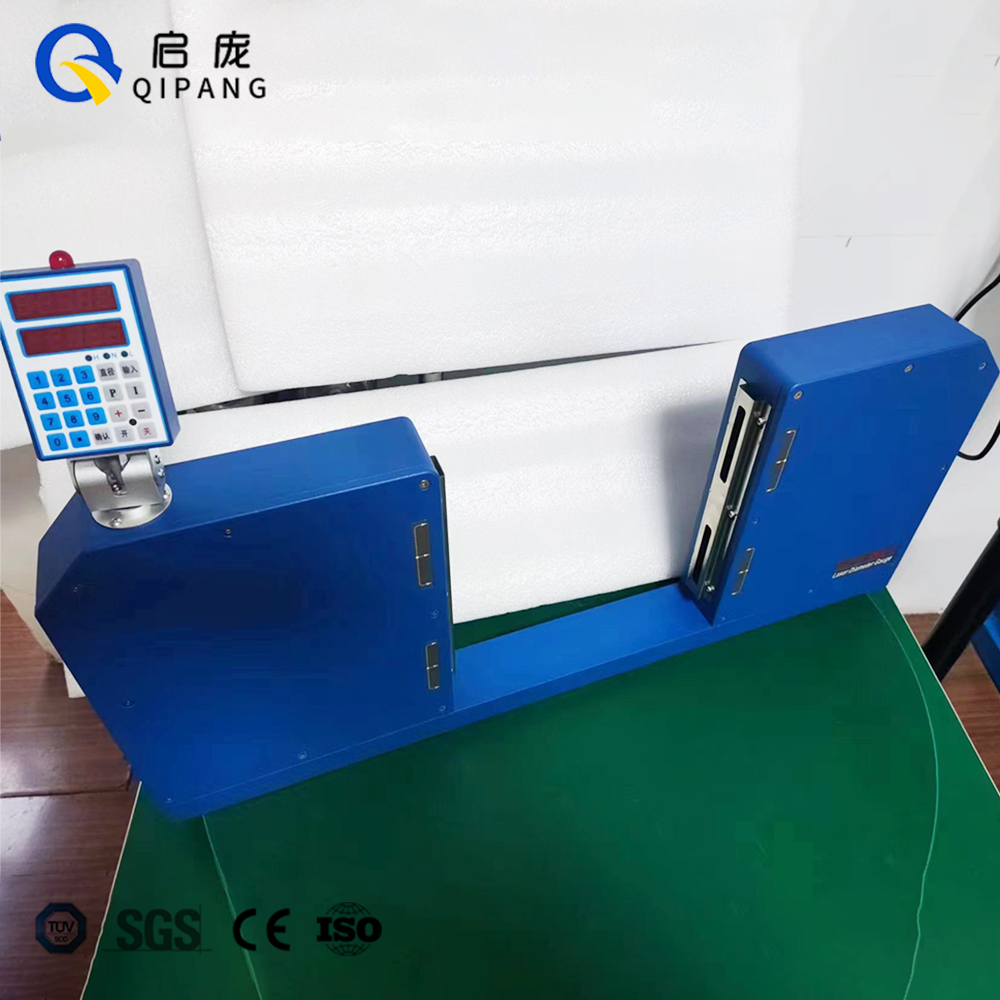

Operational panel is installed above measuring head. It is used for setting parameters ofdata display. There are two rows of nixie tube, which could display two groups of data andadjust angle at random.
Remote controller is mainly used for automatic control. It receives data including thediameter and deviation value of diameter measuring instrument through synchronic serialport and 485 communication interface. Remote controller generates PID regulatory signalthrough data it receives to control the rotating speed of tractor so as to finally control wirediameter.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Shanghai Qipang Industrial Co., Ltd. major in Laser Scanning Diameter , Cable meter measurement device , Wire Spark tester, Cable preheater, Wire take up winding machine.

Technical Parameters Diameter Gauge

Measuring axis number	Single Axis
Measuring range	1mm-200mm、1/25.4"-7 7/8"
Measuring accuracy	±20μm±0.008%Dz mm("Dz"is the actual diameter of the measured object)
Scanning speed of diameter gauge	1000times scanningcycle/second
Resolution	0.001mm
Power supply voltage	100-240VAC/10A.50/60Hz
Ambient temperature	-10～45℃
Relative humidity	≤85%(no condensationwater)
Display means	two-row5-digit pipe display
Working frequency	50/60Hz
Communication interface	RS485 (support Modbus RTU)
Power consumption	≤15W(withadapter+40W)
