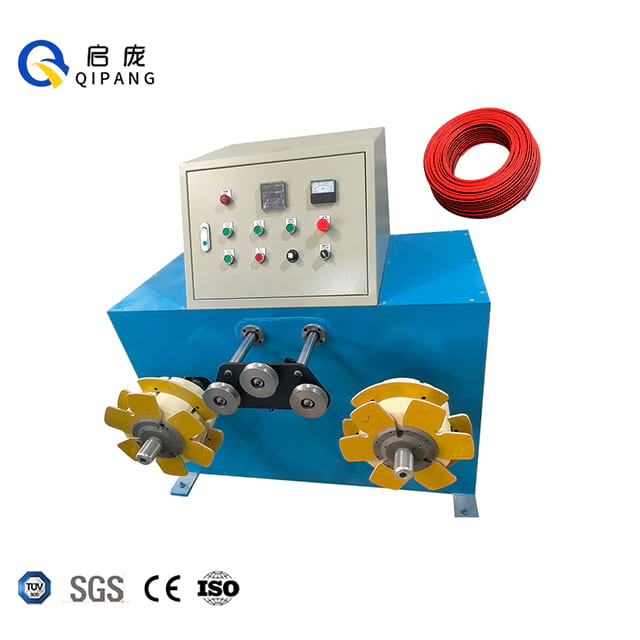

QP500/630 Double Head Cable Coiling Machine

Product use:
1 Production has high effectiveness, the man power costis only 20%of traditional model.
2, Using automatic arranging, take-up speed is 2-3 times faster thantraditional model.
3, Using quick binding device, after circling the cablecan be easily andquickly removed from work table, lots oftime can be saved4, There is no any manpower-factor to impact thearranging quality.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Parameters

Parameter Category	Rolling Ring Drive Configuration	PLC Servo Traverse Configuration
Compatible Wire Diameter	1-30mm soft cable/tube/rope	1-30mm soft cable/tube/rope
Spindle Center Height	450mm/650mm (for 630 spool/coil)	450mm/650mm (for 630 spool/coil)

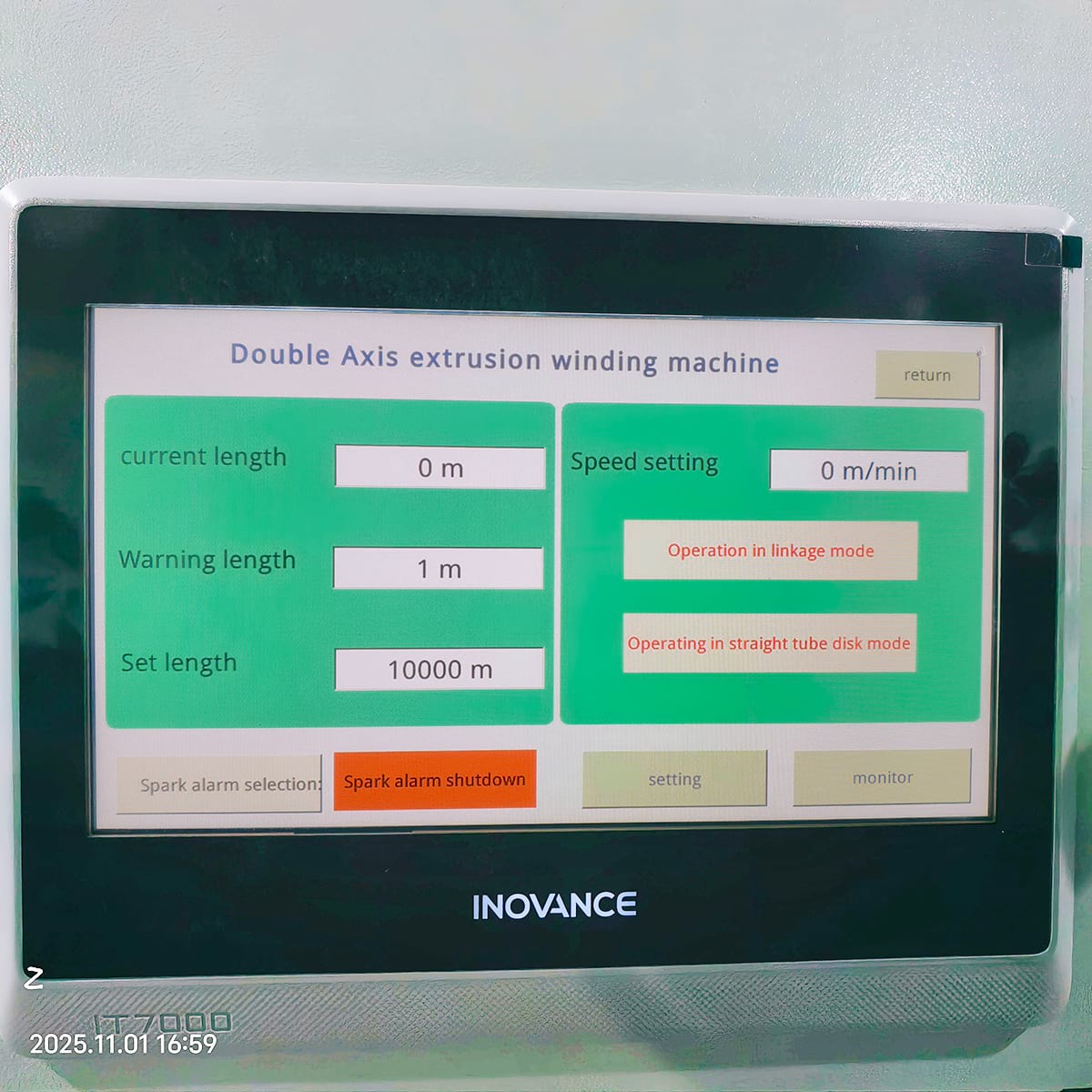

Traverse System	GP30 rolling ring drive	PLC servo traverse system with touch screen one-click control
Operating Speed	0-250 rpm, customizable	0-250 rpm, customizable
Spool/Coil Size	PN400-630mm, max width 475mm, bore 56/80/127mm; ID120mm, adjustable width 35~100mm, OD400mm, customizable	PN400-630mm, max width 475mm, bore 56/80/127mm; ID120mm, adjustable width 35~100mm, OD400mm, customizable
Single Shaft Load Capacity	500KG	500KG
Motor Power	2.2/4KW + reducer motor, 50HZ three-phase power, customizable	2.2/4KW + reducer motor, 50HZ three-phase power, customizable
Standard Machine Color	RAL5015 blue, customizable	RAL5015 blue, customizable

Display

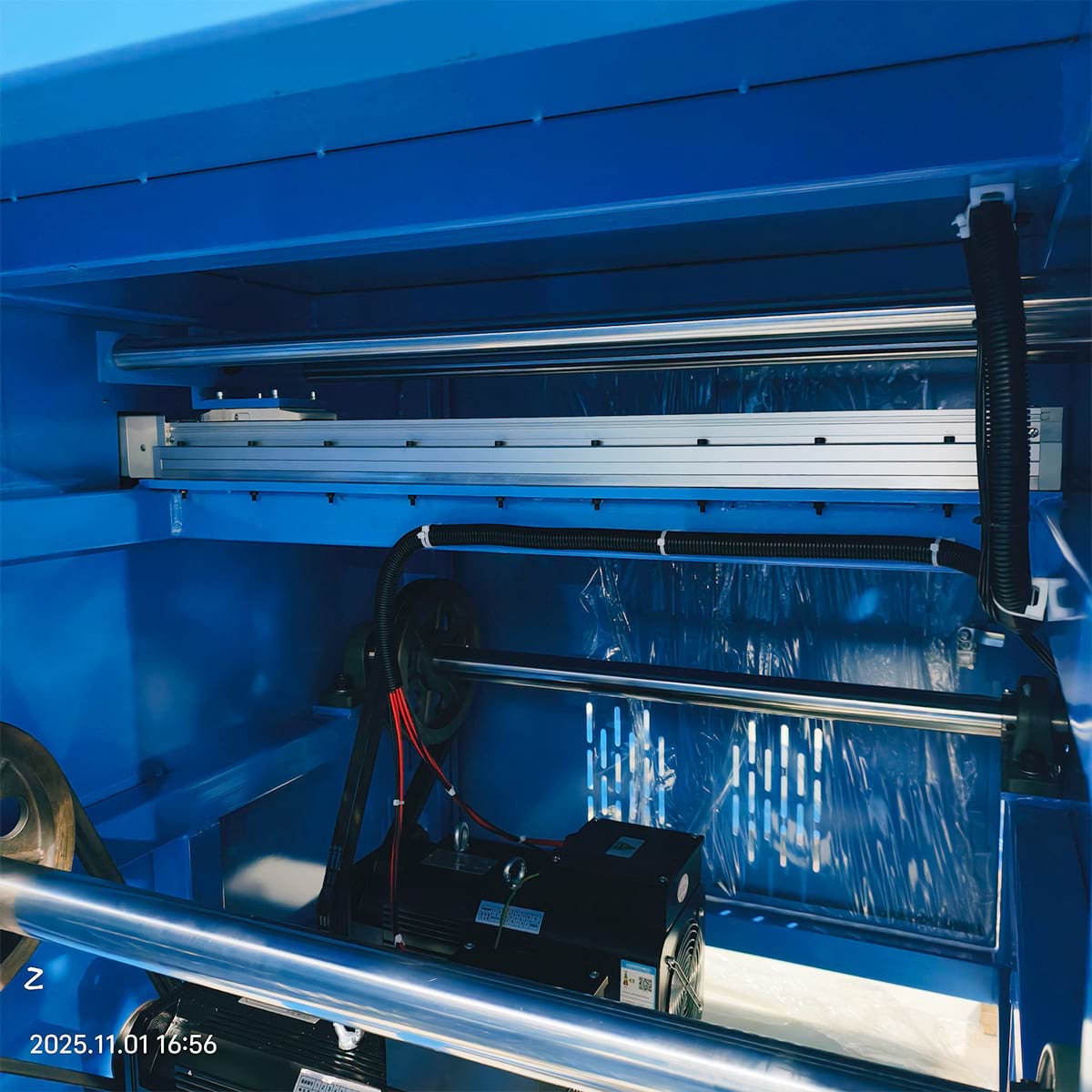

Cable Coiling Machine QP500/630 Double Head Servo

QP500/630 Double Head Cable Coiling Machine
