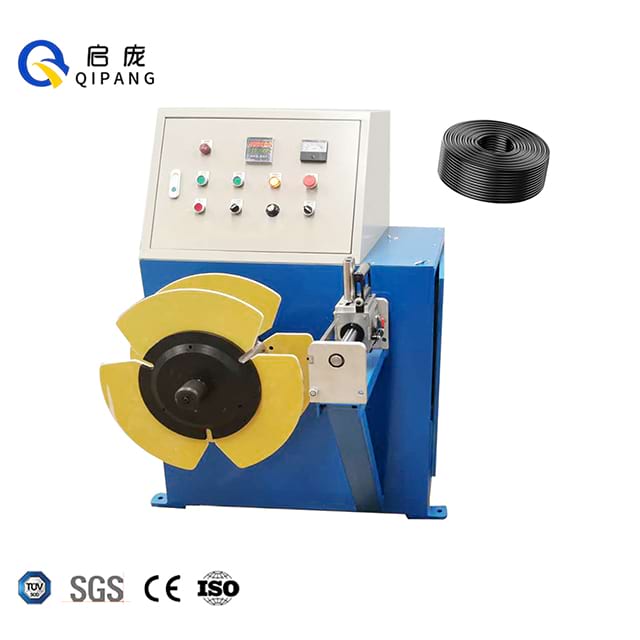

The QP500 Cable Coiling Machine (also named QP500 Coil Take-up Machine) is a robust, industrial-grade wire winding solution designed for manufacturing businesses and industrial production facilities seeking to streamline cable coiling processes. Engineered for universal compatibility, this machine handles round wire, flat wire, and tubes with a diameter range of φ0.1-30mm, making it a versatile workhorse for diverse wire and cable production needs. Built with a rolling ring drive wiring system, it delivers consistent performance while cutting down manual intervention, seamlessly integrating with existing extruder production lines for end-to-end workflow optimization.
Unlike traditional coiling equipment, the QP500 Cable Coiling Machine reduces labor costs to just 20% of standard models, with a take-up speed 2-3 times faster than conventional alternatives. Its 0-250RPM adjustable speed (customizable to your production needs) supports high-volume output without compromising quality.
With fully automatic wire arranging functionality, this automatic cable coiling machine eliminates all human-factor impacts on winding consistency. Every coil features uniform tightness and alignment, reducing scrap rates and ensuring standardized output for bulk production.
Equipped with an innovative quick binding device, finished cable coils can be easily and rapidly removed from the worktable, drastically cutting down changeover time between production runs. This design minimizes downtime and keeps your production line running at peak capacity.
Built to withstand continuous industrial operation, this heavy-duty cable coil winding machine offers a maximum load-bearing capacity of 100kg, supporting large-volume coil production for even the most demanding applications.
Parameter | Specification |
Model | QP500 |
Applicable Wire Diameter | φ0.1-30mm (round wire, flat wire, tube, etc.) |

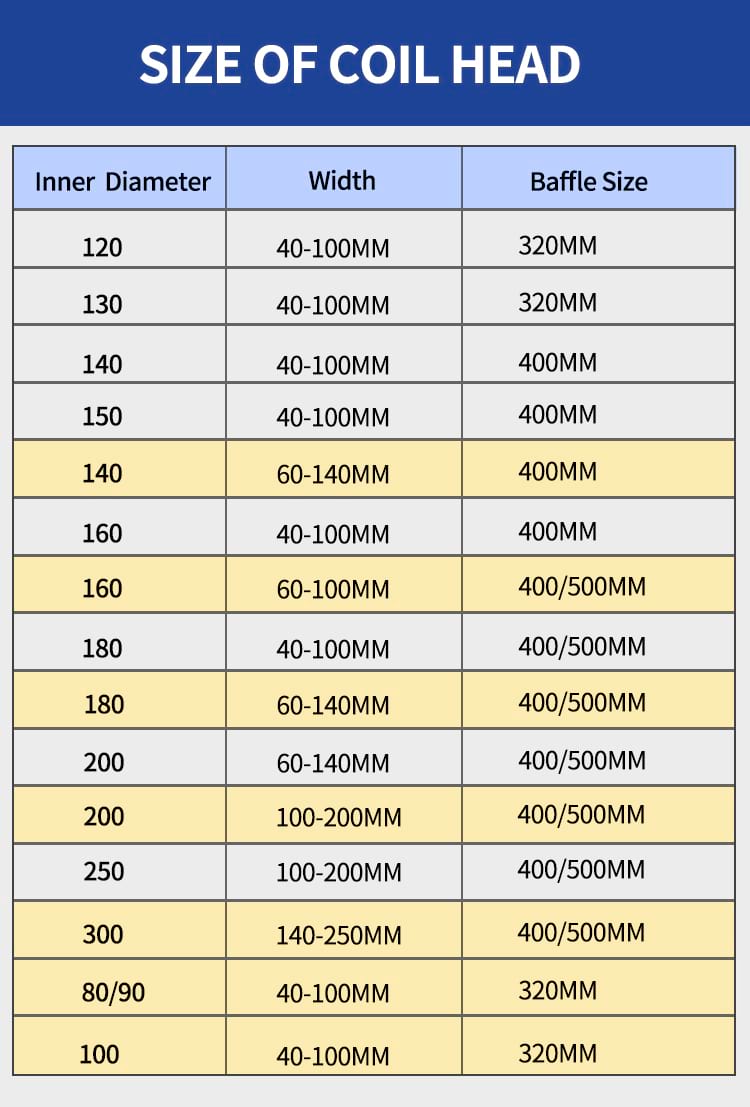

Standard Coil Inner Diameter | 120mm (customizable) |
Standard Coil Outer Diameter | 400mm (customizable) |
Coil Height Range | 40-100mm (60-150mm optional) |
Take-up Speed Range | 0-250RPM (customizable) |
Wiring Mode | Rolling ring drive |
Maximum Load Bearing | 100kg |
Motor Power | 380V 2.2KW |
Power Supply | Three-phase 380V 50Hz |
Package Size | 1.32 × 1.32 × 1.52 m |
Net Weight | 280kg |
This versatile industrial cable coiling equipment is widely used across multiple sectors, including power cable manufacturing, automotive wiring harness production, electrical equipment assembly, communication cable processing, and flexible tube production. Its customizable coil dimensions and wide wire compatibility make it suitable for both small-batch specialty production and high-volume bulk manufacturing operations.
QIPANG (Shanghai Qipang Industrial Co., Ltd.) is a professional industrial wire processing equipment manufacturer with SGS, CE, and ISO certifications. We specialize in wire spooling machines, laser diameter gauges, wire length meters, cable spark testers, and wire preheaters, with all equipment designed to integrate seamlessly with extruder and production line systems. For decades, we have delivered reliable, cost-effective equipment solutions to industrial production enterprises worldwide.
The QP500 cable coiling machine supports a maximum load capacity of 100kg.
It offers an adjustable speed range of 0-250RPM, with fully customizable speed configurations to fit your production requirements.
The machine is compatible with a three-phase 380V 50Hz power supply, equipped with a 2.2KW main motor.

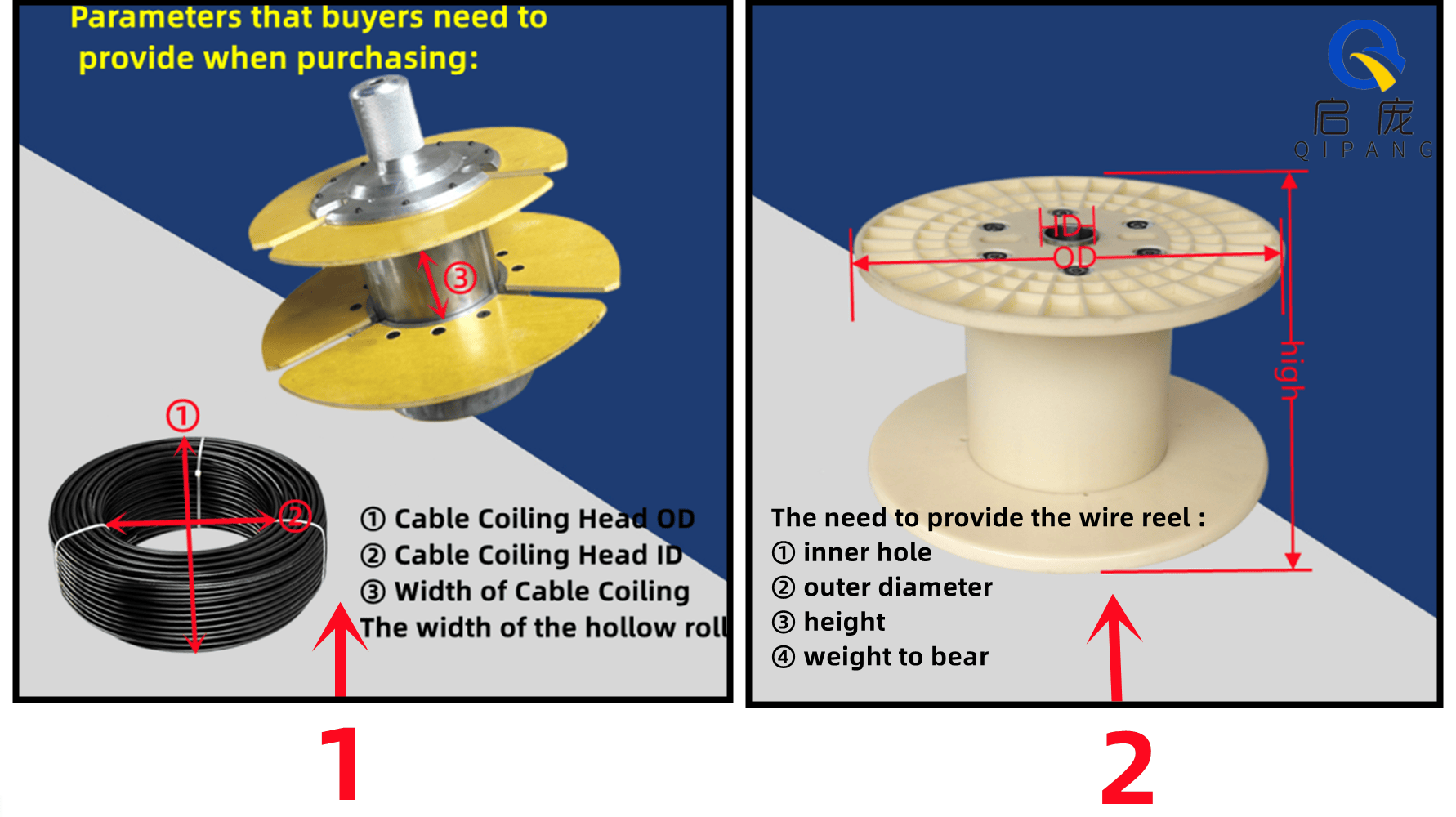

It accommodates round wire, flat wire, and various tubes with a diameter of φ0.1-30mm, with customizable coil inner and outer diameters available.
If you are an industrial production enterprise looking for a reliable, high-efficiency cable coiling solution, our team is ready to help. We offer fully customizable configurations for the QP500 Cable Coiling Machine to match your unique coil dimensions, wire specifications, and production needs. Contact us today for a personalized quote and professional technical support.
