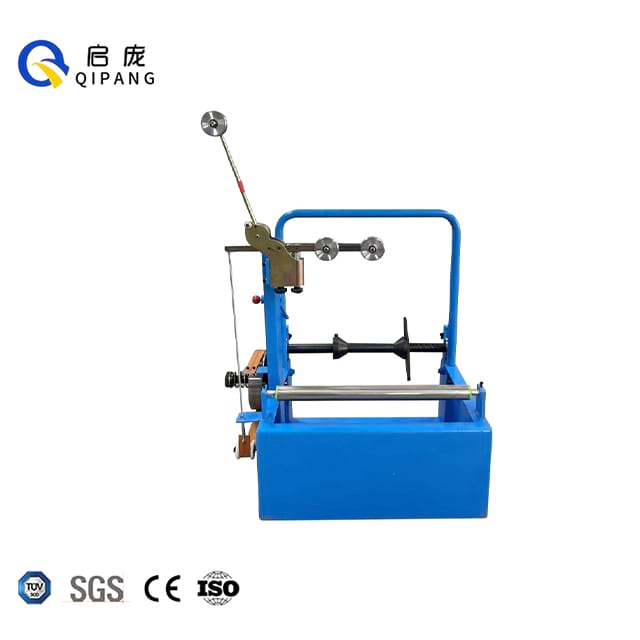

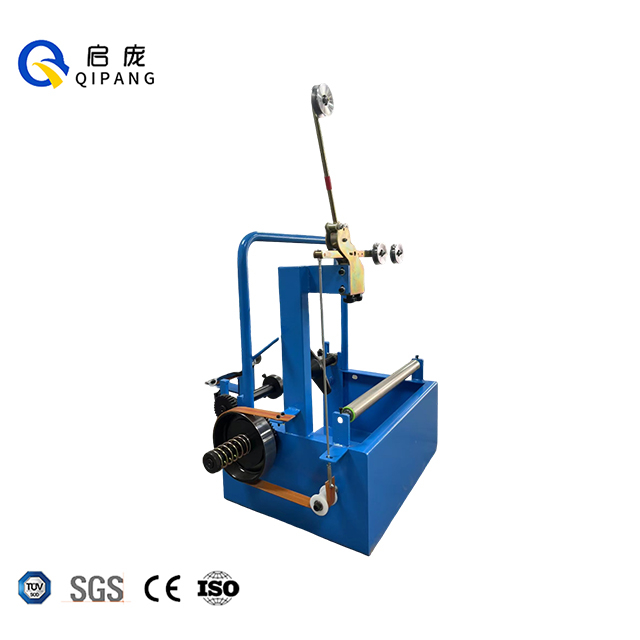

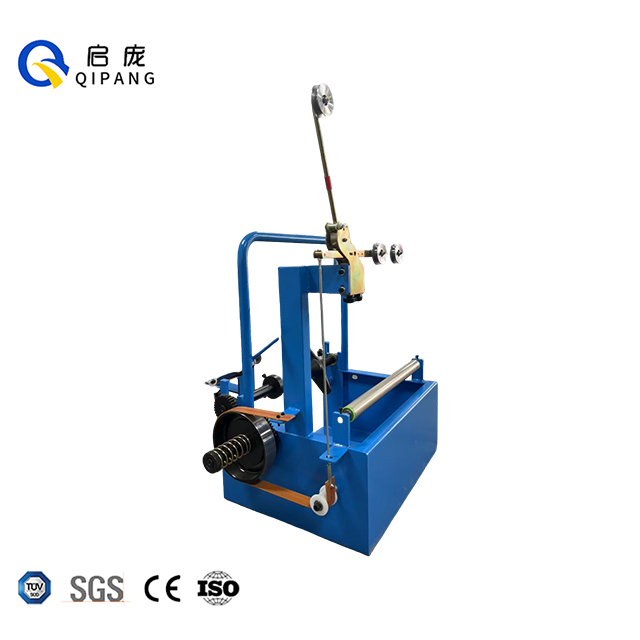

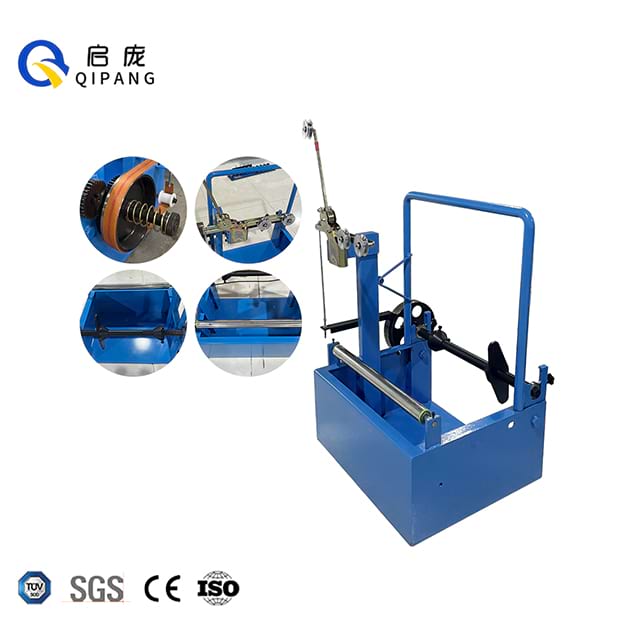

The QP630 QP800 Single Head Belt Pay Off Rack (Japanese Type Single-Shaft Pay Off Rack) is a heavy-duty industrial pay off system purpose-built for stable, tension-controlled wire and cable spool feeding in continuous production lines. Developed by QIPANG, a leading industrial equipment manufacturer, this pay off rack solves critical challenges for industrial production operators, including inconsistent wire feeding, tension fluctuations, line downtime, and unsafe spool handling in high-volume wire and cable manufacturing. Compatible with standard industrial spool sizes, this unit integrates seamlessly with extruders, twisting machines, spooling lines, and other cable processing equipment, delivering uninterrupted, controlled material feeding to maximize your production line stability and output.
The core advantage of this industrial wire pay off rack is its advanced tension gun control system, which enables precise, continuous tension adjustment to match your production speed and material specifications. This eliminates wire stretching, breakage, and uneven winding caused by tension fluctuations, ensuring consistent product quality across every batch of wire and cable.
Engineered for high-volume industrial operations, this single head pay off machine offers a standard load bearing capacity of 300kg, with a strengthened load rating of up to 400kg to accommodate large, heavy wire spools. Its robust frame and reinforced components ensure long-term, reliable operation even in 24/7 industrial production environments, minimizing maintenance and downtime.
This belt type pay off rack features a static induction and belt automatic braking system, with optional magnetic powder brake configurations for enhanced control. The automatic braking system responds in real time to changes in production line speed, stopping spool rotation instantly when the line pauses to prevent over-feeding, wire tangling, and safety hazards.
The unit supports two standard spool outer diameter ranges: φ400-630mm and φ630-800mm, covering the vast majority of industrial wire and cable spool specifications used in global manufacturing. Its flexible design can be customized to fit non-standard spool sizes, making it a versatile solution for diverse production line setups.
Parameter | Specification |
Model | Japanese Type Single-Shaft Pay Off Rack (QP630 QP800 Series) |
Spool Outer Diameter Range | φ400-630mm / φ630-800mm |
Tension Control System | Tension Gun Control with Stepless Tension Adjustment |
Braking Control Method | Static Induction, Belt Automatic Braking (Magnetic Powder Brake Optional) |
Standard Load Bearing Capacity | 300kg |
Strengthened Load Bearing Capacity | 400kg |
Structure Type | Single Head / Single Shaft Horizontal Design |
Compatible Equipment | Extruders, Wire Twisting Machines, Spooling Lines, Rewinding Machines |
The QP630 QP800 Single Head Belt Pay Off Rack is an essential piece of equipment for industrial production operators in sectors including:
Power cable and insulated wire manufacturing
Telecom and data cable extrusion lines
Wire twisting and bunching production operations
Automotive wiring harness and cable assembly processing
Wire spooling, rewinding, and coiling facilities
Industrial rope and braided cable production lines
QIPANG is a world-renowned industrial equipment manufacturer specializing in the design, production, and customization of wire and cable processing machinery for industrial production facilities. Holding TUV, SGS, CE, and ISO certifications, we have built a reputation for delivering durable, high-performance equipment that meets the strictest global industrial standards. Our comprehensive product portfolio includes industrial pay off racks, wire spooling machines, laser diameter gauges, cable spark testers, and wire preheaters, all engineered to integrate seamlessly with your existing production lines and optimize your operational efficiency. With a team of experienced industrial engineers and a global service network, we provide end-to-end support, from custom equipment design to after-sales maintenance, for industrial production partners around the world.
If you need a heavy-duty, reliable wire spool pay off equipment to stabilize your production line, reduce downtime, and improve the quality of your wire and cable products, the QP630 QP800 Single Head Belt Pay Off Rack is the perfect fit for your industrial operations. We offer custom configurations, including braking system options, spool size adaptations, and frame modifications to align with your unique production line requirements. Contact us today to receive a personalized quote and expert guidance from our industrial equipment engineering team.
630 800mm Single head pay-off rack Manual.pdf
This industrial pay off rack is compatible with spools with an outer diameter of φ400-630mm and φ630-800mm, covering most standard industrial wire and cable spool sizes.
Tension is controlled via a precision tension gun system, which allows for stepless adjustment to match your production speed and material requirements, ensuring consistent feeding and product quality.
It uses a static induction system with belt automatic braking, with optional magnetic powder brake configurations available for enhanced control in specialized production processes.
