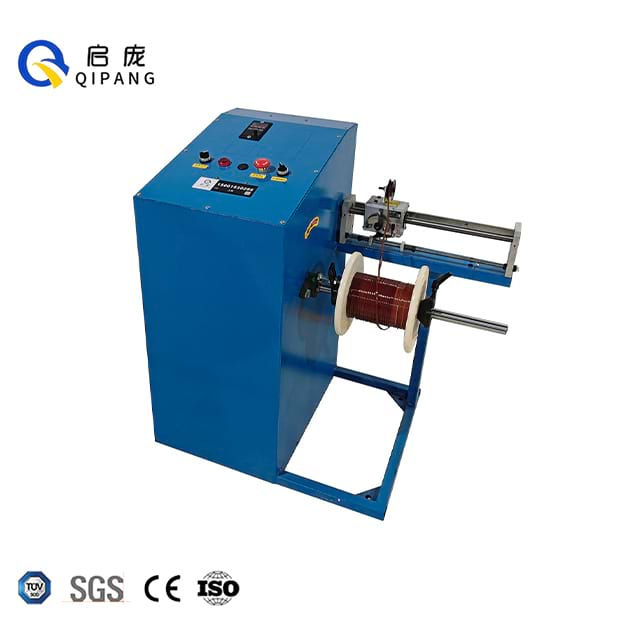

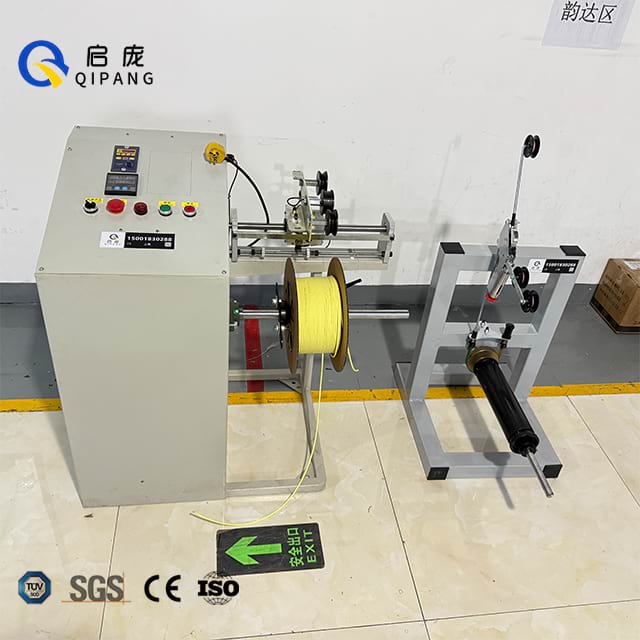

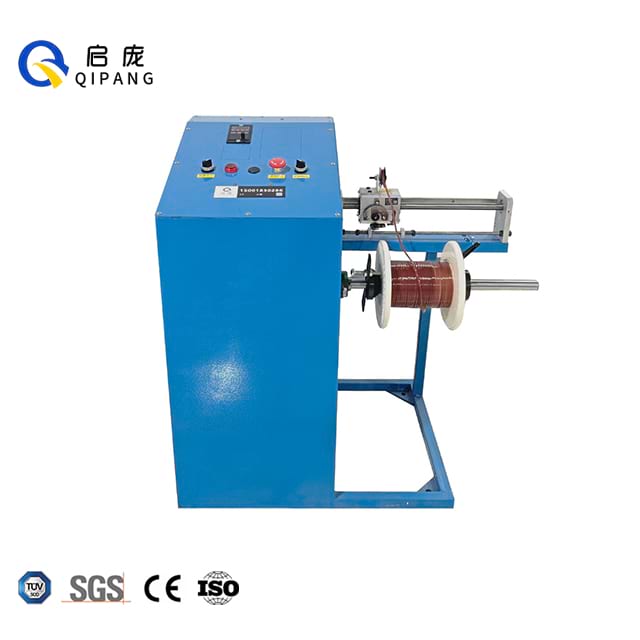

The QP400 Cable Take Up Machine is a heavy-duty, high-efficiency cable winding solution purpose-built for industrial manufacturing enterprises pursuing stable, consistent wire spooling performance. Developed by QIPANG, a leading industrial wire processing equipment manufacturer, this machine seamlessly integrates with extruders and various assembly lines to streamline cable winding workflows. It is compatible with round wire, flat wire and tubes with a diameter of φ0.1-30mm, and fits reels with OD ≤400mm, ID ≥25mm and width ≤300mm, covering diverse industrial wire processing demands. With a standard take-up speed of 280 RPM and full customization capabilities, it adapts to your unique production needs, minimizing downtime and maximizing output for your facility.

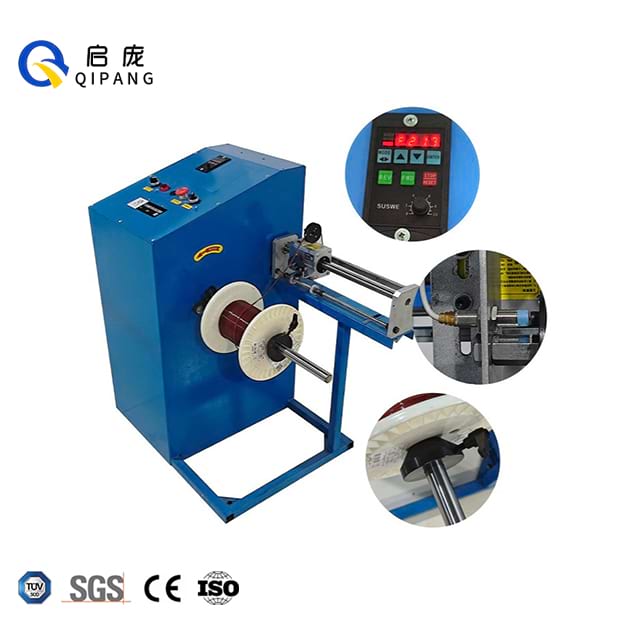

Equipped with advanced frequency conversion control, the QP400 Cable Take Up Machine delivers uniform winding speed that fully synchronizes with your production line. This eliminates uneven winding, reduces wire strain and material waste, and ensures consistent product quality across all production batches.
The innovative top cone clamping structure simplifies reel loading and unloading, while the bobbin is fixed below the tray to completely avoid falling risks. This enhances workplace safety, shortens reel changeover time, and improves overall operational efficiency.
The machine adopts an "L" foot base plate that can be firmly fixed to the workshop floor, providing exceptional stability even during high-speed continuous operation. This robust design reduces vibration, extends equipment service life, and maintains long-term winding precision.
We offer comprehensive customization for this variable speed cable winding machine, including meter counting function, magnetic particle tension control and torque motor controllers, to perfectly match your specific production process.
Model | QP400 Cable Take Up Machine |
Applicable Diameter | φ0.1-30mm round wire,flat wire,tube |
Applicable Reel Size | Outer diameterless than 400mm,inner hole morethan 25mm,width less than 300mm |
Take-up Speed | 280 RPM(customizable speed) |
Wiring Mode | Rolling ring drive(L=450MM) |
Bearing Capacity | 30kg |
Motor Power | 0.75kw |
Voltage | Single-phase power 220v 50hz |
Package Size | 1.01*0.75*1m |
weight | 112kg |
|
|
Optional

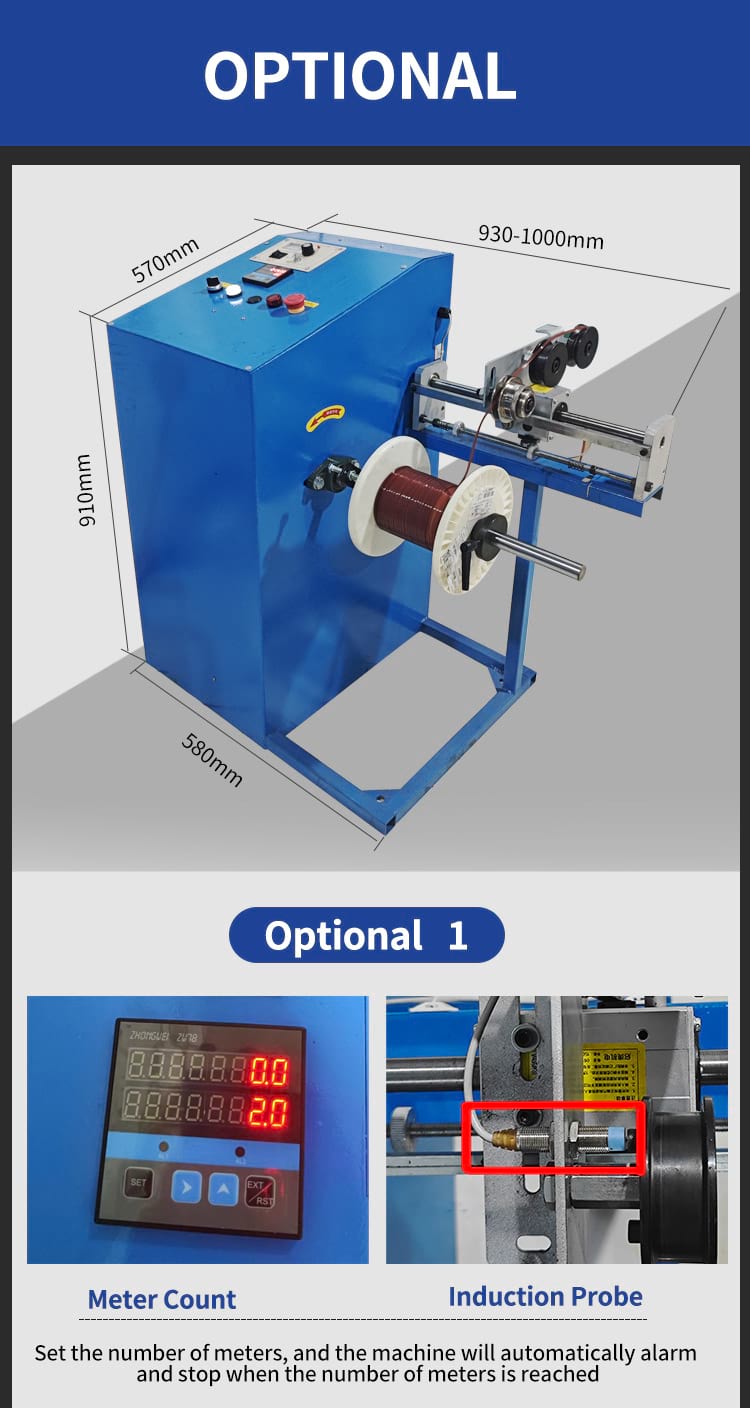

Meter Count 1 | Set the number of meters,and the machine will |

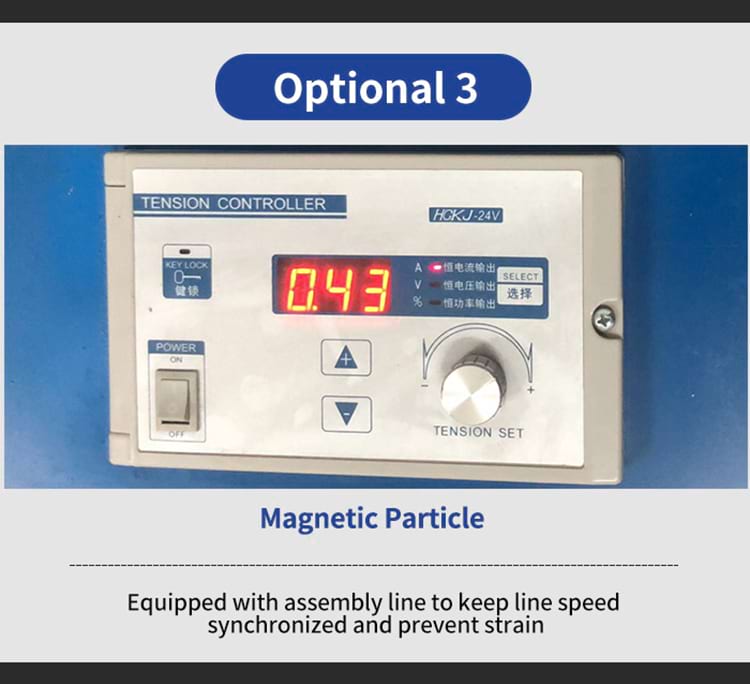

Magnetic Particle 2 | Equipped with assembly line to keep line speed synchronized and prevent strain |
Torque Motor Controller 3 | Automatically adjust the winding speed according to the torque |
This customizable cable take up equipment is an essential asset for multiple industrial sectors, including:
Wire and cable manufacturing facilities
Plastic and metal tube extrusion production lines
Automotive wiring harness processing plants
Telecommunication cable production workshops
Electronic wire and connector manufacturing
Industrial hose and tube processing operations
Shanghai Qipang Industrial Co., Ltd. is a professional manufacturer of industrial wire processing equipment, with a full product line covering wire spooling machines, laser diameter gauges, wire length meters, cable spark testers and wire preheaters. All our equipment is engineered for seamless integration with extruders and complete production lines, and holds internationally recognized CE, ISO, SGS and TUV certifications. With decades of industry experience, we deliver reliable high-performance equipment and full technical support to industrial business clients worldwide, from small production workshops to large manufacturing enterprises.
The maximum bearing capacity of the QP400 Cable Take Up Machine is 30kg, meeting standard and heavy-duty reel demands for most industrial winding operations.
The standard power supply is single-phase 220V 50Hz, with customization options available to match your local power specifications.
Yes, the standard take-up speed is 280 RPM, with fully customizable speed options to fit your specific production needs.
Whether you need a standard industrial cable take up machine or a fully customized configuration to match your existing production line, our engineering team is ready to deliver a tailored solution for your facility. Contact us today to discuss your requirements, request a detailed quote, and learn how our QP400 Cable Take Up Machine can optimize your winding operations, reduce costs and boost production efficiency.
