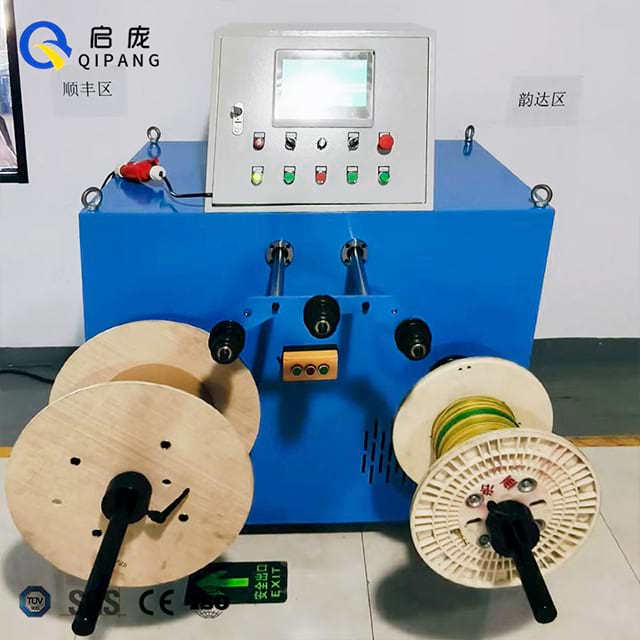

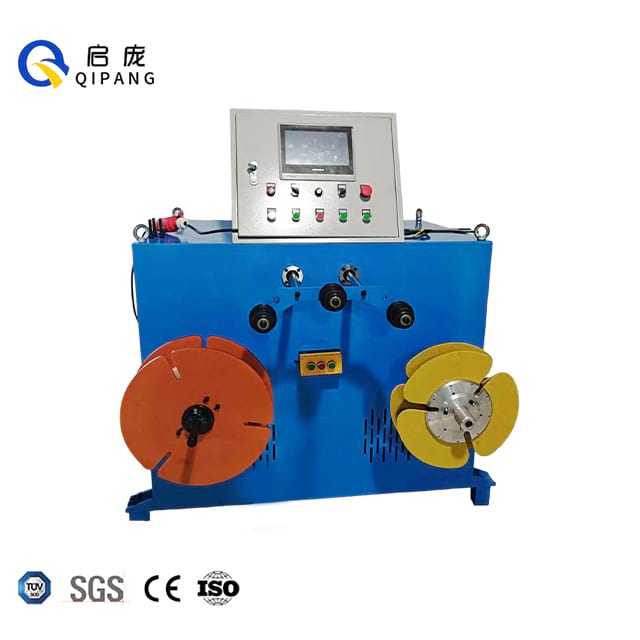

QP500/630 Double Head Servo Cable Coiling Machine is a heavy-duty, high-precision industrial winding solution engineered by QIPANG, a leading provider of wire and cable processing equipment. Purpose-built for high-volume, consistent coiling operations, this machine integrates an advanced PLC servo traverse system to deliver unmatched accuracy and efficiency for soft cable, tube, and rope processing. With a robust industrial-grade design and fully customizable configurations, it seamlessly links with existing extrusion lines and cable production systems, solving core pain points of uneven winding, low production efficiency, and limited specification compatibility for industrial manufacturing enterprises. Compatible with wire diameters from 1mm to 30mm, it adapts to diverse production needs with flexible spool size and speed adjustments.

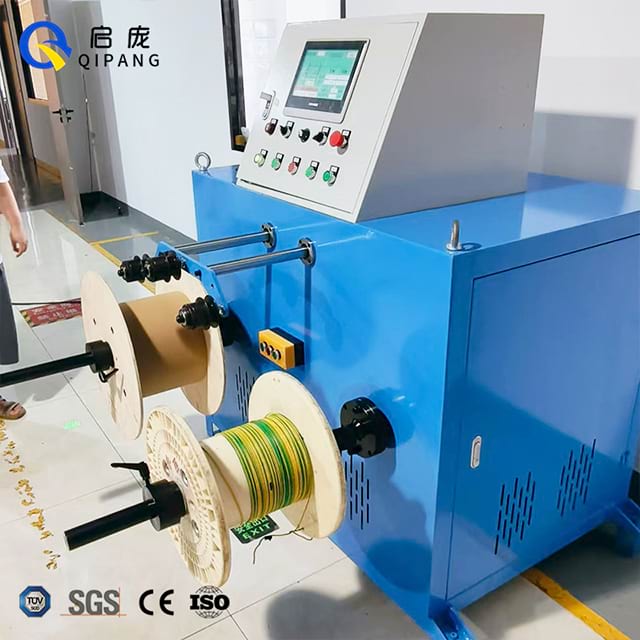

The machine’s industry-leading PLC servo cable coiling system features an intuitive touch screen interface, allowing operators to set wire diameter, stroke size, operating speed, and working duration with one-click operation. Unlike traditional rolling ring drive models, the servo system delivers consistent, gap-free winding, eliminating irregular coil formation and reducing material waste for high-volume production.
With a 500KG load capacity per single shaft, this double head cable coiling machine handles large-format spools and heavy cable reels with ease. It supports a standard operating speed of 0-250 rpm, with fully customizable speed ranges, spool dimensions, and motor power to match your production line’s unique capacity requirements. Standard 2.2/4KW reducer motors ensure stable, long-term operation in continuous industrial environments.
Designed for full compatibility with cable extrusion and production lines, the machine supports optional Siemens or Huichuan PLC brands to align with your existing control systems. It complies with global industrial standards, with SGS, CE, and ISO certifications, and features a durable RAL5015 blue finish (customizable) for corrosion resistance in harsh manufacturing settings.
Parameter Category | Rolling Ring Drive Configuration | PLC Servo Traverse Configuration |
Compatible Wire Diameter | 1-30mm soft cable/tube/rope | 1-30mm soft cable/tube/rope |
Spindle Center Height | 450mm/650mm (for 630 spool/coil) | 450mm/650mm (for 630 spool/coil) |
Traverse System | GP30 rolling ring drive | PLC servo traverse system with touch screen one-click control |
Operating Speed | 0-250 rpm, customizable | 0-250 rpm, customizable |
Spool/Coil Size | PN400-630mm, max width 475mm, bore 56/80/127mm; ID120mm, adjustable width 35~100mm, OD400mm, customizable | PN400-630mm, max width 475mm, bore 56/80/127mm; ID120mm, adjustable width 35~100mm, OD400mm, customizable |
Single Shaft Load Capacity | 500KG | 500KG |
Motor Power | 2.2/4KW + reducer motor, 50HZ three-phase power, customizable | 2.2/4KW + reducer motor, 50HZ three-phase power, customizable |
Standard Machine Color | RAL5015 blue, customizable | RAL5015 blue, customizable |
Display |  |  |

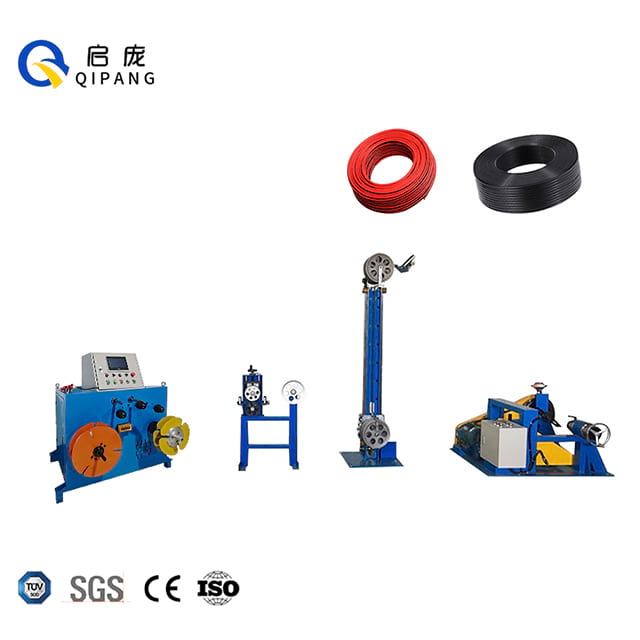

This industrial cable spooling machine is ideal for a wide range of sectors, including cable and wire manufacturing, flexible tube production, industrial rope processing, automotive wiring harness production, construction cable processing, and telecommunications cable manufacturing. It caters to the high-volume, high-precision winding needs of industrial production operators, supporting both standalone operation and full integration into automated production lines.
Shanghai Qipang Industrial Co., Ltd. is a professional manufacturer of advanced wire and cable processing equipment, with full SGS, CE, and ISO certifications. We specialize in the R&D and production of wire spooling machines, laser diameter gauges, wire length meters, cable spark testers, and wire preheaters, with all equipment designed to integrate seamlessly with cable extrusion and production systems. For years, we have delivered reliable, high-performance solutions to industrial manufacturing enterprises worldwide, with a focus on customizable design, durable build quality, and comprehensive after-sales support.
Siemens and Huichuan PLC brands are available as options, to match the diverse control needs of different industrial production lines.
It supports a standard 380V three-phase power supply, equipped with a 2.2KW main motor, with fully customizable power configurations available for specific production requirements.
The standard linear operating speed is up to 200m/min, with fully customizable speed ranges to align with your production line capacity.
Whether you need a standard servo cable winding machine for high-volume cable production, or a fully customized configuration to match your unique wire specifications and production line setup, our team of professional engineers is ready to design a tailored solution for you. Contact us today to discuss your requirements, and get a free quote backed by our full technical support and comprehensive after-sales service.
