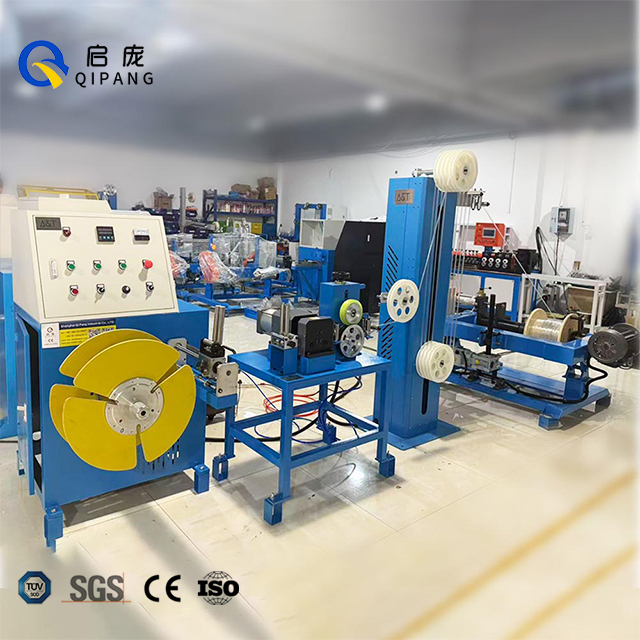

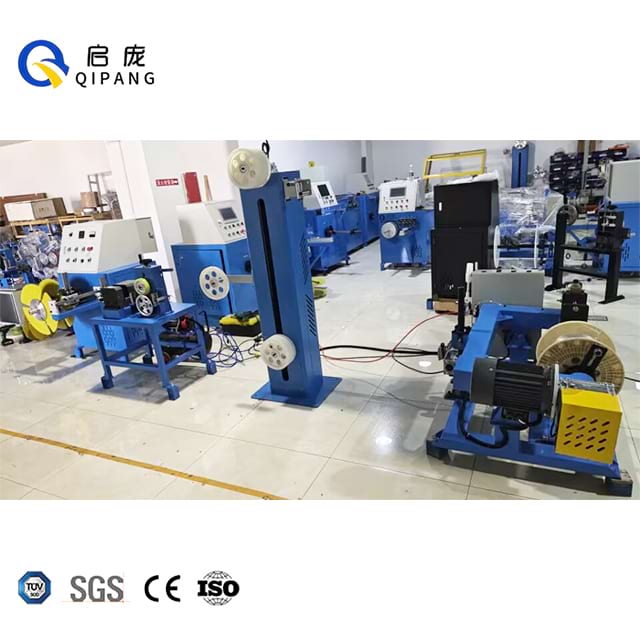

Electric Cable Pulling And Lowering Machine is a fully automatic, cable-friendly processing solution developed by QIPANG, engineered specifically for precision handling, pulling, lowering, and coiling of far-field optical cables and flexible cables. Designed to eliminate cable damage during high-volume production and engineering operations, this all-in-one machine integrates active pay-off, precision meter counting, automatic cutting, and uniform rewinding functions into a streamlined system, delivering industry-leading production efficiency and consistent wiring quality for professional cable manufacturing and engineering enterprises. It solves critical pain points of cable surface damage, inaccurate metering, low coiling efficiency, and high labor intensity that plague traditional cable processing equipment, with compatibility for 2.0mm to 15mm cable diameters.
Unlike traditional passive pay-off models that cause stretching and surface damage to optical cables, this automatic cable pulling machine adopts an active pay-off design with automatic tension release, compatible with both shaft and shaftless pay-off reels. It ensures zero damage to far-field optical cables, leather cables, flexible optical cables, and soft cables, making it universally adaptable for diverse cable types in telecommunications and electrical engineering.

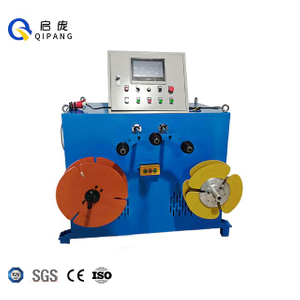

This machine features an innovative dual-shaft take-up structure, enabling non-stop winding operation even during coil unloading and replacement. With a standard operating speed of 0-500 rpm, it delivers a winding speed 2-3 times higher than traditional single-shaft models, achieving an output of around 700 coils per 7-hour shift, drastically boosting production capacity for cable manufacturing businesses.

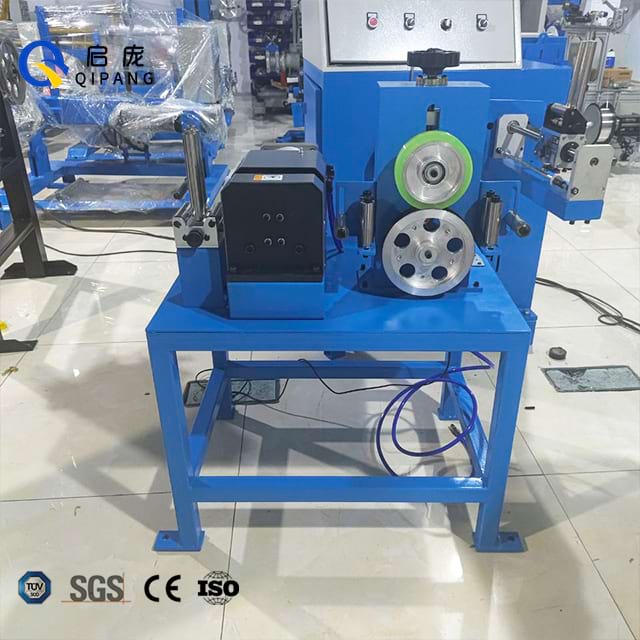

Equipped with a high-accuracy meter counting system and rolling ring drive traverse mechanism, the machine ensures precise length control and consistent wire arrangement. Its automatic traverse system keeps the winding pitch unaffected by wire diameter fluctuations, delivering neat, uniform coil formation with zero tangling, and meeting the strict quality requirements of optical cable and flexible cable production.

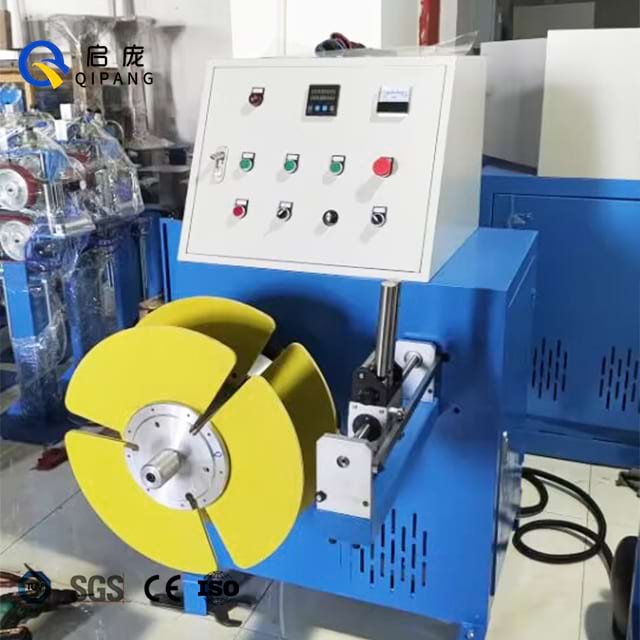

The integrated fast binding device allows for quick and easy coil removal after winding, significantly reducing labor intensity and cutting manual operation time. With 3 dedicated cable tie slots, it adapts to diverse coil bundling needs, while the simple electrical design and clear wiring guide make installation and maintenance straightforward for on-site industrial teams.
Use wire diameter range | 2.0-15mm cable |
Pay off reel size | OD630/800mm |
Pay off method | Automatic tension release with or without shaft |
Take up traverse type | rolling ring drive |
Take up load capacity | 300KG single shaft |
Wire traverse type | Automatic traverse |
Machine Speed | 0-500 rpm，Customizable |
Wire tie outer diameter | ≤310/400/450mm |
Number of cable tie slots | 3 slots |
Motor Power | 2.2+ Reducer Motor，50HZ three-phase electricity Customizable |
Wire tie inner diameter | ø140mm |
Wire tie height | 30-200mm，Customizable |
Machine Color | RAL5015 blue，Customizable |
Output per shift | Around 700 coil (7 hours) |
The warranty | 1 year free warranty |
This cable lowering and coiling equipment is widely used in telecommunications optical cable manufacturing, fiber optic network engineering, broadband infrastructure construction, flexible cable production, electrical wiring installation, and cable distribution enterprises. It caters to both factory-based high-volume production and on-site engineering pre-processing needs, making it an essential solution for professional cable engineering and manufacturing operators.
Shanghai Qipang Industrial Co., Ltd. is a reputable manufacturer of advanced wire and cable processing equipment, with full SGS, CE, and ISO certifications to meet global industrial standards. We specialize in the R&D and production of wire spooling machines, laser diameter gauges, wire length meters, cable spark testers, and wire preheaters, with all equipment engineered to integrate seamlessly with cable extrusion lines and full production systems. For years, we have provided reliable, high-performance processing solutions to industrial manufacturing and engineering enterprises worldwide, with a focus on customized design, rugged build quality, and end-to-end after-sales support.
This machine is optimized for 2.0-15mm far-field optical cables, leather cables, flexible optical cables, and soft cables, ensuring zero-damage processing for all compatible cable types.
The standard output is around 700 coils per 7-hour shift, with a maximum operating speed of 500 rpm, which is 2-3 times higher than traditional single-shaft cable winding models.
The machine uses a standard 380V three-phase five-wire power supply, with customizable motor power configurations available to meet regional power supply requirements.
Whether you need a standard meter counting cable cutting machine for high-volume optical cable manufacturing, or a fully customized configuration to match your specific engineering and production requirements, our team of professional engineers is ready to design a tailored solution for you. Contact us today to discuss your cable diameter, coil size, and production capacity needs, and get a free quote for your ideal cable processing system, backed by our full technical support and comprehensive after-sales service.
