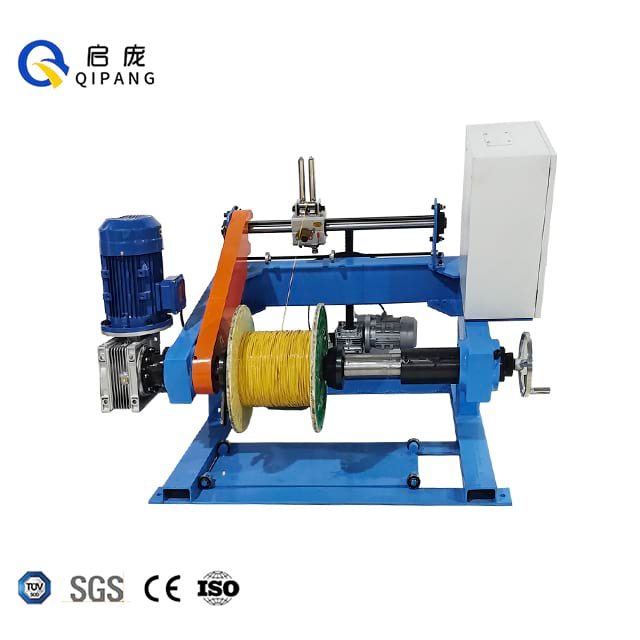

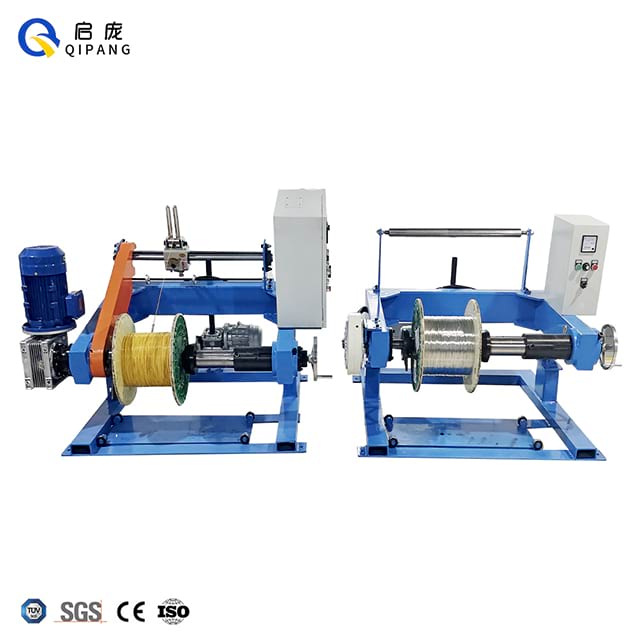

The QP630-1400 series wire spooling machine is a heavy-duty, high-efficiency industrial cable take-up and winding solution purpose-built for continuous wire and cable production lines. This shaftless winding equipment is engineered to solve core pain points for wire and cable manufacturers: uneven wire arrangement, low winding efficiency, poor compatibility with different reel sizes, and high labor intensity. With 5 standard models available, it supports reel sizes from ΦPN400-PN630mm up to ΦPN1250-PN1400mm, and handles wire diameters ranging from 0.5mm to 40mm. Equipped with an electric lifting system, precision rolling ring traverse, and inverter adjustable speed, it can be matched with looper speed control devices, meter counters, and automatic disconnection stop systems, delivering stable, consistent winding performance for high-volume industrial production.
The series includes 5 standard models (QP630, QP800, QP1000, QP1250, QP1400), covering a comprehensive range of reel sizes, wire diameters, and production speeds. We offer optional hand crank or pneumatic clamping, as well as customized accessories, ensuring the equipment perfectly matches your unique production requirements, whether for small-batch specialty wire processing or large-scale continuous cable manufacturing.

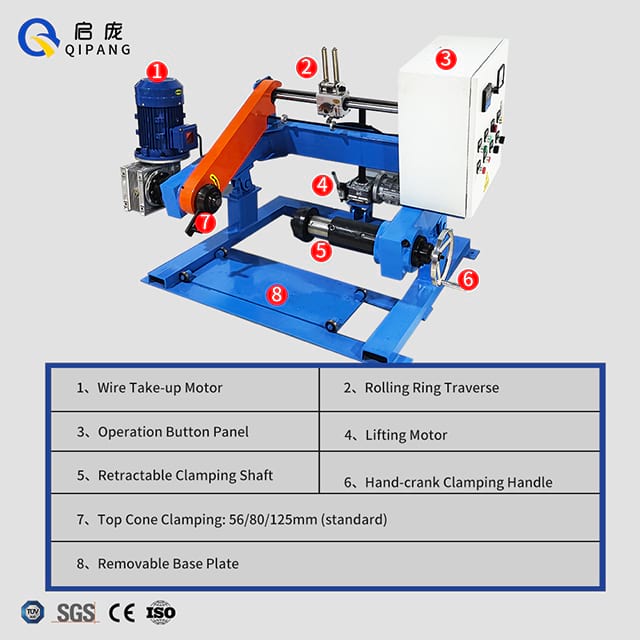

This wire spooling machine is equipped with a high-performance Φ30/Φ40 rolling ring traverse system, with fully adjustable travel distance and winding pitch. It ensures uniform, neat wire arrangement across the entire reel, eliminating wire tangling, abrasion, and uneven winding, which drastically reduces post-processing rework and material waste. The inverter adjustable speed design supports speeds up to 300m/min, seamlessly matching the output speed of your existing extruder or production line.

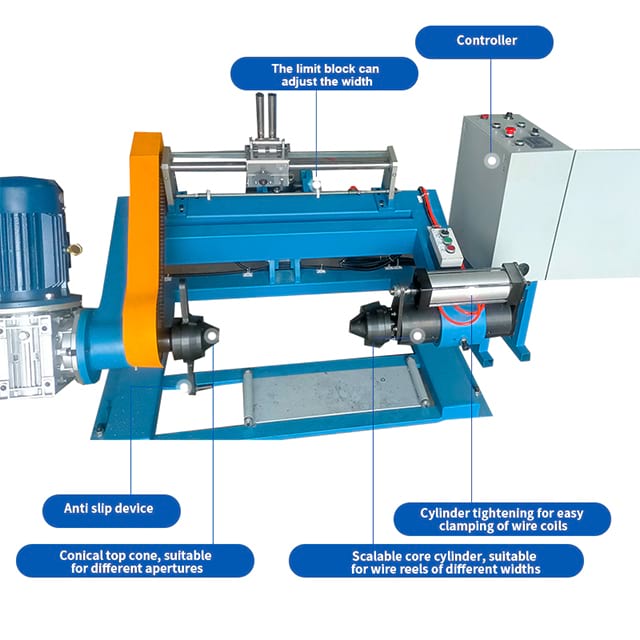

Built for long-term, heavy-duty industrial operation, the machine features a 0.75KW-1.5KW electric screw lifting system with upper and lower limit devices, ensuring safe and stable reel loading and unloading. The conical top cone design is compatible with different reel inner hole sizes, while the anti-slip device and cylinder clamping option ensure secure reel fixation during high-speed winding. The intuitive operation button panel requires minimal operator training, reducing labor costs and improving production safety.

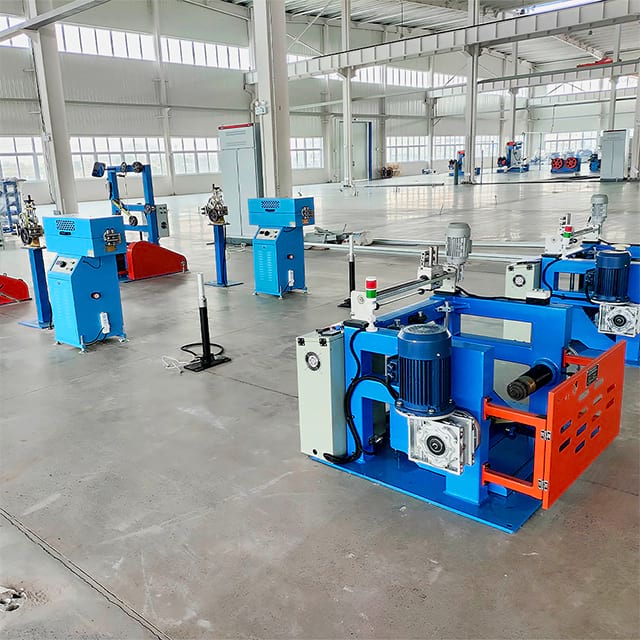

Designed for full compatibility with modern wire and cable production workflows, this cable take-up machine can be seamlessly linked with extruders and other production line equipment. It supports integration with meter counting devices, automatic disconnection stop systems, and speed synchronization controls, enabling fully automated, unattended production, and significantly improving overall line efficiency.
Model | QP630 Wire Spooling Machine | QP800 Wire Spooling Machine | QP1000 Wire Spooling Machine | QP1250 Wire Spooling Machine | QP1400 Wire Spooling Machine |
|---|---|---|---|---|---|

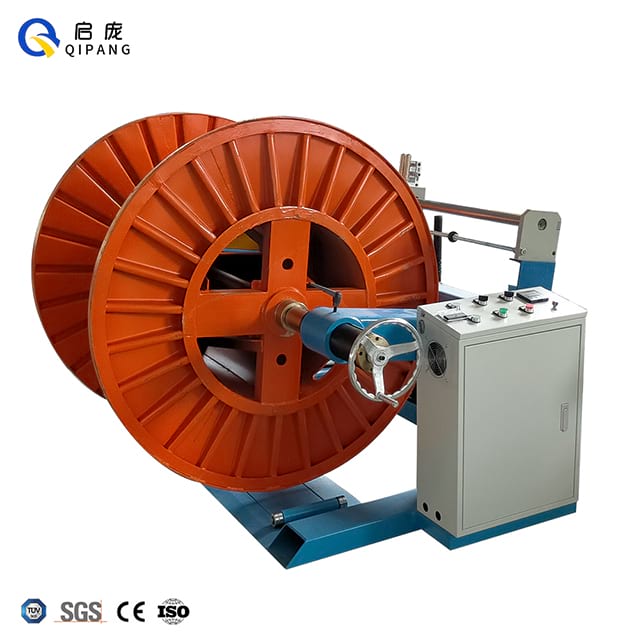

Applicable Reel Size | ΦPN400-PN630mm,width 475mm,inner hole Φ56/80mm | ΦPN630-PN800mm,width 600mm,inner hole Φ80mm | ΦPN630-PN1000mm,width 750mm,inner hole Φ80mm | ΦPN800-PN1250mm,width 750mm,inner hole Φ80mm | ΦPN1250-PN1400mm,width 950mm,inner hole Φ80mm |
Suitable Material Diameter | 0.5-15MM | 0.5-20MM | 0.5-30MM | 0.5-40MM | 0.5-40MM |
Applicable Speed | 0-300m/min (Inverter adjustable speed) | 0-200m/min (Inverter adjustable speed) | |||
Clamping Method | hand crank clamping (or cylinder clamping) | ||||
Reel Lifting Motor | 0.75KW electric screw lifting,upper and lower limit devices,safety | 1.5KW electric screw lifting,upper and lower limit devices,safety | |||
Wire/Cable Arrangement | Φ30 Rolling Ring Traverse,adjustable travel distance and pitch | Φ40 Rolling Ring Traverse,adjustable travel distance and pitch | |||
Take-up Motor Power | 2.2KW motor + RV reducer | 2.2KW motor + RV reducer | 4KW motor + RV reducer | 4KW motor + RV reducer | 5.5KW motor + RV reducer |
Power Supply | 380V,3-phase,50HZ | 380V,3-phase,50HZ | 380V,3-phase,50HZ | 380V,3-phase,50HZ | 380V,3-phase,50HZ |
Equipment Color | RAL5015 blue | RAL5015 blue | RAL5015 blue | RAL5015 blue | RAL5015 blue |
The QP630-1400 series wire spooling machine is a core piece of equipment for a wide range of industrial manufacturing sectors, including power cable and communication wire production, building wire and electrical cable manufacturing, automotive wire harness winding, steel wire and metal wire processing, optical cable fabrication, and specialty wire production. It is optimized for high-volume, continuous production lines, delivering reliable winding performance and reducing production costs for industrial enterprises.
Shanghai Qipang Industrial Co., Ltd. is a leading industrial equipment manufacturer with decades of expertise in R&D and production of wire and cable processing machinery. Our core product line includes wire spooling machines, laser diameter gauges, wire length meters, cable spark testers, and wire preheaters, all engineered to integrate seamlessly with extruders and full production lines. Every piece of equipment is certified by SGS, CE, ISO, and TUV, complying with strict international industrial quality standards, and we provide end-to-end production solutions for industrial manufacturing clients across the globe.
The series offers 5 standard models, compatible with reel sizes ranging from ΦPN400-PN630mm up to ΦPN1250-PN1400mm, with custom options available for non-standard reel specifications.
The series supports wire diameters from 0.5mm up to 40mm, with each model tailored to specific material size ranges to match your production needs.
Yes, all models are equipped with a full inverter adjustable speed system, with a maximum speed of 300m/min for the QP630 model, enabling perfect synchronization with your extruder or production line speed.
Whether you need a standard wire spooling machine for your existing production line or a fully customized winding solution for specialty wire processing, our professional engineering team is ready to deliver a tailored solution. We provide comprehensive pre-sales consultation, on-site installation guidance, and long-term after-sales support to help you improve production efficiency, reduce labor costs, and ensure consistent winding quality. Contact us today to get a free quote and optimize your wire production workflow.
