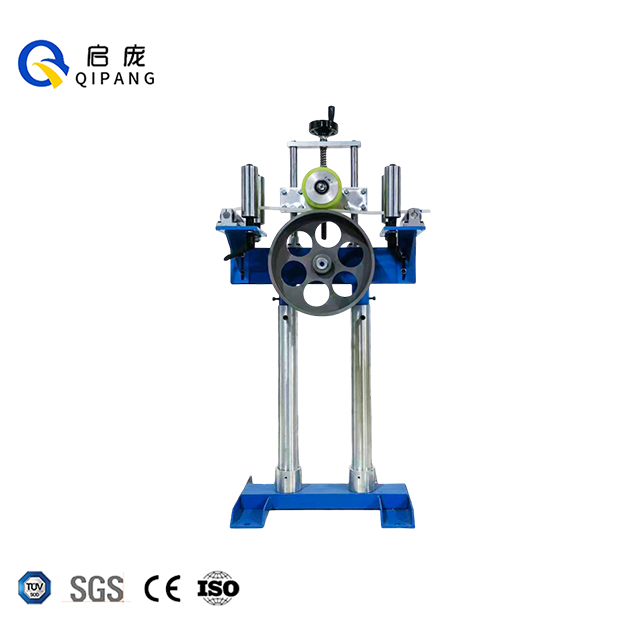

QIPANG QP-80L Length Meter Counter For Inkjet Printer is a professional industrial measuring device designed for real-time on-line length measurement of linear products such as wires, cables and pipes. Targeting the pain points of material waste and unqualified product length caused by inaccurate manual measurement in mass production, this counter features high precision (1.5‰ for extrusion, 2‰ for rewinding/twisted wire), 0-200M/Min high-speed adaptability and 0-99999.9M large counting range, realizing accurate length counting for high-speed moving workpieces. With a scientific spring vertical pressing structure and dual compression methods (pressure rod/handwheel), it fits different wire diameters (1mm-30mm) and material types, and the optional RS485 interface supports linkage with extruders and winding machines to achieve automated production line integration. As a cost-effective industrial solution, the QP-80L Length Meter Counter For Inkjet Printer is certified by SGS and CE, with a robust structure and customizable design, which can significantly reduce production costs and improve the standardization of product length for manufacturing enterprises in wire and cable, steel wire rope and hose industries.
Model | QP-80L |
Features | 1 coils,1 meter |
Wire diameter | 1mm-80mm |
Applicable wire speed | 0-400M/Min |
Center height | 950-1050mm(Center height adjustable) |
Material of meter wheel | Aluminum alloy surface anodizing |
Diameter of the meter wheel | φ318.3mm±0.01 |
Meter accuracy | three per thousand 3‰ It features low cost and quick return on investment. |
Countable length | 0-99999.9M |
Compression method | Hand wheel/ |
Product Structure | Upper and lower double wheels |
Counting Method | Electronic meter counter |
Output | RS485（Optional） |
Device Color | 5015 Blue （Other customizable options） |
Working voltage | 220V380V 50/60HZ |
Equipment weight | Meter counter main unit 82KG |
Packing size | L680*W480*H1300mm |
QP-80LDigital wire length meter Technical parameters.pdf
