High-speed wire processing lines frequently fail at the source rather than the cutting or extrusion phase. Inconsistent wire feeding and improper tension cause major disruptions across the production floor. Passive decoilers and unpowered spoolers rely entirely on the pulling force of downstream equipment to unwind material. This dynamic leads to wire stretch, insulation damage, tangles, and frequent machine faults. Handling delicate fiber optics or heavy-duty copper cables requires a strictly controlled approach. Upgrading to an automatic active pay-off system eliminates these tension variables. Utilizing motorized bobbins and closed-loop feedback ensures seamless integration with downstream processing equipment. We see this upgrade immediately stabilize feed rates and prevent conductor elongation. You can stop fighting the unspooler and let the active drive handle the heavy lifting.
Active pay-off machines utilize motorized drives and closed-loop feedback (dancer arms or load cells) to maintain precise, constant tension, preventing wire deformation.
Matching the pay-off machine’s speed, motor power, and payload capacity to downstream equipment is critical for preventing bottlenecks in cutting, stripping, or extrusion lines.
Evaluating shaftless vs. shaft-style loading mechanisms determines changeover efficiency for heavy spools.

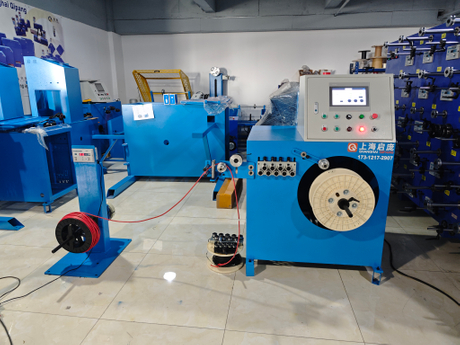

The core architecture of an active pay-off system fundamentally shifts the workload away from downstream processing tools. Instead of forcing a cutter or stripper to drag heavy material off a static reel, a Wire Spooling Machine uses its own dedicated power system to dispense the wire. This setup involves a motorized reel drive, a robust steel frame, and precision wire-arranging mechanisms. The drive motor actively pushes the wire forward at a rate that perfectly matches the consumption speed of the line. We eliminate the dragging force that typically causes outer jacket damage or conductor elongation. The mechanical advantage here is massive. You no longer rely on the fragile copper or fiber optic strands to transmit pulling force across the factory floor.
Closed-loop tension control acts as the brain of the active unspooling process. The system does not simply spin the reel at a fixed speed. It continuously monitors the physical state of the wire and adjusts the motor speed based on real-time feedback. When downstream equipment accelerates, the feedback mechanism detects the increased demand and signals the pay-off motor to speed up. When the line slows down or stops, the pay-off applies dynamic braking to prevent over-spooling. This continuous communication loop ensures the wire remains taut but never overstressed. The variable frequency drive interprets these signals in milliseconds, adjusting the hertz output to the AC motor to modulate rotational velocity smoothly.
Manufacturers typically employ two primary feedback mechanisms to achieve this closed-loop control: dancer arms and load cells. Each technology serves specific production environments and material types. You must select the right feedback loop based on the tensile strength of your product.
Feedback Mechanism | Operating Principle | Best Applications | Key Advantages |
|---|---|---|---|
Dancer Arms | Uses a pivoting arm with pulleys. Wire tension lifts or lowers the arm, changing a potentiometer reading. | High-speed lines, heavy cables, environments with sudden speed changes. | Provides physical buffering and wire accumulation. Absorbs aggressive acceleration spikes. |
Load Cells | Measures the physical force exerted on a guide roller using strain gauges without moving the wire path. | Ultra-fine wires, fiber optics, delicate medical tubing. | Highly precise, low-tension measurement. Eliminates physical displacement of the wire. |
Laser Sensors | Measures the sag of the wire loop optically without any physical contact. | Extremely fragile materials, bare copper strands. | Zero contact friction. Prevents surface scratching on sensitive jackets. |
Dancer arms excel at absorbing sudden speed changes. The physical movement of the arm creates a buffer zone. This accumulation allows the pay-off motor a fraction of a second to catch up to sudden downstream demands. We use pneumatic cylinders on these arms to adjust the baseline tension. By increasing or decreasing the air pressure, you change how much force the arm applies to the wire. Load cells provide a different advantage. They measure tension directly through force applied to a roller. This makes them ideal for ultra-fine wires that might break under the physical weight of a traditional dancer arm assembly. Load cells send a millivolt signal back to the controller, which translates that physical strain into a precise tension reading.
Passive decoilers rely entirely on friction brakes to prevent the spool from free-spinning. This design introduces significant failure points during high-speed operations. The primary issue is inertia lag during startup. A heavy spool requires massive pulling force to overcome static inertia. Downstream equipment must exert this force, which often stretches the wire or damages the feeding belts. Conversely, during emergency stops, the friction brake often fails to halt the heavy spinning spool quickly enough. This results in over-spooling, creating tangled loops that halt production. We constantly see friction pads wear down unevenly, causing jerky, inconsistent braking that sends shockwaves down the wire path.
Identifying the specific production thresholds that mandate motorized assistance requires analyzing wire diameters, line speeds, and material fragility. Active systems become necessary under several specific conditions. You cannot push modern extrusion or cutting lines to their maximum rated speeds while dragging a dead weight.
Processing wire diameters outside the standard mid-range, specifically below 0.15mm or above 25mm, where tensile strength is easily exceeded or spool weight is too massive.
Running line speeds that exceed 150 meters per minute, where passive braking cannot react fast enough to prevent slack loops during deceleration.
Handling fragile materials like fiber optics, fine stranded copper, or thin-walled medical tubing that deform under minimal strain.
Operating automated cutting lines that require sub-millimeter length accuracy, which is impossible to achieve if the wire stretches during the feed cycle.
Feeding multi-conductor cables where uneven pulling force can distort the internal geometry of the twisted pairs.
Active systems also excel at accommodating diverse cable profiles. Standard round wires behave predictably, but flat ribbon cables or complex multi-conductor harnesses require specialized handling. Active pay-offs utilize custom-machined guide channels and specialized rollers. These components keep flat cables perfectly aligned without introducing twists or structural stress. Preventing twists at the source ensures the cable enters the cutting blades perfectly flat, preventing angled cuts or exposed conductors.
The impact on downstream processing cannot be overstated. Consistent feed rates directly improve the dimensional accuracy of automated cutting and stripping tools. When tension fluctuates, the wire stretches and contracts as it passes through the measuring encoder. This causes the machine to cut wires at inconsistent lengths. By maintaining absolute zero-tension at the entry point of the cutter, an active pay-off guarantees that every single piece meets exact length specifications.
Sourcing the correct active pay-off requires matching the machine's physical and electrical specifications to your exact production reality. The first evaluation dimension involves spool weight and dimensional capacity. You must assess the machine's ability to handle your specific flange diameters and overall spool widths. A machine rated for a 600mm flange will not physically accept an 800mm spool. Furthermore, the maximum payload weight dictates the structural integrity required of the machine frame. Overloading a pay-off causes premature bearing failure and structural warping. We always recommend sizing the machine for a payload 20% heavier than your largest expected spool to ensure long-term durability.
Motor power and torque specifications dictate how well the machine handles heavy loads. You must size the drive motor appropriately to match the maximum payload. The motor needs sufficient wattage and torque to prevent stalling during rapid acceleration. A heavy-duty cable spool weighing 1000kg requires massive starting torque to reach line speed in under two seconds. Undersized motors will overheat, trip internal breakers, or fail to keep up with downstream demand, causing the dancer arm to crash against its physical limits.
Loading and unloading mechanisms significantly impact daily operational efficiency. Sourcing teams must evaluate different designs based on spool size and operator ergonomics. You want to minimize the time your line sits idle during changeovers.
Mechanism Type | Operation Method | Best For | Ergonomic Impact |
|---|---|---|---|
Pintle (Shaftless) | Two opposing mechanical arms clamp the spool flanges directly. | Heavy-duty applications, spools over 500kg. | Eliminates manual lifting of heavy steel shafts. Highly ergonomic. |
Shaft-Style | A solid steel shaft is threaded through the spool center and locked into place. | Smaller, lighter spools under 100kg. | Requires manual lifting and alignment. Slower changeovers. |
Motorized Lift | Hydraulic or electric arms lift the spool from floor level into the running position. | Facilities without overhead cranes or forklifts. | Zero manual lifting required. Maximum operator safety. |
Speed synchronization relies heavily on the underlying drive technology. Evaluating AC vector drives versus servo motors is a necessary step in the sourcing process. AC vector drives offer robust, cost-effective performance for standard wire lines. They provide excellent torque control at low speeds and handle heavy, consistent loads perfectly. Servo motors deliver superior performance for applications requiring rapid, aggressive acceleration and deceleration matching. Servos react in milliseconds, making them the preferred choice for ultra-high-speed, start-stop cutting operations where the wire advances and halts multiple times per second.
Achieving maximum production efficiency requires seamless end-to-end line synchronization. You must electronically link the active pay-off to downstream equipment, such as a cable rewinding machine. This synchronization typically occurs via encoder feedback or analog control signals. The rewinding machine sends a 0-10V analog signal to the pay-off's variable frequency drive. As the rewinder speeds up, the voltage increases, commanding the pay-off to match the exact velocity. This handshake prevents the pay-off from starving the line or over-feeding material. We often use 4-20mA current loops instead of voltage signals in environments with high electrical noise to ensure the speed command remains stable.
Optimizing the feed into a cable coiling machine involves strict management of the wire path. High-speed coiling heads pull material aggressively. If the pay-off lags, the tension spikes, potentially snapping fine wires. If the pay-off pushes too fast, slack develops. Slack loops easily form micro-tangles. When these tangles hit the coiling head, they cause catastrophic machine jams. The dancer arm accumulator must be tuned to absorb these minor speed discrepancies instantly. You need enough physical distance in the accumulator tower to hold several meters of wire, giving the pay-off motor time to react to the coiler's sudden demands.
Modern facilities increasingly rely on all-in-one processing lines. These advanced systems seamlessly integrate cutting, stripping, winding, and tying in one continuous step. Synchronizing the pay-off to feed these complex lines requires precise digital communication. Programmable Logic Controllers manage the entire network via industrial Ethernet protocols like Profinet or EtherCAT. The pay-off must react to multiple variables simultaneously, adjusting its feed rate based on the current cycle phase of the downstream multi-function machine.
Handling reversible operations adds another layer of complexity. Sometimes downstream faults require the line to reverse direction to clear a jam or correct a winding error. A standard wire and cable rewinding machine might need to back up several meters of material. The active pay-off must support controlled rewinding. It needs to detect the reverse tension and actively wind the slack back onto the source spool. Systems lacking this reversible capability force operators to manually manage slack loops during fault corrections, creating severe safety hazards and tangling risks.
Deploying active pay-off systems introduces specific physical and technical challenges to the production floor. Floor space and layout constraints often pose the first hurdle. You must account for the physical footprint of the pay-off unit itself. Additionally, you must calculate the required distance for the dancer accumulator tower. Proper tension buffering often requires the dancer tower to sit several meters away from the pay-off reel. Cramping this layout restricts the dancer arm's range of motion, neutralizing its ability to absorb speed spikes. We always map out the wire path in CAD before installation to ensure the bending radii remain within the cable's specified limits.
Communication lags between machines frequently cause severe operational issues. The most common problem involves PID controller tuning. If the Proportional, Integral, and Derivative gains in the drive are set incorrectly, the system experiences hunting. Hunting occurs when the motor continuously overcompensates, speeding up and slowing down rapidly. This oscillation causes the dancer arm to bounce violently, creating erratic wire tension. Mitigating this requires an experienced technician to properly tune the PID loop, ensuring smooth, dampened responses to speed changes. You start by adjusting the proportional gain until the system oscillates, then back it off and introduce integral gain to eliminate the steady-state error.
Operator safety protocols require strict enforcement when implementing motorized unspooling equipment. Active systems utilize heavy, rotating bobbins driven by high-torque motors. These present severe entanglement hazards.
Install physical guarding around the rotating spool to prevent accidental contact during operation.
Implement safety light curtains that immediately cut motor power if an operator breaches the loading zone.
Identify and guard all pinch points within the wire-arranging mechanism and dancer pulleys.
Utilize dual-channel safety relays to ensure emergency stop commands cannot be overridden by a single software fault.
Anchor the machine frame directly to the concrete floor using heavy-duty wedge anchors to prevent walking during aggressive braking.
Maintenance realities dictate the long-term reliability of the system. Active pay-offs require consistent preventative maintenance to prevent tension drift. You must perform routine calibration of load cells to ensure the tension readings remain accurate. Inspect dancer arm pneumatics weekly for air leaks, as fluctuating air pressure directly alters the baseline tension. Check all carbide blades, ceramic guides, and U-channels for grooving or wear. Worn guides create friction points that artificially increase wire tension, negating the benefits of the active drive system. We recommend replacing all guide rollers annually as a standard preventative measure.
Audit your current production lines to identify specific bottlenecks caused by wire stretching, tangling, or friction brake failures.
Document the minimum and maximum wire diameters, spool weights, and line speeds required for your facility before contacting vendors.
Request a proof-of-concept trial by sending sample spools to the manufacturer to verify dancer arm responsiveness and tension stability.
Demand a live demonstration of the machine's emergency stop capabilities at maximum line speed to verify dynamic braking performance.
A: A passive pay-off relies on downstream equipment to pull the wire, using friction brakes to control the spool. An active pay-off uses a dedicated motor to drive the spool, pushing the wire forward. Active systems use sensors to match the exact speed of the downstream line, preventing wire stretch.
A: A dancer arm uses a pivoting mechanism connected to a potentiometer or sensor. As wire tension increases, the arm lifts, signaling the drive motor to speed up. When tension drops, the arm lowers, commanding the motor to slow down. This continuous movement maintains constant tension.
A: Yes, but it requires the correct configuration. Fine wires require highly sensitive load cells to prevent breakage. Heavy-duty flat cables require specialized guide rollers and U-channels to prevent twisting. High-end machines offer interchangeable guides and adjustable tension parameters to handle both extremes.
A: Synchronization is achieved through electronic communication. The rewinding machine sends a reference signal, typically a 0-10V analog output or a digital encoder pulse, to the pay-off's variable frequency drive. The pay-off reads this signal and adjusts its motor speed to match the rewinder exactly.
A: A shaftless pay-off uses two opposing mechanical arms to clamp the sides of a spool, rather than running a solid steel shaft through the center. It is required for heavy-duty spools where manually lifting and threading a heavy shaft is ergonomically unsafe or physically impossible.
A: Cable coiling machines pull material rapidly and often change speeds abruptly. Closed-loop feedback continuously monitors the wire tension and adjusts the pay-off motor in milliseconds. Without it, the sudden speed changes would cause the wire to snap or create slack loops that jam the coiler.
