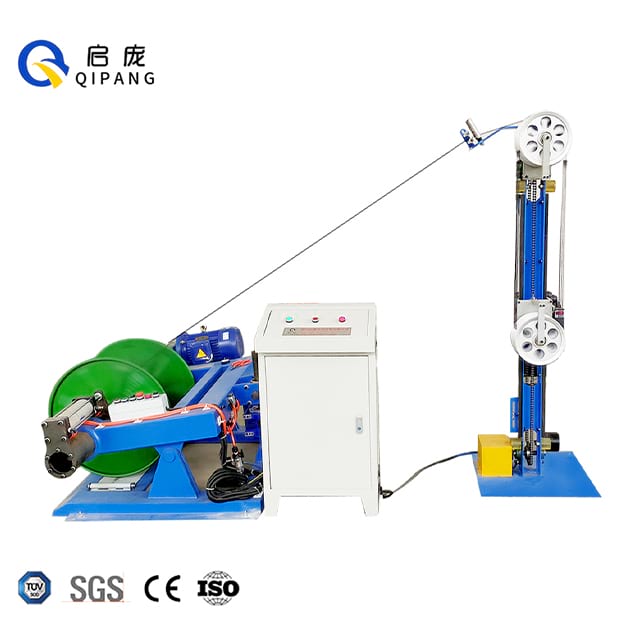

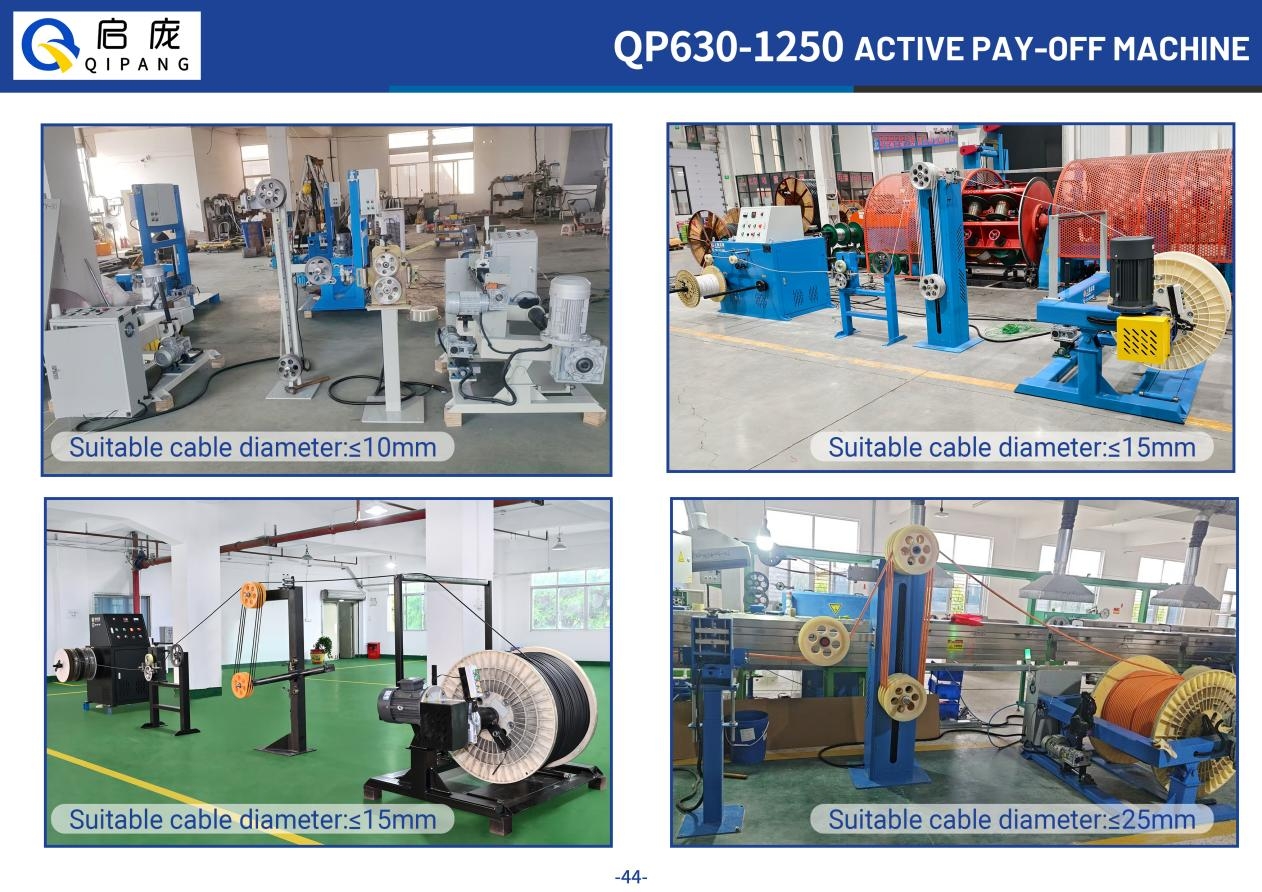

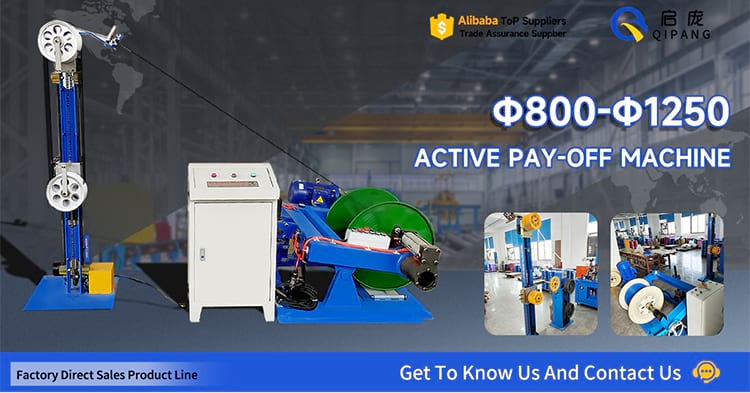

Our Cantilever Active Pay Out Machine (QP630, QP800, QP1000, QP1250 series) is a high-performance active pay off machine engineered for continuous, high-precision wire and cable pay-off operations in industrial production lines. Featuring an advanced swing-arm type pay-off structure and gravity-based tension control mechanism, this industrial wire pay-off equipment delivers consistent tension regulation by adjusting the counterweight on the swing arm, ensuring stable wire feeding even during high-speed operation. The machine’s pay-off speed is automatically synchronized with paired take-up equipment via a lever-type potentiometer driven by the swing arm position, enabling linear speed adjustment to perfectly match pay-off and take-up cycles. Designed for heavy-duty industrial use, it accommodates a wide range of wire diameters and spool sizes, making it an indispensable solution for industrial wire and cable manufacturers.
Unlike conventional pay-off equipment, our active pay off machine adopts a gravity-driven tension control system, allowing for stepless tension adjustment via configurable counterweights. This design eliminates wire stretching, breakage, and uneven winding, ensuring superior product consistency for high-value wire and cable production.
Equipped with a dedicated pay-off motor and high-precision inverter, this cantilever active pay-off machine delivers a stable operating speed of up to 350 m/min, with real-time speed synchronization to paired production equipment. This eliminates speed mismatches and production interruptions, maximizing line efficiency for industrial manufacturing facilities.
Built with thickened square tube frames (up to 150×100×5 mm) and high-torque RV reducers, the machine offers a maximum load capacity of 1000KG, adapting to large-size wire spools and long-duration continuous operation. All guide wheels are made of high-strength aluminum alloy, reducing wear and extending service life with minimal maintenance.

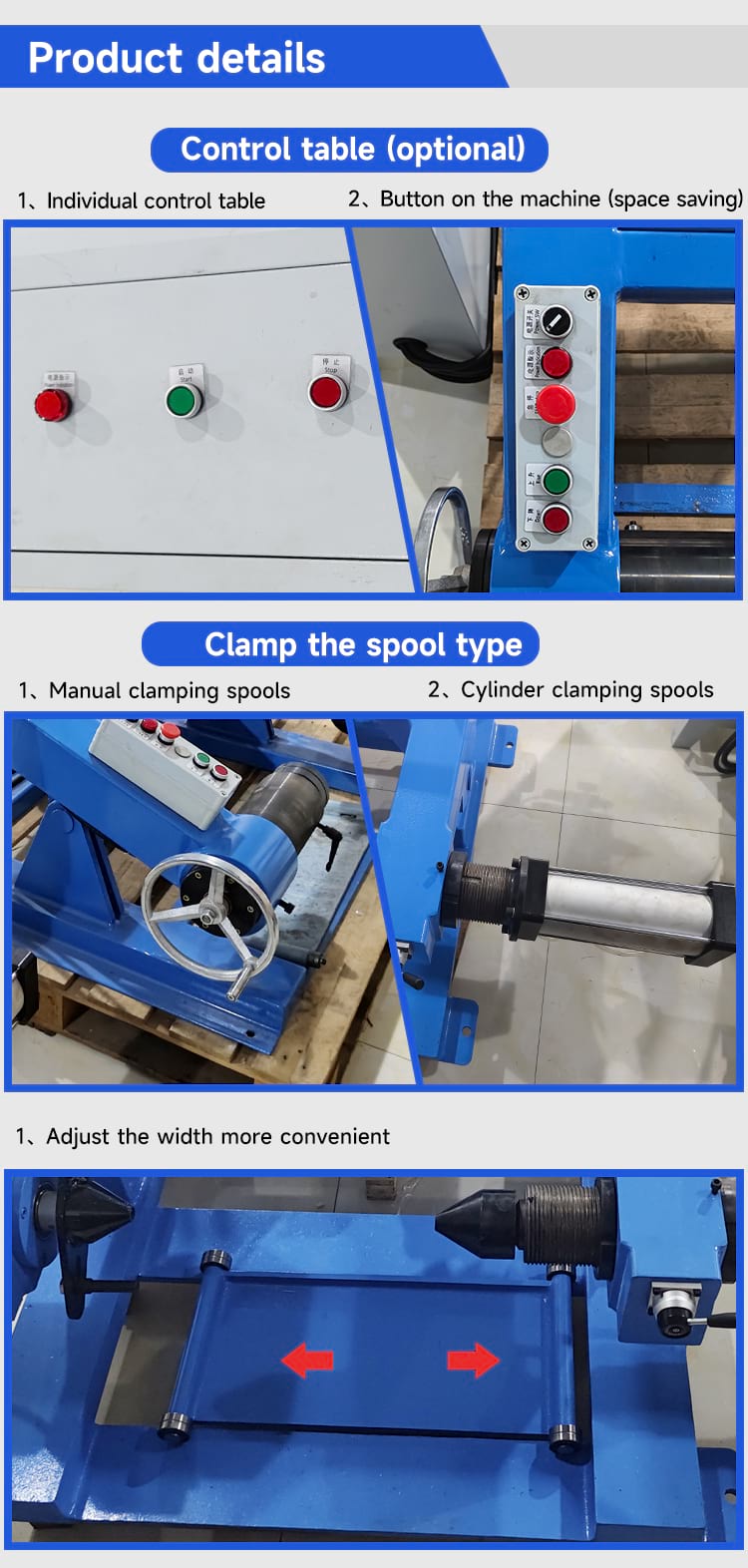

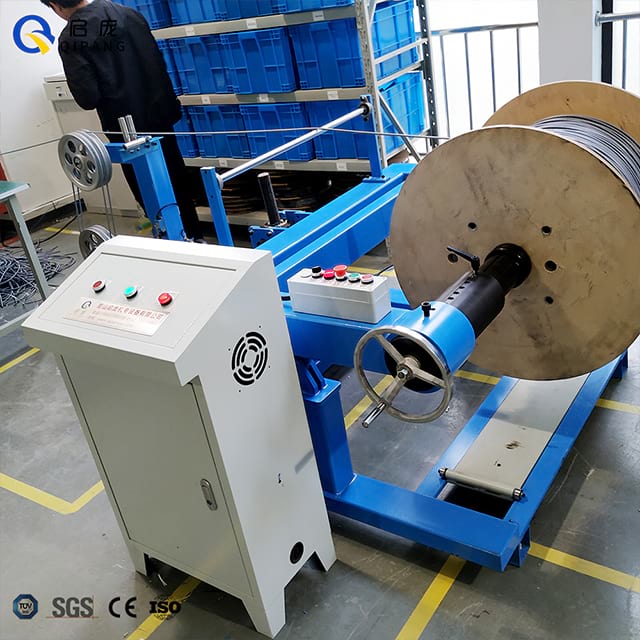

We offer optional configurations including cylinder clamping spools, independent control consoles, and customized wire storage lengths (up to 15 meters). The electric lifting system simplifies spool replacement, while both manual and pneumatic clamping options cater to different operational needs of industrial business clients.
 |  |
Model | QP630 Active | QP800 | QP1000 | QP1250 |
Pay off reel diameter | PND400-630mm | PND630-800mm | PND800-1000mm | PND1000—1250 |
Pay off oange | φ 0.32 mm-φ 4 mm | φ0.5mm-φ15mm | φ5mm-φ25mm | φ5mm-φ30mm |
Pay-off mode | Active pay-off | Active pay-off | Active pay-off | Active pay-off |
Clamping spool mode | Manual clamping spools (Cylinder clamping spool) | Manual clamping spools (Cylinder clamping spool) | Manual clamping spools (Cylinder clamping spool) | Manual clamping spools (Cylinder clamping spool) |
Lifting mode | Electric lift | Electric lift | Electric lift | Electric lift |
Lift motor | RV90-40-1.5 | RV90-40-1.5 | RV90-40-1.5 | RV90-40-1.5 |
Pay-off motor | 2.2 KW + RV90-1;7.5 Deceleration,inverter,Zhengxuan 4KW Square tube size 120*120*5 | 4kw+RV90-1;7.5 Deceleration,inverter,Zhengxuan 4KW Square tube size 120*120*5 | 5.5kw+RV110-1 ratio 7.5,Inverter is 7.5KW | 7.5KW +RV110-1 ratio 7.5,Inverter is 7.5KW |
Pay-off speed | 0-250 m/min | 0-250 m/min | 0-250 m/min | 0-350 m/min |
Load-bearing | 750KG | 1000KG | 1000KG | 1000KG |
Dance rack height | 1.8m | 1.8m | 1.8m | 1.8m |
OD of guide wheel | 250mn(aluminum alloy made of upper four and lower three),the storage line is about 15 meters,customized | 250mn(aluminum alloy made of upper four and lower three),the storage line is about 15 meters,customized | 250mn(aluminum alloy made of upper four and lower three),the storage line is about 15 meters,customized | 250mn(aluminum alloy made of upper four and lower three),the storage line is about 15 meters,customized |

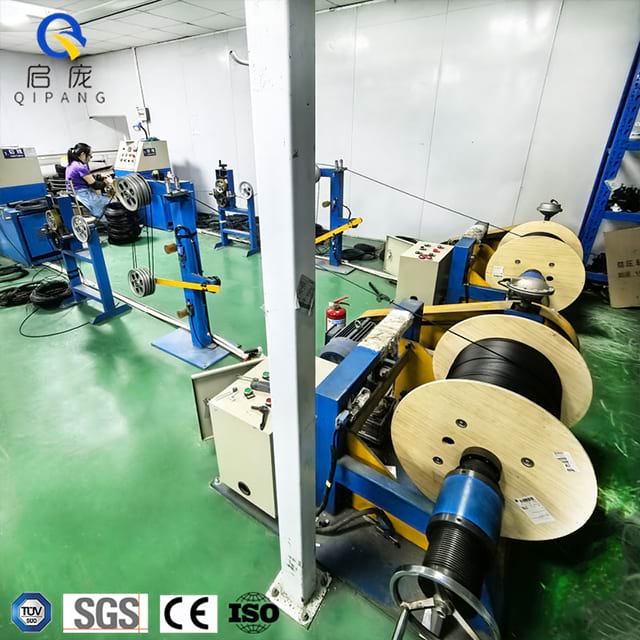

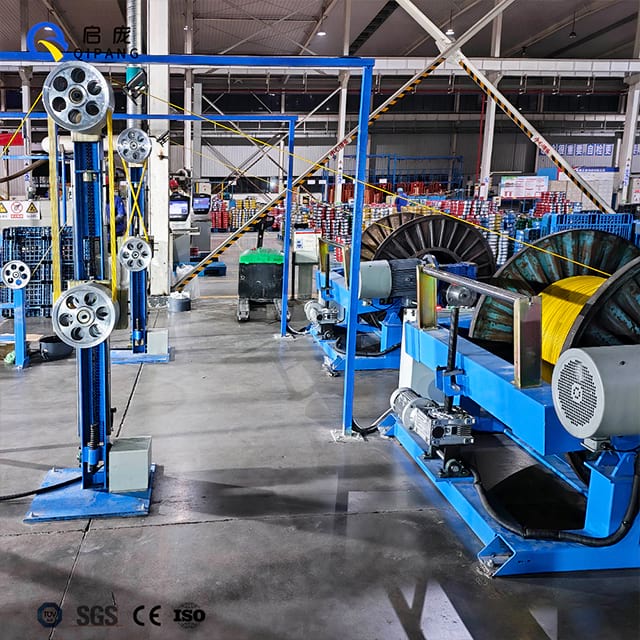

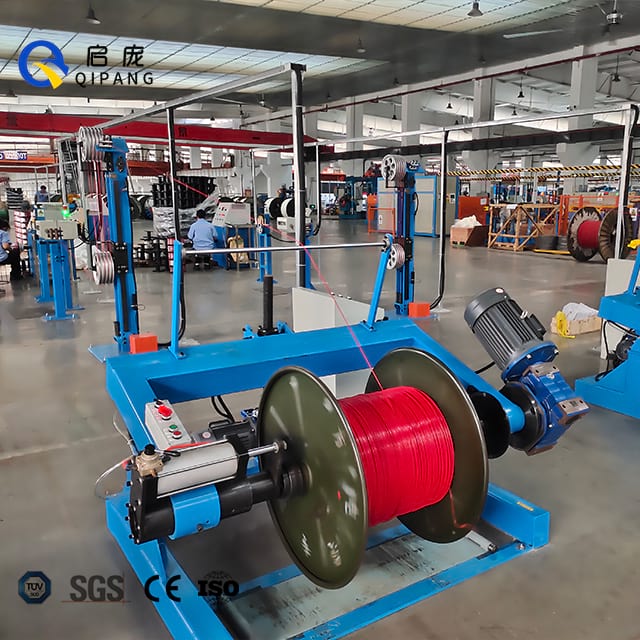

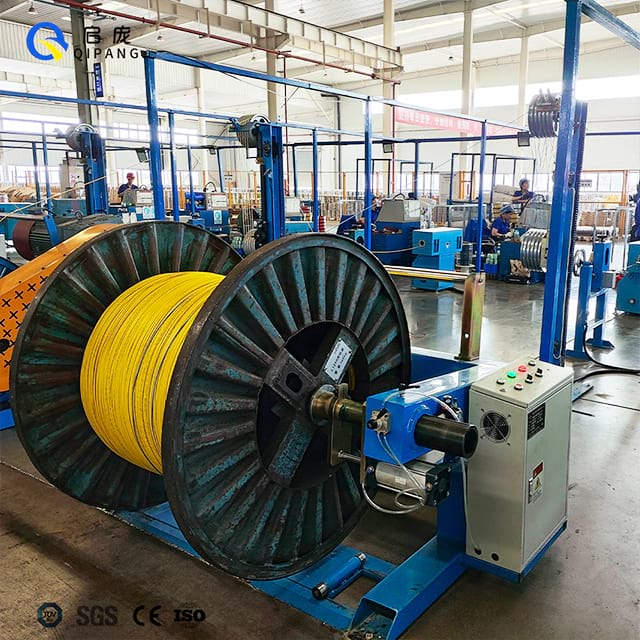

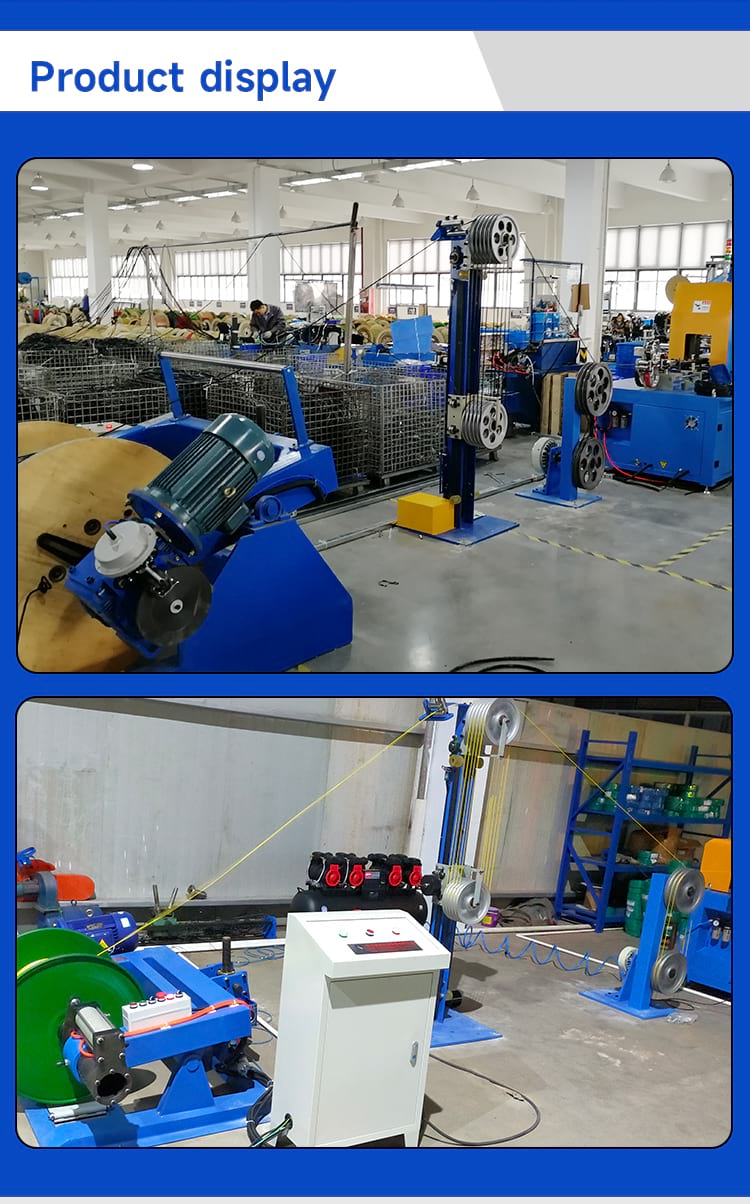

Our high-speed active pay off machine is widely used across core industrial sectors, including wire and cable manufacturing, automotive wiring harness processing, optical fiber and cable production, electrical equipment assembly, and metal wire drawing processing. It can be seamlessly integrated with rewinding machines, extruders, and complete wire production lines, making it ideal for industrial manufacturers requiring high-volume, high-precision continuous wire feeding operations.
Shanghai Qipang Industrial Co., Ltd. is a professional manufacturer of industrial wire processing equipment, with decades of R&D and production experience serving industrial enterprises worldwide. Our products, including wire pay out machines, laser diameter gauges, cable spark testers, and wire preheaters, are certified with SGS, CE, and ISO standards, ensuring compliance with global industrial quality requirements. We adopt a factory-direct sales model, providing tailored equipment solutions and comprehensive after-sales support to meet the unique production needs of every industrial client.
Our active pay off machine series supports spool diameters ranging from 400mm to 1250mm, with customizable options available for non-standard spool sizes.
It can be seamlessly paired with rewinding machines, extruders, and complete wire and cable production lines, adapting to various industrial production processes.
We offer two standard clamping options: manual clamping spools for simple operation, and cylinder clamping spools for faster, more efficient spool replacement in high-volume production.
Whether you need a standard cantilever active pay-off machine or a fully customized pay-off solution for your industrial production line, QIPANG is here to help. Contact our technical team today to discuss your production requirements, get a detailed quote, and find the perfect wire pay-off equipment to boost your production efficiency and product quality.
