Inaccurate measurements of pliable, delicate, or lubricated cables remain a persistent headache for quality control teams. Traditional tools often cause slippage or physical deformation. This directly leads to wasted materials, customer disputes, and compromised products. This guide breaks down the mechanics behind non-destructive measurement technologies, specifically highlighting the advanced capabilities of the QP-45L Wire Length Measurement system. It also explores how selecting this right industrial instrument can optimize your extrusion or coiling line, accommodating cables up to 45mm in outer diameter with unparalleled precision.
Dual-belt traction systems, like those found in the QP-45L, securely grip flexible cables without causing stretching, physical deformation, or surface damage.
These advanced mechanisms provide superior accuracy, frequently achieving tolerances of ±0.1% or better, by effectively eliminating the slippage commonly associated with traditional wheel counters.
A specialized tracking mechanism is an essential industrial requirement for measuring delicate materials like fiber optics, silicone-coated wires, and coaxial cables up to 45mm in diameter.
Making the right purchasing decision involves evaluating encoder resolution, track material composition, and the specific outer diameter range of your production line, making the QP-45L an ideal versatile choice.

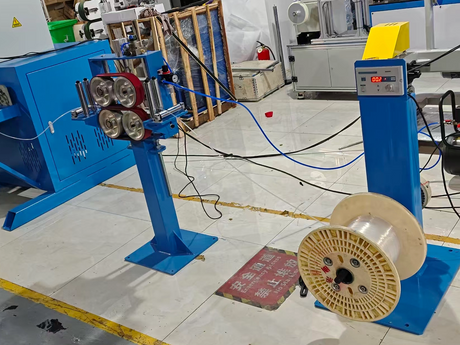

This specialized industrial instrument records the continuous length of flexible materials as they travel through a processing line. Extruded tubing, synthetic ropes, and insulated wires all require this precise tracking. Unlike conventional devices that rest a single rotating wheel heavily on top of the material, a track-driven system like the QP-45L feeds the cable between two synchronized flat belts. This design mimics a caterpillar tread and provides a significantly larger surface area for contact.
As global manufacturing pivots toward high-speed data transmission and electric mobility, the demand for flawless wire extrusion has skyrocketed. Industry data indicates that even a fraction of a percent in measurement error on high-value fiber optics or electric vehicle charging cables can result in massive revenue losses per shift. Consequently, quality control teams are rapidly abandoning friction-dependent single-wheel counters. Upgrading to a zero-slip belt wire length meter like the highly rated QP-45L is now a strict mandate to meet modern Tier-1 supplier tolerances without altering the physical dimensions of the product.

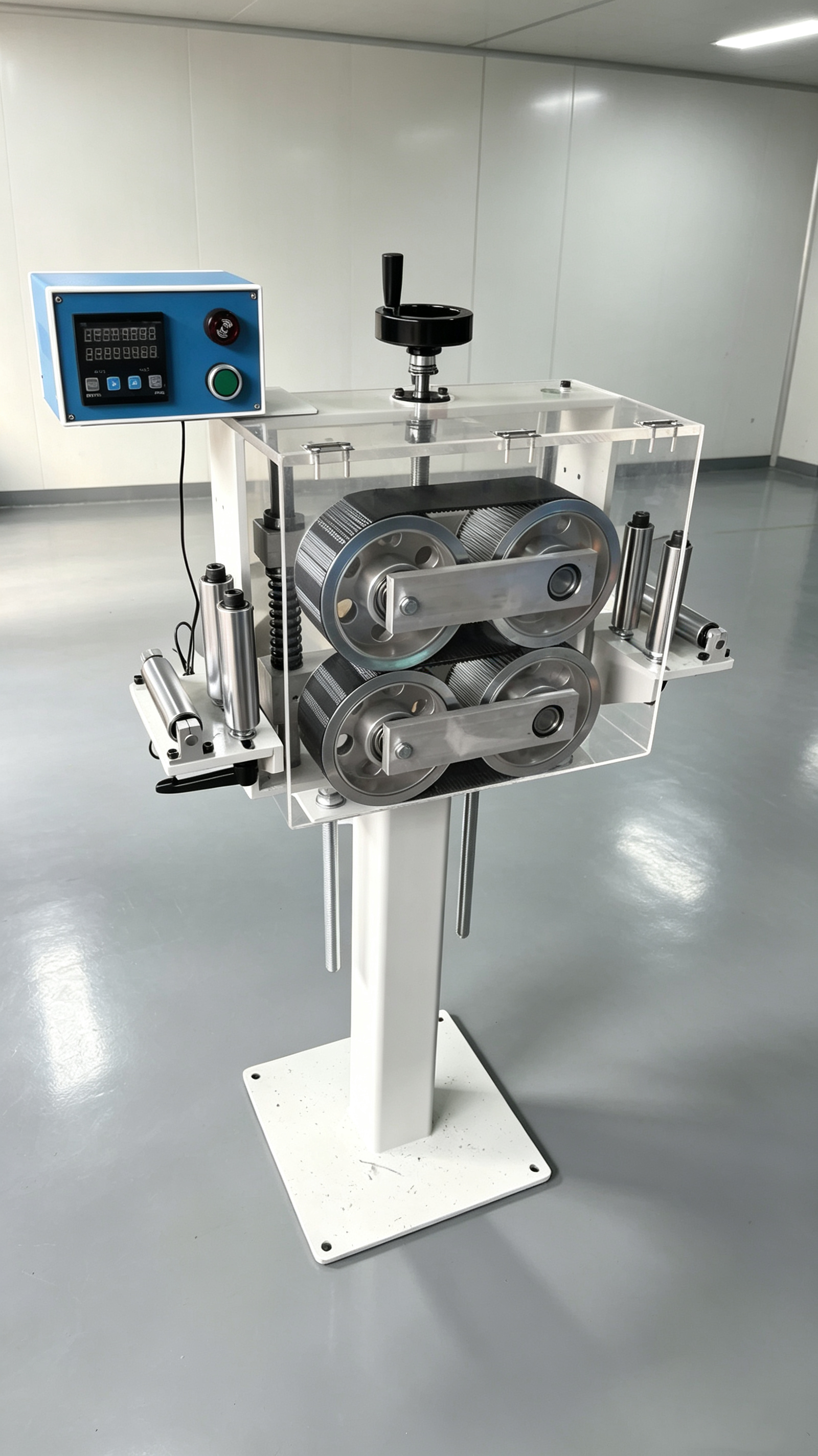

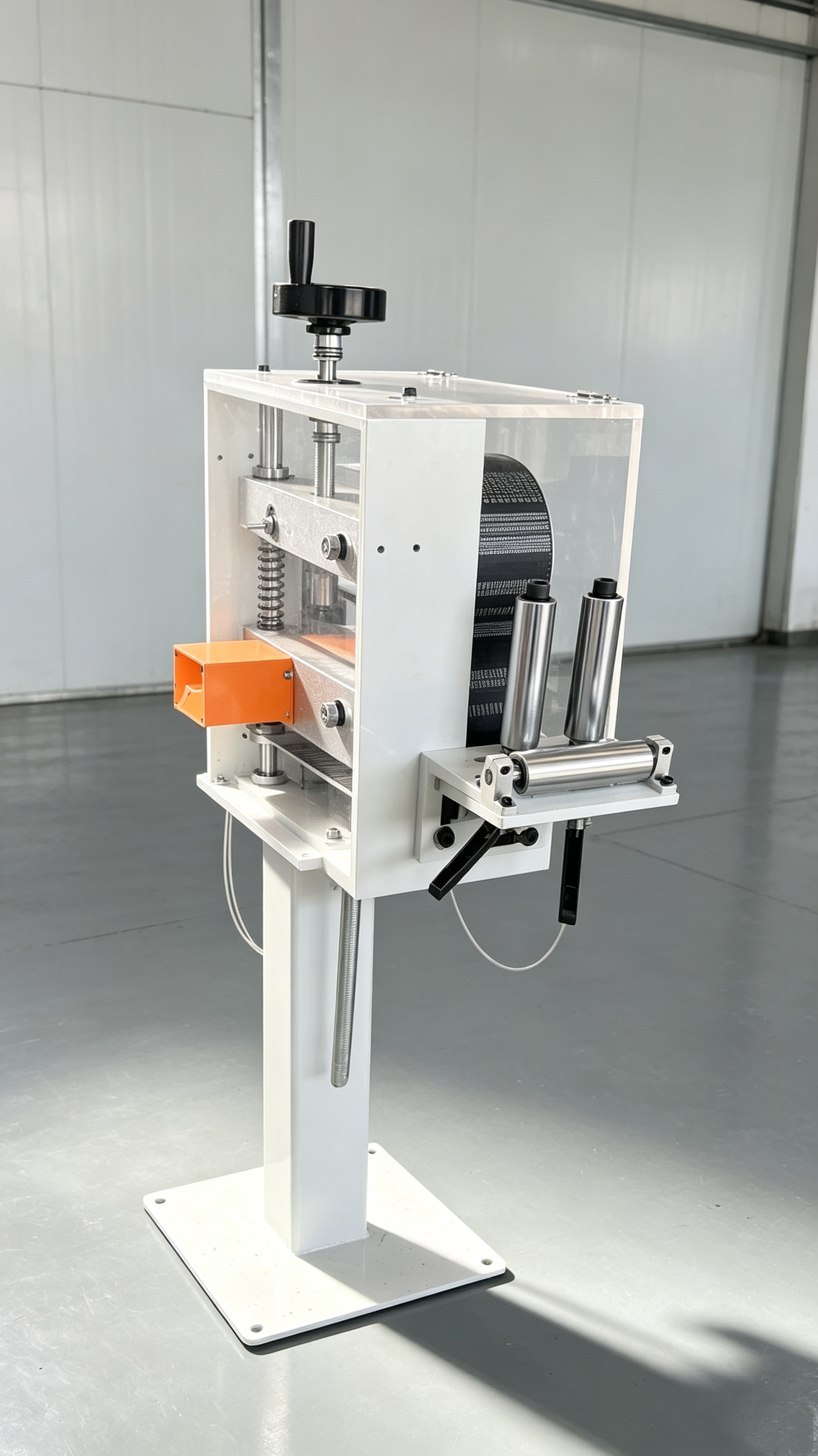

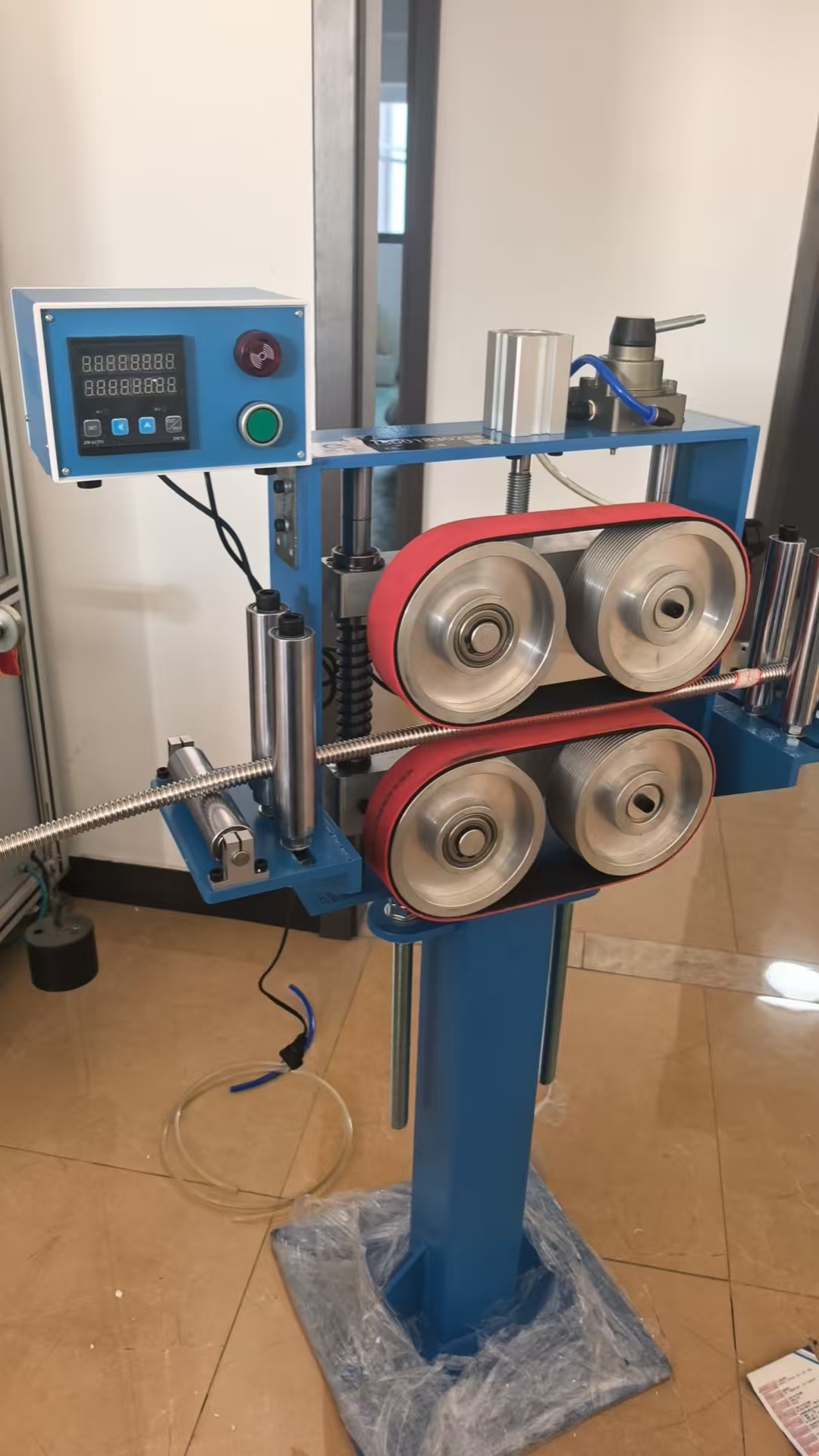

To understand why this equipment is highly effective on the shop floor, it is necessary to examine its core structural components. A standard industrial unit such as the QP-45L Wire Length Measurement machine consists of several precision-engineered parts tailored for up to 45mm cables.

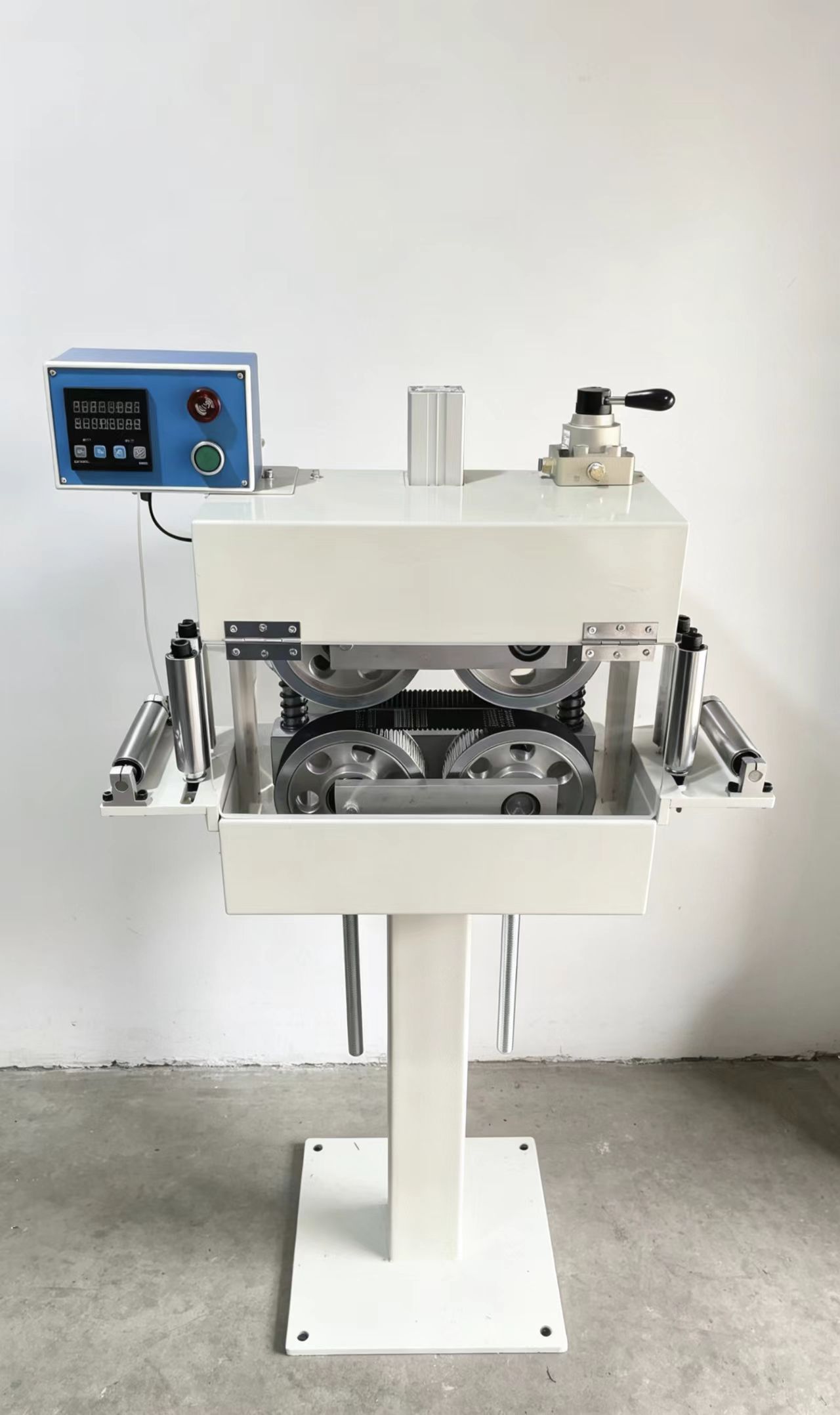

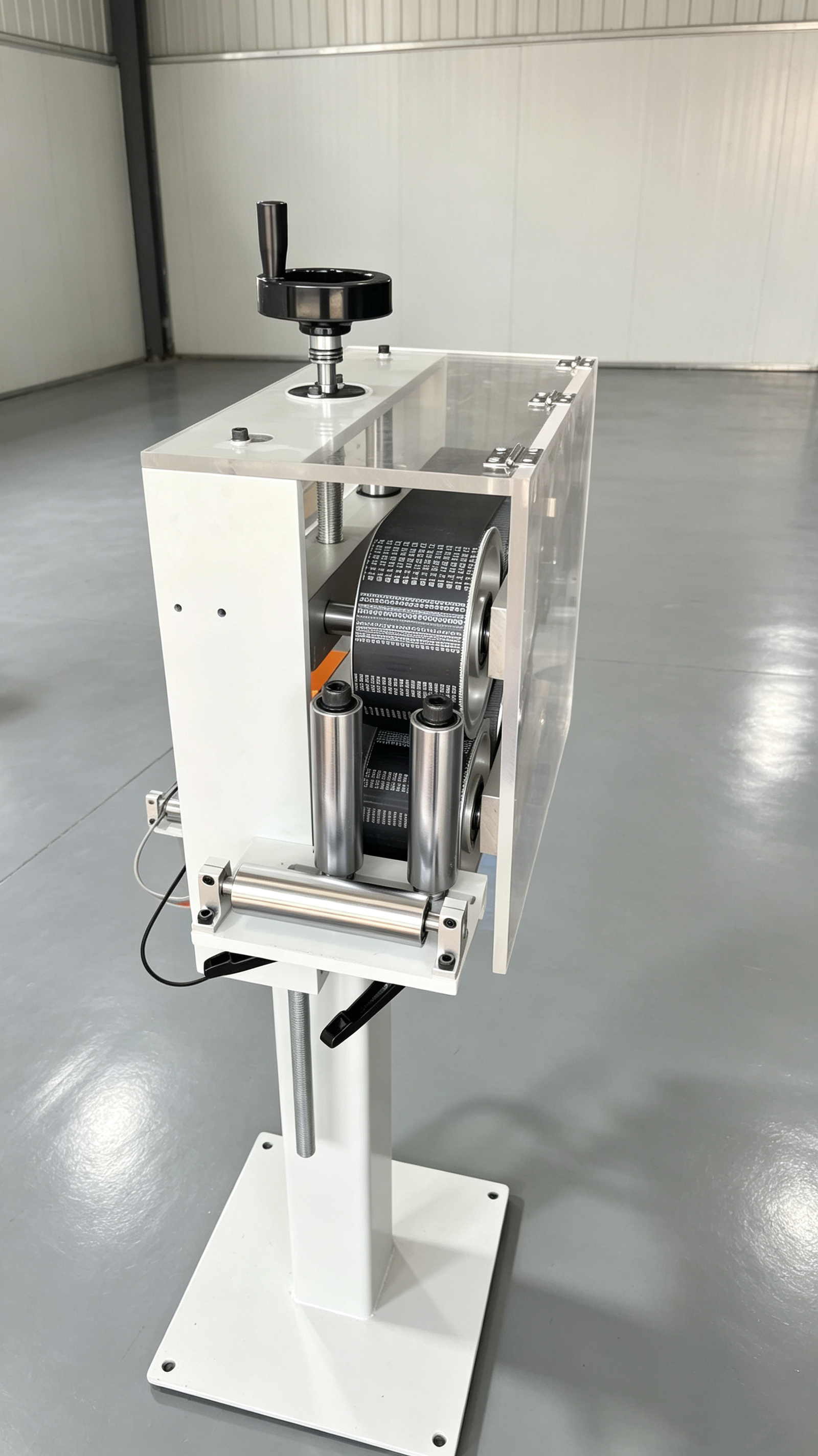

Upper and Lower Caterpillar Belts: These primary contact surfaces are usually manufactured from high-friction, non-marking materials like polyurethane or industrial-grade vulcanized rubber. They move in perfect synchronization to guide the cable.
High-Precision Rotary Encoders: Connected directly to the drive shafts, these electronic sensors translate the mechanical rotation of the tracks into digital electrical pulses, ensuring the QP-45L maintains its ±0.1% accuracy.
Adjustable Tension Control Systems: Utilizing pneumatic cylinders or finely threaded manual screws, this mechanism allows operators to adjust the vertical pressure applied by the tracks. It ensures the grip is firm enough to prevent sliding but gentle enough to avoid crushing the core.
Digital Display and Control Unit: The internal microcomputer receives the encoder pulses, calculates the exact length based on the programmed circumference, and displays the real-time data on a screen for seamless monitoring.
For decades, standard wheel counters were the default choice in manufacturing. These devices operate by resting a single weighted measuring wheel on top of the moving cable. However, this single point of contact presents a significant empirical flaw when dealing with flexible or low-friction materials. Because the contact area is minimal, the wheel is highly susceptible to micro-slippage. If the jacket is smooth, lubricated with Teflon, or moving at high line speeds, the material can slide beneath the wheel without causing it to rotate proportionally. The meter then under-reports the true length, leading manufacturers to unintentionally give away excess material.
Flexible cables with silicone, rubber, or soft PVC jackets possess high elasticity. When a traditional measuring wheel applies downward pressure to maintain grip, it creates localized tension. As the cable is pulled through the line, this tension causes the highly elastic jacket to stretch temporarily. The meter records the length of the stretched cable. Once the material is spooled and the tension is released, it relaxes and shrinks back to its original state. In practice, this results in a short-length complaint from the end customer. Such disputes can severely damage a supplier's reputation, a problem entirely avoided by the gentle handling of the QP-45L model.
Beyond dimensional inaccuracies, improper measurement tools pose a physical threat to delicate materials. Fiber optic cables contain fragile glass cores that are highly sensitive to micro-bending and crushing forces. Applying a hard metal measuring wheel to a fiber optic line can cause internal fractures or signal attenuation. Similarly, thin-walled medical tubing can be permanently flattened. Migrating toward non-destructive measurement systems like the QP-45L Wire Length Measurement is therefore a strict quality control requirement.

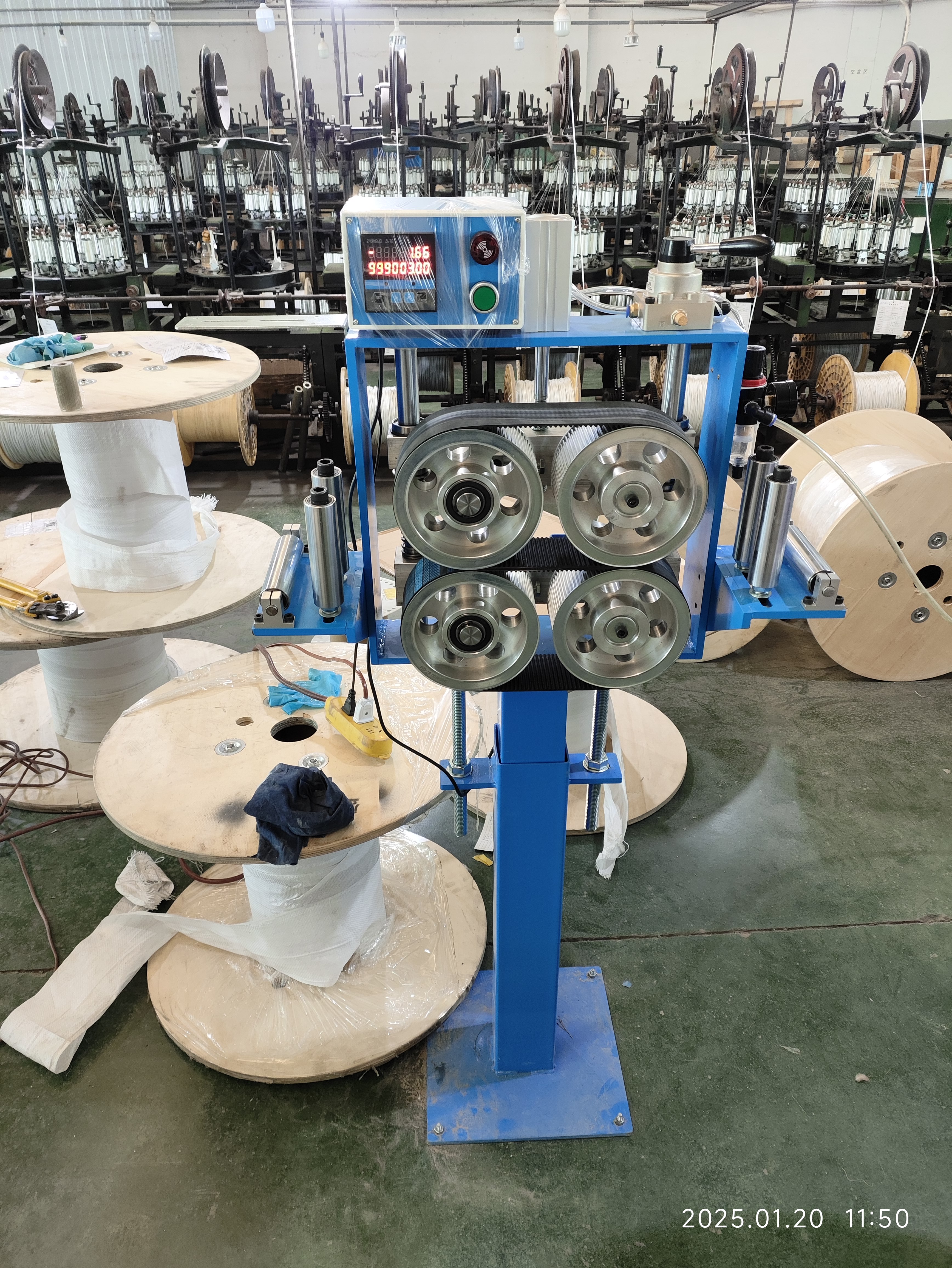

The operational sequence of the QP-45L begins the moment the flexible material enters the machine. The cable is gently sandwiched between the upper and lower flat tracks. Because these surfaces run parallel to the product for an extended length, the clamping pressure is distributed evenly across a massive surface area compared to a single tangent point. This distributed pressure means the machine can maintain a rock-solid grip on cables up to 45mm using only a fraction of the downward force. It completely eliminates the risk of flattening the jacket.
Specifically, the extended contact zone directly solves the slippage problem. The friction coefficient between the polyurethane tracks of the QP-45L and the cable jacket ensures that the material and the machine move in absolute unison. If the extrusion line accelerates, decelerates, or stops entirely, the mechanism does exactly the same with zero lag. Because there is no independent sliding between the material and the sensors, the physical movement becomes an exact representation of the product passing through. This zero-slip environment is the foundational physics principle that enables highly accurate metrics.
As the synchronized tracks move, they turn a drive shaft connected to a high-resolution rotary encoder. Inside the encoder, a slotted optical disc rotates between a light source and a photodetector. As the slots pass the light, the detector generates rapid electrical pulses. High-quality encoders generate thousands of pulses per single revolution of the drive shaft. This high pulse density allows the machine to measure the cable down to millimeter or even sub-millimeter increments, a hallmark of the QP-45L's advanced performance.
The final step occurs in the machine's internal programmable logic controller. The computer counts the incoming pulses from the encoder. Because the exact circumference of the drive system is pre-programmed, the computer knows precisely how much linear distance corresponds to a single pulse. It continuously multiplies the pulse count by this distance factor, translating raw data into highly accurate measurements. This real-time data is then displayed for the operator and fed directly into downstream automation.
Selecting the correct measurement technology requires an objective evaluation of your production materials. Below is a comparative analysis to guide your shop floor upgrade toward systems like the QP-45L.
| Feature / Metric | Traditional Wheel Counter | Dual-Belt Traction System |
|---|---|---|
| Primary Contact Mechanism | Single point of contact tangent to wheel | Extended surface area via dual parallel tracks |
| Risk of Slippage | High, especially on smooth, oily, or fast-moving cables | Near Zero due to distributed high-friction grip |
| Risk of Cable Deformation | High, concentrated pressure can stretch or crush soft cables | Low to None, pressure is evenly distributed |
| Accuracy on Flexible Cables | Moderate to Poor, fluctuates with tension and speed | Exceptionally High, often ±0.1% to ±0.2% |
| Ideal Applications | Rigid steel wire, thick armored cables, hard PVC | Fiber optics, silicone wire, medical tubing, soft coaxial |
If your facility exclusively processes rigid, heavy-duty materials like steel wire ropes, a traditional wheel counter remains a cost-effective option. In contrast, if your production line handles flexible, lubricated, or highly delicate cables, upgrading to a dual-track system such as the QP-45L is technically imperative. The slightly higher initial capital expenditure is rapidly offset by the drastic reduction in material giveaway and the prevention of costly scrap.
The mechanical tracks are merely the delivery system. The encoder is the actual measurement instrument. High-quality meters like the QP-45L utilize industrial-grade incremental or absolute optical encoders. The precision of the machine is dictated by the encoder pulses per revolution rating. A higher rating means the encoder can detect microscopic movements. Furthermore, top-tier encoders utilize quadrature signal processing. This allows the microcomputer to accurately track both forward and reverse movements without accumulating jitter errors when the production line vibrates.

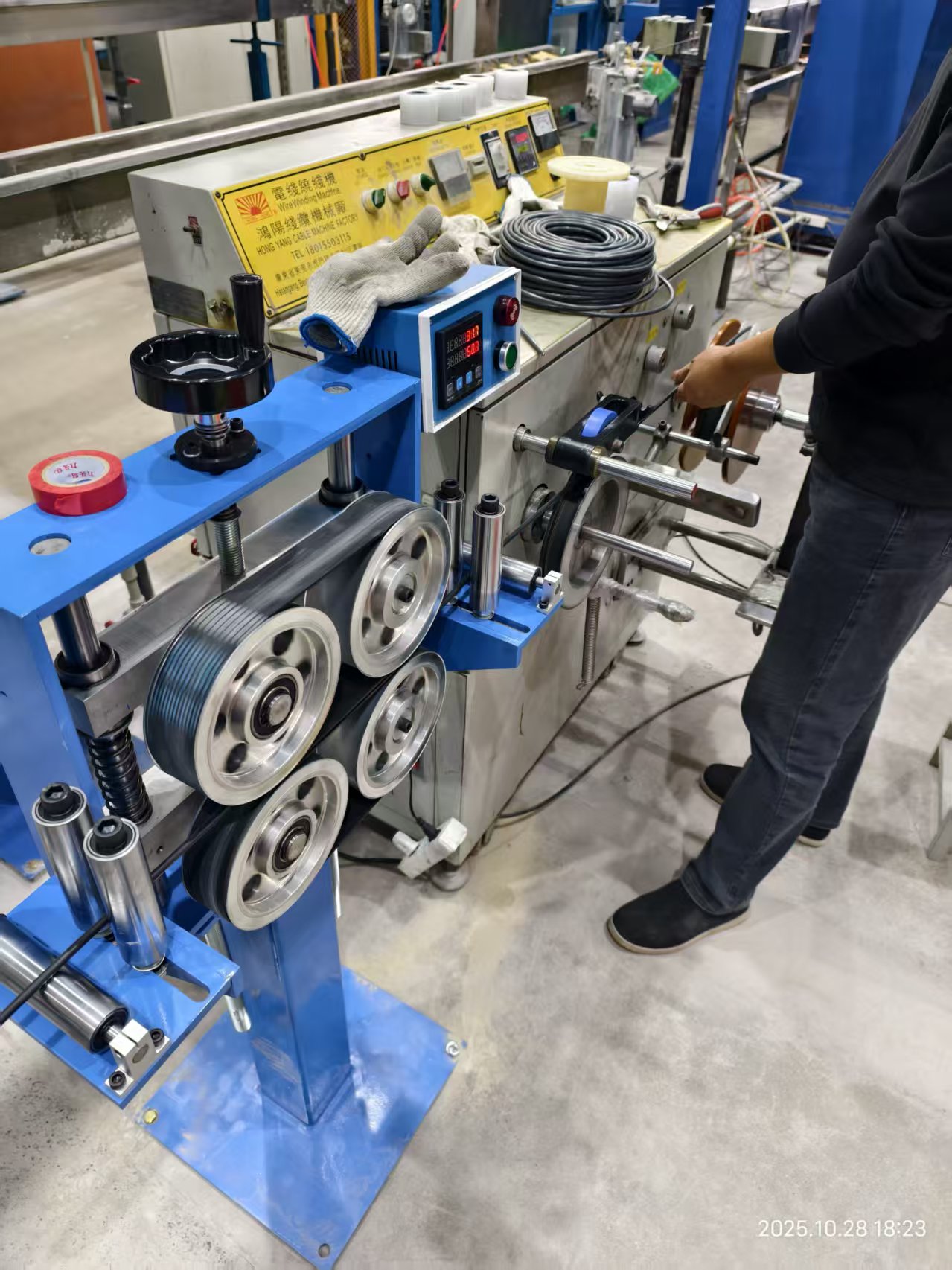

Flexible cables are not uniform in their physical properties. A manufacturing facility might run a highly compressible two-millimeter silicone wire in the morning and a rigid thirty-millimeter multi-core power cable in the afternoon. Therefore, a fixed-tension machine is entirely inadequate. Pneumatic systems in advanced models like the QP-45L are highly favored in automated environments because they allow operators to set a specific, quantifiable air pressure. A technician can set the regulator to precisely thirty PSI, ensuring the exact same gentle clamping force is applied during every shift.

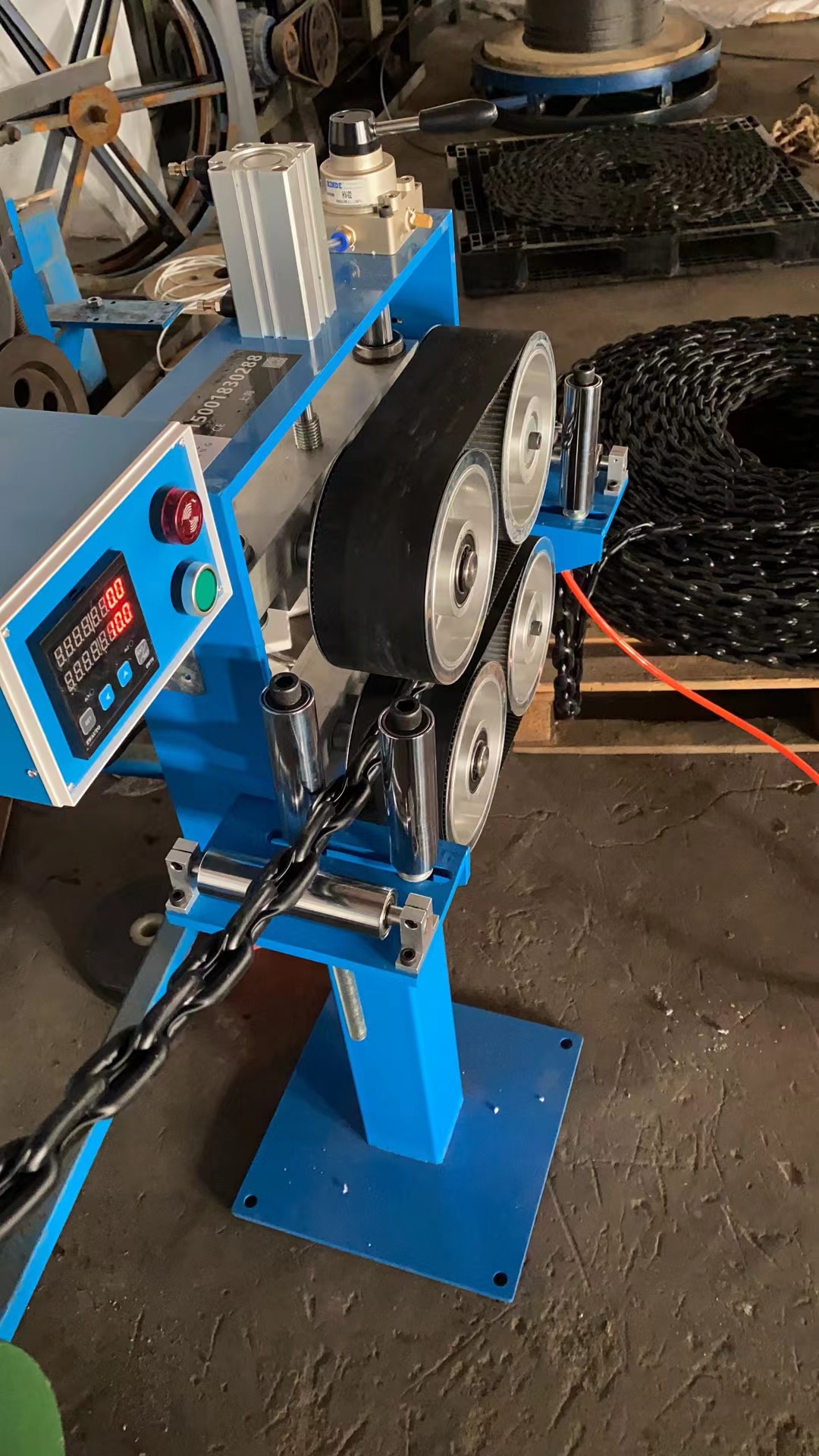

When processing specific diameter ranges, integrating a specialized tool makes a massive difference. For instance, a mid-range wire length measurement system like the QP-30L is engineered specifically for cables with an outer diameter up to thirty millimeters. It provides the exact gentle traction needed for soft jackets. For lines demanding a bit more capacity, the QP-45L Wire Length Measurement system perfectly bridges the gap, expertly accommodating cables up to 45 millimeters with unmatched stability. Alternatively, heavier industrial lines processing thick armored power cables require robust automation. Upgrading to a heavy-duty cable length counter such as the QP-60W or QP-80W provides the necessary grip for sixty to eighty millimeter outer diameters without stalling.
The physical interface between the machine and your product dictates lifespan and performance. Industry-leading machines, notably the QP-45L, utilize specialized synthetic polymers, most commonly industrial-grade polyurethane. These tracks offer the optimal balance. They provide a high-friction, non-marking grip that securely holds smooth materials without leaving scuffs or chemical residue on the finished product. Additionally, these tracks are often reinforced with internal Kevlar cords to prevent stretching over time.
The optical fiber industry operates under the strictest quality control tolerances. The glass fibers are highly susceptible to micro-bending losses. This is a phenomenon where physical stress alters the angle of light inside the core, degrading signal quality. Dual-track meters like the QP-45L are mandatory in these environments. They provide the necessary traction to measure thousands of meters of cable at high speeds without applying concentrated compressive forces.
Materials like silicone and thermoplastic elastomers present a unique challenge due to extreme elasticity. As warm, highly pliable silicone jackets exit the cooling trough of an extruder, they are incredibly sensitive to pulling forces. A dual-track meter acts as a zero-tension feeder. The QP-45L actively carries the elastic material through the measurement zone at the exact speed of the extrusion line, completely eliminating induced stretch.
In the medical device sector, tubing used for catheters or IV lines must be cut to exact lengths with zero tolerance for surface abrasions. Flattening the tube during measurement can alter its internal diameter, rendering it useless for precise fluid delivery. Similarly, high-frequency coaxial cables rely on a precise distance between the inner conductor and the outer shield. The distributed pressure of the QP-45L track system preserves the dimensional integrity of these critical products up to 45mm.
To maintain the ±0.1% accuracy that these industrial instruments are known for, a strict regimen of preventive maintenance is required. The fundamental operating principle of the QP-45L relies on friction. If the surfaces become coated in industrial lubricants or plasticizer migration from the cables themselves, the friction coefficient drops. Operators should implement a weekly cleaning schedule using a lint-free cloth and mild isopropyl alcohol. Harsh industrial chemicals like acetone must be strictly avoided as they will chemically degrade the polyurethane.
Even with perfect cleaning routines, traction components will eventually experience mechanical wear. When inspecting the QP-45L, technicians should run a bare finger along the polyurethane track. If it feels slick like glass rather than offering a slight rubbery resistance, the surface has glazed over. This requires immediate replacement. Establishing a preventative maintenance schedule to replace these wear parts before they fail is a proven best practice to avoid unexpected production downtime.
Calibration verifies that the digital output perfectly matches the physical reality of the material passing through it. The standard procedure involves using a master reference cable. This is a non-stretchable material, often a steel wire rope, of a known certified length. By running the master cable through the QP-45L at standard operating speeds and comparing the displayed result against the certified length, technicians can adjust the internal pulse multiplier. This corrects any minor mechanical drift and ensures empirical accuracy year-round.
Most high-quality industrial models, including the QP-45L, offer a standard accuracy ranging from ±0.1% to ±0.2%. This precise metric is achieved because the dual-track system virtually eliminates the slippage and stretching issues associated with traditional wheels. Actual accuracy can be influenced by the material surface texture, production line speed, and routine calibration protocols.
Yes. Modern machines like the QP-45L are equipped with advanced bidirectional quadrature rotary encoders. These sophisticated sensors track the exact direction of rotation. If the production line reverses and the cable is pulled backward, the microcomputer automatically subtracts that exact length from the total tally. This ensures the final displayed measurement remains perfectly accurate.
Unlike laser measurement systems or optical sensors, which can be easily confused by transparent, highly reflective, or intensely dark materials, mechanical track meters such as the QP-45L are entirely immune to optical interference. Because they rely entirely on physical traction, they can measure matte black rubber, transparent medical tubing, or highly reflective steel wire rope with the exact same level of precision.
Absolutely. Because the upper and lower tracks of the QP-45L are flat and wide, they are perfectly suited for measuring flat ribbon cables, rectangular busbars, and custom extruded profiles. The distributed clamping force holds the flat surface securely without causing the twisting or skewing that often occurs when trying to run flat cables under a narrow measuring wheel.
High-quality units like the QP-45L feature built-in programmable logic controllers with relay outputs. Operators can program a target length into the digital display. Once the encoder counts the exact corresponding pulses, the meter sends an instantaneous electrical signal to downstream equipment. This signal can automatically trigger a guillotine cutter, stop a coiling machine, or sound an alarm for the operator.
The primary deciding factor is the outer diameter and the weight of the cables you are processing. Standard models are engineered for specific smaller diameter ranges and are ideal for lightweight flexible wires. Mid-to-heavy range models like the QP-45L easily handle up to 45mm profiles. Heavy-duty models are constructed with larger motors, wider contact surfaces, and reinforced tensioning pneumatics to handle thick, heavy, or highly rigid cables without losing traction.
Measuring flexible cables requires a highly specialized, engineering-driven approach. A dual-track measurement system like the QP-45L Wire Length Measurement machine completely stops the slipping and stretching that plagues traditional production lines. It utilizes a gentle, distributed grip combined with high encoder precision to deliver phenomenally reliable accuracy for cables up to 45mm. By adopting this advanced technology, manufacturers can significantly reduce expensive material waste, prevent stressful customer disputes over short shipments, and protect the structural integrity of their most delicate products. Upgrade your factory production line today and explore professional measurement tools tailored to your specific flexible cable requirements, including the standout QP-45L, at Qipang Tester.
