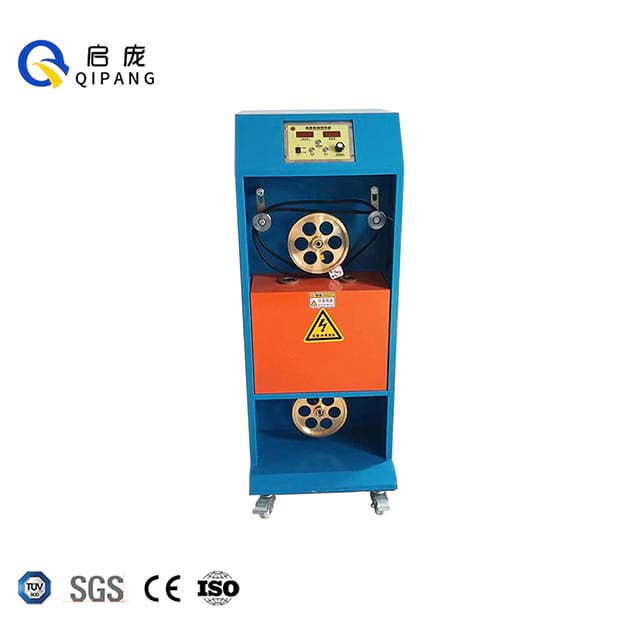

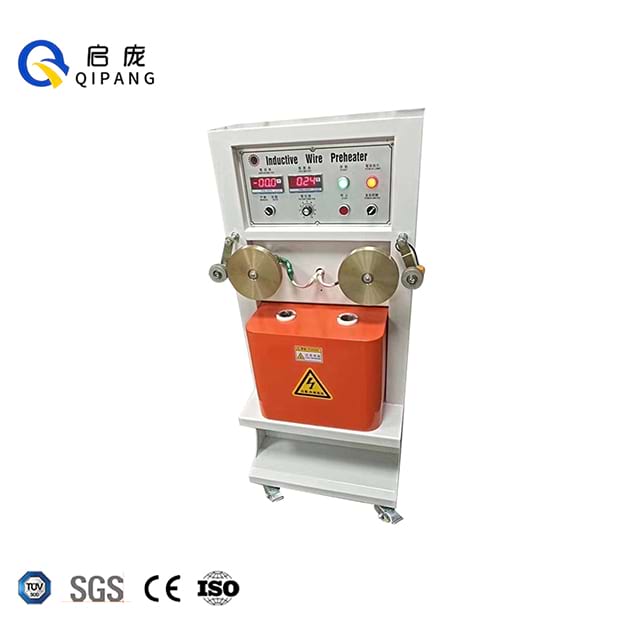

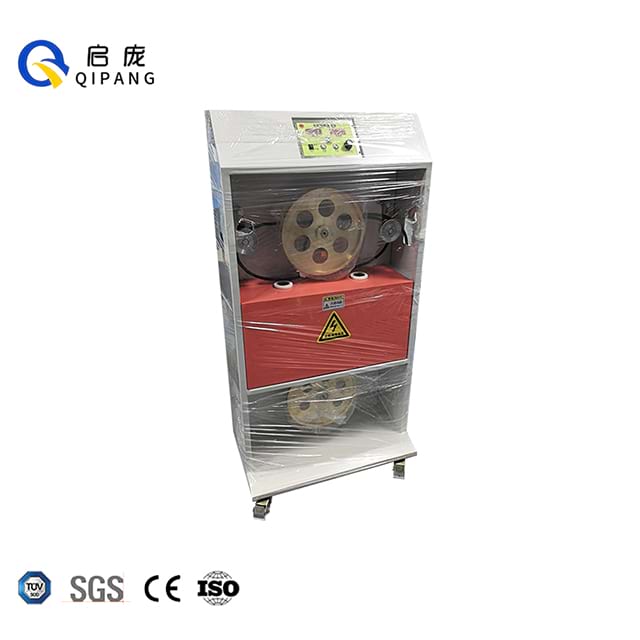

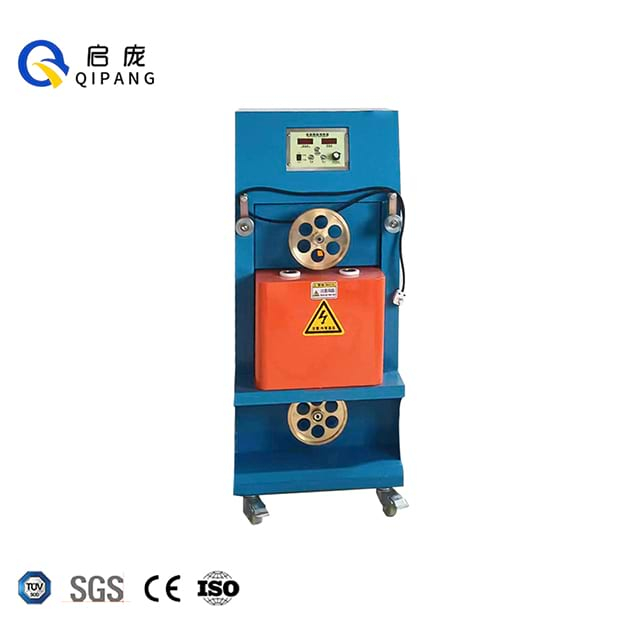

Shanghai QIPANG induction cable preheater, also known as industrial frequency preheater, provides professional online heating solutions customized for wire and cable manufacturers.
Adopting mature induction heating technology, this machine is applied to online preheating and annealing of all kinds of metal conductors. It can be perfectly connected with extruders and full cable production lines for synchronous operation.
This preheater efficiently addresses typical extrusion defects, including weak bonding between conductor and outer sheath, dull surface finish, insulation bubbles and damp conductor issues.
Certified with CE, SGS and ISO standards, our industrial frequency wire preheater maintains steady performance during long-term continuous production, serving as essential supporting machinery for cable factories worldwide.
Adopting the induction heating principle, our cable preheater machine saves more than 60% of electricity compared with traditional oven heating tube equipment. It achieves dynamic preheating temperatures of 0-200℃ and static temperatures of 0-400℃, which can fully dry moisture on the conductor surface, activate the molecular structure of the material, and soften the conductor to optimize subsequent extrusion processing.
The equipment automatically tracks line speed to adjust preheating output, ensuring consistent temperature stability even at different wire running speeds. It causes minimal electrical spark damage to the wire, has low resistance to the preheated conductor, and avoids unwanted stretching of the material during high-speed production, greatly improving the finished product qualification rate.

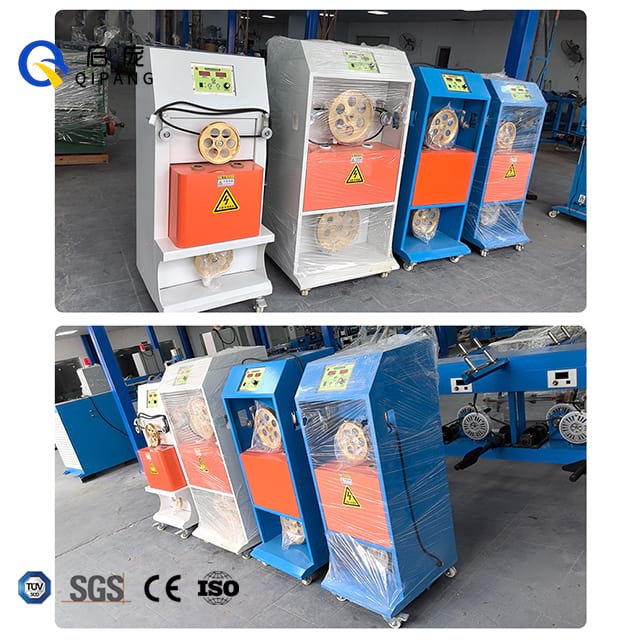

With precision machining and a compact structure, the preheater is easy to operate and maintain. It supports a wide range of conductor specifications, from 0.3mm iron wire to 5mm stranded copper wire, with multiple models available to match different production needs. It supports 24/7 continuous operation in environments up to 45℃, adapting to the high-intensity production rhythm of industrial factories.
Model | QP20-1 | QP20 | QP21 | QP22 | QP23 | QP25 | QP26 |

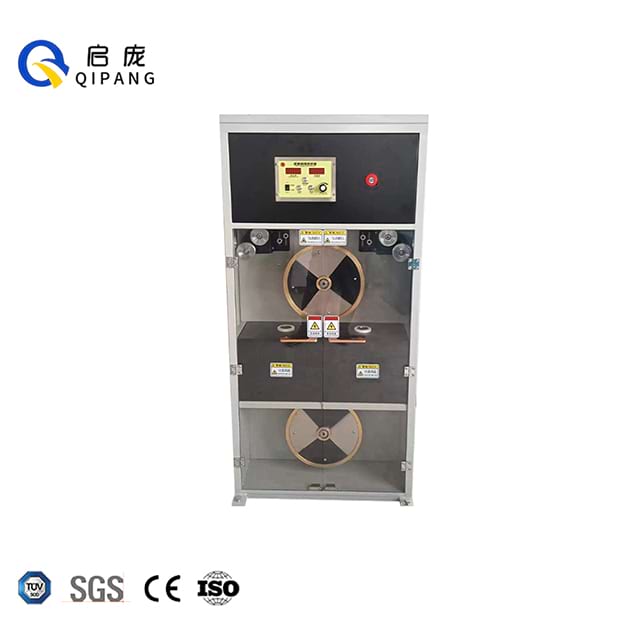

Type | Standard | Standard | New Safety Type | Medium Enlarged | Standard Enlarged | Cabinet-style Enlarged | Specialized for iron wire |
Power | 6KVA | 10KVA | 10KVA | 12KVA | 16KVA | 16KVA | 8KVA |
Copper wheel diameter | 200mm | 200mm | 200mm | 250mm | 310mm | 310mm | 160mm |
Preheating temperature | Dynamic 0-200℃ Static 0-400℃ | ||||||
Applicable conductor diameter | Stranded wire 0.5-2mm | Stranded wire 0.5-3mm | Stranded wire 0.5-3mm | Stranded wire 0.5-4mm | Stranded wire 0.5-5mm | Stranded wire 0.5-5mm | Double-wire 0.3-0.7mm |
Single wire 0.5-1.5 | Single wire 0.5-1.7mm | Single wire 0.5-1.7mm | Single wire 0.5-2.3mm | Single wire 0.5-3mm | Single wire 0.5-3mm | Single wire 0.3-1mm | |
Applicable materials | Copper wire | Iron wire | |||||
Applicable maximum speed | 0-350m/min | 0-450m/min | 0-450m/min | 0-300m/min | 0-300m/min | 0-300m/min | 0-250m/min |
Power supply | AC220V | AC220V | AC220V | AC220V | AC220/380V | AC220/380V | AC220V |
Power consumption | 50Hz | ||||||
Operating mode | Continuous | ||||||
Applicable environment | ≤45℃ | ||||||
Length*width*height | 560*600*1300mm | 700*650*1400mm | 560*600*1300mm | ||||
Machine weight | 145KG | 173KG | 180KG | 195KG | 215KG | 235KG | 135KG |
Machine color | Blue, Green, White | ||||||
Our inductive wire preheater is applicable to a wide range of core manufacturing procedures for industrial wires and cables.
Typical application scenarios include building wire extrusion lines, communication cable processing, automotive harness production, high-voltage cable fabrication and online iron wire annealing.
This machine serves as indispensable auxiliary equipment for all production lines that aim to enhance bonding force between insulation sheaths and metal conductors, upgrade the surface finish of finished cables and cut overall production energy consumption.
Shanghai Qipang Industrial Co., Ltd. specializes in the R&D and manufacturing of industrial wire and cable processing machinery.
Our main product portfolio covers wire preheaters, laser diameter gauges, cable length counters, cable spark testers and wire spooling machines. Every piece of our equipment can be perfectly matched with extruders and automatic cable production lines.
We own a full range of international standard certifications and maintain a global after-sales service network. We supply durable industrial machines and tailor-made technical solutions to cable manufacturers across the globe.
Our preheater adopts advanced induction heating principle, which realizes non-contact heating of metal conductors through industrial frequency electromagnetic induction.
It is compatible with common metal conductors in cable production, including copper wire and iron wire, with customized solutions available for special materials.
The preheater can operate stably in an environment with a temperature of ≤45℃, supporting long-term continuous operation mode.
Whether you need a standard cable preheater machine or a customized preheating solution to match your existing production line, our technical team can provide a tailored plan according to your conductor specifications, line speed, and production process requirements. Contact us today to get a detailed product quote, technical parameters, and one-on-one consulting services.
