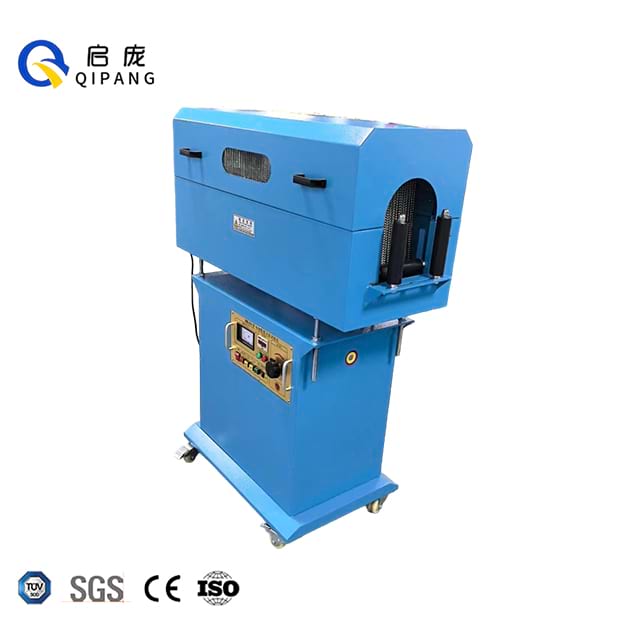

Our Cable Spark Tester (also named power frequency spark tester) is a specialized industrial testing device designed exclusively for insulation defect detection in wires and cables. As a critical quality control equipment for cable production, it adopts advanced inductive voltage regulation technology, featuring low electromagnetic interference, ultra-high detection sensitivity, excellent field adaptability, and reliable safety performance. This high voltage spark tester for wire and cable supports continuous operation mode, can be seamlessly linked with extruders and cable production lines, and complies with mainstream international and domestic industrial testing standards, making it an indispensable tool for industrial cable manufacturers to ensure product quality and compliance.

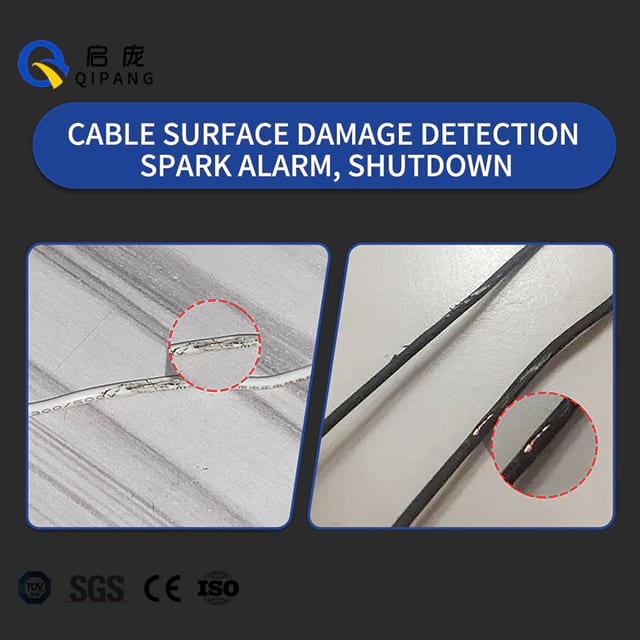

Our cable surface damage detection spark tester delivers industry-leading detection sensitivity of less than 600uA, with a transient breakdown current of 0.6mA, capable of capturing tiny insulation defects in real time during high-speed cable production. When insulation defects are detected, it triggers immediate audible and visual alarm and automatic shutdown, while accurately recording the number of breakdowns (0-999 counting range), realizing full-process traceable quality control.
Safety is the core design priority of our industrial cable spark testing equipment. It is equipped with a professional safety interlock system: when the electrode box protective cover is opened, the high voltage is automatically cut off, and the discharge needle grounds the high-voltage electrode to eliminate electric shock risks. Strict grounding design ensures stable operation, avoiding dangerous high voltage on the equipment casing or cable core, fully protecting the personal safety of on-site operators.

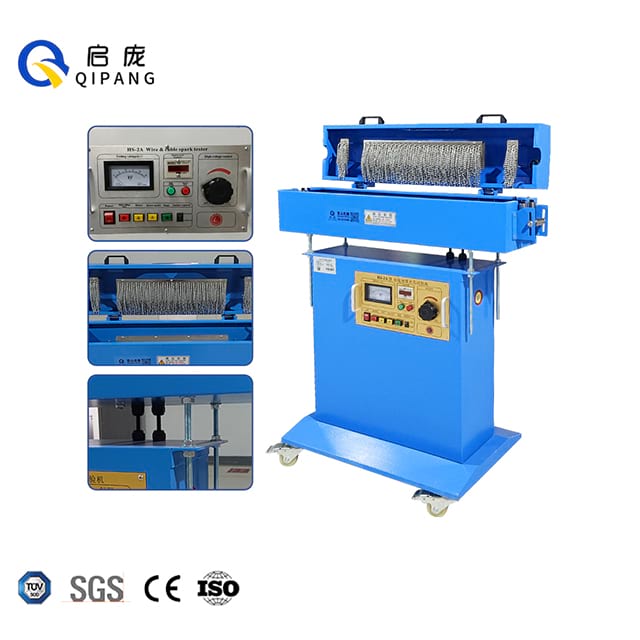

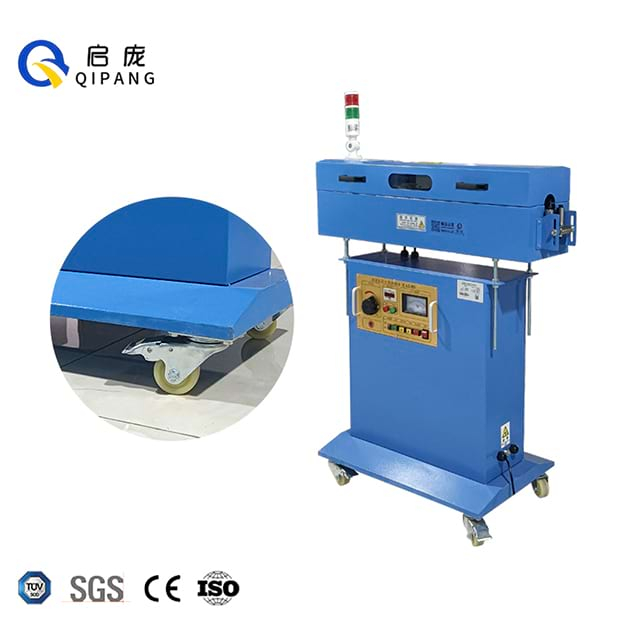

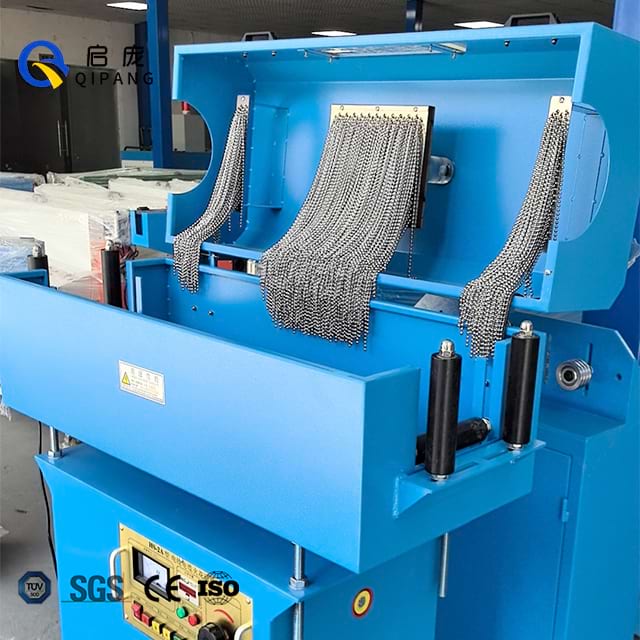

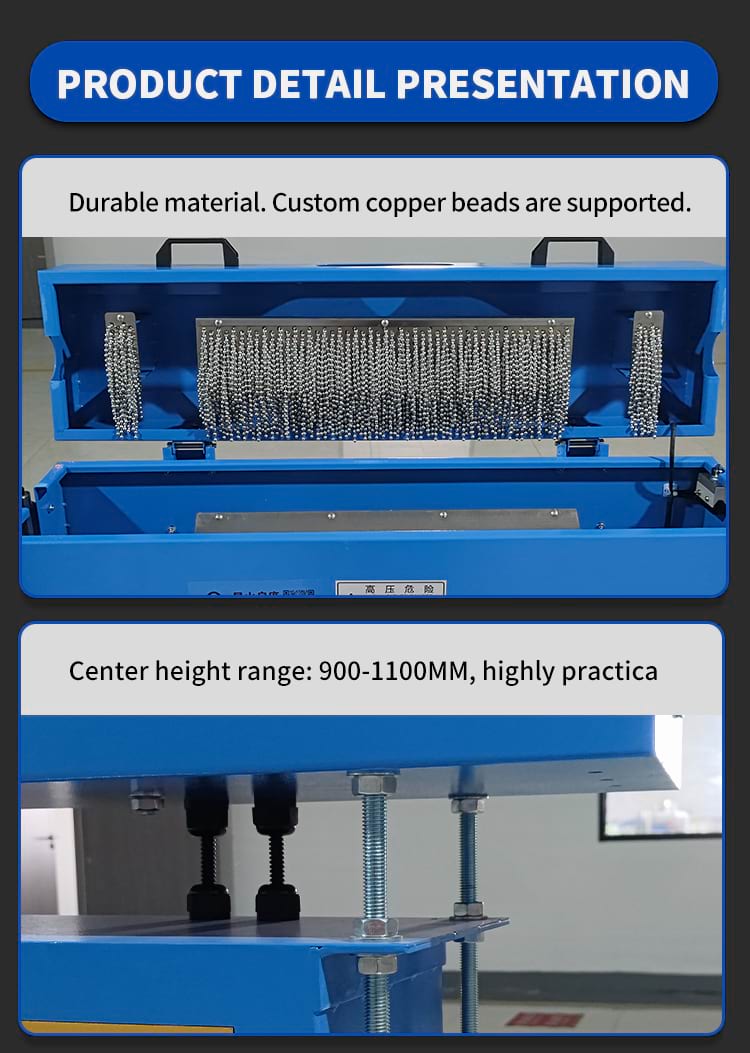

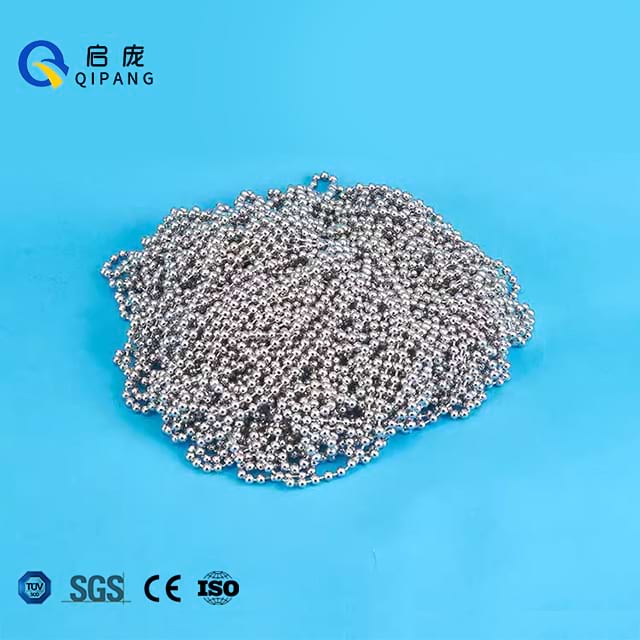

With an adjustable center height of 900-1100mm, this inline cable spark tester can flexibly adapt to cable production lines of different specifications. It supports a maximum detection speed of up to 420m/min, compatible with cable outer diameters from small sizes up to 40mm. The equipment adopts 5mm beaded chain electrodes, with customizable copper beads supported, and has a compact structure for easy installation and maintenance, suitable for long-term continuous operation in complex industrial environments.
Model | QP-15KV Cable Spark Tester | QP-25KV Cable Spark Tester |
Adjustable center-height | 900-1100mm | 900-1100mm |
Output voltage | 0.0-15.0KV | 0.0-25.0KV |
Voltage indication error | <5% | <5% |
Detection sensitivity | <600uA | <600uA |
Transient breakdown current | 0.6mA | 0.6mA |
Maximum detection speed | 420m/min | 336m/min |
Cable outer diameter | ≤20mm | ≤40mm |
Electrode length | 500mm | 300mm |

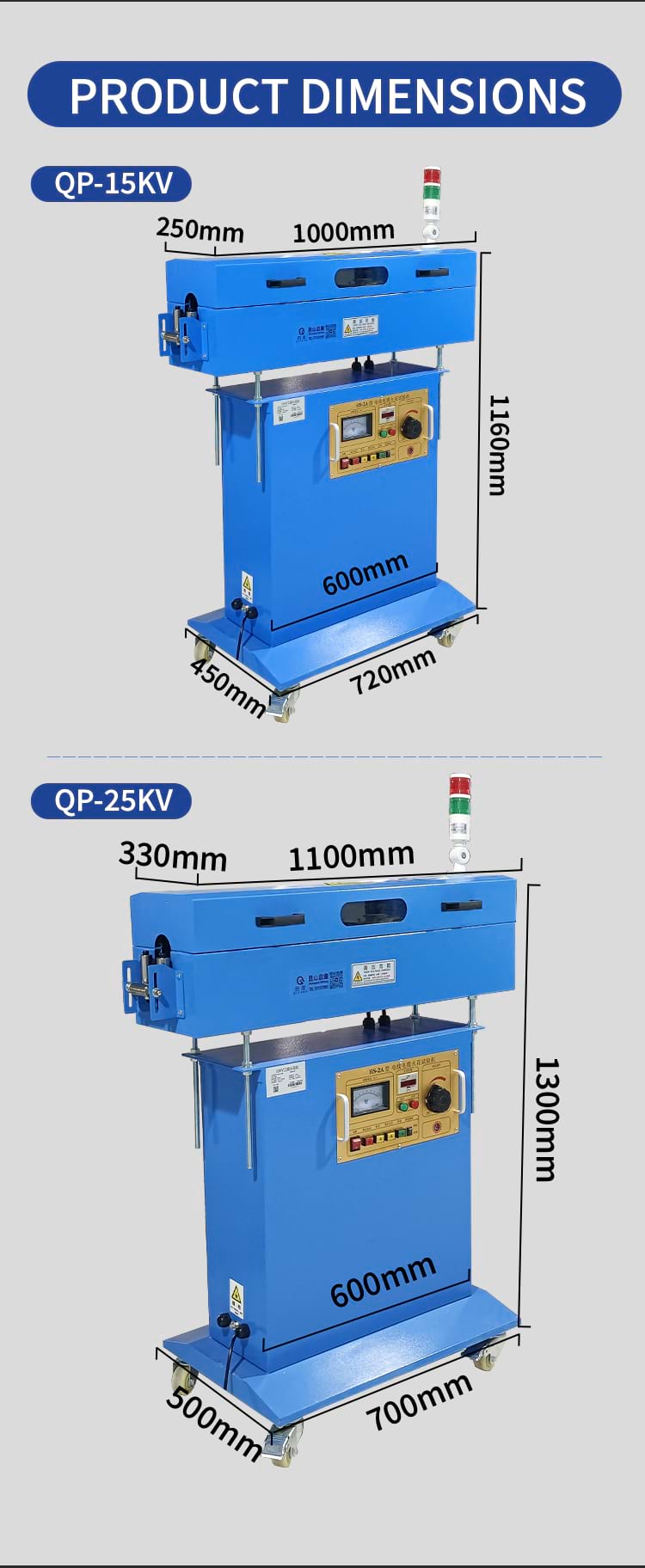

Dimensions | 1000×1160×250mm | 1100×1300×330mm |
Volume | 0.29m³ | 0.48m³ |
Weight | 75kg | 100kg |
 |  |
 |  |

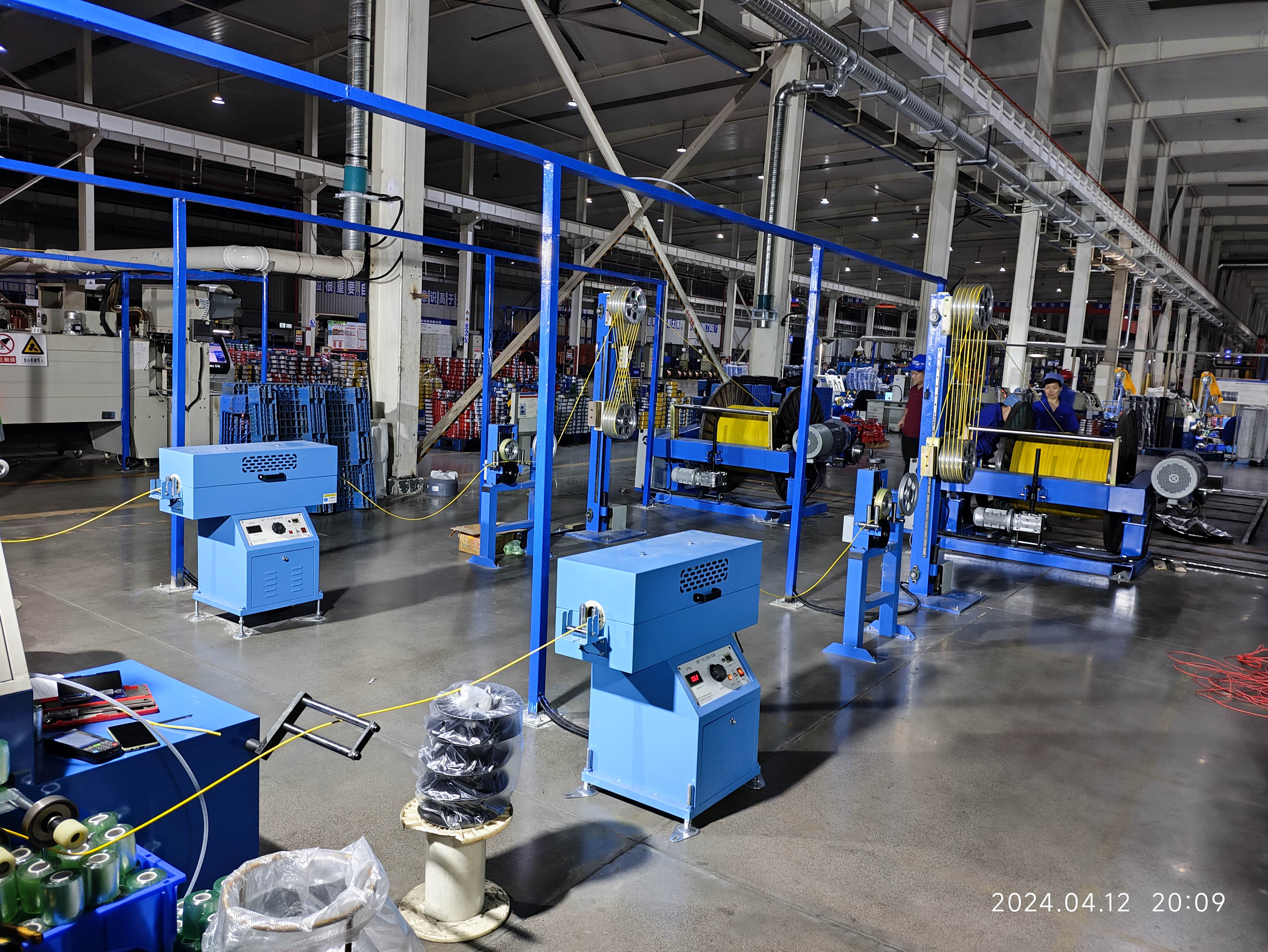

Our power frequency cable spark tester is widely used in core industrial scenarios that require strict wire and cable quality control, including wire and cable manufacturing plants, power cable production lines, communication cable factories, automotive wiring harness production workshops, electrical equipment insulation testing facilities, and building wire quality inspection lines. It is suitable for the insulation defect detection of various insulated wires, rubber-sheathed cables, power cables, and control cables, providing reliable quality assurance for industrial cable production and processing enterprises.
As a professional industrial equipment manufacturer with complete SGS, CE, ISO and TUV certifications, Shanghai Qipang Industrial Co., Ltd. specializes in R&D and production of cable testing and production supporting equipment. Our core product line includes Cable Spark Tester, Laser Diameter Gauge, Wire Length Meter, Wire Preheater, Wire Spooling Machine, etc. All our equipment can be seamlessly linked with extruders and complete cable production lines, and we support customized solutions according to your actual production needs. With years of industry experience, we are committed to providing high-reliability, high-precision industrial equipment for industrial production enterprises worldwide.

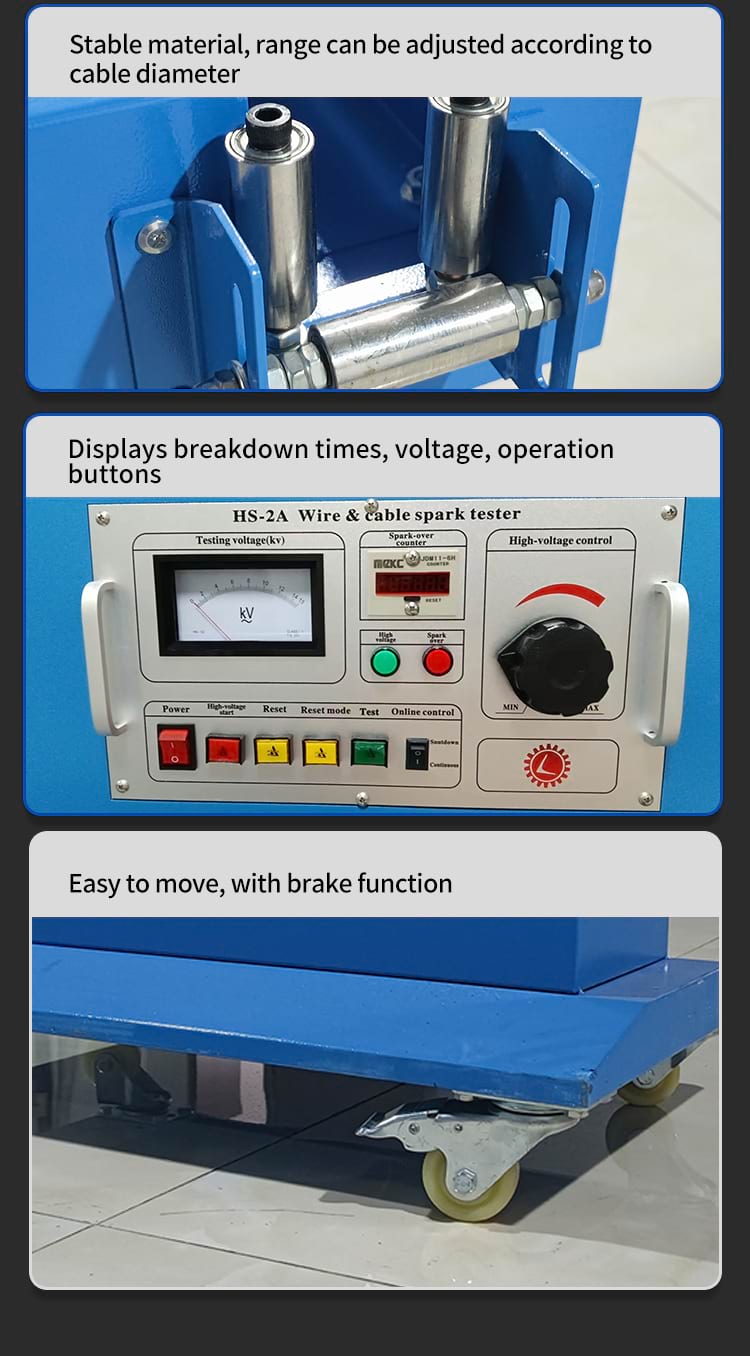

The equipment adopts dual indication methods of breakdown count recording and audible and visual alarm, with a counting range of 0-999, which can clearly feedback the number of insulation defects during the testing process.
Our spark tester strictly complies with GB3048.9 Power Frequency Spark Test of Insulated Cores of Wires and Cables, and JB/T4278.10 Testing Instruments for Rubber and Plastic Wires and Cables, meeting mainstream industrial testing requirements.
Yes, we support customized copper beads, adjustable center height range, and other personalized configurations to adapt to your specific production line and testing needs.
Looking for a reliable cable insulation defect detection solution for your industrial production? Our Cable Spark Tester can be fully customized to match your cable specifications and production line needs, helping you achieve full-process quality control and reduce unqualified product rates. Contact us today to get a free quote and exclusive custom solution for your industrial testing needs.
