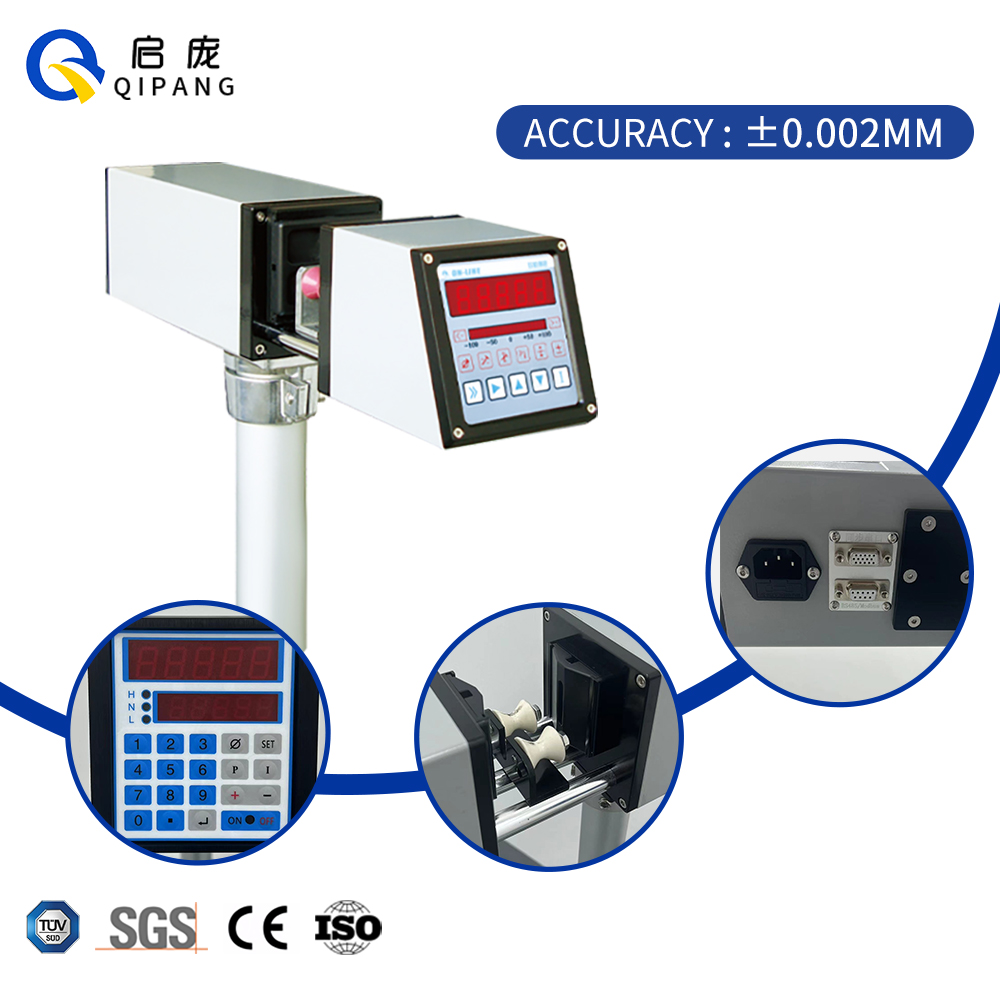

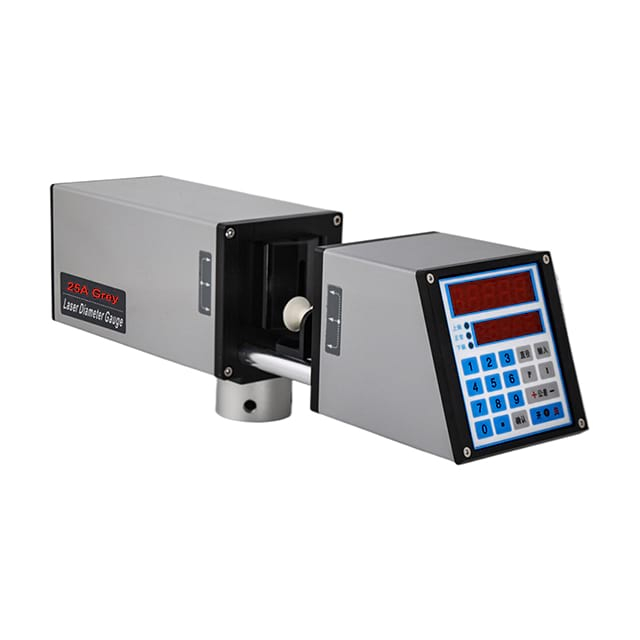

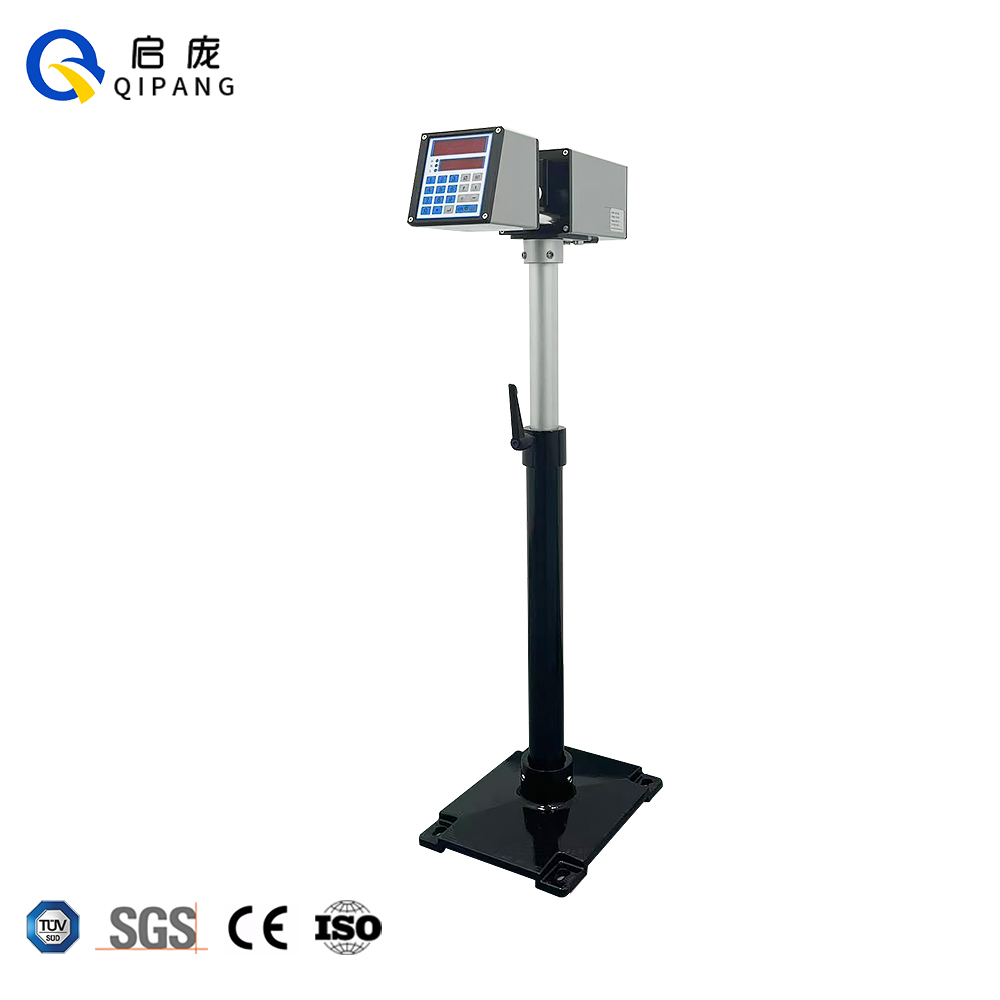

QP25AL Grey 0.1-25mm
Qipang

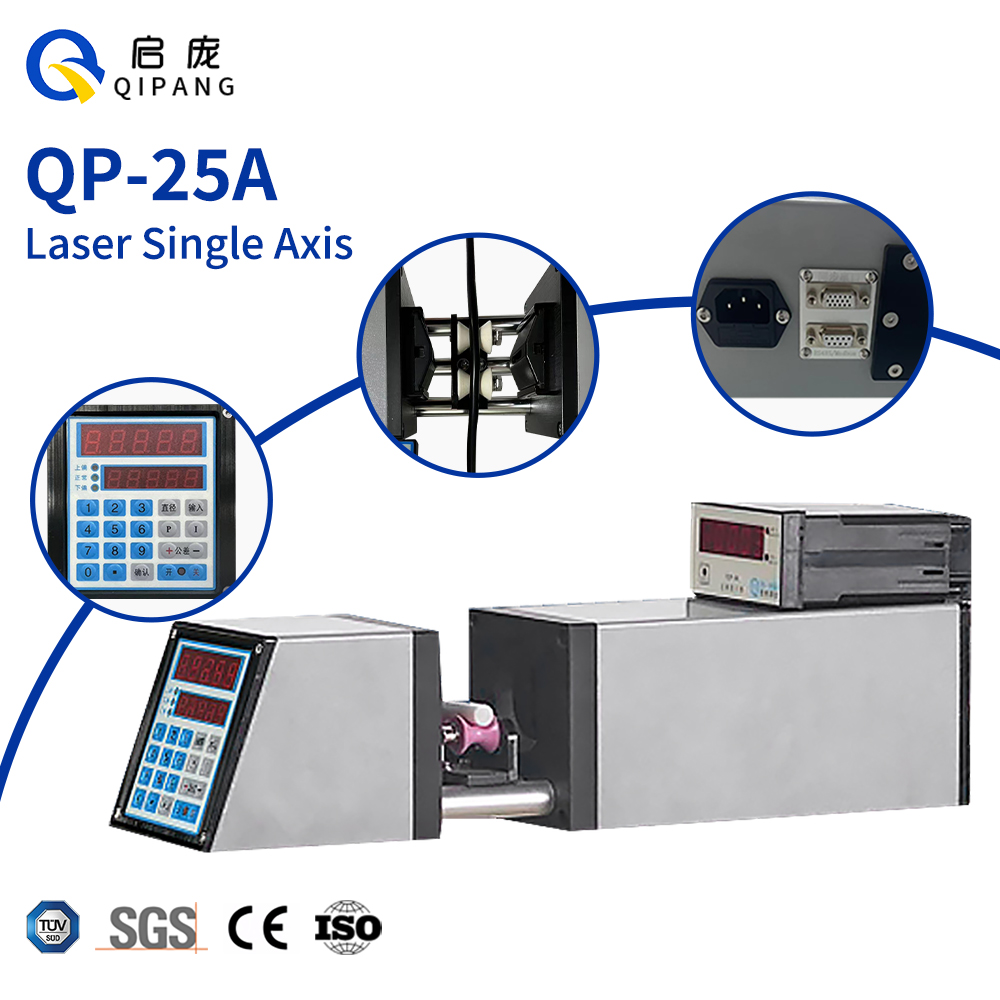

QP25AL Grey 0.1-25mm Single Axis
Technical Parameters
| Measuring axis number | Single Axis |
| Measuring range | 0.1mm-25mm、1/256"-63/64" |
| Measuring accuracy | ±2μm±0.008%Dz mm("Dz"is the actual diameter of the measured object) |
| Scanning speed of diameter gauge | 1000times scanningcycle/second |
| Resolution | 0.001mm |
| Power supply voltage | 100~240VAC,1.0A |
| Ambient temperature | -10～45℃ |
| Relative humidity | ≤85%(no condensationwater) |
| Display means | two-row5-digit pipe display |
| Working frequency | 50/60Hz |
| Communication interface | RS485 (support Modbus RTU) |
| Power consumption | ≤15W(withadapter+40W) |
Product Uses
The QP-25AL laser diameter measuring instrument is widely used in various industries, including wire and cable manufacturing, fiber optics, automotive wiring harnesses, flat cables, power cables, pipes, and wires.
Product Operate Guide
QP-25AL gray laser diameter gauge.pdf
Product Video
FAQ
1. What is the accuracy of the QP-25AL?
±2μm ±0.008%Dz mm ("Dz" is the actual diameter of the measured object)
2. What power supply voltages are compatible with the QP-25AL?
Power supply voltage: 100~240VAC, 1.0A
3. What communication interfaces does the QP-25AL Laser Diameter Measuring device support?
RS485 (supports Modbus RTU)
