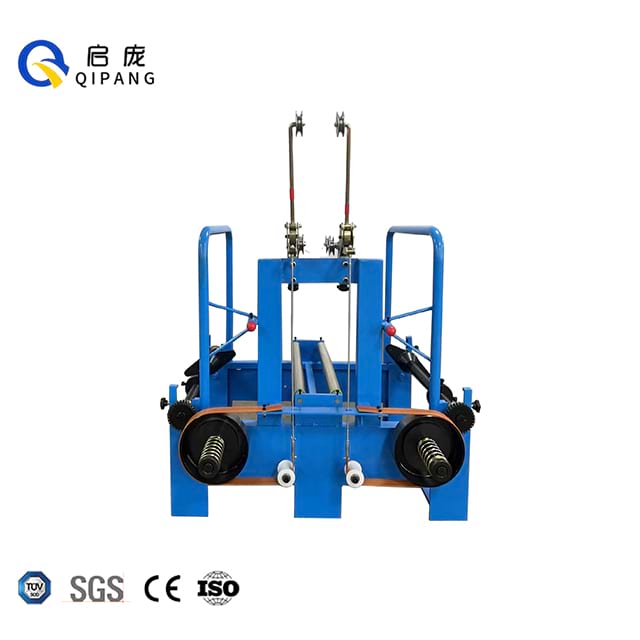

The QP630 QP800 Double Head Belt Tension Pay-off Stand (Japanese double head tension pay-off stand) is a high-performance wire feeding solution built for professional wire and cable manufacturing enterprises. Compliant with SGS, CE and ISO standards, this industrial-grade pay-off equipment delivers consistent tension control for continuous production lines, with customizable spool outer diameters from φ400-630mm to φ630-800mm to fit diverse soft and hard wire processing needs. It can be seamlessly integrated with extruders and complete cable production lines, and its dual-head design maximizes production continuity, cuts spool replacement downtime, and boosts manufacturing efficiency for industrial production users.

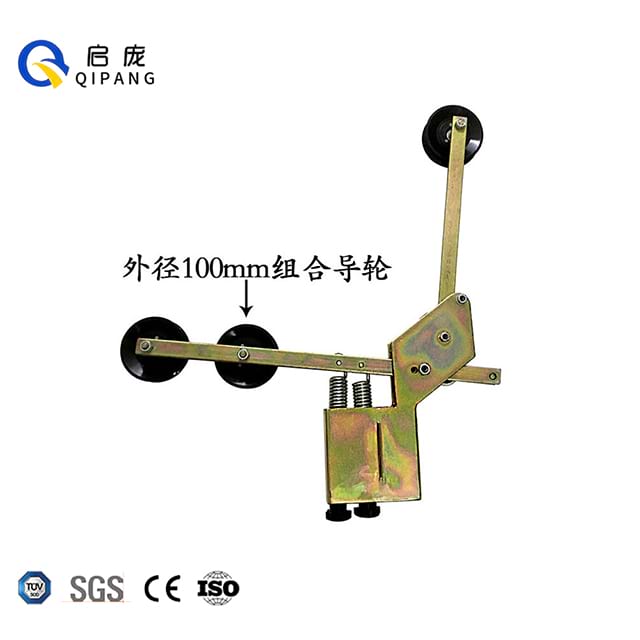

This industrial wire pay-off stand adopts an advanced double/triple spring tension gun system, with adjustable spring wire diameter control to deliver accurate, stable tension for different wire types. It maintains uniform tension throughout the pay-off process, avoiding wire breakage, uneven winding or dimensional deviation, which is critical for high-quality wire and cable mass production.
The innovative double-head design supports simultaneous or alternate operation, enabling non-stop production during spool changes. This structure drastically reduces unplanned downtime, elevates production line utilization, and meets the high-volume manufacturing demands of medium and large wire processing enterprises.

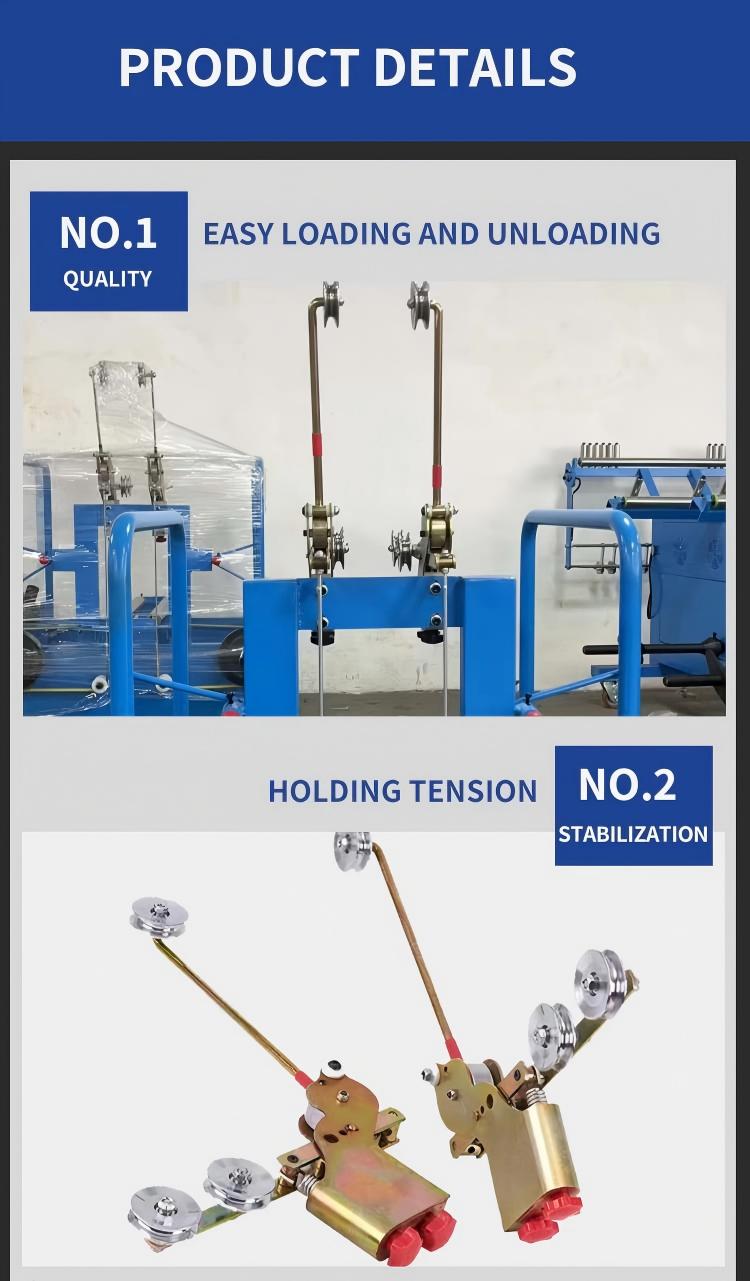

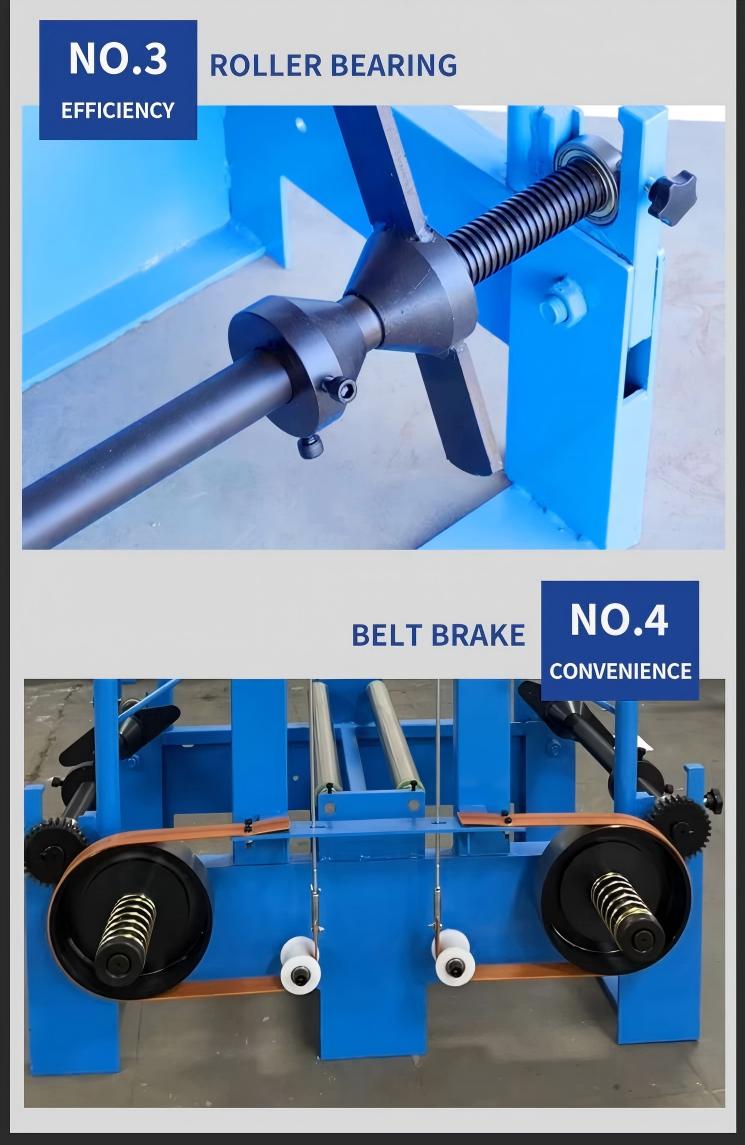

Engineered for effortless spool loading and unloading, the equipment reduces manual operation intensity and shortens changeover time. It is equipped with high-precision roller bearings for smooth, low-friction operation, minimizing wear and extending service life. The robust belt brake system realizes automatic braking for broken wire and belt fault scenarios, fully ensuring on-site operational safety.
Parameter | Specification Details |

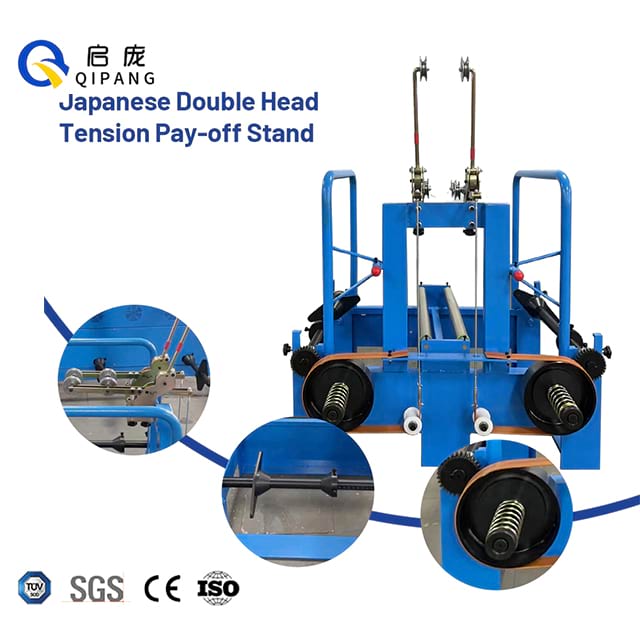

Product Name | Japanese double head tension pay-off stand |
Spool Outer Diameter | φ400-630mm / 630-800mm (customizable) |
Wire Diameter Range | Soft wire: 0.3-15mm; Hard wire: 0.3-10mm |
Compatible Wire Types | Bare copper wire, enameled wire, BVR wire, twisted pair, etc. |
Tension Control System | Double/triple spring tension gun, adjustable spring wire diameter control |
Number of Heads | Double heads |
Control Mode | Broken belt gear automatic brake / belt brake / magnetic powder brake |
Dimensions & Weight (630 Belt) | 1050×950×1200mm, 140kg |
Dimensions & Weight (800 Belt) | 1250×1100×1250mm, 215kg |
The double head tension pay-off stand is indispensable core equipment for multiple industrial sectors focused on wire and cable processing. Its main application scenarios include bare copper wire and enameled wire manufacturing, automotive wiring harness and electronic wire production, communication cable and twisted pair processing, new energy high-voltage wire manufacturing, and wire stranding, spooling and extrusion production lines. It adapts to a wide range of wire types, making it ideal for industrial production enterprises pursuing stable production efficiency and consistent product quality.
QIPANG is a professional industrial equipment manufacturer with years of expertise in R&D and production of wire and cable processing equipment. Our product portfolio includes wire spooling machines, laser diameter gauges, wire length meters, cable spark testers and wire preheaters, all of which can be seamlessly linked with extruders and complete production lines. All our equipment is manufactured in strict accordance with international standards, with SGS, CE and ISO certifications, and we have served numerous industrial production enterprises worldwide with reliable product quality and comprehensive technical support. We also offer full-cycle customization services to meet the unique production needs of different clients.
Whether you need a standard double head belt tension pay-off stand or a customized pay-off solution tailored to your production line parameters, wire specifications and spool sizes, QIPANG is here to support you. Our professional technical team will work with you to design the optimal wire feeding solution for your industrial production needs. Contact us today to get a free quote and exclusive custom solution, and elevate your wire and cable production efficiency and product quality.
This industrial pay-off stand is compatible with spools with an outer diameter of φ600mm and φ800mm, and we also provide customizable spool size solutions to fit your existing production equipment.
It adopts a professional tension gun control system, with double or triple spring tension guns to achieve precise and adjustable tension control, adapting to different wire materials and processing requirements.
The equipment is equipped with static induction and belt automatic braking system, with automatic brake function for broken wire and belt fault scenarios, ensuring safe and stable production.
