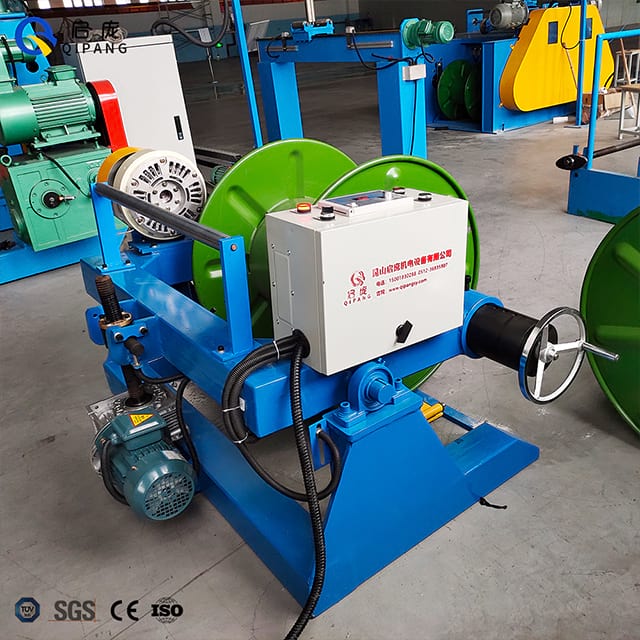

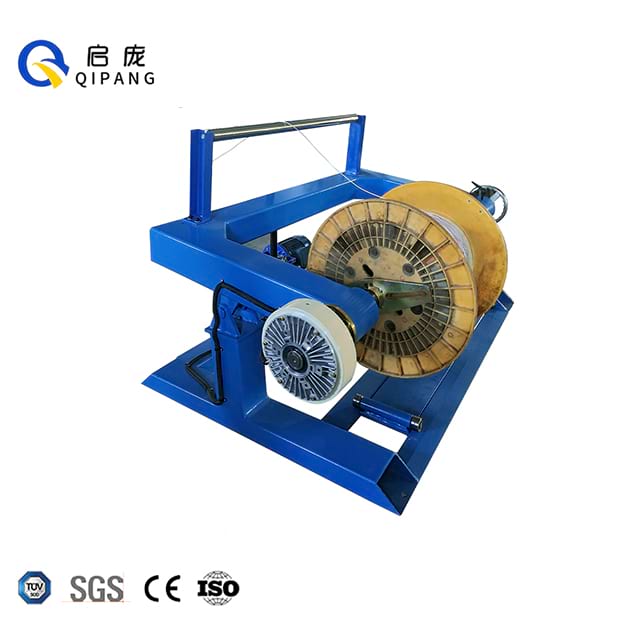

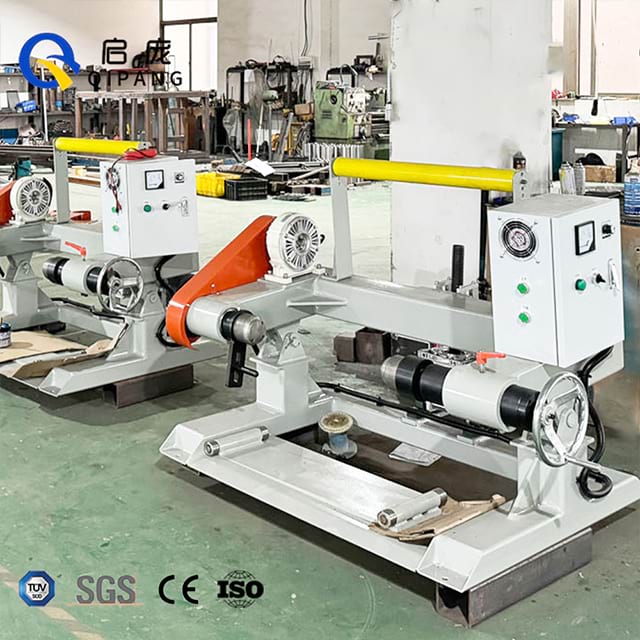

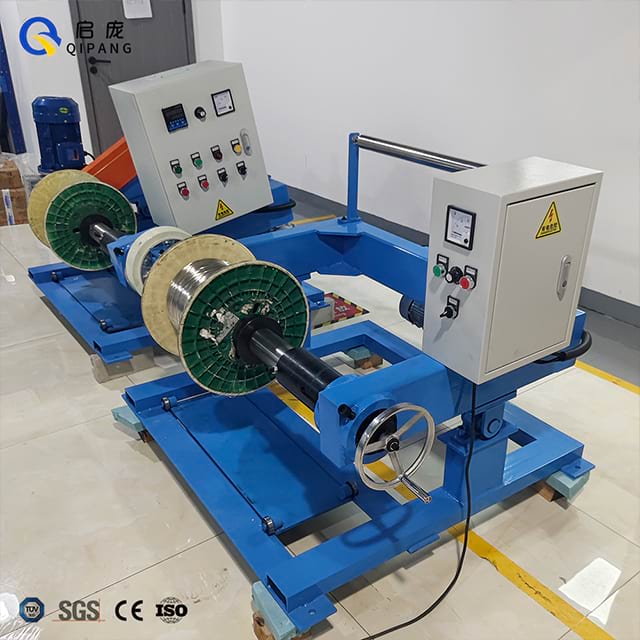

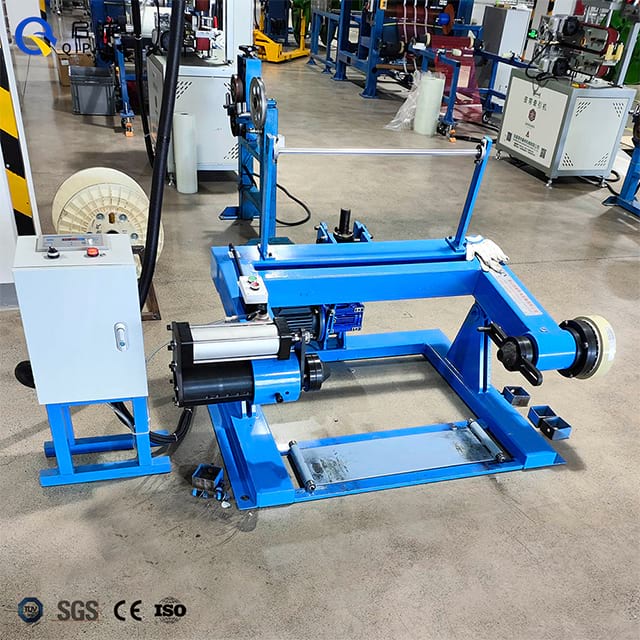

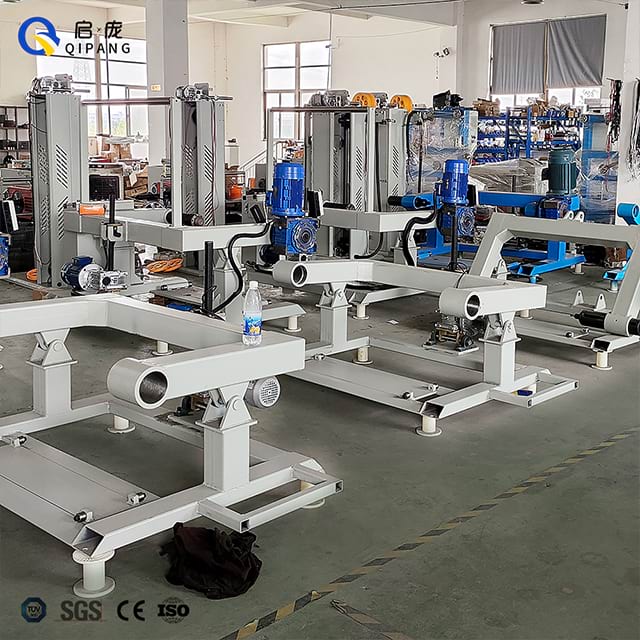

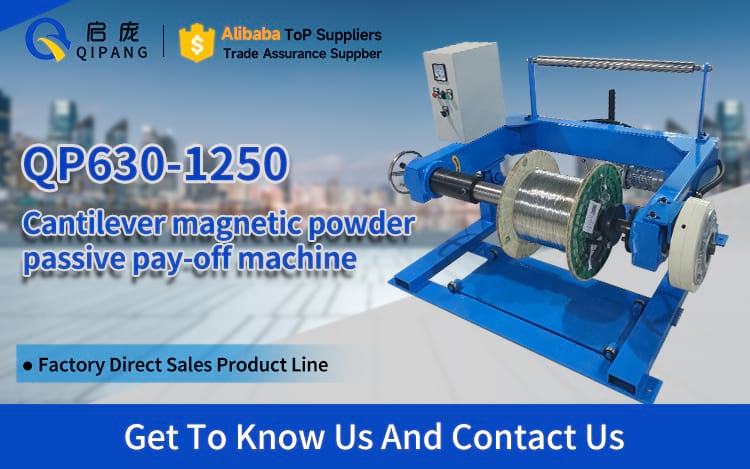

Our cantilever shaftless passive wire pay-off machine includes QP630, QP800, QP1000, QP1250 and QP1400 series models. It is a durable and economical passive unwinding device built for steady wire feeding in wire and cable production lines.
Constructed with a heavy-duty cantilever shaftless frame and fitted with a high-performance magnetic powder brake control system, this pay-off machine works well with wooden, metal and plastic reels. It maintains uniform tension for wires of different materials and diameters during unwinding.

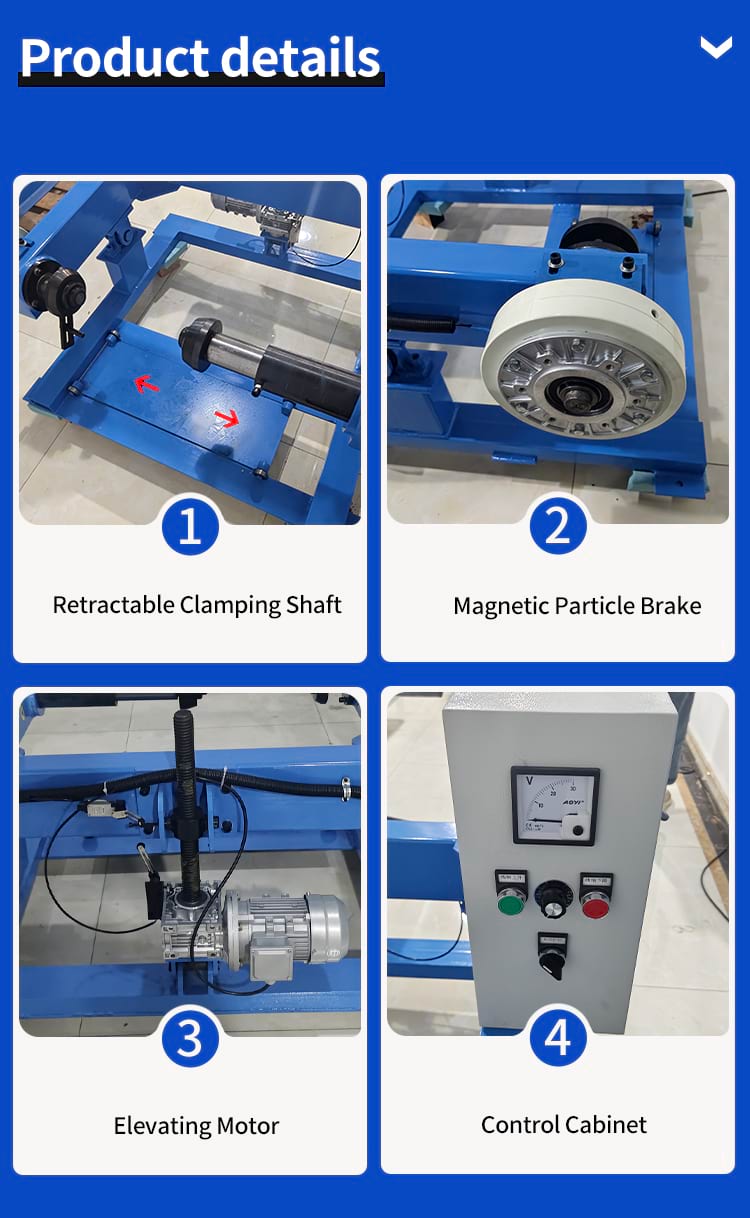

Designed with retractable clamping shafts and electric lifting mechanism, the machine greatly reduces difficulty in reel loading and unloading. It can fully meet various mass production demands of cable processing manufacturers.
 |  |
Equipped with a high-precision magnetic powder brake system, our passive wire pay out machine delivers smooth, stepless tension control, effectively preventing wire slippage, breakage, and irregular winding. The brake system offers stable performance even during variable speed operation, ensuring consistent product quality for both small-batch and medium-volume industrial production.
The innovative shaftless cantilever structure eliminates the need for a central shaft, enabling quick and easy spool replacement, and accommodating a wider range of spool sizes compared to traditional shaft-type pay-off machines. This design significantly reduces downtime during reel changes, boosting overall production efficiency for industrial manufacturing facilities.
Constructed with a reinforced steel frame and high-torque RV reducer lifting system, the machine offers a maximum load capacity of up to 1 ton, adapting to large-size heavy wire spools and long-duration continuous operation. The machine’s standard RAL5015 blue finish provides excellent corrosion and wear resistance, extending service life in harsh industrial environments.
With optional manual hand crank or cylinder clamping modes, synchronous belt or chain drive options, and a user-friendly control cabinet, this shaftless passive pay-off machine can be tailored to diverse operational preferences. It can be easily fixed with expansion screws, requiring minimal installation and maintenance, making it suitable for various industrial production scenarios.
Model | QP630 Wire Pay Out Machine | QP800 Wire Pay Out Machine | QP1000 Wire Pay Out Machine | QP1250 Wire Pay Out Machine |
Applicable reel diameter | Φ400-630mm (customizable) | Φ630-800mm (customizable) | Φ800-1000mm (customizable) | Φ800-1250mm (customizable) |
Pay-off range | φ0.5-φ12mm | φ0.5-φ20mm | φ0.5-φ30mm | φ0.5-φ30mm |
Clamping method | Hand crank / Cylinder | Hand crank / Cylinder | Hand crank / Cylinder | Hand crank / Cylinder |
Max pay-off speed | MAX 300 m/min | MAX 300 m/min | MAX 300 m/min | MAX 300 m/min |
Lifting system | Electric lifting | Electric lifting | Electric lifting | Electric lifting |
Magnetic powder brake | 2.5kg control | 5kg control | 10kg control | 10kg control |
Maximum load | 500 kg | 1T | 1T | 1T |
Our magnetic powder passive pay-off machine has extensive application in multiple industrial fields.
Typical scenarios include wire and cable production, metal wire drawing, automotive harness assembly, electrical equipment manufacturing and wire rewinding processes.
This unwinding equipment can be perfectly matched with rewinding machines, extruders, wire drawing machines and all kinds of semi-automatic production lines.
It offers stable and cost-effective wire feeding performance, perfectly suitable for continuous and batch production, and serves as an optimal feeding device for industrial manufacturers.

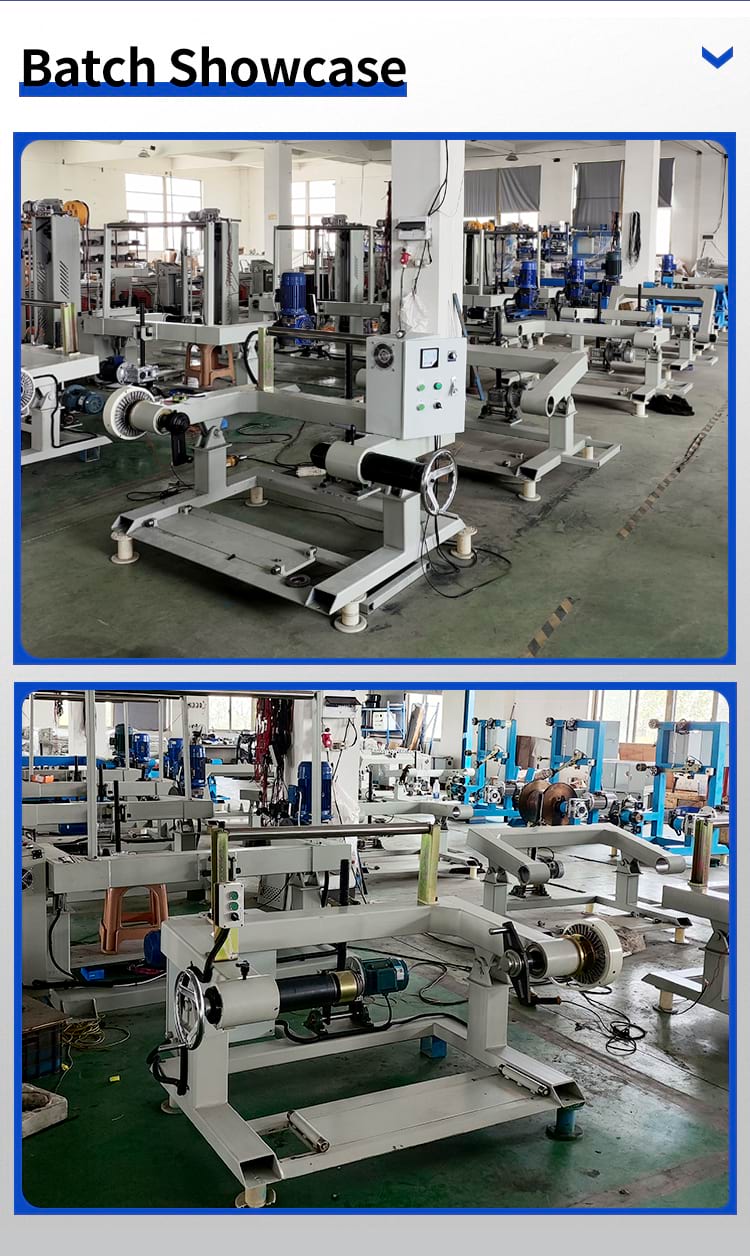

Shanghai Qipang Industrial Co., Ltd. is a top manufacturer of industrial wire processing machinery, boasting rich experience in developing and manufacturing premium wire pay-off equipment for global industrial clients.
Our complete product range covers wire pay-off machines, laser diameter gauges, wire length counters and cable testing machines. All products pass SGS, CE and ISO certifications to comply with international industrial quality requirements.
We adopt factory direct sales mode and own a professional technical team. We deliver one-stop full service covering equipment customization and after-sales support.
Our all-round technical assistance helps industrial manufacturers streamline their production workflows and improve overall productivity.
Our passive wire pay out machine series supports standard spool diameters from 400mm to 1400mm, with fully customizable options available for non-standard reel sizes.
It is compatible with wooden, iron, and PN standard wire reels, adapting to most common reel types used in industrial wire and cable processing.
It can be seamlessly integrated with rewinding machines, extruders, wire drawing machines, and various semi-automatic and fully automatic production lines.
Whether you need a standard cantilever passive wire pay out machine or a tailored pay-off solution to match your unique industrial production needs, QIPANG is your reliable partner. Reach out to our expert team today to get a personalized quote, detailed product specifications, and professional guidance to find the perfect wire pay-off equipment for your facility.
