QP600-2500 automatic cable reeling machine is specially developed for cable warehouse storage and finished cable winding work.
The equipment adopts compact structural design, small overall size, which effectively saves workshop and warehouse space.
We provide multiple models ranging from QP600 to QP2500 for different production demands, and full personalized customization service is available to match your actual production conditions.
Our wire coiling machine, alternatively called cable reeling machine or wire spooling machine, is high-efficiency industrial winding equipment tailored for cable warehouse storage and on-line production line processing.
Boasting a compact frame design, it effectively saves workshop floor space. Our product lineup includes semi-automatic, fully automatic and heavy-duty layer winding versions, compatible with various wire diameters and different load weights.
This coiling machine can be seamlessly matched with extruders and complete cable production lines to carry out online winding and rewinding tasks. Full customization is available to meet diversified industrial production requirements.
As essential core machinery for cable manufacturers and cable distributors, it greatly boosts production efficiency and cuts labor expenses.
Core Advantages of Our Wire Coiling Machine
Rich Configurations to Cover All Industrial Winding Needs

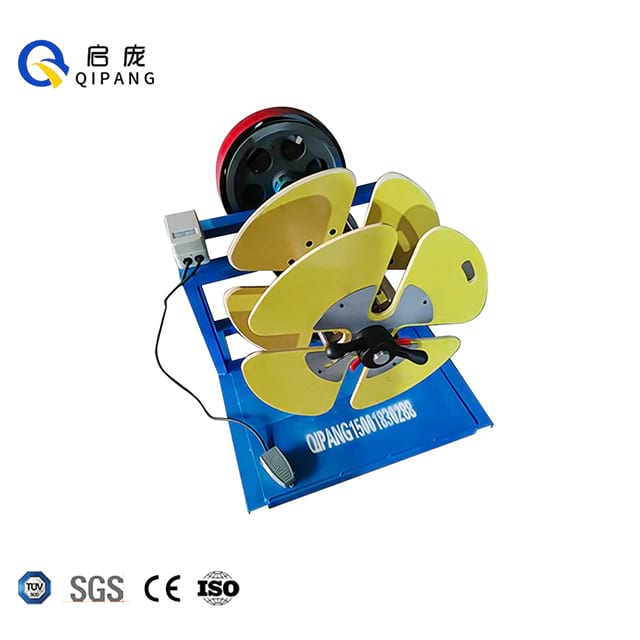

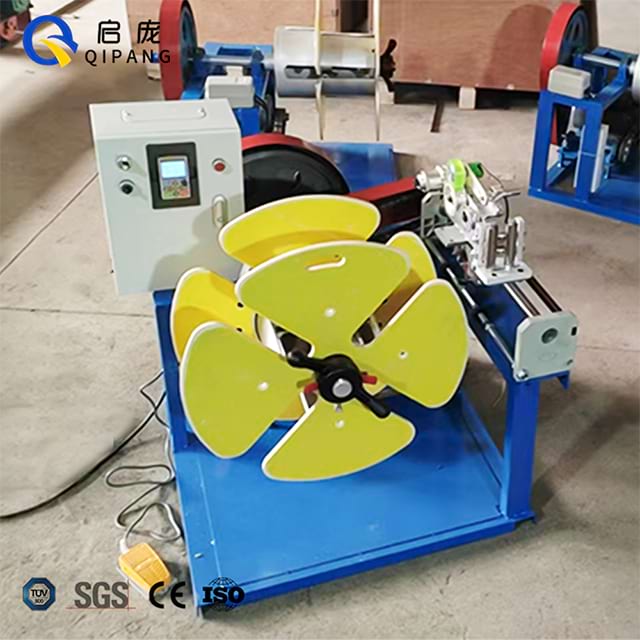

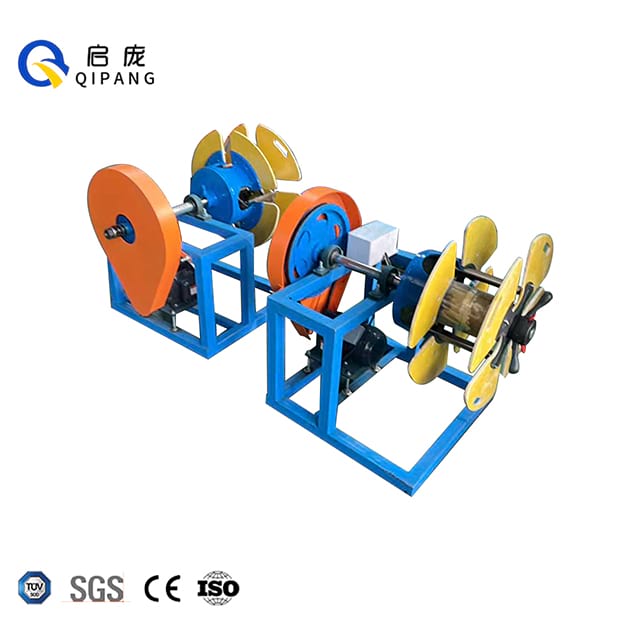

We provide a full range of industrial cable coiling equipment to meet diverse production scenarios: semi-automatic models with manual wiring for small-batch flexible production, automatic models with traverse unit wiring for mass continuous production, and heavy-duty fully automatic layer coiling machines for large-size heavy-load cables. The equipment adapts to wire diameters from 3mm to 80mm, with a maximum load capacity of up to 8 tons, fully covering the winding needs of various cable types.
Stable Performance & Precise Winding Control
Our automatic wire spooling machine is equipped with a high-power 2.2KW motor and professional spring clutch brake system, ensuring stable and consistent winding tension during high-speed operation, avoiding loose or disordered coils. The automatic models are equipped with variable frequency speed control, with a maximum winding speed of up to 100m/min, and support foot switch control, freeing up operators' hands and greatly improving production efficiency.
Flexible Integration & Customization Support
This inline cable coiling machine can be seamlessly linked with your existing cable production line, supporting both online winding synchronized with extruders and independent rewinding operations. We provide a wealth of optional configurations, including movable wheels with brake function for easy workshop transfer, high-precision meter counters for length control, and customized coil size parameters, fully adapting to your unique production and storage needs.

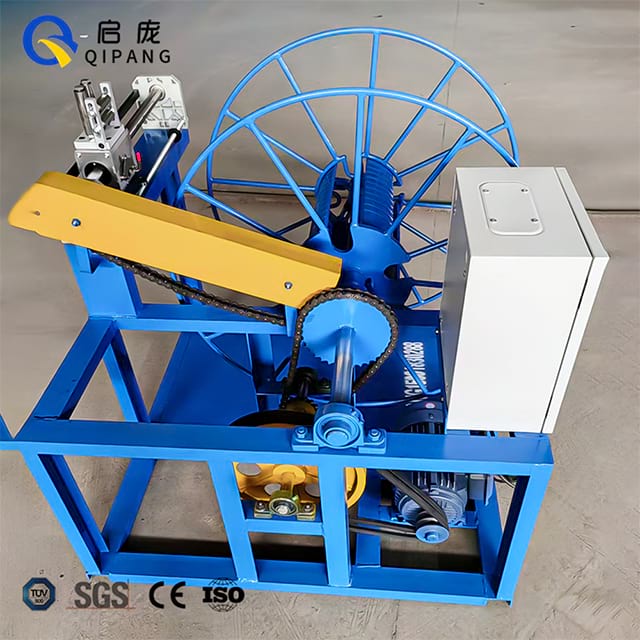

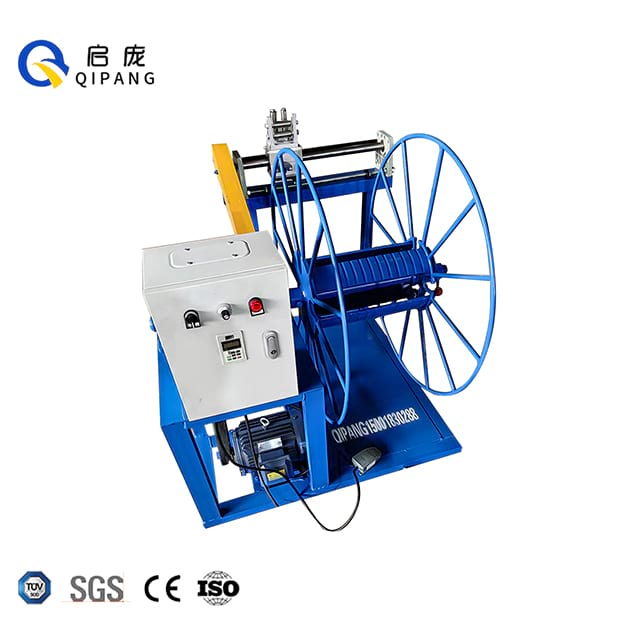

Automatic Cable Reeling Machine-- Traverse Unit Wiring
Model
QPA-600 Wire spooling machine
QPA-900 Wire spooling machine
Wire diameter
3-60MM
3-60MM
Max load
200kg
200kg
Coil size
ID:245mm(9.65") OD:600mm(23.62") WIDTH:50-200mm
ID:245mm(9.65") OD:900mm(35.43") WIDTH:100-400mm
Motor
2.2KW
2.2KW
Wiring model
Traverse unit wiring
Traverse unit wiring
Brake
Spring clutch brake
Spring clutch brake
Advantage
With foot switch,Variable frequency speed control
With foot switch,Variable frequency speed control
Power supply
380V three phase 50hz 220V single phase 50hz
380V three phase 50hz 220V single phase 50hz
Optional
1.Movable wheels 2.Meter counter
1.Movable wheels 2.Meter counter

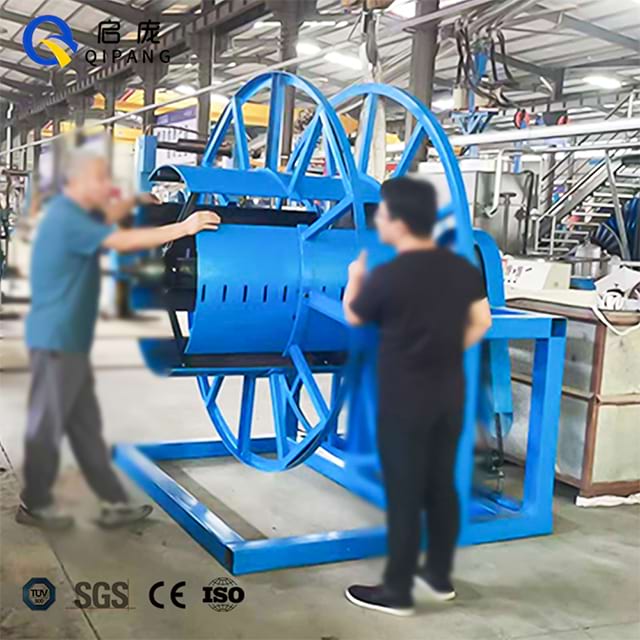

Fully automatic layer coiling machine
Model
QP1200 Wire spooling machine
QP1550 Wire spooling machine
QP2100 Wire spooling machine
QP2500 Wire spooling machine
Wire diameter
5-30mm
12-45mm
15-55MM
20-80MM
Used Wire model
Rubber-sheathed cables,rubber cables,and power cables
Rubber-sheathed cables,rubber cables,and power cables
Rubber-sheathed cables,rubber cables,and power cables
Rubber-sheathed cables,rubber cables,and power cables
Machine speed
100m/min
40m/min
40m/min
40m/min
Coil Max height
1500mm
1500mm
1500mm
1500mm
Coil outer dia
1200mm
1550mm
2100mm
2500mm
Max load
1ton
3ton
5ton
8ton
Working method
Online Winding or rewinding
Online Winding or rewinding
Online Winding or rewinding
Online Winding or rewinding
Industrial Applications of Wire Coiling Machine
Our industrial cable reeling machine is widely used in core industrial scenarios of cable production, processing and distribution, including wire and cable manufacturing plants, cable distribution warehouses, power cable production facilities, communication cable manufacturers, automotive wiring harness processing workshops, electrical equipment assembly lines, and mining cable processing enterprises. It is suitable for winding various types of cables, including rubber-sheathed cables, power cables, control cables, and communication cables, providing efficient and stable winding solutions for industrial enterprises.
Your Trusted Industrial Manufacturer – QIPANG
Shanghai Qipang Industrial Co., Ltd. is a professional manufacturer of industrial machinery, holding a full set of authoritative certifications including SGS, CE, ISO and TUV.
We have long focused on supplying full-process supporting equipment for cable manufacturing factories around the world. Our main product portfolio covers wire coiling machines, laser diameter gauges, wire length counters, cable spark testers, wire preheaters and other cable processing machines.
All our devices can connect seamlessly with extruders and complete cable production lines. Supported by mature R&D and manufacturing technologies, we have accumulated abundant experience in personalized customized solutions.
We devote ourselves to developing high-efficiency and stable industrial equipment for global cable producers and distributors, assisting clients in optimizing production workflows and lifting overall operational efficiency.
Product Video
FAQ About Our Wire Coiling Machine
What types of Wire Coiling Machines do you provide?
We provide three main series: semi-automatic cable reeling machines with manual wiring, automatic models with traverse unit wiring, and heavy-duty fully automatic layer coiling machines, which can meet the needs of small-batch flexible production, large-scale mass production, and heavy-load large-size cable winding respectively.
What is the maximum wire diameter your coiling machines can handle?
Our coiling machines cover a wide range of applicable wire diameters, from 3mm for small-size cables up to 80mm for large-diameter heavy-duty cables, with different models adapted to different diameter ranges.
Can the Wire Coiling Machine be integrated with our existing cable production line?
Yes, all our coiling machines support seamless integration with extruders and existing cable production lines, and can realize online winding synchronized with the production line, as well as independent rewinding operations.
Get Your Custom Solution Today
Looking for an efficient and stable cable winding solution to optimize your industrial production or warehouse management? Our Wire Coiling Machine can be fully customized according to your cable specifications, load requirements, and production line conditions, helping you improve winding efficiency, reduce labor costs, and achieve standardized coil production. Contact us today to get a free quote and exclusive custom solution for your industrial winding needs.
