Shanghai QIPANG’s end shaft cable take up and pay off machine is a heavy-duty industrial winding and unwinding solution, specially developed for industrial wire and cable production enterprises with high-volume, large-load manufacturing needs. Featuring a robust end-shaft structure and cast-welded frame, this equipment supports two flexible installation methods: foundation type (with pit digging for enhanced stability) and standard type (fixed with expansion screws for easy deployment). It can be seamlessly integrated with extruders, cable forming machines, and complete automated production lines, providing stable and precise winding control for various cable specifications. With CE, SGS, ISO and TUV certifications, our industrial wire spooling machine is the ideal choice for large-scale cable manufacturing facilities.

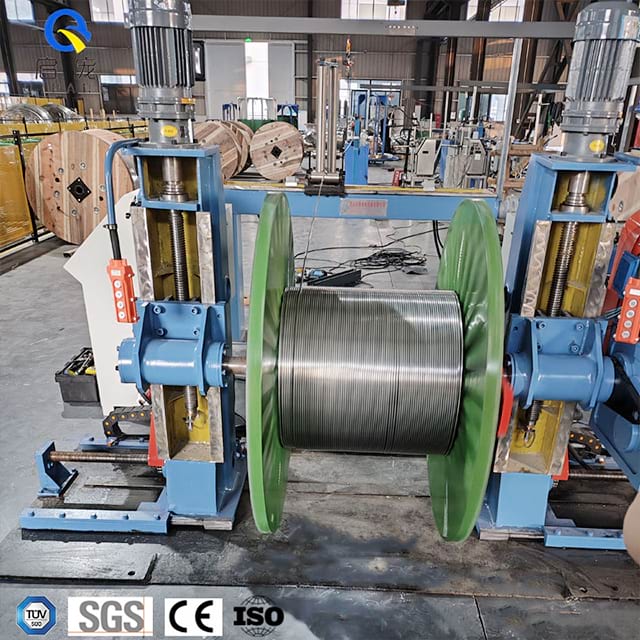

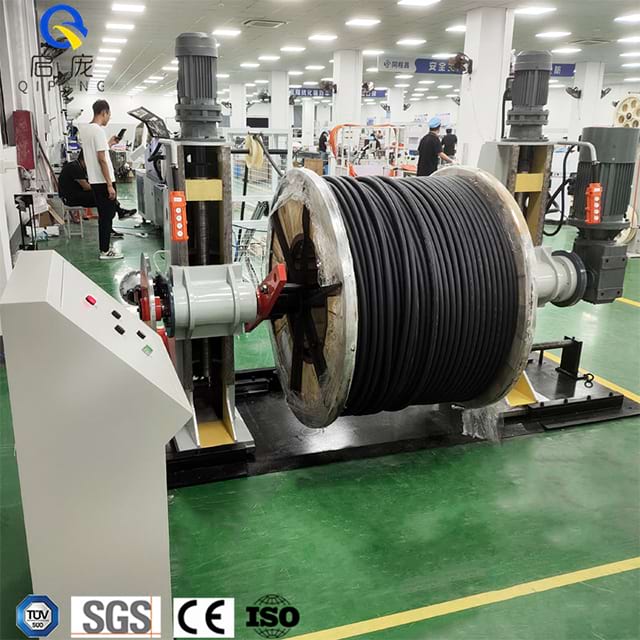

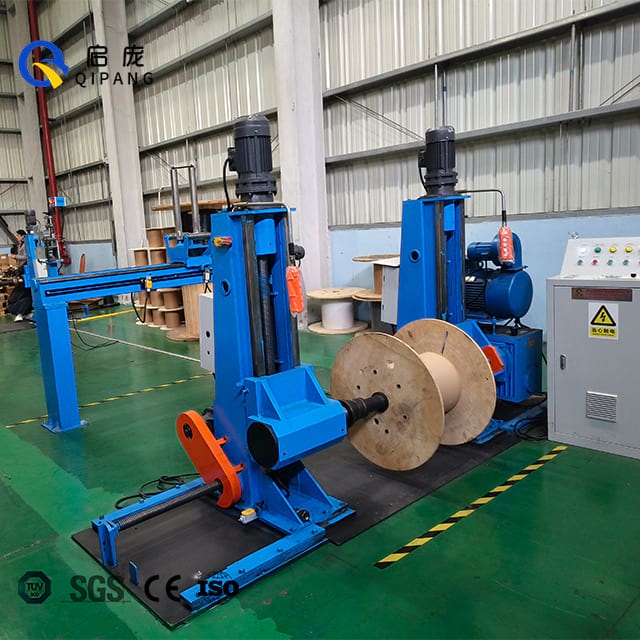

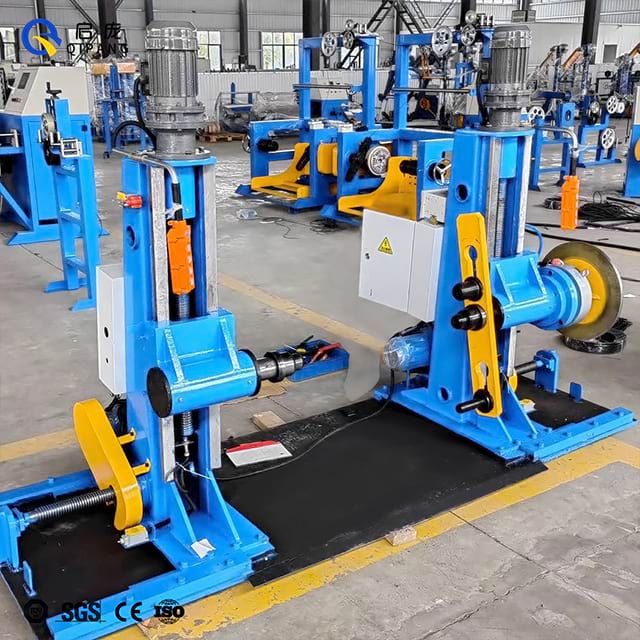

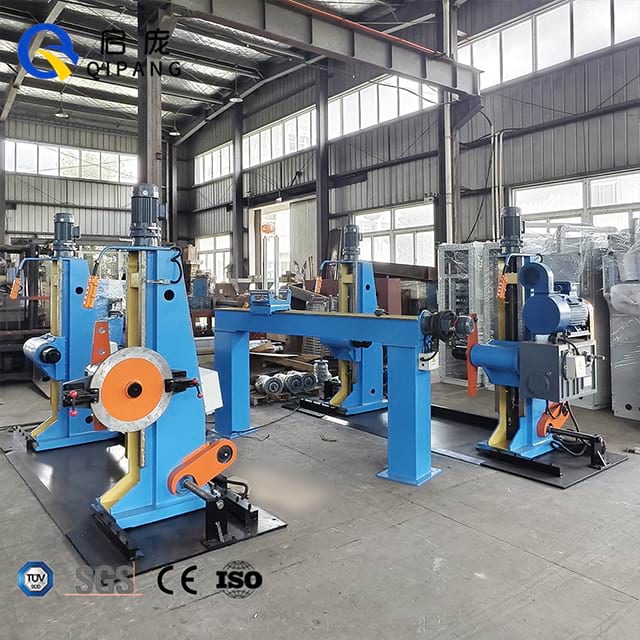

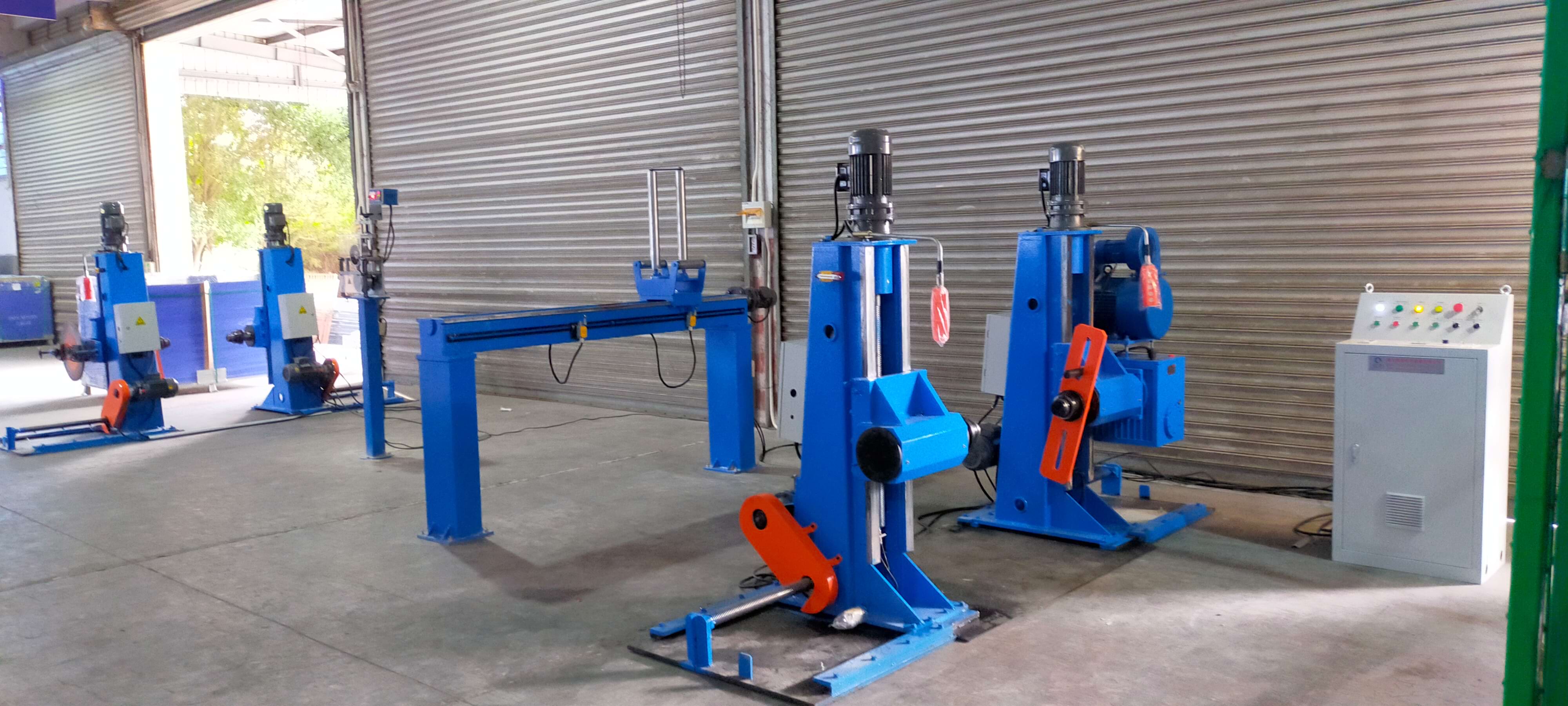

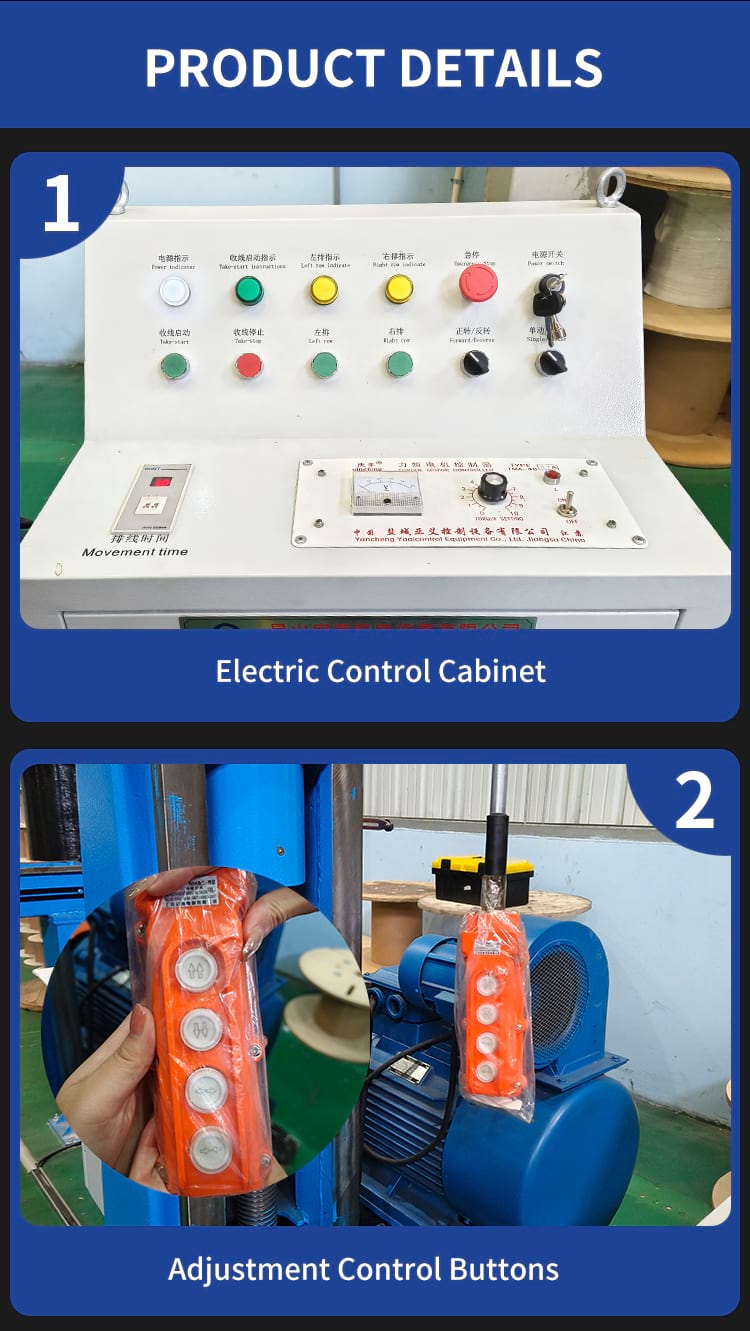

The equipment adopts an end-shaft structure with a reinforced cast and welded frame, ensuring superior stability under heavy load conditions. The two reel centers are driven by dual motors via cycloidal reducers and lead screw nuts, supporting independent or simultaneous lifting. It is equipped with both mechanical and electrical protection devices, ensuring safe operation during long-term high-intensity production, with a maximum load capacity of up to 8T.

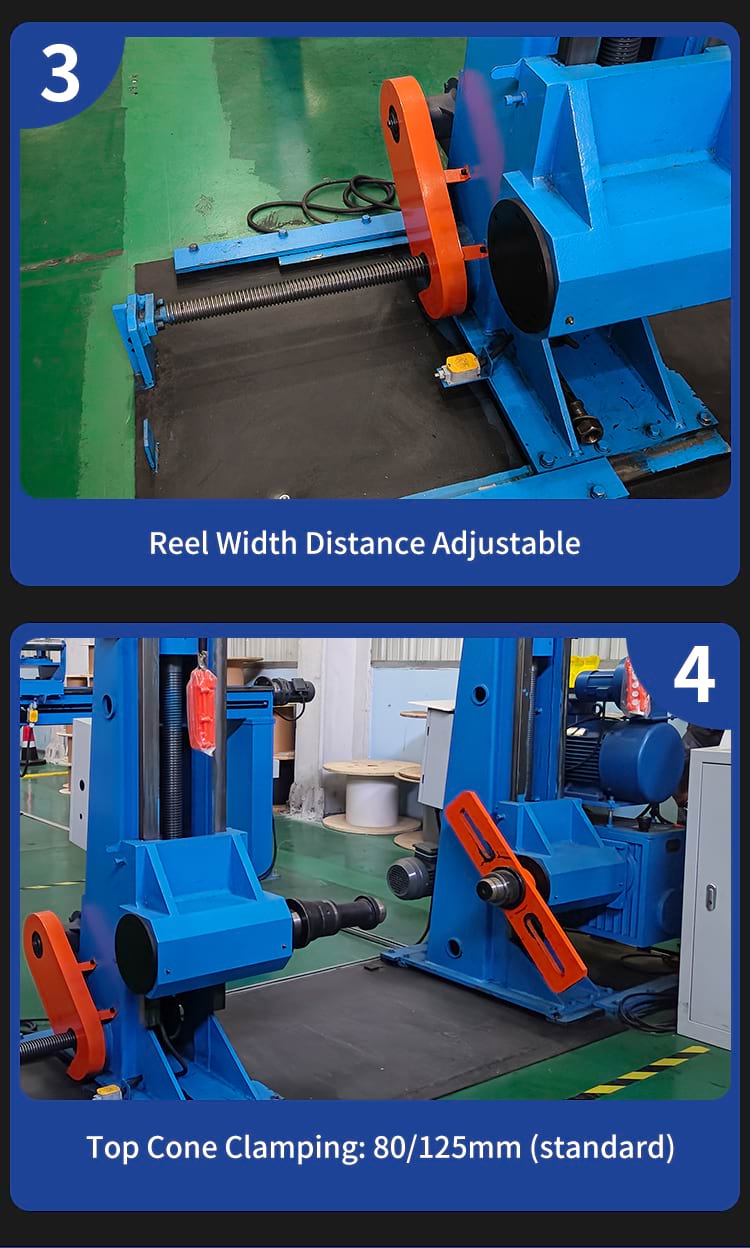

Our cable take up and pay off machine supports a wide range of reel sizes, with compatible reel outer diameters from Φ800mm to Φ3500mm, and adjustable reel width to match different production needs. It can be equipped with different sizes of center sleeves to adapt to various reel specifications, and supports customization of cable diameter adaptation, winding speed, and load capacity according to your process requirements.
Equipped with high-performance torque motors or AC variable frequency main motors, the equipment delivers stable winding tension and precise speed control, with a maximum take-up speed of up to 120m/min. The independent cable arrangement motor ensures uniform and neat winding, avoiding wire crossing and irregular arrangement, greatly improving the finished product quality and production efficiency of your cable manufacturing line.
 |  |
Model | QP1250 | QP1600 | QP2000 | QP2500 |
Applicable Reel OD | Φ800-Φ1250 | Φ800-Φ1600 | Φ1250-Φ2000 | Φ1250-Φ2500 |
Cable Reel Width | 750~950mm | 750~1180mm | 950~1500mm | 950~1900mm |
Cable Diameter | Φ3-Φ60mm(Max) | Φ3-Φ60mm(Max) | Φ3--Φ80mm(Max) | Φ3--Φ100mm(Max) |
Lifting Seed | 678mm/min | 678mm/min | 500mm/min | 500mm/min |
Lifting Motor | 0.75Kw AC motor + cycloidal pinwheel reducer (4 sets) | 0.75Kw AC motor + cycloidal pinwheel reducer (4 sets) | 1.5Kw AC motor + cycloidal pinwheel reducer (4 sets) | 1.5Kw AC motor + cycloidal pinwheel reducer (4 sets) |
Clamping Motor | 0.55Kw AC motor+ cycloidal pinwheel reducer(4 sets) | 0.55Kw AC motor + cycloidal pinwheel reducer (4 sets) | 0.75Kw AC motor + cycloidal pinwheel reducer (4 sets) | 0.75Kw AC motor + cycloidal pinwheel reducer (4 sets) |
Take-up Main Motor | JLJ132-40-4 torque motor/ 5.5kw AC variable frequency motor | JLJ132-40-4 torque motor/ 5.5kw AC variable frequency motor | JLJ160-60-4 Torque Motor / 7.5kw AC Variable Frequency Motor | JLJ160-60-4 Torque Motor / 7.5kw AC Variable Frequency Motor |
Take-up Speed | 120m/min（max） | 120m/min（max） | 60m/min（max） | 60m/min（max） |
Cable Arrangement Motor | 0.75kw/1500 rpm AC motor + cycloidal pinwheel reducer | 0.75kw/1500 rpm AC motor + cycloidal pinwheel reducer | 0.75kw/1500 rpm AC motor + cycloidal pinwheel reducer | 0.75kw/1500 rpm AC motor + cycloidal pinwheel reducer |
Voltage | Three-phase AC,50HZ 380V | Three-phase AC,50HZ 380V | Three-phase AC,50HZ 380V | Three-phase AC,50HZ 380V |
Total Equipment Power | Pay off2.6KW+Take up7.55=11.45KW | Pay off2.6KW+Take up7.55=11.45KW | Pay off4.5KW+Take up12.75=17.25KW | Pay off4.5KW+Take up12.75=17.25KW |
Load | 5T（max） | 6T（max） | 8T（max） | 8T（max） |
Our heavy-duty cable winding machine is widely used in various industrial cable production scenarios, including power cable manufacturing, high-voltage cable production, communication cable processing, building wire winding, automotive wiring harness production, and optical cable manufacturing lines. It is suitable for the winding and unwinding links of extrusion lines, wire drawing lines, cable forming lines, and armoring lines, meeting the production needs of industrial enterprises for large-diameter, heavy-load, and high-precision cable winding.

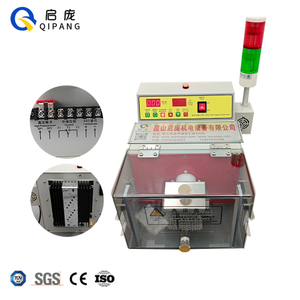

Shanghai Qipang Industrial Co., Ltd. is a professional R&D and production enterprise of industrial wire and cable processing equipment, with years of experience serving global industrial manufacturing clients. Our core product portfolio includes end shaft cable take up and pay off machines, wire spooling equipment, laser diameter gauges, wire length meters, cable spark testers, and wire preheaters, all of which can be seamlessly linked with various automated production lines. With strict quality control, complete international certifications, and a professional after-sales service team, we provide reliable, high-performance equipment and customized solutions for industrial cable production enterprises worldwide.
The standard power supply is three-phase AC, 50Hz 380V, and we support customized voltage solutions according to the local power supply standards of different regions.
The maximum take-up speed is 120m/min for QP1250 and QP1600 models, and 60m/min for QP2000 and QP2500 models for heavy-load large-diameter cable production.

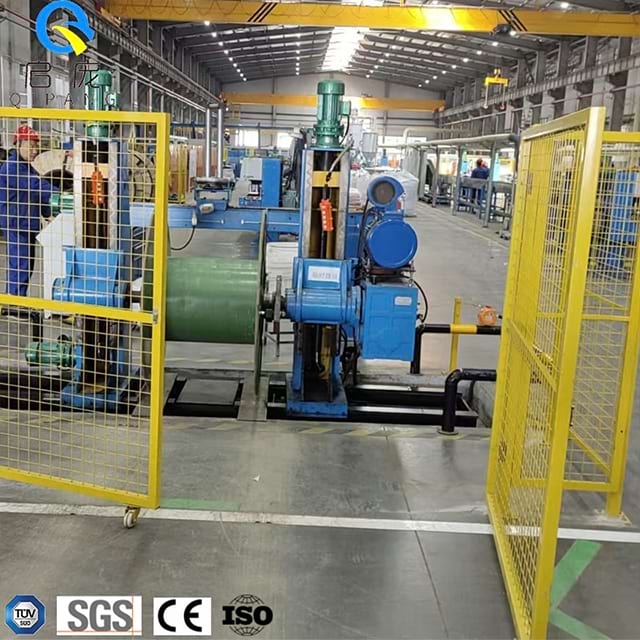

We provide two installation options: foundation type (requires pit digging for higher stability under heavy load) and standard type (fixed with expansion screws, no pit digging required for easy installation).
