Qipang specializes in solving problems related to wire and cable winding, unwinding, and rewinding. We offer a range of customized services. We can wind various materials including stainless steel wire, steel rope, aluminum wire, automotive power wire, optical fiber, PVC, AWG, and welding wire. Our machines range in size from 400/630/800/1000/1250/1600/2000/2500/3150/3500 mm.
Advantages Frequency conversion speed control Top Cone Clamping, easy to up and downthe disk, bobbin below the tray, not afraid of falling down "L" foot of the base plate can be fixed, more stable. The speed can be matched with the assembly line,evenspeed winding. Can be customized according to different needs

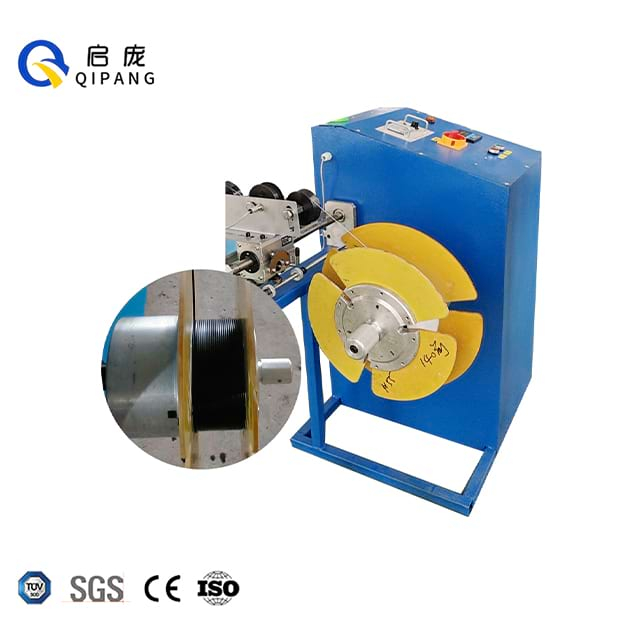

Brief: Parameter Model:QP500 Applicable Diameter: o0.1-30mm round wire, flat wire, tube Applicable Reel Size : Outer diameter less than 500mm, innerhole 30-60mm, width less than 350mmTake-up Speed: 280 RPM (customizable speed)
Advantages Frequency conversion speed regulation. Self-developed hand screw. Compatible with many different hole diameters. Load-bearing on both sides, more stable. Can be equipped with assembly line, even speed rewinding. Can be customized.
Brief: Cable reeling machine forcable warehouse. The machine is small in sizeand saves space. Many types of machines availableand customization is supported.

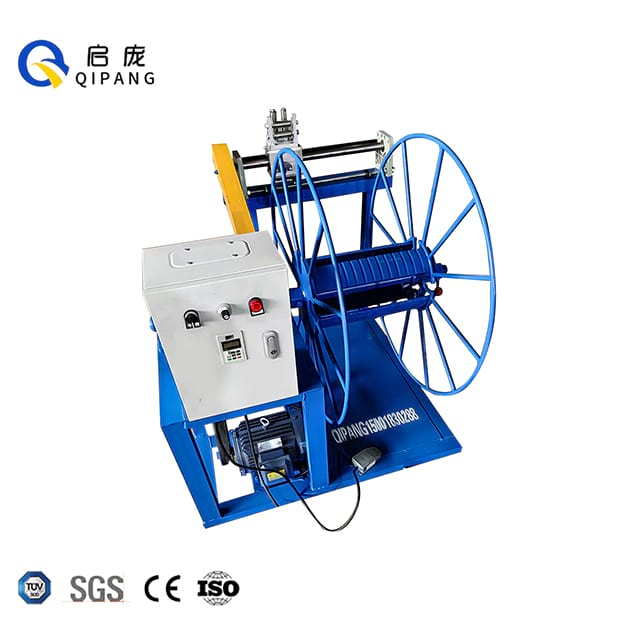

Brief: Electric lifting wire reel; Pneumatic clamping wire disc; Reciprocating slide plate of wire reel; Flat cable of polishrod flat cable device; lt is an economical and practical shaped l-shaped wheel with very convenient upperand lower plates, Wire machine, The adjustable speed deviceand meter device of the looper can be matched accordingto the requirements of the user. And a disconnection automaticstop device.

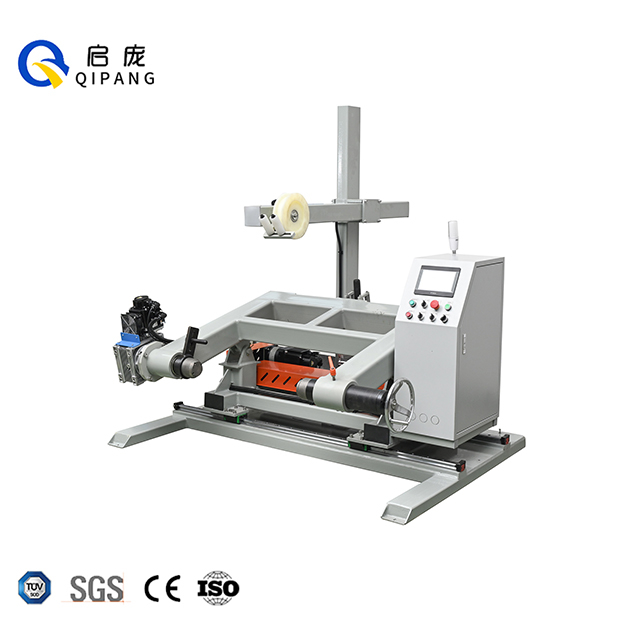

Brief: The machine adopts the whole frame moving structure, which enhances the carrying capacity of the equipment. The wire keeps a straight line, the electric lifting and lifting are convenient to operate. Ball screw wire, suitable for different diameters, high precision. A layer of paper can be laid underneath. Uses: stranded, extruded, irradiated wire, new energy copper wire, flat wire,aluminum wire. Lifting mode: adopt electro lifting mode. Bobbin Clamping mode: 400W deceleration motor clamping. Take- up model: 0.75kw 1500rpm Siemens AC servo motor drive, Speed and tension control can be achieved. Take- up torque: Max ~4600 N. m. The wire traversing adopts AC servo motor drive, ball screw traversing wire,pitch: 0~40mm, and sychronization with Take- up. The device contains pneumatic brakes that can be used to brake rapidly duri ng downtime. Siemens S7-1200 PLC control,7- inch touch screen control wiring traversig,wiring pitch can be set on the touch screen. Main parts bearing use NSK
Brief: This machine can wind enameled wire, alloy wire, stainless steel wire, black gold wire, nylon wire and other wires of different materials. It can realize simultaneous retraction and release, control the tension of the wire, measure meters, and achieve tight wire arrangement. Servo motors are used for winding, arranging and releasing wires. The operation interface uses touch screen input, which is intuitive and convenient to input.
Can be customized according to different needs">

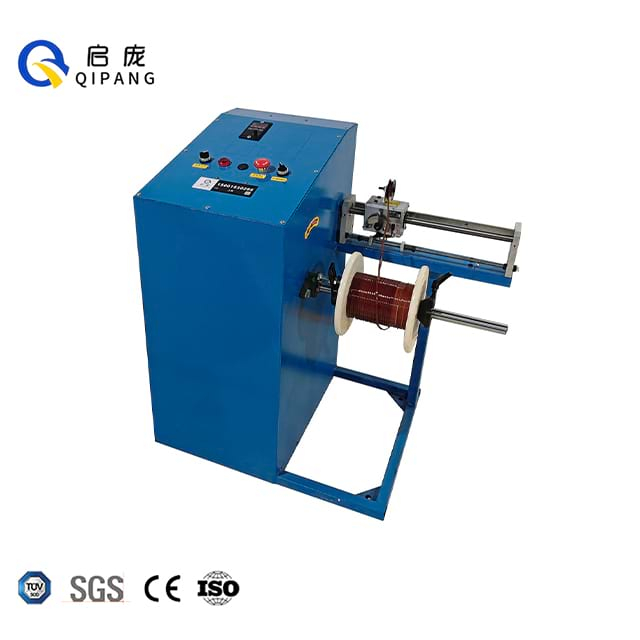

Brief: Parameter . Model : QP400 · Applicable Diameter: 00.1-30mm round wire, flat wire, tube· Applicable Reel Size : inner diameter 120,mmouter diameter 400mm
Advantages Frequency conversion speed control Top Cone Clamping, easy to up and downthe disk, bobbin below the tray, not afraid of falling down"L" foot of the base plate can be fixed, more stable.The speed can be matched with the assembly line,evenspeed winding. Can be customized according to different needs

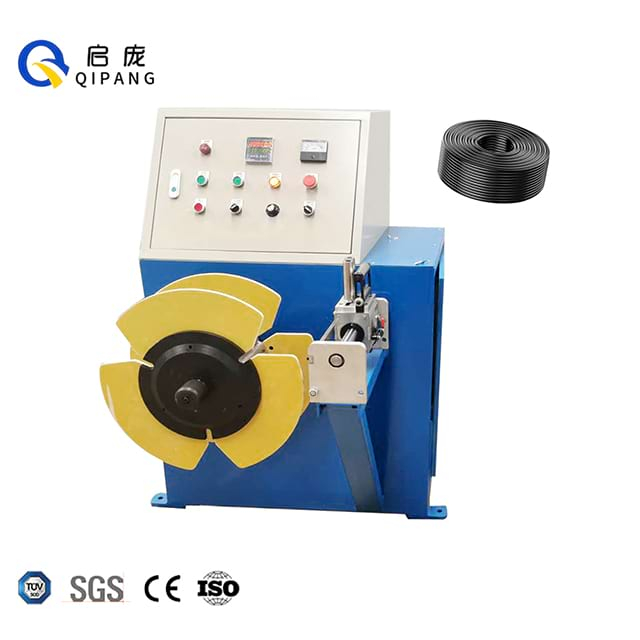

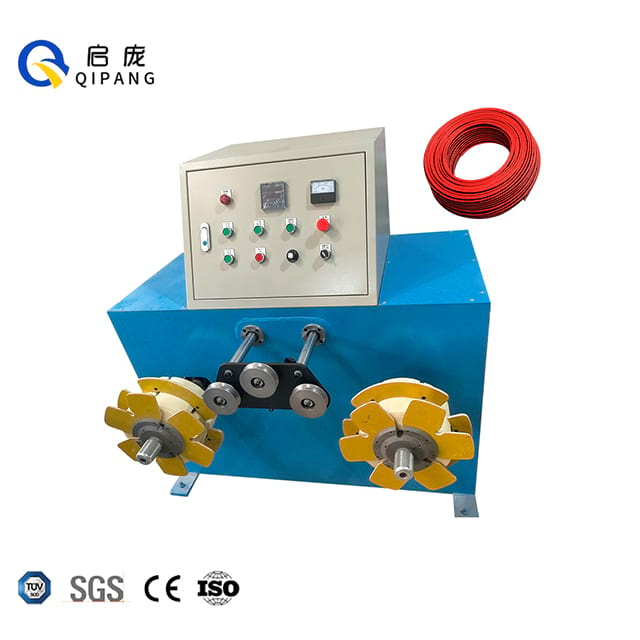

Brief: QP500/630 Coil Take-up Machine Production has high effectiveness, the man power costis only 20%of traditional model. Using automatic arranging, take-up speed is 2-3 times faster thantraditional model. Using quick binding device, after circling the cablecan be easily andquickly removed from work table, lots oftime can be savedThere is no any manpower-factor to impact thearranging quality.
Brief: 1, Production has high effectiveness, the man power costis only 20%of traditional model. 2 Using automatic arranging, take-up speed is 2-3 times faster thantraditional model. 3, Using quick binding device, after circling the cablecan be easily andquickly removed from work table, lots oftime can be saved 4.There is no any manpower-factor to impact thearranging quality.

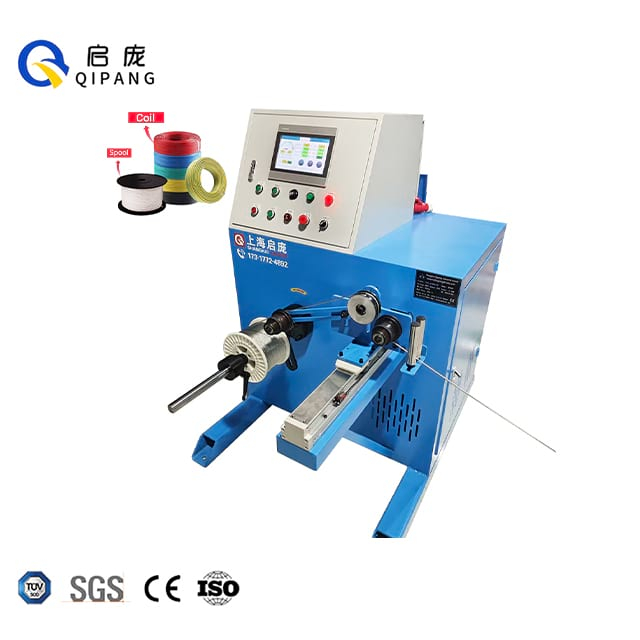

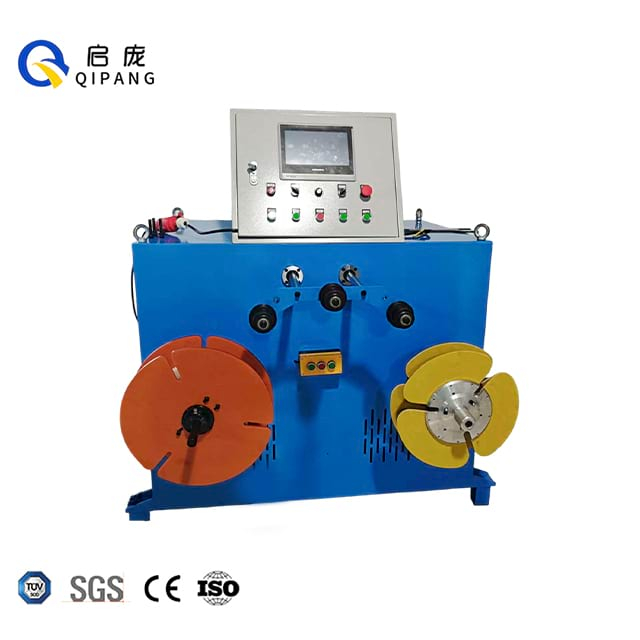

Brief: QP500/630 Servo Cable Coiling Machine take uprotation speed take up speed pitch of wiring Meterstozero Starting point of wiring wiring width Current position of wiring take upopen take up stop wire return parameter modification alarms return Current meter count setmeter Forecastmeters
Brief: Product use: 1 Production has high effectiveness, the man power costis only 20%of traditional model. 2, Using automatic arranging, take-up speed is 2-3 times faster thantraditional model. 3, Using quick binding device, after circling the cablecan be easily andquickly removed from work table, lots oftime can be saved4, There is no any manpower-factor to impact thearranging quality.

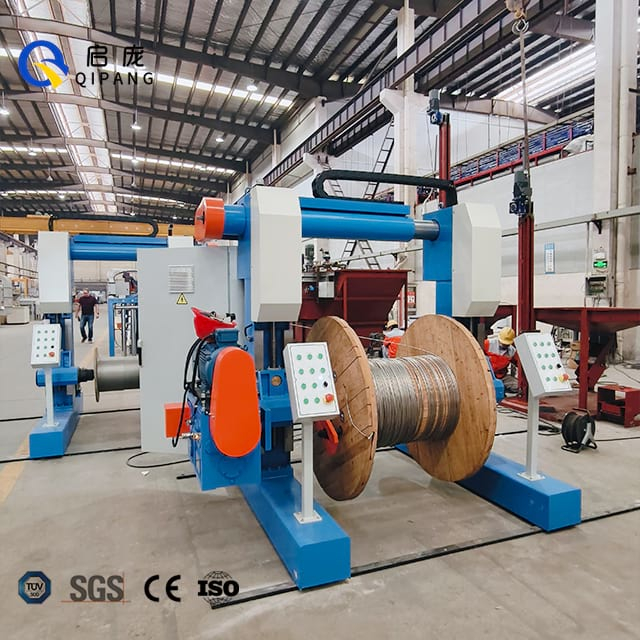

Brief: End-shaft type take-up and payout machineIt is available in two installation methods:One is the foundation type (which requires digging apit), with the bottom raised. Installation requiresdigging a foundation, making it more stable.The other is the standard type, which is fixed to theground with expansion screws. The machine features an end-shaft structure with a cast and welded frame. Two centers on the reel are raised and lowered by two motors driven by a cycloidal reducer and lead screw nuts. Each center can be raised or lowered individually or simultaneously, and is equipped with both mechanical and electrical protection devices. Different sized center sleeves can be added to accommodate reels of varying sizes when needed.
Brief: The gantry-type cable take-up/delivery machine features excellent design, superior workmanship, and comprehensive functions. The entire machine consists of two roller-equipped ground beams, two uprights, a telescopic crossbeam, and an electrical control system.
The main structural components are made of high-quality steel plates through bending and welding. The telescopic sleeve is made of high-strength seamless steel pipe, resulting in an aesthetically pleasing appearance and excellent overall rigidity and stability.
The two main shafts (centers) mounted on the uprights are shaftless, allowing for cable reel loading and unloading without the need for a crane. Cable reels can be loaded and unloaded from both sides of the frame.
During operation, the cable is guided into the winding device via a conductor device. The cable is not subjected to external force or twisting, ensuring the integrity of the cable insulation and the uniformity of cable laying. This also shortens the distance between the traction device and the take-up/delivery machine, facilitating the back-and-forth cable laying across the entire frame.
Brief: Application: Single spool payoff machine malnly appllcable to the productlonof electronlc wlres, standed copper wlres (core wlre),powerwlres etc. Malnly matched with the extruder etc. The machineuse active pay off mode, electrlc screw Ift, manualtenslonadjustment, synchronous belt drlve.
Brief: 1. 630 power pay-off rack 1. 2. 5.5KW*4P AC motor drive, sinusoidal vector inverter PlD control pay-off, pay-off speed 100-500 m/min. 3. Suitable for ф400~ф630mm (maximum width 475MM) wire reel operation pay-off (need to provide wire reel drawings). 4. Pneumatic shaftless top cone structure, manual operation loading and unloading coil. 5. Electric screw lifting coil, easy to operate and labor saving. 6. Suitable for ф0.8~ф8 core wire active pay-off. 7. Equipped with electromagnetic brake emergency stop without chaos. 8. The frame is made of high-quality rectangular steel pipe welded, the main shaft hole precision boring processing, durable. 9. The distribution wheel diameter фl60 aluminum line storage wheel and steering wheel, porcelain spray treatment, a total of 7 pieces. 10. Artificial counterweight tension adjustment. 11. lmported high precision displacement sensor feedback analog signal, to ensure pay-off speed and draw speed linkage. 12. The outlet is provided with a shaft wheel frame. 13. Outlet height meter meter.

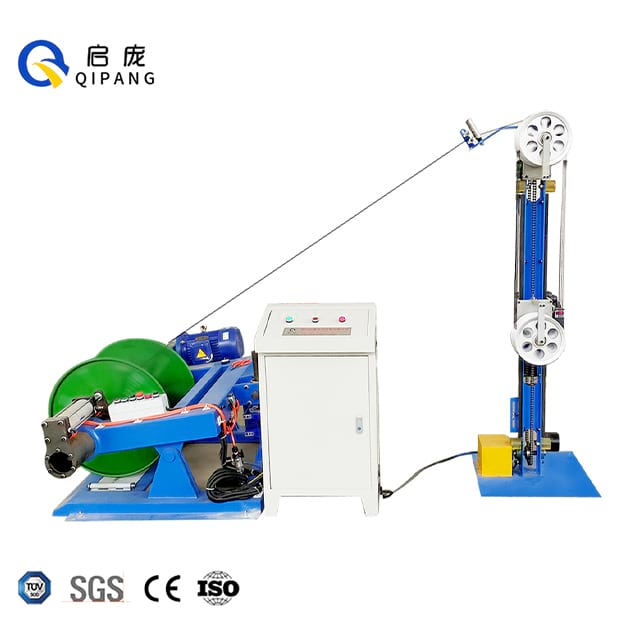

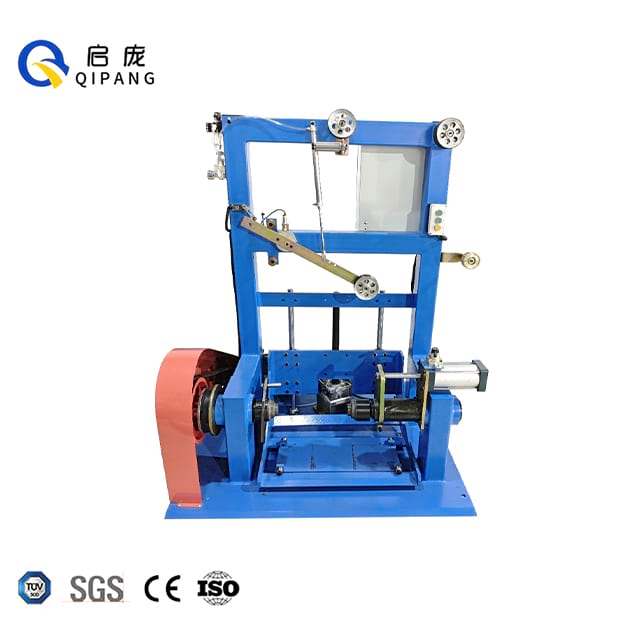

Brief: The active pay-off machine features a swing-arm type pay-off structure, and the tension control is a gravity-based tension control mechanism. The tension of the entire system can be adjusted by adjusting the counterweight on the swing arm. The pay-off machine speed and take-up machine speed are controlled by a lever-type potentiometer driven by the position of the swing arm, achieving linear adjustment to match the pay-off and take-up speeds.

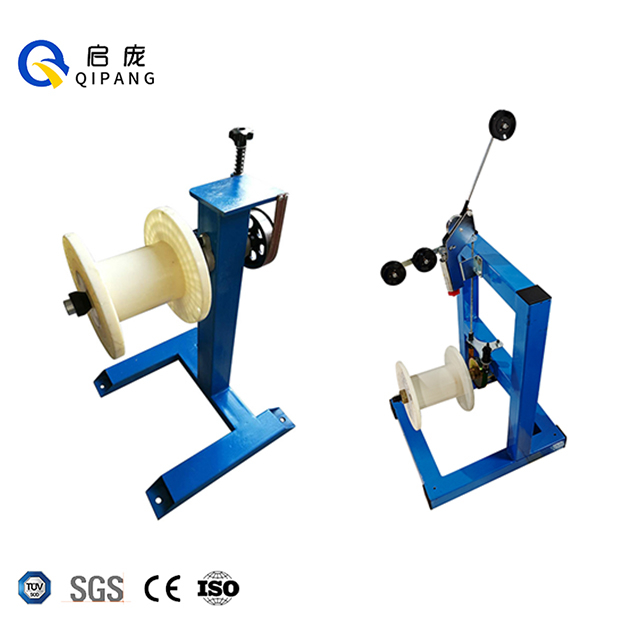

Brief: QP400 Belt/Tension Pasive Pay Off Machine is a sturdy and versatile pay-offreel that can be customized to fit your specific requirements. Thisproduct has been designed to accommodate wire diametersranging from 0.1-5mm metal wire to 1-20mm belt, making it idealfor various applications. It is also compatible with multiple strandedwire types, including BVR, enameled, and bare copper wire. The 400Simple Wire Pay-Off Rack is built with durability and stability in mind,featuring four fixing screw eyes that provide an extra level of supportand reliability.
Brief: The specifications for the Belt Type Single - Head Pay Off Rack are as follows: the outer diameter of the spool is available in two sizes: φ400 - 630mm and φ630 - 800mm; tension is controlled by a tension gun; the control method is belt brake/magnetic powder brake; the strength load is 400kg, and the standard load is 300kg.

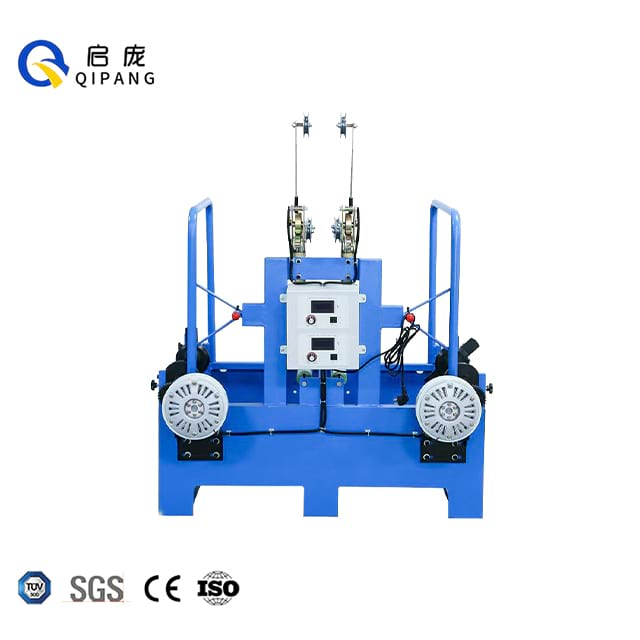

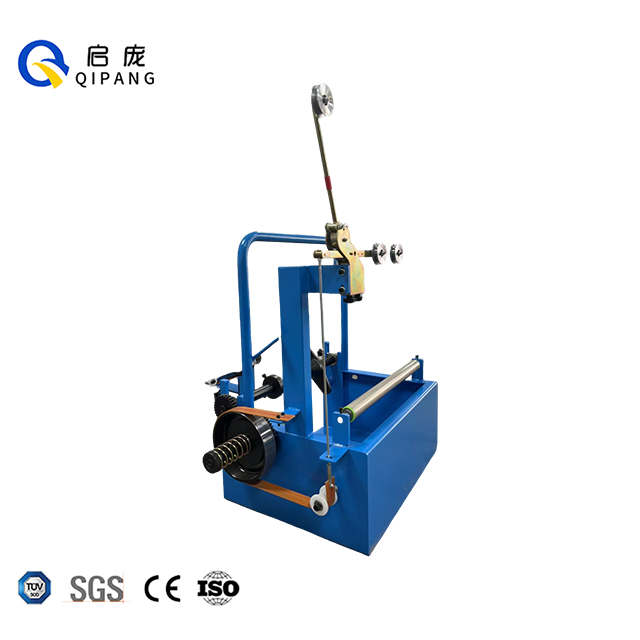

Brief: QP630 QP800 Single Head Belt Pay Off Rackare as follows: the outer diameter of the spool is available in two sizes: φ400 - 630mm and φ630 - 800mm; tension is controlled by a tension gun; the control method is belt brake/magnetic powder brake; the strength load is 400kg, and the standard load is 300kg.

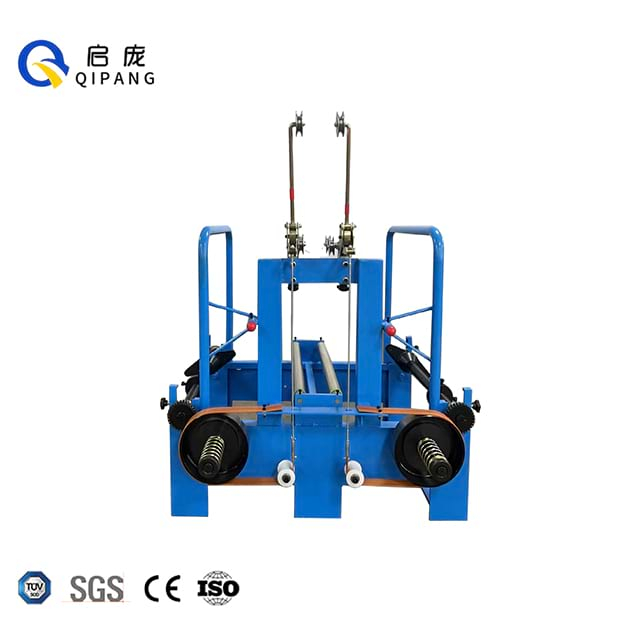

Brief: The specifications for the Japanese double-head tension pay-off stand are as follows: Reel outer diameter: φ400 - 630mm/φ630 - 800mm (customizable); Wire diameter range: 0.3 - 15mm for soft wire, 0.3 - 10mm for hard wire; Stranding type: bare copper wire, enameled wire, BVR wire, twisted pair, etc.; Tension control uses a double/triple spring tension gun with adjustable spring wire diameter control; Double head; Control method: belt brake/magnetic powder brake.
Brief: The specifications for the Japanese double-head tension pay-off stand are as follows: Reel outer diameter: φ400 - 630mm/φ630 - 800mm (customizable); Wire diameter range: 0.3 - 15mm for soft wire, 0.3 - 10mm for hard wire; Stranding type: bare copper wire, enameled wire, BVR wire, twisted pair, etc.; Tension control uses a double/triple spring tension gun with adjustable spring wire diameter control; Double head; Control method: belt brake/magnetic powder brake.

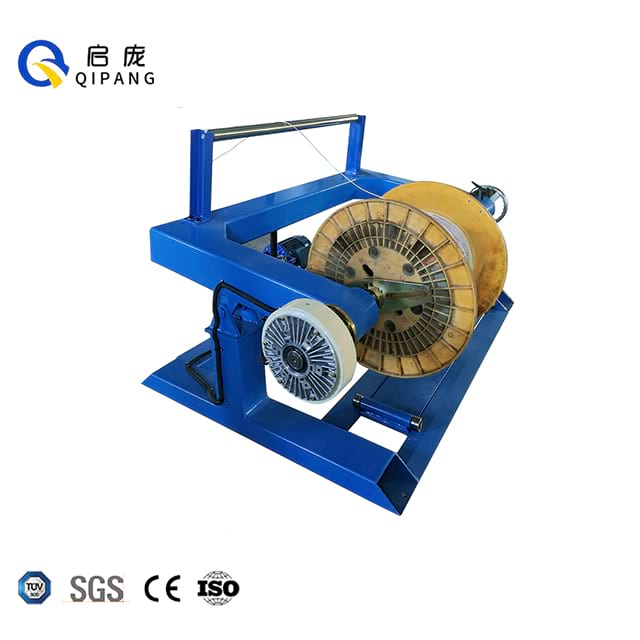

Brief: Cantilever shaftless Passive Pay off machine, supports wooden/iron/PN wire reels, suitable for reel diameters of 630-1250mm. The machine can be used with rewinding machines/extruders/production lines. Machine configuration: wire guide rollers, control cabinet buttons, magnetic powder control, telescopic clamping shaft, removable base plate, cylinder clamping.
Brief: This machine is suitable for cutting 2-15mm sized far-field optical cables, with coil linkage and electric wiring to ensure that the optical cables are undamaged. This product has high production efficiency and the quality of wiring is at the advanced level of similar products.
Brief: For customers' wire and cable rewinding needs, our company specializes in manufacturing complete rewinding equipment: take-up machine + meter counter + passive/active pay-off machine. We offer customization services for different materials/wire diameters and different spool sizes.
